timeSampleArray.h File Reference
#include "pxr/pxr.h"
#include "pxr/imaging/hd/api.h"
#include "pxr/imaging/hd/version.h"
#include "pxr/base/vt/array.h"
#include "pxr/base/vt/value.h"
#include "pxr/base/gf/math.h"
#include "pxr/base/gf/quatf.h"
#include "pxr/base/tf/diagnostic.h"
#include "pxr/base/tf/smallVector.h"

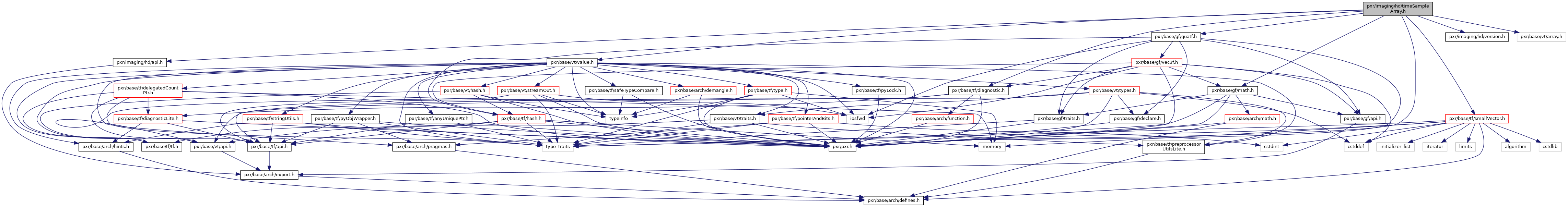

+ Include dependency graph for timeSampleArray.h:
+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  HdTimeSampleArray< TYPE, CAPACITY >

struct  HdIndexedTimeSampleArray< TYPE, CAPACITY >


Functions

template<typename T >
PXR_NAMESPACE_OPEN_SCOPEHdResampleNeighbors (float alpha, const T &v0, const T &v1)
 Resample two neighboring samples. More...

HD_API GfQuatf HdResampleNeighbors (float alpha, const GfQuatf &v0, const GfQuatf &v1)
 Specialization for HdQuatf: spherical linear interpolation. More...

template<typename T >
VtArray< T > HdResampleNeighbors (float alpha, const VtArray< T > &v0, const VtArray< T > &v1)
 Specialization for VtArray: component-wise resampling. More...

HD_API VtValue HdResampleNeighbors (float alpha, const VtValue &v0, const VtValue &v1)
 Specialization for VtValue: interpolate the held values. More...

template<typename T >
HdResampleRawTimeSamples (float u, size_t numSamples, const float *us, const T *vs)

template<typename T >
std::pair< T, VtIntArray > HdResampleRawTimeSamples (float u, size_t numSamples, const float *us, const T *vs, const VtIntArray *is)


Function Documentation

template<typename T >
PXR_NAMESPACE_OPEN_SCOPE T HdResampleNeighbors ( float  alpha,
const T &  v0,
const T &  v1
)
inline

Resample two neighboring samples.

Definition at line 41 of file timeSampleArray.h.

HD_API GfQuatf HdResampleNeighbors ( float  alpha,
const GfQuatf v0,
const GfQuatf v1
)
inline

Specialization for HdQuatf: spherical linear interpolation.

Definition at line 48 of file timeSampleArray.h.

template<typename T >
VtArray<T> HdResampleNeighbors ( float  alpha,
const VtArray< T > &  v0,
const VtArray< T > &  v1
)
inline

Specialization for VtArray: component-wise resampling.

Definition at line 57 of file timeSampleArray.h.

HD_API VtValue HdResampleNeighbors ( float  alpha,
const VtValue v0,
const VtValue v1
)

Specialization for VtValue: interpolate the held values.

template<typename T >
T HdResampleRawTimeSamples ( float  u,
size_t  numSamples,
const float *  us,
const T *  vs
)

Resample a function described by an ordered array of samples, using a linear reconstruction filter evaluated at the given parametric position u. The function is considered constant outside the supplied sample range.

Definition at line 77 of file timeSampleArray.h.

template<typename T >
std::pair<T, VtIntArray> HdResampleRawTimeSamples ( float  u,
size_t  numSamples,
const float *  us,
const T *  vs,
const VtIntArray *  is
)

Resample a function described by an ordered array of samples and sample indices, using a linear reconstruction filter evaluated at the given parametric position u. The function is considered constant outside the supplied sample range.

Definition at line 122 of file timeSampleArray.h.
