visitValue.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/vt/value.h"

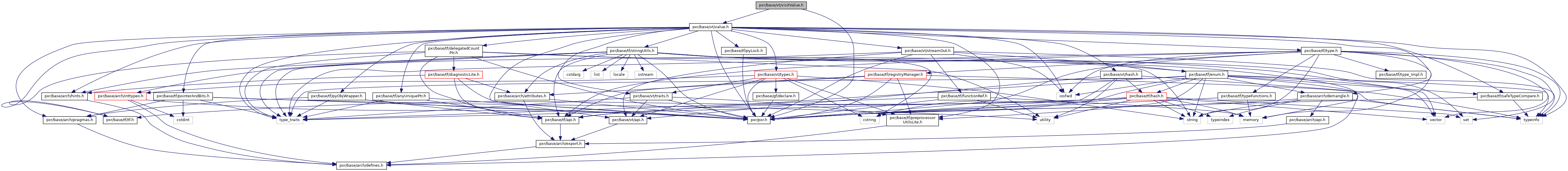

Include dependency graph for visitValue.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	Vt_ValueVisitDetail

Macros
#define	VT_CASE_FOR_TYPE_INDEX(unused, elem)
#define	VT_CASE_FOR_TYPE_INDEX(unused, elem)
#define	VT_CASE_FOR_TYPE_INDEX(unused, elem)

Functions
template<class T , class Visitor , class... Args>
auto	Vt_ValueVisitDetail::Visit (VtValue const &val, Visitor &&visitor, int, Args &&...args) -> decltype(std::forward< Visitor >(visitor)(val.UncheckedGet< T >(), std::forward< Args >(args)...))
template<class T , class Visitor , class... Args>
auto	Vt_ValueVisitDetail::Visit (VtValue const &val, Visitor &&visitor, long, Args &&...args)
template<class Visitor , class... Args>
auto	VtVisitValue (VtValue const &value, Visitor &&visitor, Args &&...args)
template<template< class T, class...> class Visitor, typename... TypeArgs, typename... FnArgs>
auto	VtVisitValueType (VtValue const &value, FnArgs &&...args)
template<template< class T, template< class...> class, class...> class Visitor, template< class...> class Tmpl, typename... TypeArgs, typename... FnArgs>
auto	VtVisitValueType (VtValue const &value, FnArgs &&...args)

Macro Definition Documentation

#define VT_CASE_FOR_TYPE_INDEX	(		unused,
			elem
	)

Value:

case VtGetKnownValueTypeIndex<VT_TYPE(elem)>():                        \
            return Vt_ValueVisitDetail::Visit<VT_TYPE(elem)>(                  \
                value, std::forward<Visitor>(visitor), 0,                      \
                std::forward<Args>(args)...);                                  \
            break;

#define VT_CASE_FOR_TYPE_INDEX	(		unused,
			elem
	)

Value:

case VtGetKnownValueTypeIndex<VT_TYPE(elem)>():                        \
            return Visitor<VT_TYPE(elem), TypeArgs...>::Visit(                 \
                std::forward<FnArgs>(args)...);                                \
            break;

#define VT_CASE_FOR_TYPE_INDEX	(		unused,
			elem
	)

Value:

case VtGetKnownValueTypeIndex<VT_TYPE(elem)>():                        \
            return Visitor<VT_TYPE(elem), Tmpl, TypeArgs...>::Visit(           \
                std::forward<FnArgs>(args)...);                                \
            break;

Function Documentation

template<class Visitor , class... Args>

auto VtVisitValue	(	VtValue const &	value,
		Visitor &&	visitor,
		Args &&...	args
	)

Invoke visitor with value's held object if value holds an object of one of the "known" value types (those in VT_VALUE_TYPES, see vt/types.h). If value does not hold a known type, or if it is empty, or if visitor cannot be called with an object of the held type, then call visitor with value itself. Note this means that visitor must be callable with a VtValue argument.

VtVisitValue() can be lower overhead compared to a chained-if of VtValue::IsHolding() calls, or a hash-table-lookup dispatch. Additionally, visitors can handle related types with a single case, rather than calling out all types individually. For example:

// If the value holds an array return its size, otherwise size_t(-1).
struct GetArraySize {
    template <class T>
    size_t operator()(VtArray<T> const &array) const {
        return array.size();
    }
    size_t operator()(VtValue const &val) const {
        return size_t(-1);
    }
};

VtVisitValue(VtValue(VtIntArray(123)), GetArraySize()) -> 123
VtVisitValue(VtValue(VtDoubleArray(234)), GetArraySize()) -> 234
VtVisitValue(VtValue(VtVec3fArray(345)), GetArraySize()) -> 345
VtVisitValue(VtValue("not-a-vt-array"), GetArraySize()) -> size_t(-1)

Note that the visitor is invoked as a normal C++ call expression, so implicit conversions and standard overload resolution (including controlling overload resolution via techniques like enable_if) can take place. For example, consider the following, where the double-specific overload is invoked for VtValues holding double, float, and GfHalf.

struct AsDouble {
    double operator()(double val) const {
        return val;
    }
    double operator()(VtValue const &) const {
        return std::numeric_limits<double>::quiet_NaN();
    }
};

VtVisitValue(VtValue(1.23), AsDouble()) -> 1.23
VtVisitValue(VtValue(float(0.5f)), AsDouble()) -> 0.5
VtVisitValue(VtValue(GfHalf(1.5f)), AsDouble()) -> 1.5
VtVisitValue(VtValue("not-convertible-to-double"), AsDouble()) -> NaN.

Any additional passed arguments following the visitor are forwarded to it.

auto multiply = TfOverloads {
    [](int val, int scl) { return val * scl; },
    [](double val, int scl) { return static_cast<int>(rint(val * scl)); },
    [](VtValue const &val, int scl) { return -1; }
};

VtVisitValue(VtValue(123), multiply, 2);  -> 246 // multiply by 2.
VtVisitValue(VtValue(1.23), multiply, 3); -> 4   // multiply by 3 & round.

Definition at line 109 of file visitValue.h.

template<template< class T, class...> class Visitor, typename... TypeArgs, typename... FnArgs>

auto VtVisitValueType	(	VtValue const &	value,
		FnArgs &&...	args
	)

Invoke Visitor<T, ...>::Visit(...) with T being value 's held object's type if value holds an object of one of the "known" value types (those in VT_VALUE_TYPES, see vt/types.h). If value does not hold a known type or if it is empty, then invoke Visitor with T == VtValue.

VtVisitValueType() can be lower overhead compared to a chained-if of VtValue::IsHolding() calls, or a hash-table-lookup dispatch. Additionally, visitors can use partial template specialization to handle related types with a single case, rather than calling out all types individually. For example:

// Return single-value sizes or array element sizes.
template <class T>
struct GetElementSize {
    static constexpr size_t size = sizeof(T);
};

template <class T>
struct GetElementSize<VtArray<T>> {
    static constexpr size_t size = sizeof(T);
};

template <>
struct GetElementSize<VtValue> {
    static constexpr size_t size = 0; // unknown type.
};

VtVisitValueType<GetElementSize>(VtValue(123)) -> 4
VtVisitValueType<GetElementSize>(VtValue(VtIntArray {})) -> 4
VtVisitValueType<GetElementSize>(VtValue(1.23)) -> 8
VtVisitValueType<GetElementSize>(VtValue(VtDoubleArray {})) -> 8
VtVisitValueType<GetElementSize>(VtValue(UnknownType {})) -> 0

Any explicitly passed template arguments are passed to Visitor and function are forwarded to Visit().

// Return true if the common_type<T, U> is T.
template <class T, class U>
struct IsCommonTypeWith {
    return std::is_same_v<std::common_type_t<T, U>, T>;
};

VtVisitValueType<IsCommonTypeWith, float>(VtValue(123)) -> false
VtVisitValueType<IsCommonTypeWith, int>(VtValue(1.23)) -> true

Definition at line 187 of file visitValue.h.

template<template< class T, template< class...> class, class...> class Visitor, template< class...> class Tmpl, typename... TypeArgs, typename... FnArgs>

auto VtVisitValueType	(	VtValue const &	value,
		FnArgs &&...	args
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

This overload accepts a leading class template argument that is passed along to the Visitor as its second template argument. This can be useful to invoke factories that instantiate types dependent on the VtValue held-type. For example:

template <class T, template <class> class Template>
struct MakeNew {
    static auto Visit(size_t count) {
        return Template<T>::New(count);
    }
};

class WrapperBase {
public:
    virtual ~WrapperBase() = default;
};

template <class T>
class Wrapper : public WrapperBase {
    std::unique_ptr<Wrapper> New(size_t count);
};

// Returns Wrapper<T>::New(count) where T is the held-type of `val`.
return VtVisitValue<MakeNew, MyWrapper>(val, count);

Definition at line 243 of file visitValue.h.
