GU_Blend.h File Reference

#include "GU_API.h"
#include <CE/CE_BufferDevice.h>
#include <CE/CE_Context.h>
#include <GA/GA_CEAttribute.h>
#include <GA/GA_IndexMap.h>
#include <GA/GA_Names.h>
#include <GA/GA_Types.h>
#include <UT/UT_Array.h>
#include <UT/UT_UniquePtr.h>
#include <SYS/SYS_Types.h>

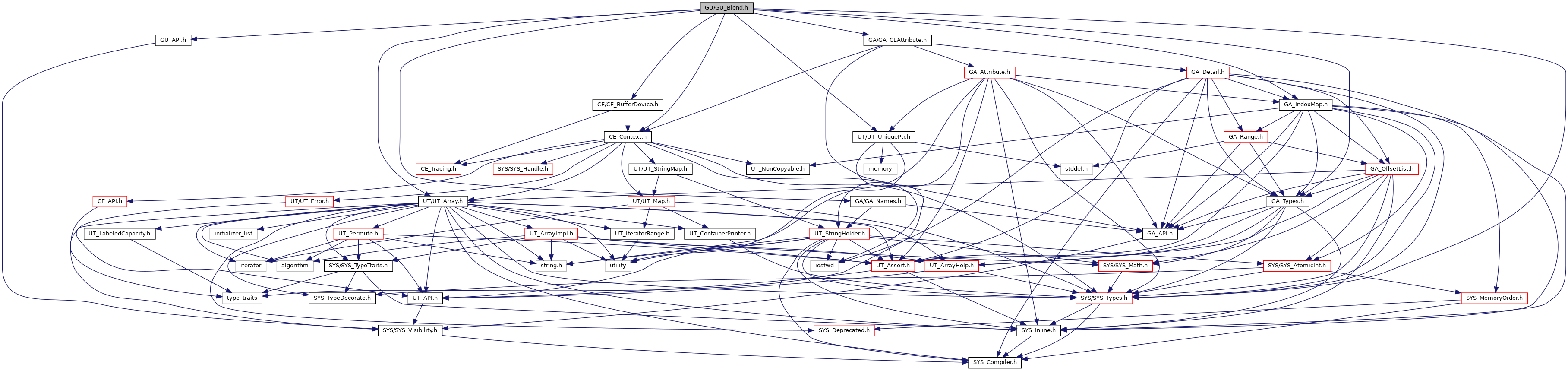

Include dependency graph for GU_Blend.h:

Go to the source code of this file.

Classes
struct	GU_Blend::PerAttribData
struct	GU_Blend::PerAttribDataT< T >
struct	GU_Blend::PerMappingData
struct	GU_Blend::MaskData
struct	GU_Blend::SparseHeader
class	GU_Blend::CachedItemsOCL
class	GU_Blend::CachedItems
class	GU_Blend::CachedItemsT< T >

Namespaces
	GU_Blend

Enumerations
enum	GU_VoxelBlend { GU_VoxelBlend::None, GU_VoxelBlend::ByGridIndex, GU_VoxelBlend::ByVoxelPos, GU_VoxelBlend::Advected }
enum	GU_MaskMode { GU_MaskMode::None, GU_MaskMode::SetFromAttrib, GU_MaskMode::ScaleFromAttrib }
enum	GU_Blend::DeltaModeOCL : uint8_t { GU_Blend::DENSE_MODE, GU_Blend::SPARSE_MODE }

Functions
GU_API void	GUblend (GU_Detail *dest, const GU_Detail *source, fpreal weight, const char *pattern="*", const UT_StringRef &ptidattr=GA_Names::id, const UT_StringRef &primidattr=GA_Names::name, bool doslerp=true, bool usevforpinterp=false, float timestep=(1/24.0), GU_VoxelBlend dovoxel=GU_VoxelBlend::None, GU_Blend::CachedItems *cached_items=NULL, const char *velname="vel", float advdt=1, bool deleteUnmatched=false, const char *unmatchedGroupName=NULL)
GU_API void	GUblend (GU_Detail *dest, const GU_Detail *gdps[], const float *weights, int size, const GA_Group *group, const char *pattern="*", const UT_StringRef &ptidattr=GA_Names::id, const UT_StringRef &primidattr=GA_Names::name, bool doslerp=true, GU_VoxelBlend dovoxel=GU_VoxelBlend::None, GU_Blend::CachedItems *cached_items=NULL, bool is_differencing=true, bool dosparse=false, float timestep=(1/24.0), const char *velname="vel", float advdt=1, fpreal volweight=0, int deleteUnmatched=0, const char *unmatchedGroupName=NULL, const GU_Blend::MaskData *mask_data=NULL, float total=1)
GU_API float	GUgetInbetweenWeight (float channel_weight, const UT_Array< float > &inbetween_weights, int inbetween_idx)
GU_API bool	GUblendDetailDict (GU_Detail *gdp, const GU_Detail *gdp1, const UT_StringHolder &attribute, const UT_StringArray &keys, const fpreal64 blend)
GU_API bool	GUblendDict (UT_OptionsHolder &opt0, const UT_OptionsHolder &opt1, const UT_StringArray &keys, const fpreal64 blend)
GU_API void	GUblendRange (GA_Attribute &attrib0, const GA_Attribute &attrib1, const GA_Range &range0, float weight, const UT_Array< GA_Offset > *mapping)
GU_API void	GUblendRange (GA_Attribute &attrib0, const GA_Attribute &attrib1, const GA_Range &range0, const UT_Array< float > &weights, const UT_Array< GA_Offset > *mapping)

Enumeration Type Documentation

enum GU_MaskMode

strong

Enumerator
None
SetFromAttrib
ScaleFromAttrib

Definition at line 43 of file GU_Blend.h.

enum GU_VoxelBlend

strong

Enumerator
None
ByGridIndex
ByVoxelPos
Advected

Definition at line 35 of file GU_Blend.h.

Function Documentation

GU_API void GUblend	(	GU_Detail *	dest,
		const GU_Detail *	source,
		fpreal	weight,
		const char *	pattern = "*",
		const UT_StringRef &	ptidattr = GA_Names::id,
		const UT_StringRef &	primidattr = GA_Names::name,
		bool	doslerp = true,
		bool	usevforpinterp = false,
		float	timestep = (1/24.0),
		GU_VoxelBlend	dovoxel = GU_VoxelBlend::None,
		GU_Blend::CachedItems *	cached_items = NULL,
		const char *	velname = "vel",
		float	advdt = 1,
		bool	deleteUnmatched = false,
		const char *	unmatchedGroupName = NULL
	)

If deleteUnmatched is true, points that don't have a match to interpolate with are deleted. If deleteUnmatched is false but unmatchedGroupName is given (non-NULL), then these points are instead put into a point group of the specified name. Note that points of volume and VDB primitives are neither deleted nor put into the group.

GU_API void GUblend	(	GU_Detail *	dest,
		const GU_Detail *	gdps[],
		const float *	weights,
		int	size,
		const GA_Group *	group,
		const char *	pattern = "*",
		const UT_StringRef &	ptidattr = GA_Names::id,
		const UT_StringRef &	primidattr = GA_Names::name,
		bool	doslerp = true,
		GU_VoxelBlend	dovoxel = GU_VoxelBlend::None,
		GU_Blend::CachedItems *	cached_items = NULL,
		bool	is_differencing = true,
		bool	dosparse = false,
		float	timestep = (1/24.0),
		const char *	velname = "vel",
		float	advdt = 1,
		fpreal	volweight = 0,
		int	deleteUnmatched = 0,
		const char *	unmatchedGroupName = NULL,
		const GU_Blend::MaskData *	mask_data = NULL,
		float	total = 1
	)

If deleteUnmatched is non-zero, points that have fewer than that many interpolation sources are deleted from the output (or put into the specified group if unmatchedGroupName is not NULL). NOTE: Advected volume interpolation is necessarily linear; in that case, volweight is needed to determine which detail to blend with and by how much.

GU_API bool GUblendDetailDict	(	GU_Detail *	gdp,
		const GU_Detail *	gdp1,
		const UT_StringHolder &	attribute,
		const UT_StringArray &	keys,
		const fpreal64	blend
	)

Blend float entries from 2 geometry dict detail attributes. This assumes the attributes have the same attribute name on both geometries. The keys argument is an array of string containing a key to match at each level. This was implemented to blend a float 'value' entry inside a nested dict.

GU_API bool GUblendDict	(	UT_OptionsHolder &	opt0,
		const UT_OptionsHolder &	opt1,
		const UT_StringArray &	keys,
		const fpreal64	blend
	)

GU_API void GUblendRange	(	GA_Attribute &	attrib0,
		const GA_Attribute &	attrib1,
		const GA_Range &	range0,
		float	weight,
		const UT_Array< GA_Offset > *	mapping
	)

Blend the attribute values for the given range, with an optional mapping to different offsets in the second detail. If set, the weights and mapping arrays should be at least as long as attrib0's offset map (attrib0.getIndexMap().offsetSize()).

GU_API void GUblendRange	(	GA_Attribute &	attrib0,
		const GA_Attribute &	attrib1,
		const GA_Range &	range0,
		const UT_Array< float > &	weights,
		const UT_Array< GA_Offset > *	mapping
	)

Blend the attribute values for the given range, with an optional mapping to different offsets in the second detail. If set, the weights and mapping arrays should be at least as long as attrib0's offset map (attrib0.getIndexMap().offsetSize()).

GU_API float GUgetInbetweenWeight	(	float	channel_weight,
		const UT_Array< float > &	inbetween_weights,
		int	inbetween_idx
	)

Calculate the blend weight for an in-between shape given the channel weight and a list of all in-between weights
