PI_ClassManager.h File Reference

#include "PI_API.h"
#include <UT/UT_ValArray.h>

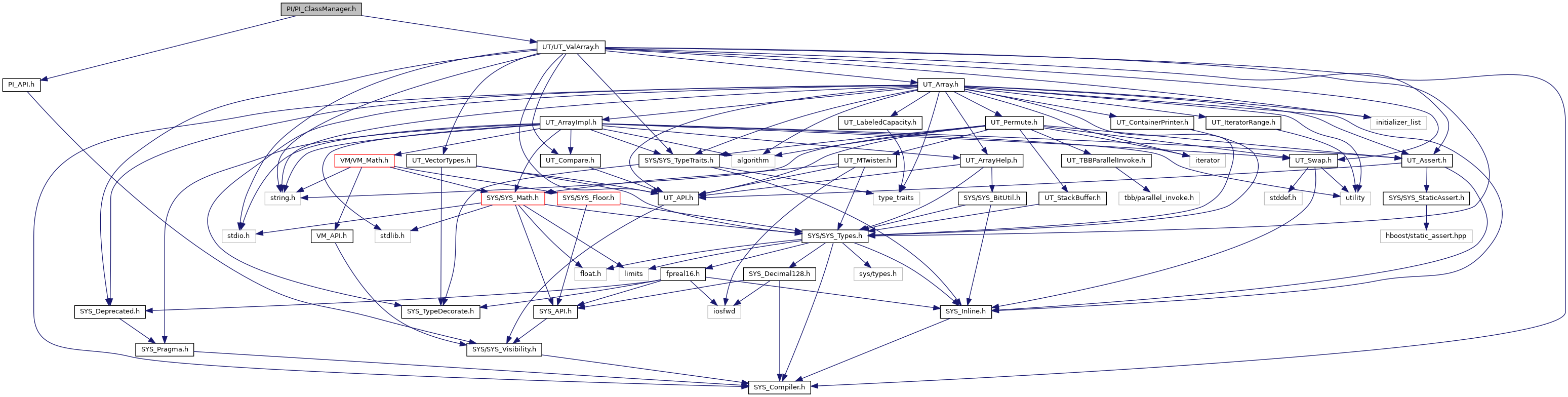

Include dependency graph for PI_ClassManager.h:

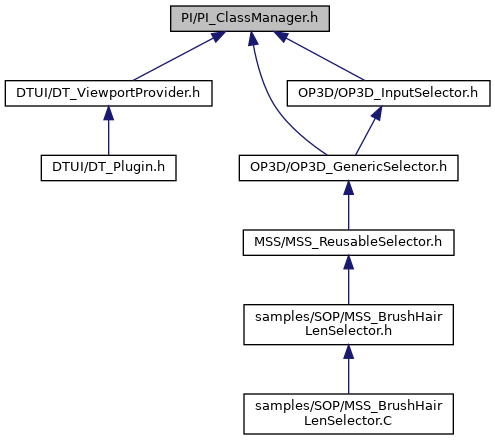

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	PI_ClassManager
class	PI_SelectorTable
class	PI_SelectionEntry

Macros
#define	PI_SETUP()
#define	PI_REGISTER(name, classname)
#define	SELECTOR_SETUP()
#define	SELECTOR_REGISTER(name, data, classname)
#define	SELECTOR_SETUP_TABLE()
#define	SELECTOR_REGISTER_TABLE_BEGIN(classname)
#define	SELECTOR_REGISTER_TABLE_ENTRY(name, data, constructor)   PI_SelectorTable(name, (void *)data, (void *)constructor),
#define	SELECTOR_REGISTER_TABLE_END()

Typedefs
typedef UT_Array< PI_GeometryType >	PI_GeometryTypeArray

Enumerations
enum	PI_GeometryType {   PI_GEOTYPE_INVALID = -1, PI_GEOTYPE_POINTS = 0, PI_GEOTYPE_EDGES, PI_GEOTYPE_PRIMITIVES,   PI_GEOTYPE_VERTICES, PI_GEOTYPE_BREAKPOINTS, PI_NUM_GEOTYPES }

Functions
PI_API PI_ClassManager *	PIgetClassManager ()

Macro Definition Documentation

#define PI_REGISTER	(		name,
			classname
	)

Value:

classname::init classname::initializer;         \
classname::init::init()                         \
{ PIgetClassManager()->addPI(name, (void *)classname::ourConstructor); }

Definition at line 57 of file PI_ClassManager.h.

#define PI_SETUP

(

)

Value:

class  init { public: init(); int dummy; };     \
static init initializer;

Definition at line 53 of file PI_ClassManager.h.

#define SELECTOR_REGISTER	(		name,
			data,
			classname
	)

Value:

classname::init classname::initializer;         \
classname::init::init()                         \
{ PIgetClassManager()->addSelector(name, data,  \
                       (void *)classname::ourConstructor); }

Definition at line 76 of file PI_ClassManager.h.

#define SELECTOR_REGISTER_TABLE_BEGIN

(

classname

)

Value:

classname::init classname::initializer;                                 \
classname::init::init()                                                 \
{   PI_SelectorTable     table[] = {

Definition at line 86 of file PI_ClassManager.h.

#define SELECTOR_REGISTER_TABLE_END

(

)

Value:

PI_SelectorTable(0, 0, 0) };                                    \
    for( int i = 0; table[i].myName; i++ )                              \
        PIgetClassManager()->addSelector(table[i].myName,               \
                             table[i].myData,                           \
                             table[i].myConstructor); }

Definition at line 94 of file PI_ClassManager.h.

#define SELECTOR_REGISTER_TABLE_ENTRY	(		name,
			data,
			constructor
	)		PI_SelectorTable(name, (void *)data, (void *)constructor),

Definition at line 91 of file PI_ClassManager.h.

#define SELECTOR_SETUP

(

)

Value:

class  init { public: init(); int dummy; };     \
static init initializer;

Definition at line 72 of file PI_ClassManager.h.

#define SELECTOR_SETUP_TABLE

(

)

Value:

class  init { public: init(); int dummy; };                             \
static init initializer;

Definition at line 82 of file PI_ClassManager.h.

Typedef Documentation

typedef UT_Array<PI_GeometryType> PI_GeometryTypeArray

Definition at line 114 of file PI_ClassManager.h.

Enumeration Type Documentation

enum PI_GeometryType

Enumerator
PI_GEOTYPE_INVALID
PI_GEOTYPE_POINTS
PI_GEOTYPE_EDGES
PI_GEOTYPE_PRIMITIVES
PI_GEOTYPE_VERTICES
PI_GEOTYPE_BREAKPOINTS
PI_NUM_GEOTYPES

Definition at line 103 of file PI_ClassManager.h.

Function Documentation

PI_API PI_ClassManager* PIgetClassManager

(

)
