#include <GA_ElementGroupTable.h>

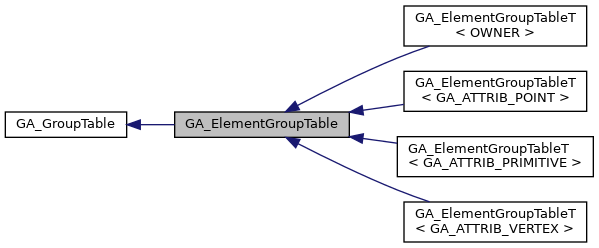

Inheritance diagram for GA_ElementGroupTable:

Classes
class	ElementType

class	ElementType< GA_ATTRIB_POINT, DUMMY >

class	ElementType< GA_ATTRIB_PRIMITIVE, DUMMY >

class	ElementType< GA_ATTRIB_VERTEX, DUMMY >

Public Types
typedef GA_GroupTable::iterator < GA_ElementGroup >	iterator

Public Types inherited from GA_GroupTable
typedef UT_ArrayStringMap < GA_Group * >	MapType

typedef UT_OrderedIterator < GA_Group *, GA_GroupTable::iterator < GA_Group > >	ordered_iterator

Public Member Functions
	~GA_ElementGroupTable () override

void	getList (UT_Array< const GA_ElementGroup * > &list) const

void	getList (UT_Array< GA_ElementGroup * > &list) const

bool	loadGroupsH9 (UT_IStream &is, GA_AttributeOwner owner, int count)

bool	saveGroupsH9 (std::ostream &os, int binary) const

void	unionElementForAllGroups (GA_Offset dest, GA_Offset src) const
	Add `dest` to the same groups that `src` belongs to. More...

void	intersectElementForAllGroups (GA_Offset dest, GA_Offset src) const
	Remove `dest` from the groups that `src` does not belong to. More...

GA_Size	destroyEmptyGroups ()

void	invalidateGroupEntries ()

SYS_FORCE_INLINE GA_ElementGroup *	find (const UT_StringRef &name) const


GA_GroupTable::iterator < GA_ElementGroup >	beginTraverse () const

GA_GroupTable::iterator < GA_ElementGroup >	endTraverse () const


void	addElementToAllGroups (GA_Offset dest) const

void	toggleElementInAllGroups (GA_Offset dest) const

void	removeElementFromAllGroups (GA_Offset dest) const

Public Member Functions inherited from GA_GroupTable
	GA_GroupTable (GA_Detail &detail)

virtual	~GA_GroupTable ()

virtual int64	getMemoryUsage (bool inclusive) const
	Report memory usage (includes all shared memory) More...

virtual void	countMemory (UT_MemoryCounter &counter, bool inclusive) const

bool	isEmpty () const

exint	getPersistentCount () const

exint	entries () const

GA_Group *	find (const UT_StringRef &name) const

GA_Group *	newGroup (const UT_StringHolder &name)

GA_Group *	newInternalGroup ()

GA_Group *	newGroup (const UT_StringHolder &name, bool internal)
	TODO: Deprecate internal groups with user-specified names. More...

bool	destroy (GA_Group *group)

bool	destroy (const UT_StringRef &name)

GA_Size	destroyGroups (const Filter &filter)

void	clear ()

bool	renameGroup (const UT_StringRef &fromname, const UT_StringHolder &toname)

UT_StringHolder	renameGroupUnspecified (const UT_StringRef &from_name)

bool	jsonSave (UT_JSONWriter &w, const GA_SaveMap &map, const char *type) const

bool	jsonLoad (UT_JSONParser &p, const GA_LoadMap &map, const char *type_default, GA_AttributeOwner owner)
	Load the groups from the JSON stream. More...

bool	jsonShouldSave (const GA_SaveMap &map) const
	Returns `true` if there are any groups to be saved out. More...

GA_GroupTable::iterator< GA_Group >	beginTraverse () const

GA_GroupTable::iterator< GA_Group >	endTraverse () const

GA_GroupUPtr	createDetachedGroup () const

GA_Group *	newDetachedGroup () const

void	stat (UT_StringArray &info, uint level)

void	stat (GA_Stat &stat, uint level) const

ordered_iterator	obegin () const

ordered_iterator	oend () const

Protected Member Functions
	GA_ElementGroupTable (GA_Detail &detail, GA_AttributeOwner owner)

void	baseMergeTable (const GA_ElementGroupTable &src, GA_MergeMap &map, GA_AttributeOwner owner)

GA_Group *	jsonCreateGroup (UT_JSONParser &p, const char type, const char name, bool internal, GA_AttributeOwner owner) override

virtual GA_AttributeOwner	getOwner () const =0

Protected Member Functions inherited from GA_GroupTable
template<typename T >
iterator< T >	begin () const

template<typename T >
iterator< T >	end () const

template<typename GROUP_TYPE >
void	getListT (UT_Array< GROUP_TYPE * > &list) const

GA_Detail &	getDetail ()

const GA_Detail &	getDetail () const

virtual GA_Group *	virtualCreateGroup (GA_Detail &detail, const UT_StringHolder &name, bool internal) const =0

virtual GA_Group *	virtualCreateDetachedGroup (const GA_Detail &detail) const =0

GA_Group *	newGroupWithNoConflict (const UT_StringHolder &name, bool internal)

void	reserveNewSymbolTableSpace (exint n)

const MapType &	getMap () const
	Used only by GA_AttributeDict. More...

typedef UT_OrderedIterator < GA_ElementGroup *, GA_GroupTable::iterator < GA_ElementGroup > >	ordered_iterator

ordered_iterator	obegin () const

ordered_iterator	oend () const

static int	compareAlpha (GA_ElementGroup const a, GA_ElementGroup const b)

void	removeElementsFromGroupOrders (const GA_Range &range) const

void	removeElementsFromGroupOrders (const GA_Range &range, const GA_RangeMemberQuery *&range_query) const

void	removeMixElementsFromGroups (GA_Offset element, const GA_SecondaryLookupInfo *sec_prefix, const GA_Range &sec_range) const

void	removeMixElementsFromGroups (GA_Offset element, const GA_SecondaryLookupInfo sec_prefix, const GA_Range &sec_range, const GA_RangeMemberQuery &sec_range_query) const

Additional Inherited Members
Static Public Member Functions inherited from GA_GroupTable
static bool	jsonStat (UT_JSONParser &p, GA_Stat &sbuf, GA_GroupType owner)
	Stat the group from the JSON stream. More...

static int	compareAlpha (GA_Group const a, GA_Group const b)

Static Protected Member Functions inherited from GA_GroupTable
static int	compareGroupName (const GA_Group &a, const GA_Group &b)

Detailed Description

Definition at line 43 of file GA_ElementGroupTable.h.

Member Typedef Documentation

typedef GA_GroupTable::iterator<GA_ElementGroup> GA_ElementGroupTable::iterator

Definition at line 54 of file GA_ElementGroupTable.h.

typedef UT_OrderedIterator<GA_ElementGroup *, GA_GroupTable::iterator<GA_ElementGroup> > GA_ElementGroupTable::ordered_iterator

Traverse the group table in alpabetic order.

Definition at line 69 of file GA_ElementGroupTable.h.

Constructor & Destructor Documentation

GA_ElementGroupTable::GA_ElementGroupTable	(	GA_Detail &	detail,
		GA_AttributeOwner	owner
	)

protected

GA_ElementGroupTable::~GA_ElementGroupTable ( )

override

Member Function Documentation

void GA_ElementGroupTable::addElementToAllGroups ( GA_Offset dest ) const

Apply an operation to all element groups

void GA_ElementGroupTable::baseMergeTable	(	const GA_ElementGroupTable &	src,
		GA_MergeMap &	map,
		GA_AttributeOwner	owner
	)

protected

GA_GroupTable::iterator<GA_ElementGroup> GA_ElementGroupTable::beginTraverse ( ) const

inline

Traverse the group table in creation order.

Warning: It is NOT safe to add or remove groups during traversal.

Definition at line 60 of file GA_ElementGroupTable.h.

static int GA_ElementGroupTable::compareAlpha	(	GA_ElementGroup const	a,
		GA_ElementGroup const	b
	)

inlinestatic

Traverse the group table in alpabetic order.

Definition at line 70 of file GA_ElementGroupTable.h.

GA_Size GA_ElementGroupTable::destroyEmptyGroups ( )

GA_GroupTable::iterator<GA_ElementGroup> GA_ElementGroupTable::endTraverse ( ) const

inline

Traverse the group table in creation order.

Warning: It is NOT safe to add or remove groups during traversal.

Definition at line 62 of file GA_ElementGroupTable.h.

SYS_FORCE_INLINE GA_ElementGroup* GA_ElementGroupTable::find ( const UT_StringRef & name ) const

inline

Definition at line 143 of file GA_ElementGroupTable.h.

void GA_ElementGroupTable::getList ( UT_Array< const GA_ElementGroup * > & list ) const

void GA_ElementGroupTable::getList ( UT_Array< GA_ElementGroup * > & list ) const

virtual GA_AttributeOwner GA_ElementGroupTable::getOwner ( ) const

protectedpure virtual

Implemented in GA_ElementGroupTableT< OWNER >, GA_ElementGroupTableT< GA_ATTRIB_PRIMITIVE >, GA_ElementGroupTableT< GA_ATTRIB_VERTEX >, and GA_ElementGroupTableT< GA_ATTRIB_POINT >.

void GA_ElementGroupTable::intersectElementForAllGroups	(	GA_Offset	dest,
		GA_Offset	src
	)		const

Remove dest from the groups that src does not belong to.

void GA_ElementGroupTable::invalidateGroupEntries ( )

If you have changed group membership in a multithreaded algorithm, call this method to invalidate cached group entries for all groups in this table.

GA_Group* GA_ElementGroupTable::jsonCreateGroup	(	UT_JSONParser &	p,
		const char *	type,
		const char *	name,
		bool	internal,
		GA_AttributeOwner	owner
	)

overrideprotectedvirtual

Method called to create a group during loading. The sub-class should verify that the owner matches the type information.

Implements GA_GroupTable.

bool GA_ElementGroupTable::loadGroupsH9	(	UT_IStream &	is,
		GA_AttributeOwner	owner,
		int	count
	)

ordered_iterator GA_ElementGroupTable::obegin ( ) const

inline

Traverse the group table in alpabetic order.

Definition at line 72 of file GA_ElementGroupTable.h.

ordered_iterator GA_ElementGroupTable::oend ( ) const

inline

Traverse the group table in alpabetic order.

Definition at line 74 of file GA_ElementGroupTable.h.

void GA_ElementGroupTable::removeElementFromAllGroups ( GA_Offset dest ) const

Apply an operation to all element groups

void GA_ElementGroupTable::removeElementsFromGroupOrders ( const GA_Range & range ) const

Remove elements from each group's ordered list, if any, in preparation for deleting those elements. This must occur in advance of the actual deletion and consequent removal from the group as a GA_RangeMemberQuery object may be using an element group internally. The GA_Range version may allocate a GA_RangeMemberQuery object if not provided one, in which case the caller is responsible for deleting it.

Note: This will temporarily leave ordered groups in an invalid state until the element removal is processed.

void GA_ElementGroupTable::removeElementsFromGroupOrders	(	const GA_Range &	range,
		const GA_RangeMemberQuery *&	range_query
	)		const

Remove elements from each group's ordered list, if any, in preparation for deleting those elements. This must occur in advance of the actual deletion and consequent removal from the group as a GA_RangeMemberQuery object may be using an element group internally. The GA_Range version may allocate a GA_RangeMemberQuery object if not provided one, in which case the caller is responsible for deleting it.

Note: This will temporarily leave ordered groups in an invalid state until the element removal is processed.

void GA_ElementGroupTable::removeMixElementsFromGroups	(	GA_Offset	element,
		const GA_SecondaryLookupInfo *	sec_prefix,
		const GA_Range &	sec_range
	)		const

Remove secondary elements from mixed groups, if any, in preparation for deleting those elements. The GA_Range version may allocate a GA_RangeMemberQuery object if not provided one, in which case the caller is responsible for deleting it. The final offset in the GA_SecondaryLookupInfo argument in the GA_Range versions is a place holder for the offsets in the provided GA_Range and is ignored.

void GA_ElementGroupTable::removeMixElementsFromGroups	(	GA_Offset	element,
		const GA_SecondaryLookupInfo *	sec_prefix,
		const GA_Range &	sec_range,
		const GA_RangeMemberQuery *&	sec_range_query
	)		const

Remove secondary elements from mixed groups, if any, in preparation for deleting those elements. The GA_Range version may allocate a GA_RangeMemberQuery object if not provided one, in which case the caller is responsible for deleting it. The final offset in the GA_SecondaryLookupInfo argument in the GA_Range versions is a place holder for the offsets in the provided GA_Range and is ignored.

bool GA_ElementGroupTable::saveGroupsH9	(	std::ostream &	os,
		int	binary
	)		const

void GA_ElementGroupTable::toggleElementInAllGroups ( GA_Offset dest ) const

Apply an operation to all element groups

void GA_ElementGroupTable::unionElementForAllGroups	(	GA_Offset	dest,
		GA_Offset	src
	)		const

Add dest to the same groups that src belongs to.

The documentation for this class was generated from the following file:

GA/GA_ElementGroupTable.h
