#include <GU_AgentShapeLib.h>

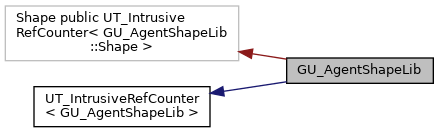

Inheritance diagram for GU_AgentShapeLib:

Public Types
typedef UT_IntrusivePtr< const Shape >	ShapePtr

typedef UT_StringMap< ShapePtr >	ShapeMap

typedef ShapeMap::const_iterator	const_iterator

typedef ShapeMap::iterator	iterator

typedef void(*	ShapeRemovedCallback )(void *data, int shape_id)

Public Member Functions
	~GU_AgentShapeLib ()

int64	getMemoryUsage (bool inclusive) const

bool	save (UT_JSONWriter &w) const
	Save the shape library. More...

bool	load (UT_JSONParser &p)
	Load a shape library from disk or a stream. More...

bool	load (GU_DetailHandle gdh, UT_StringArray &errors)
	Load a shape library from the provided geometry. More...

bool	addShape (const UT_StringHolder &key, const GU_ConstDetailHandle &gdp, bool replace_existing=true)
	Add entire geometry as a shape in the library. More...

bool	addShape (const UT_StringHolder &key, const char *filename, bool replace_existing=true)
	Add a disk file as a shape. More...

bool	removeShape (const UT_StringRef &key)
	Remove a shape from the library. More...

GU_ConstDetailHandle	detail () const
	Get a reference to the underlying geometry (which holds all the shapes) More...

ShapePtr	findShape (const UT_StringRef &key) const
	Find a shape. More...

bool	isFile () const
	Return whether the library was loaded from disk. More...

void	clearIsFile ()
	Clear the flag marking that the library references a file on disk. More...

void	dump (std::ostream &os, const char *save_file=0) const

void	getDanglingShapes (UT_SortedStringSet &names) const

	Shape (GA_Offset offset)

	Shape (const Shape &shape)

int64	getMemoryUsage (bool inclusive) const

GA_Offset	offset () const

void	setOffset (GA_Offset offset)

int	uniqueId () const

GU_ConstDetailHandle	shapeGeometry (const GU_AgentShapeLib &lib) const
	Given its owner shape library, return the geometry for this shape. More...

const GU_LinearSkinDeformerSourceWeights &	getLinearSkinDeformerSourceWeights (const GU_ConstDetailHandle &gdh) const

const GU_LinearSkinDeformerSourceWeights &	getLinearSkinDeformerSourceWeights (const GU_AgentShapeLib &shapelib) const


bool	isEmpty () const

exint	entries () const


const UT_StringHolder &	name () const

void	setName (const UT_StringHolder &name)


const UT_StringHolder &	label () const

void	setLabel (const UT_StringHolder &label)


const_iterator	begin () const

const_iterator	end () const

iterator	begin ()

iterator	end ()

Public Member Functions inherited from UT_IntrusiveRefCounter< GU_AgentShapeLib >
SYS_FORCE_INLINE	UT_IntrusiveRefCounter () noexcept
	Default constructor: Sets counter to 0. More...

SYS_FORCE_INLINE	UT_IntrusiveRefCounter (const UT_IntrusiveRefCounter &) noexcept
	Copy constructor: Sets counter to 0. More...

UT_IntrusiveRefCounter &	operator= (const UT_IntrusiveRefCounter &) noexcept
	Assignment operator: Does not modify counter. More...

SYS_FORCE_INLINE uint32	use_count () const noexcept
	Return current counter. More...

SYS_FORCE_INLINE bool	conditionalAddRef () noexcept

Static Public Member Functions
static GU_AgentShapeLibPtr	addLibrary (const UT_StringHolder &name)
	Create a new library using the given name. More...

static GU_AgentShapeLibPtr	addLibraryFromFile (const UT_StringHolder &filename, UT_StringArray &errors)

static GU_AgentShapeLibPtr	addLibraryCopy (const GU_AgentShapeLib &src, bool keep_external_ref)

static void	registerShapeRemovedCallback (ShapeRemovedCallback cb, void *data=0)

static void	unregisterShapeRemovedCallback (ShapeRemovedCallback cb, void *data=0)

Additional Inherited Members
Protected Member Functions inherited from UT_IntrusiveRefCounter< GU_AgentShapeLib >
SYS_FORCE_INLINE	~UT_IntrusiveRefCounter ()
	Destructor: Only derived classes can destruct this. More...

Detailed Description

Library for Agent Shapes

An agent shape library stores multiple shapes. There are various ways to add shapes to the library (add a full piece of geometry, add geometry and a range of primitives, etc.).

Shapes are identified by "name" which must be unique within the library.

Examples:: SOP/SOP_BouncyAgent.C.

Definition at line 45 of file GU_AgentShapeLib.h.

Member Typedef Documentation

typedef ShapeMap::const_iterator GU_AgentShapeLib::const_iterator

Definition at line 52 of file GU_AgentShapeLib.h.

typedef ShapeMap::iterator GU_AgentShapeLib::iterator

Definition at line 53 of file GU_AgentShapeLib.h.

typedef UT_StringMap<ShapePtr> GU_AgentShapeLib::ShapeMap

Definition at line 51 of file GU_AgentShapeLib.h.

typedef UT_IntrusivePtr<const Shape> GU_AgentShapeLib::ShapePtr

Definition at line 48 of file GU_AgentShapeLib.h.

typedef void(* GU_AgentShapeLib::ShapeRemovedCallback)(void *data, int shape_id)

Definition at line 54 of file GU_AgentShapeLib.h.

Constructor & Destructor Documentation

GU_AgentShapeLib::~GU_AgentShapeLib ( )

Member Function Documentation

static GU_AgentShapeLibPtr GU_AgentShapeLib::addLibrary ( const UT_StringHolder & name )

static

Create a new library using the given name.

Examples:: SOP/SOP_BouncyAgent.C.

static GU_AgentShapeLibPtr GU_AgentShapeLib::addLibraryCopy	(	const GU_AgentShapeLib &	src,
		bool	keep_external_ref
	)

static

Create a clone of a library for modification. The clone will have isFile() return false. If keep_external_ref is true and the source library was a file reference, the source library will be marked as an included file of the new library. Otherwise, the new library will be standalone.

static GU_AgentShapeLibPtr GU_AgentShapeLib::addLibraryFromFile	(	const UT_StringHolder &	filename,
		UT_StringArray &	errors
	)

static

Load a new library from disk, named using the filename. Returns NULL if failed to load.

bool GU_AgentShapeLib::addShape	(	const UT_StringHolder &	key,
		const GU_ConstDetailHandle &	gdp,
		bool	replace_existing = `true`
	)

Add entire geometry as a shape in the library.

Examples:: SOP/SOP_BouncyAgent.C.

bool GU_AgentShapeLib::addShape	(	const UT_StringHolder &	key,
		const char *	filename,
		bool	replace_existing = `true`
	)

Add a disk file as a shape.

const_iterator GU_AgentShapeLib::begin ( ) const

Iterators

iterator GU_AgentShapeLib::begin ( )

Iterators

void GU_AgentShapeLib::clearIsFile ( )

Clear the flag marking that the library references a file on disk.

GU_ConstDetailHandle GU_AgentShapeLib::detail ( ) const

inline

Get a reference to the underlying geometry (which holds all the shapes)

Definition at line 123 of file GU_AgentShapeLib.h.

void GU_AgentShapeLib::dump	(	std::ostream &	os,
		const char *	save_file = `0`
	)		const

Dump the contents of this shape library for debugging purposes. If save_file is supplied, the shape library's geometry will be saved using that name.

const_iterator GU_AgentShapeLib::end ( ) const

Iterators

iterator GU_AgentShapeLib::end ( )

Iterators

exint GU_AgentShapeLib::entries ( ) const

inline

Query information

Definition at line 118 of file GU_AgentShapeLib.h.

ShapePtr GU_AgentShapeLib::findShape ( const UT_StringRef & key ) const

Find a shape.

void GU_AgentShapeLib::getDanglingShapes ( UT_SortedStringSet & names ) const

Get the names of each dangling shape in the shape library. A dangling shape is a shape that is only referenced by the shape library.

const GU_LinearSkinDeformerSourceWeights& GU_AgentShapeLib::getLinearSkinDeformerSourceWeights ( const GU_ConstDetailHandle & gdh ) const

inline

Get a GU_LinearSkinDeformerSourceWeights given the detail handle for this shape.

Precondition: gdh.isValid()

Definition at line 259 of file GU_AgentShapeLib.h.

const GU_LinearSkinDeformerSourceWeights& GU_AgentShapeLib::getLinearSkinDeformerSourceWeights ( const GU_AgentShapeLib & shapelib ) const

inline

Definition at line 265 of file GU_AgentShapeLib.h.

int64 GU_AgentShapeLib::getMemoryUsage ( bool inclusive ) const

bool GU_AgentShapeLib::isEmpty ( ) const

inline

Query information

Definition at line 116 of file GU_AgentShapeLib.h.

bool GU_AgentShapeLib::isFile ( ) const

inline

Return whether the library was loaded from disk.

Definition at line 136 of file GU_AgentShapeLib.h.

const UT_StringHolder& GU_AgentShapeLib::label ( ) const

Set a user defined label for the library. This doesn't have to be unique across libraries.

bool GU_AgentShapeLib::load ( UT_JSONParser & p )

Load a shape library from disk or a stream.

bool GU_AgentShapeLib::load	(	GU_DetailHandle	gdh,
		UT_StringArray &	errors
	)

Load a shape library from the provided geometry.

const UT_StringHolder& GU_AgentShapeLib::name ( ) const

inline

The name of the shape library (or filename, if loaded from disk).

Definition at line 130 of file GU_AgentShapeLib.h.

GA_Offset GU_AgentShapeLib::offset ( ) const

inline

Definition at line 248 of file GU_AgentShapeLib.h.

static void GU_AgentShapeLib::registerShapeRemovedCallback	(	ShapeRemovedCallback	cb,
		void *	data = `0`
	)

static

Register a callback to be invoked when a shape is no longer referenced by any shape library.

bool GU_AgentShapeLib::removeShape ( const UT_StringRef & key )

Remove a shape from the library.

bool GU_AgentShapeLib::save ( UT_JSONWriter & w ) const

Save the shape library.

void GU_AgentShapeLib::setLabel ( const UT_StringHolder & label )

Set a user defined label for the library. This doesn't have to be unique across libraries.

void GU_AgentShapeLib::setName ( const UT_StringHolder & name )

inline

The name of the shape library (or filename, if loaded from disk).

Definition at line 131 of file GU_AgentShapeLib.h.

void GU_AgentShapeLib::setOffset ( GA_Offset offset )

inline

Definition at line 249 of file GU_AgentShapeLib.h.

GU_AgentShapeLib::Shape ( GA_Offset offset )

GU_AgentShapeLib::Shape ( const Shape & shape )

GU_ConstDetailHandle GU_AgentShapeLib::shapeGeometry ( const GU_AgentShapeLib & lib ) const

Given its owner shape library, return the geometry for this shape.

int GU_AgentShapeLib::uniqueId ( ) const

inline

Definition at line 250 of file GU_AgentShapeLib.h.

static void GU_AgentShapeLib::unregisterShapeRemovedCallback	(	ShapeRemovedCallback	cb,
		void *	data = `0`
	)

static

The documentation for this class was generated from the following file:

GU/GU_AgentShapeLib.h
