#include <Node.h>

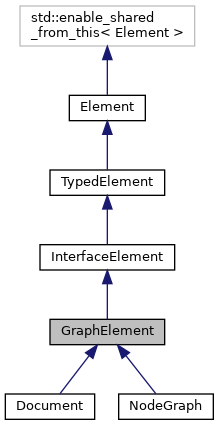

Inheritance diagram for GraphElement:

Public Member Functions
virtual	~GraphElement ()

Node Elements
NodePtr	addNode (const string &category, const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

NodePtr	addNodeInstance (ConstNodeDefPtr nodeDef, const string &name=EMPTY_STRING)
	Add a Node that is an instance of the given NodeDef. More...

NodePtr	getNode (const string &name) const
	Return the Node, if any, with the given name. More...

vector< NodePtr >	getNodes (const string &category=EMPTY_STRING) const

vector< NodePtr >	getNodesOfType (const string &nodeType) const
	Return a vector of nodes in the graph which have a given type. More...

void	removeNode (const string &name)
	Remove the Node, if any, with the given name. More...

Material Nodes
NodePtr	addMaterialNode (const string &name=EMPTY_STRING, ConstNodePtr shaderNode=nullptr)

vector< NodePtr >	getMaterialNodes () const
	Return a vector of all material nodes. More...

Backdrop Elements
BackdropPtr	addBackdrop (const string &name=EMPTY_STRING)
	Add a Backdrop to the graph. More...

BackdropPtr	getBackdrop (const string &name) const
	Return the Backdrop, if any, with the given name. More...

vector< BackdropPtr >	getBackdrops () const
	Return a vector of all Backdrop elements in the graph. More...

void	removeBackdrop (const string &name)
	Remove the Backdrop, if any, with the given name. More...

Utility
void	flattenSubgraphs (const string &target=EMPTY_STRING, NodePredicate filter=nullptr)

ElementVec	topologicalSort () const

NodePtr	addGeomNode (ConstGeomPropDefPtr geomPropDef, const string &namePrefix)

string	asStringDot () const

Public Member Functions inherited from InterfaceElement
virtual	~InterfaceElement ()

void	setNodeDefString (const string &nodeDef)
	Set the NodeDef string for the interface. More...

bool	hasNodeDefString () const
	Return true if the given interface has a NodeDef string. More...

const string &	getNodeDefString () const
	Return the NodeDef string for the interface. More...

InputPtr	addInput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

InputPtr	getInput (const string &name) const
	Return the Input, if any, with the given name. More...

vector< InputPtr >	getInputs () const
	Return a vector of all Input elements. More...

size_t	getInputCount () const
	Return the number of Input elements. More...

void	removeInput (const string &name)
	Remove the Input, if any, with the given name. More...

InputPtr	getActiveInput (const string &name) const

vector< InputPtr >	getActiveInputs () const

OutputPtr	addOutput (const string &name=EMPTY_STRING, const string &type=DEFAULT_TYPE_STRING)

OutputPtr	getOutput (const string &name) const
	Return the Output, if any, with the given name. More...

vector< OutputPtr >	getOutputs () const
	Return a vector of all Output elements. More...

size_t	getOutputCount () const
	Return the number of Output elements. More...

void	removeOutput (const string &name)
	Remove the Output, if any, with the given name. More...

OutputPtr	getActiveOutput (const string &name) const

vector< OutputPtr >	getActiveOutputs () const

void	setConnectedOutput (const string &inputName, OutputPtr output)

OutputPtr	getConnectedOutput (const string &inputName) const

TokenPtr	addToken (const string &name=EMPTY_STRING)

TokenPtr	getToken (const string &name) const
	Return the Token, if any, with the given name. More...

vector< TokenPtr >	getTokens () const
	Return a vector of all Token elements. More...

void	removeToken (const string &name)
	Remove the Token, if any, with the given name. More...

TokenPtr	getActiveToken (const string &name) const

vector< TokenPtr >	getActiveTokens () const

ValueElementPtr	getValueElement (const string &name) const
	Return the ValueElement, if any, with the given name. More...

ValueElementPtr	getActiveValueElement (const string &name) const

vector< ValueElementPtr >	getActiveValueElements () const

template<class T >
InputPtr	setInputValue (const string &name, const T &value, const string &type=EMPTY_STRING)

ValuePtr	getInputValue (const string &name, const string &target=EMPTY_STRING) const

TokenPtr	setTokenValue (const string &name, const string &value)

string	getTokenValue (const string &name)

void	setTarget (const string &target)
	Set the target string of this interface. More...

bool	hasTarget () const
	Return true if the given interface has a target string. More...

const string &	getTarget () const
	Return the target string of this interface. More...

void	setVersionString (const string &version)
	Set the version string of this interface. More...

bool	hasVersionString () const
	Return true if this interface has a version string. More...

const string &	getVersionString () const
	Return the version string of this interface. More...

void	setVersionIntegers (int majorVersion, int minorVersion)
	Set the major and minor versions as an integer pair. More...

virtual std::pair< int, int >	getVersionIntegers () const
	Return the major and minor versions as an integer pair. More...

void	setDefaultVersion (bool defaultVersion)
	Set the default version flag of this element. More...

bool	getDefaultVersion () const
	Return the default version flag of this element. More...

virtual ConstInterfaceElementPtr	getDeclaration (const string &target=EMPTY_STRING) const

void	clearContent () override
	Clear all attributes and descendants from this element. More...

bool	hasExactInputMatch (ConstInterfaceElementPtr declaration, string *message=nullptr) const

Public Member Functions inherited from TypedElement
virtual	~TypedElement ()

void	setType (const string &type)
	Set the element's type string. More...

bool	hasType () const
	Return true if the given element has a type string. More...

virtual const string &	getType () const
	Return the element's type string. More...

bool	isColorType () const
	Return true if the element is of color type. More...

bool	isMultiOutputType () const
	Return true if the element is of multi-output type. More...

TypeDefPtr	getTypeDef () const

Public Member Functions inherited from Element
virtual	~Element ()

	Element (const Element &)=delete

Element &	operator= (const Element &)=delete

bool	operator== (const Element &rhs) const

bool	operator!= (const Element &rhs) const

void	setCategory (const string &category)
	Set the element's category string. More...

const string &	getCategory () const

void	setName (const string &name)

const string &	getName () const
	Return the element's name string. More...

string	getNamePath (ConstElementPtr relativeTo=nullptr) const

ElementPtr	getDescendant (const string &namePath) const

void	setFilePrefix (const string &prefix)
	Set the element's file prefix string. More...

bool	hasFilePrefix () const
	Return true if the given element has a file prefix string. More...

const string &	getFilePrefix () const
	Return the element's file prefix string. More...

const string &	getActiveFilePrefix () const

void	setGeomPrefix (const string &prefix)
	Set the element's geom prefix string. More...

bool	hasGeomPrefix () const
	Return true if the given element has a geom prefix string. More...

const string &	getGeomPrefix () const
	Return the element's geom prefix string. More...

const string &	getActiveGeomPrefix () const

void	setColorSpace (const string &colorSpace)
	Set the element's color space string. More...

bool	hasColorSpace () const
	Return true if the given element has a color space string. More...

const string &	getColorSpace () const
	Return the element's color space string. More...

const string &	getActiveColorSpace () const

void	setInheritString (const string &inherit)
	Set the inherit string of this element. More...

bool	hasInheritString () const
	Return true if this element has an inherit string. More...

const string &	getInheritString () const
	Return the inherit string of this element. More...

void	setInheritsFrom (ConstElementPtr super)
	Set the element that this one directly inherits from. More...

ElementPtr	getInheritsFrom () const
	Return the element, if any, that this one directly inherits from. More...

bool	hasInheritedBase (ConstElementPtr base) const

bool	hasInheritanceCycle () const
	Return true if the inheritance chain for this element contains a cycle. More...

void	setNamespace (const string &space)
	Set the namespace string of this element. More...

bool	hasNamespace () const
	Return true if this element has a namespace string. More...

const string &	getNamespace () const
	Return the namespace string of this element. More...

string	getQualifiedName (const string &name) const

void	setDocString (const string &doc)
	Set the documentation string of this element. More...

string	getDocString () const
	Return the documentation string of this element. More...

template<class T >
bool	isA (const string &category=EMPTY_STRING) const

template<class T >
shared_ptr< T >	asA ()
	Dynamic cast to an instance of the given subclass. More...

template<class T >
shared_ptr< const T >	asA () const
	Dynamic cast to a const instance of the given subclass. More...

template<class T >
shared_ptr< T >	addChild (const string &name=EMPTY_STRING)

ElementPtr	addChildOfCategory (const string &category, string name=EMPTY_STRING)

ElementPtr	changeChildCategory (ElementPtr child, const string &category)

ElementPtr	getChild (const string &name) const
	Return the child element, if any, with the given name. More...

template<class T >
shared_ptr< T >	getChildOfType (const string &name) const

const ElementVec &	getChildren () const

template<class T >
vector< shared_ptr< T > >	getChildrenOfType (const string &category=EMPTY_STRING) const

void	setChildIndex (const string &name, int index)

int	getChildIndex (const string &name) const

void	removeChild (const string &name)
	Remove the child element, if any, with the given name. More...

template<class T >
void	removeChildOfType (const string &name)

void	setAttribute (const string &attrib, const string &value)
	Set the value string of the given attribute. More...

bool	hasAttribute (const string &attrib) const
	Return true if the given attribute is present. More...

const string &	getAttribute (const string &attrib) const

const StringVec &	getAttributeNames () const
	Return a vector of stored attribute names, in the order they were set. More...

template<class T >
void	setTypedAttribute (const string &attrib, const T &data)

template<class T >
T	getTypedAttribute (const string &attrib) const

void	removeAttribute (const string &attrib)
	Remove the given attribute, if present. More...

ElementPtr	getSelf ()
	Return our self pointer. More...

ConstElementPtr	getSelf () const
	Return our self pointer. More...

ElementPtr	getParent ()
	Return our parent element. More...

ConstElementPtr	getParent () const
	Return our parent element. More...

ElementPtr	getRoot ()
	Return the root element of our tree. More...

ConstElementPtr	getRoot () const
	Return the root element of our tree. More...

DocumentPtr	getDocument ()
	Return the root document of our tree. More...

ConstDocumentPtr	getDocument () const
	Return the root document of our tree. More...

template<class T >
shared_ptr< T >	getAncestorOfType ()

template<class T >
shared_ptr< const T >	getAncestorOfType () const

bool	isEquivalent (ConstElementPtr rhs, const ElementEquivalenceOptions &options, string *message=nullptr) const

virtual bool	isAttributeEquivalent (ConstElementPtr rhs, const string &attributeName, const ElementEquivalenceOptions &options, string *message=nullptr) const

TreeIterator	traverseTree () const

GraphIterator	traverseGraph () const

virtual Edge	getUpstreamEdge (size_t index=0) const

virtual size_t	getUpstreamEdgeCount () const
	Return the number of queryable upstream edges for this element. More...

ElementPtr	getUpstreamElement (size_t index=0) const

InheritanceIterator	traverseInheritance () const

void	setSourceUri (const string &sourceUri)

bool	hasSourceUri () const
	Return true if this element has a source URI. More...

const string &	getSourceUri () const
	Return the element's source URI. More...

const string &	getActiveSourceUri () const

virtual bool	validate (string *message=nullptr) const

void	copyContentFrom (const ConstElementPtr &source)

string	createValidChildName (string name) const

StringResolverPtr	createStringResolver (const string &geom=EMPTY_STRING) const

string	asString () const

Protected Member Functions
	GraphElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from InterfaceElement
	InterfaceElement (ElementPtr parent, const string &category, const string &name)

void	registerChildElement (ElementPtr child) override

void	unregisterChildElement (ElementPtr child) override

Protected Member Functions inherited from TypedElement
	TypedElement (ElementPtr parent, const string &category, const string &name)

Protected Member Functions inherited from Element
	Element (ElementPtr parent, const string &category, const string &name)

template<class T >
shared_ptr< T >	resolveNameReference (const string &name, ConstElementPtr parent=nullptr) const

void	validateRequire (bool expression, bool &res, string *message, const string &errorDesc) const

ElementPtr	getSelfNonConst () const

Additional Inherited Members
Static Public Attributes inherited from InterfaceElement
static const string	NODE_DEF_ATTRIBUTE

static const string	TARGET_ATTRIBUTE

static const string	VERSION_ATTRIBUTE

static const string	DEFAULT_VERSION_ATTRIBUTE

Static Public Attributes inherited from TypedElement
static const string	TYPE_ATTRIBUTE

Static Public Attributes inherited from Element
static const string	NAME_ATTRIBUTE

static const string	FILE_PREFIX_ATTRIBUTE

static const string	GEOM_PREFIX_ATTRIBUTE

static const string	COLOR_SPACE_ATTRIBUTE

static const string	INHERIT_ATTRIBUTE

static const string	NAMESPACE_ATTRIBUTE

static const string	DOC_ATTRIBUTE

static const string	XPOS_ATTRIBUTE

static const string	YPOS_ATTRIBUTE

Protected Types inherited from InterfaceElement
using	NodeDefPtr = shared_ptr< NodeDef >

using	ConstNodeDefPtr = shared_ptr< const NodeDef >

Protected Types inherited from TypedElement
using	TypeDefPtr = shared_ptr< class TypeDef >

Protected Types inherited from Element
using	DocumentPtr = shared_ptr< Document >

using	ConstDocumentPtr = shared_ptr< const Document >

Protected Attributes inherited from Element
string	_category

string	_name

string	_sourceUri

ElementMap	_childMap

ElementVec	_childOrder

StringMap	_attributeMap

StringVec	_attributeOrder

weak_ptr< Element >	_parent

weak_ptr< Element >	_root

Detailed Description

The base class for graph elements such as NodeGraph and Document.

Definition at line 173 of file Node.h.

Constructor & Destructor Documentation

GraphElement::GraphElement	(	ElementPtr	parent,
		const string &	category,
		const string &	name
	)

inlineprotected

Definition at line 176 of file Node.h.

virtual GraphElement::~GraphElement ( )

inlinevirtual

Definition at line 182 of file Node.h.

Member Function Documentation

BackdropPtr GraphElement::addBackdrop ( const string & name = EMPTY_STRING )

inline

Add a Backdrop to the graph.

Definition at line 264 of file Node.h.

NodePtr GraphElement::addGeomNode	(	ConstGeomPropDefPtr	geomPropDef,
		const string &	namePrefix
	)

If not yet present, add a geometry node to this graph matching the given property definition and name prefix.

NodePtr GraphElement::addMaterialNode	(	const string &	name = `EMPTY_STRING`,
		ConstNodePtr	shaderNode = `nullptr`
	)

Add a material node to the graph, optionally connecting it to the given shader node.

NodePtr GraphElement::addNode	(	const string &	category,
		const string &	name = `EMPTY_STRING`,
		const string &	type = `DEFAULT_TYPE_STRING`
	)

inline

Add a Node to the graph.

Parameters

category	The category of the new Node.
name	The name of the new Node. If no name is specified, then a unique name will automatically be generated.
type	An optional type string.

Returns: A shared pointer to the new Node.

Definition at line 194 of file Node.h.

NodePtr GraphElement::addNodeInstance	(	ConstNodeDefPtr	nodeDef,
		const string &	name = `EMPTY_STRING`
	)

inline

Add a Node that is an instance of the given NodeDef.

Definition at line 205 of file Node.h.

string GraphElement::asStringDot ( ) const

Convert this graph to a string in the DOT language syntax. This can be used to visualise the graph using GraphViz (http://www.graphviz.org).

If declarations for the contained nodes are provided as nodedefs in the owning document, then they will be used to provide additional formatting details.

void GraphElement::flattenSubgraphs	(	const string &	target = `EMPTY_STRING`,
		NodePredicate	filter = `nullptr`
	)

Flatten all subgraphs at the root scope of this graph element, recursively replacing each graph-defined node with its equivalent node network.

Parameters

target	An optional target string to be used in specifying which node definitions are used in this process.
filter	An optional node predicate specifying which nodes should be included and excluded from this process.

BackdropPtr GraphElement::getBackdrop ( const string & name ) const

inline

Return the Backdrop, if any, with the given name.

Definition at line 270 of file Node.h.

vector<BackdropPtr> GraphElement::getBackdrops ( ) const

inline

Return a vector of all Backdrop elements in the graph.

Definition at line 276 of file Node.h.

vector<NodePtr> GraphElement::getMaterialNodes ( ) const

inline

Return a vector of all material nodes.

Definition at line 254 of file Node.h.

NodePtr GraphElement::getNode ( const string & name ) const

inline

Return the Node, if any, with the given name.

Definition at line 213 of file Node.h.

vector<NodePtr> GraphElement::getNodes ( const string & category = EMPTY_STRING ) const

inline

Return a vector of all Nodes in the graph, optionally filtered by the given category string.

Definition at line 220 of file Node.h.

vector<NodePtr> GraphElement::getNodesOfType ( const string & nodeType ) const

inline

Return a vector of nodes in the graph which have a given type.

Definition at line 226 of file Node.h.

void GraphElement::removeBackdrop ( const string & name )

inline

Remove the Backdrop, if any, with the given name.

Definition at line 282 of file Node.h.

void GraphElement::removeNode ( const string & name )

inline

Remove the Node, if any, with the given name.

Definition at line 240 of file Node.h.

ElementVec GraphElement::topologicalSort ( ) const

Return a vector of all children (nodes and outputs) sorted in topological order.

The documentation for this class was generated from the following file:

MaterialXCore/Node.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
