#include <legacyGeomSubsetSceneIndex.h>

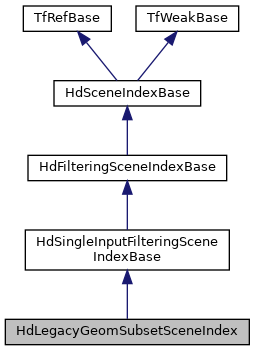

Inheritance diagram for HdLegacyGeomSubsetSceneIndex:

Public Member Functions
HD_API	~HdLegacyGeomSubsetSceneIndex () override

HD_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override

HD_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector < HdSceneIndexBaseRefPtr >	GetInputScenes () const final

Public Member Functions inherited from HdSceneIndexBase
HD_API	HdSceneIndexBase ()

HD_API	~HdSceneIndexBase () override

HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const

HD_API void	SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)

HD_API std::string	GetDisplayName () const

HD_API void	SetDisplayName (const std::string &n)

HD_API void	AddTag (const TfToken &tag)

HD_API void	RemoveTag (const TfToken &tag)

HD_API bool	HasTag (const TfToken &tag) const

HD_API TfTokenVector	GetTags () const

Public Member Functions inherited from TfRefBase
	TfRefBase ()

	TfRefBase (TfRefBase const &)

TfRefBase &	operator= (TfRefBase const &)

size_t	GetCurrentCount () const
	Return the current reference count of this object. More...

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object. More...

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase ()

	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static HD_API HdLegacyGeomSubsetSceneIndexRefPtr	New (const HdSceneIndexBaseRefPtr &inputSceneIndex)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
	HdLegacyGeomSubsetSceneIndex (const HdSceneIndexBaseRefPtr &inputSceneIndex)

void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

virtual HD_API void	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &entries)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)

HD_API bool	_IsObserved () const

virtual HD_API void	_SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)

Protected Member Functions inherited from TfRefBase
virtual TF_API	~TfRefBase ()

Protected Member Functions inherited from TfWeakBase
	~TfWeakBase ()

TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr )(TfRefBase const *, bool)

Detailed Description

HdLegacyGeomSubsetSceneIndex

This scene index converts legacy geom subsets (from mesh or basis curves topology, including invisible components) into Hydra geomSubset prims. It preserves the authored order of named mesh subsets as USD requires. It MUST have a notice-batching scene index before it so that it can access topology via the scene delegate during insertion.

For the most part, this scene index will pull information from the scene delegate on demand. However, it does keep a cache of all the subset paths it has added (organized by parent) so it can be more precise about invalidation. Having this cache incidentally provides a few other shortcuts to avoid expensive operations.

Definition at line 41 of file legacyGeomSubsetSceneIndex.h.

Constructor & Destructor Documentation

HD_API HdLegacyGeomSubsetSceneIndex::~HdLegacyGeomSubsetSceneIndex ( )

override

HdLegacyGeomSubsetSceneIndex::HdLegacyGeomSubsetSceneIndex ( const HdSceneIndexBaseRefPtr & inputSceneIndex )

protected

Member Function Documentation

void HdLegacyGeomSubsetSceneIndex::_PrimsAdded	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::AddedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void HdLegacyGeomSubsetSceneIndex::_PrimsDirtied	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::DirtiedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void HdLegacyGeomSubsetSceneIndex::_PrimsRemoved	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::RemovedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

HD_API SdfPathVector HdLegacyGeomSubsetSceneIndex::GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath. This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

HD_API HdSceneIndexPrim HdLegacyGeomSubsetSceneIndex::GetPrim ( const SdfPath & primPath ) const

overridevirtual

Returns a pair of (prim type, datasource) for the object at primPath. If no such object exists, the type will be the empty token and the datasource will be null. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

static HD_API HdLegacyGeomSubsetSceneIndexRefPtr HdLegacyGeomSubsetSceneIndex::New ( const HdSceneIndexBaseRefPtr & inputSceneIndex )

static

The documentation for this class was generated from the following file:

pxr/imaging/hd/legacyGeomSubsetSceneIndex.h
