#include <PDG_AttributeData.h>

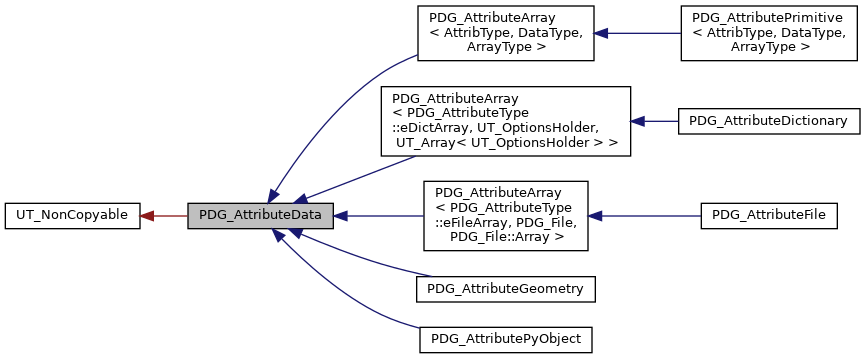

Inheritance diagram for PDG_AttributeData:

Public Member Functions
	PDG_AttributeData ()

virtual	~PDG_AttributeData ()

virtual int64	getMemoryUsage (bool inclusive) const =0
	Returns the memory usage of the attribute and its data. More...

virtual bool	hash (SYS_HashType &hash_value, exint index, UT_WorkBuffer &errors) const =0
	Return a hash value derived from the attribute data. More...

virtual PDG_AttributeData *	clone () const =0
	Deep copies this attribute. More...

virtual bool	saveData (UT_JSONWriter &) const =0
	Serializes the data to a JSON writer. More...

virtual void	saveData (const UT_StringHolder &, UT_OptionsHolder &) const =0
	Serializes the data to a UT options. More...

virtual bool	loadData (const UT_JSONValue &)=0
	Loads data from a JSON value. More...

virtual bool	loadData (const UT_StringHolder &, const UT_OptionsHolder &)=0
	Loads data from a dict. More...

virtual bool	compare (const PDG_AttributeData *) const =0
	Compares this data object with another data object. More...

virtual PDG_AttributeMergeError	merge (PDG_AttributeMergeOp merge_op, int stride)=0
	Applies a merge op to the data in this attribute. More...

Static Public Member Functions
static PDG_AttributeData *	fromType (PDG_AttributeType type)

static PDG_EventType	eventType (PDG_AttributeType type)
	Static utility for returnign an event from type from an attribute type. More...

static PDG_AttributeType	typeFromString (const UT_StringHolder &type_name)
	Returns an attribute type enum from the specified string name. More...

static PDG_AttributeIntrinsic	intrinsicFromName (const UT_StringRef &name)
	Returns an intrinsic type from an attribue name. More...

static UT_StringHolder	nameFromIntrinsic (PDG_AttributeIntrinsic attrib_type, const UT_StringHolder &name)
	Returns an attribute name from a intrinsic type a name string. More...

static bool	validName (const UT_StringHolder &str, bool allow_internal=false)

static bool	makeValidName (UT_StringHolder &name, const UT_StringHolder &str, bool allow_internal=false)

static UT_StringHolder	typeName (PDG_AttributeType type)
	Returns the string name for the specififed attribute type. More...

static UT_StringHolder	mergeName (PDG_AttributeMergeOp merge)
	Returns the string name for the specified merge op. More...

static bool	isArrayType (PDG_AttributeType type)
	Returns true if the specified type is an array type. More...

static PDG_AttributeType	compatibleType (PDG_AttributeType left, PDG_AttributeType right)

Static Public Attributes
static constexpr PDG_AttributeType	TypeEnum = PDG_AttributeType::eUndefined
	Attribute data version number. More...

static const UT_StringHolder	theFlagKey

static const UT_StringHolder	theTypeKey

static const UT_StringHolder	theRuntimeKey

static const UT_StringHolder	theConcatKey

static const UT_StringHolder	theOwnKey

static const UT_StringHolder	theValueKey

Static Protected Member Functions
static PDG_AttributeMergeError	merge (UT_StringArray &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for string array data. More...

static PDG_AttributeMergeError	merge (PDG_File::Array &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for file array data. More...

static PDG_AttributeMergeError	merge (UT_ValArray< fpreal > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for float array data. More...

static PDG_AttributeMergeError	merge (UT_ValArray< exint > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for int array data. More...

static PDG_AttributeMergeError	merge (UT_Array< UT_OptionsHolder > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for dict array data. More...

Detailed Description

Base class for all types of PDG attribute data

Definition at line 35 of file PDG_AttributeData.h.

Constructor & Destructor Documentation

PDG_AttributeData::PDG_AttributeData ( )

Constructs a new instance with a specified type and owning map, called by child classes.

virtual PDG_AttributeData::~PDG_AttributeData ( )

virtual

Member Function Documentation

virtual PDG_AttributeData* PDG_AttributeData::clone ( ) const

pure virtual

Deep copies this attribute.

Implemented in PDG_AttributeFile, PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeDictionary, PDG_AttributeGeometry, and PDG_AttributePyObject.

virtual bool PDG_AttributeData::compare ( const PDG_AttributeData * ) const

pure virtual

Compares this data object with another data object.

Implemented in PDG_AttributeArray< AttribType, DataType, ArrayType >, PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >, PDG_AttributeArray< PDG_AttributeType::eDictArray, UT_OptionsHolder, UT_Array< UT_OptionsHolder > >, PDG_AttributeGeometry, and PDG_AttributePyObject.

static PDG_AttributeType PDG_AttributeData::compatibleType	(	PDG_AttributeType	left,
		PDG_AttributeType	right
	)

static

Returns the best compatible type between the two input attribute types

static PDG_EventType PDG_AttributeData::eventType ( PDG_AttributeType type )

static

Static utility for returnign an event from type from an attribute type.

static PDG_AttributeData* PDG_AttributeData::fromType ( PDG_AttributeType type )

static

Static utility for constructing an attribute of the specified type, used during deserialization

virtual int64 PDG_AttributeData::getMemoryUsage ( bool inclusive ) const

pure virtual

Returns the memory usage of the attribute and its data.

Implemented in PDG_AttributeFile, PDG_AttributeDictionary, PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeGeometry, and PDG_AttributePyObject.

virtual bool PDG_AttributeData::hash	(	SYS_HashType &	hash_value,
		exint	index,
		UT_WorkBuffer &	errors
	)		const

pure virtual

Return a hash value derived from the attribute data.

Implemented in PDG_AttributeArray< AttribType, DataType, ArrayType >, PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >, PDG_AttributeArray< PDG_AttributeType::eDictArray, UT_OptionsHolder, UT_Array< UT_OptionsHolder > >, PDG_AttributeGeometry, and PDG_AttributePyObject.

static PDG_AttributeIntrinsic PDG_AttributeData::intrinsicFromName ( const UT_StringRef & name )

static

Returns an intrinsic type from an attribue name.

static bool PDG_AttributeData::isArrayType ( PDG_AttributeType type )

static

Returns true if the specified type is an array type.

virtual bool PDG_AttributeData::loadData ( const UT_JSONValue & )

pure virtual

Loads data from a JSON value.

Implemented in PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeFile, PDG_AttributeDictionary, PDG_AttributeGeometry, and PDG_AttributePyObject.

virtual bool PDG_AttributeData::loadData	(	const UT_StringHolder &	,
		const UT_OptionsHolder &
	)

pure virtual

Loads data from a dict.

Implemented in PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeFile, PDG_AttributeDictionary, PDG_AttributeGeometry, and PDG_AttributePyObject.

static bool PDG_AttributeData::makeValidName	(	UT_StringHolder &	name,
		const UT_StringHolder &	str,
		bool	allow_internal = `false`
	)

static

Forces the string into a valid attribute name as described above, and returns true if any changes were made. If allow_internal is false then a __pdg prefix is replaced with __.

virtual PDG_AttributeMergeError PDG_AttributeData::merge	(	PDG_AttributeMergeOp	merge_op,
		int	stride
	)

pure virtual

Applies a merge op to the data in this attribute.

Implemented in PDG_AttributeArray< AttribType, DataType, ArrayType >, PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >, PDG_AttributeArray< PDG_AttributeType::eDictArray, UT_OptionsHolder, UT_Array< UT_OptionsHolder > >, PDG_AttributeGeometry, and PDG_AttributePyObject.

static PDG_AttributeMergeError PDG_AttributeData::merge	(	UT_StringArray &	data,
		PDG_AttributeMergeOp	merge_op,
		int	stride
	)

staticprotected

Merge op utility for string array data.

static PDG_AttributeMergeError PDG_AttributeData::merge	(	PDG_File::Array &	data,
		PDG_AttributeMergeOp	merge_op,
		int	stride
	)

staticprotected

Merge op utility for file array data.

static PDG_AttributeMergeError PDG_AttributeData::merge	(	UT_ValArray< fpreal > &	data,
		PDG_AttributeMergeOp	merge_op,
		int	stride
	)

staticprotected

Merge op utility for float array data.

static PDG_AttributeMergeError PDG_AttributeData::merge	(	UT_ValArray< exint > &	data,
		PDG_AttributeMergeOp	merge_op,
		int	stride
	)

staticprotected

Merge op utility for int array data.

static PDG_AttributeMergeError PDG_AttributeData::merge	(	UT_Array< UT_OptionsHolder > &	data,
		PDG_AttributeMergeOp	merge_op,
		int	stride
	)

staticprotected

Merge op utility for dict array data.

static UT_StringHolder PDG_AttributeData::mergeName ( PDG_AttributeMergeOp merge )

static

Returns the string name for the specified merge op.

static UT_StringHolder PDG_AttributeData::nameFromIntrinsic	(	PDG_AttributeIntrinsic	attrib_type,
		const UT_StringHolder &	name
	)

static

Returns an attribute name from a intrinsic type a name string.

virtual bool PDG_AttributeData::saveData ( UT_JSONWriter & ) const

pure virtual

Serializes the data to a JSON writer.

Implemented in PDG_AttributeFile, PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeDictionary, PDG_AttributeGeometry, and PDG_AttributePyObject.

virtual void PDG_AttributeData::saveData	(	const UT_StringHolder &	,
		UT_OptionsHolder &
	)		const

pure virtual

Serializes the data to a UT options.

Implemented in PDG_AttributeFile, PDG_AttributePrimitive< AttribType, DataType, ArrayType, JSONType >, PDG_AttributeDictionary, PDG_AttributeGeometry, and PDG_AttributePyObject.

static PDG_AttributeType PDG_AttributeData::typeFromString ( const UT_StringHolder & type_name )

static

Returns an attribute type enum from the specified string name.

static UT_StringHolder PDG_AttributeData::typeName ( PDG_AttributeType type )

static

Returns the string name for the specififed attribute type.

static bool PDG_AttributeData::validName	(	const UT_StringHolder &	str,
		bool	allow_internal = `false`
	)

static

Returns true if the specified string is a valid attribute name. A valid name cannot start with __pdg prefix unless allow_interal is true. All names must begin with a letter or _ character and only contain letters/numbers/_ for subsequent character. E.g. they must match UT_String::isValidVariableName.

Member Data Documentation

const UT_StringHolder PDG_AttributeData::theConcatKey

static

Definition at line 46 of file PDG_AttributeData.h.

const UT_StringHolder PDG_AttributeData::theFlagKey

static

Static stringholder keys, used during json serialization and deserialization.

Definition at line 43 of file PDG_AttributeData.h.

const UT_StringHolder PDG_AttributeData::theOwnKey

static

Definition at line 47 of file PDG_AttributeData.h.

const UT_StringHolder PDG_AttributeData::theRuntimeKey

static

Definition at line 45 of file PDG_AttributeData.h.

const UT_StringHolder PDG_AttributeData::theTypeKey

static

Definition at line 44 of file PDG_AttributeData.h.

const UT_StringHolder PDG_AttributeData::theValueKey

static

Definition at line 48 of file PDG_AttributeData.h.

constexpr PDG_AttributeType PDG_AttributeData::TypeEnum = PDG_AttributeType::eUndefined

static

Attribute data version number.

Definition at line 39 of file PDG_AttributeData.h.

The documentation for this class was generated from the following file:

PDG/PDG_AttributeData.h
