#include <PDG_AttributeFile.h>

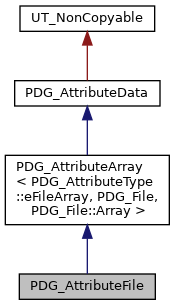

Inheritance diagram for PDG_AttributeFile:

Public Types
enum	QueryType { eQueryAny, eQueryReal, eQueryExpected }

using	Base = PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >

Public Types inherited from PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >
using	Self = PDG_AttributeArray< AttribType, PDG_File, PDG_File::Array >

using	Data = PDG_File

using	Array = PDG_File::Array

using	Map = UT_StringMap< PDG_File::Array >

Public Member Functions
	~PDG_AttributeFile () override

int64	getMemoryUsage (bool inclusive) const override
	Returns the total memory usage of all data on this attribute. More...

PDG_AttributeData *	clone () const override

bool	saveData (UT_JSONWriter &writer) const override

void	saveData (const UT_StringHolder &key, UT_OptionsHolder &dict) const override

bool	loadData (const UT_JSONValue &value) override

bool	loadData (const UT_StringHolder &key, const UT_OptionsHolder &dict) override
	Reads the file data from the dict. More...

bool	clearExpected ()
	Removes all expected files from the array. More...

void	clearMatching (const PDG_File::Set &file_set)
	Removes all files that match the input filter set. More...

const Data &	appendValue (const PDG_WorkItem *work_item, const UT_StringHolder &path, const UT_StringHolder &tag, PDG_File::Hash hash, PDG_File::FileType file_type, bool own, bool replace_expected)

const Data &	appendValue (const Data &, bool replace_expected)

void	values (Array &values, QueryType query=eQueryReal) const
	Returns all file paths that match the query type. More...

void	valuesForTag (Array &values, const UT_StringHolder &tag, QueryType query=eQueryReal) const

PDG_AttributeCast	valueForTag (Data &value, int index, const UT_StringHolder &tag, QueryType query=eQueryReal) const

PDG_AttributeCast	valuesForEvaluator (UT_WorkBuffer &buffer, const PDG_AttributeEvaluator &evaluator, QueryType query=eQueryReal) const

Public Member Functions inherited from PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >
	PDG_AttributeArray ()

	PDG_AttributeArray (const PDG_File::Array &data)

	~PDG_AttributeArray () override

bool	hasData () const

int	size () const

bool	valid (int component) const

bool	value (PDG_File &data, int component) const

const PDG_File &	value (int component) const

PDG_File &	value (int component)

void	setValue (const PDG_File::Array &data)

void	setValue (const PDG_File::Array &&data)

void	setValue (const PDG_File &value, int component)

void	setValues (const PDG_File::Array &data)

const PDG_File &	appendValue (const PDG_File &value)

const PDG_File::Array &	values () const

PDG_File::Array &	values ()

void	clear ()

void	truncate (int length)

bool	concat (const Self *other)

bool	adjustSize (int offset)

bool	setSize (int size)

bool	hash (SYS_HashType &hash_value, exint index, UT_WorkBuffer &errors) const override
	Return a hash value derived from the attribute data. More...

void	swap (Self *other)

void	copy (const Self *other, PDG_AttributeCopyOp copy_op)

void	copy (const PDG_File::Array &data, PDG_AttributeCopyOp copy_op)

bool	compare (const PDG_AttributeData *other) const override
	Compares this data object with another data object. More...

PDG_AttributeMergeError	merge (PDG_AttributeMergeOp merge_op, int stride) override
	Applies a merge op to the data in this attribute. More...

bool	slice (PDG_File::Array &result, exint start, UT_Optional< exint > end_opt=UT_Optional< exint >(), UT_Optional< exint > step_opt=UT_Optional< exint >()) const

Public Member Functions inherited from PDG_AttributeData
	PDG_AttributeData ()

virtual	~PDG_AttributeData ()

Additional Inherited Members
Static Public Member Functions inherited from PDG_AttributeData
static PDG_AttributeData *	fromType (PDG_AttributeType type)

static PDG_EventType	eventType (PDG_AttributeType type)
	Static utility for returnign an event from type from an attribute type. More...

static PDG_AttributeType	typeFromString (const UT_StringHolder &type_name)
	Returns an attribute type enum from the specified string name. More...

static PDG_AttributeIntrinsic	intrinsicFromName (const UT_StringRef &name)
	Returns an intrinsic type from an attribue name. More...

static UT_StringHolder	nameFromIntrinsic (PDG_AttributeIntrinsic attrib_type, const UT_StringHolder &name)
	Returns an attribute name from a intrinsic type a name string. More...

static bool	validName (const UT_StringHolder &str, bool allow_internal=false)

static bool	makeValidName (UT_StringHolder &name, const UT_StringHolder &str, bool allow_internal=false)

static UT_StringHolder	typeName (PDG_AttributeType type)
	Returns the string name for the specififed attribute type. More...

static UT_StringHolder	mergeName (PDG_AttributeMergeOp merge)
	Returns the string name for the specified merge op. More...

static bool	isArrayType (PDG_AttributeType type)
	Returns true if the specified type is an array type. More...

static PDG_AttributeType	compatibleType (PDG_AttributeType left, PDG_AttributeType right)

Static Public Attributes inherited from PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >
static constexpr PDG_AttributeType	TypeEnum

Static Public Attributes inherited from PDG_AttributeData
static constexpr PDG_AttributeType	TypeEnum = PDG_AttributeType::eUndefined
	Attribute data version number. More...

static const UT_StringHolder	theFlagKey

static const UT_StringHolder	theTypeKey

static const UT_StringHolder	theRuntimeKey

static const UT_StringHolder	theConcatKey

static const UT_StringHolder	theOwnKey

static const UT_StringHolder	theValueKey

Protected Member Functions inherited from PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >
void	expand (const PDG_File &value, int component)

void	expandIfNeeded (const PDG_File &default_value, int component)

Static Protected Member Functions inherited from PDG_AttributeData
static PDG_AttributeMergeError	merge (UT_StringArray &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for string array data. More...

static PDG_AttributeMergeError	merge (PDG_File::Array &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for file array data. More...

static PDG_AttributeMergeError	merge (UT_ValArray< fpreal > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for float array data. More...

static PDG_AttributeMergeError	merge (UT_ValArray< exint > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for int array data. More...

static PDG_AttributeMergeError	merge (UT_Array< UT_OptionsHolder > &data, PDG_AttributeMergeOp merge_op, int stride)
	Merge op utility for dict array data. More...

Protected Attributes inherited from PDG_AttributeArray< PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array >
PDG_File::Array	myData

Detailed Description

File array attribute type

Definition at line 27 of file PDG_AttributeFile.h.

Member Typedef Documentation

using PDG_AttributeFile::Base = PDG_AttributeArray<PDG_AttributeType::eFileArray, PDG_File, PDG_File::Array>

Definition at line 35 of file PDG_AttributeFile.h.

Member Enumeration Documentation

enum PDG_AttributeFile::QueryType

Enumeration of different file types that can be queried from the attribute

Enumerator
eQueryAny	Return any file type (real or expected)
eQueryReal	Only return actual files that have been reported back to the task, not including any pending expected outputs
eQueryExpected	Only return expected outputs, and skip real files.

Definition at line 42 of file PDG_AttributeFile.h.

Constructor & Destructor Documentation

PDG_AttributeFile::~PDG_AttributeFile ( )

override

Member Function Documentation

const Data& PDG_AttributeFile::appendValue	(	const PDG_WorkItem *	work_item,
		const UT_StringHolder &	path,
		const UT_StringHolder &	tag,
		PDG_File::Hash	hash,
		PDG_File::FileType	file_type,
		bool	own,
		bool	replace_expected
	)

Appends a file to the array, given the specified work item, path, file tag, hash, file type, owernship flag. Optionally replaces any matching expected outputs if they're found in the array

const Data& PDG_AttributeFile::appendValue	(	const Data &	,
		bool	replace_expected
	)

Appends a file to the array using a reference to a file object. Optionally replaces any expected outputs if they're found in the array

bool PDG_AttributeFile::clearExpected ( )

Removes all expected files from the array.

void PDG_AttributeFile::clearMatching ( const PDG_File::Set & file_set )

Removes all files that match the input filter set.

PDG_AttributeData* PDG_AttributeFile::clone ( ) const

overridevirtual

Constructs a new file attribute that copies the data from this attribute

Implements PDG_AttributeData.

int64 PDG_AttributeFile::getMemoryUsage ( bool inclusive ) const

overridevirtual

Returns the total memory usage of all data on this attribute.

Implements PDG_AttributeData.

bool PDG_AttributeFile::loadData ( const UT_JSONValue & value )

overridevirtual

Reads the file data from the json value, using the deserialization logic on PDG_File itself

Implements PDG_AttributeData.

bool PDG_AttributeFile::loadData	(	const UT_StringHolder &	key,
		const UT_OptionsHolder &	dict
	)

overridevirtual

Reads the file data from the dict.

Implements PDG_AttributeData.

bool PDG_AttributeFile::saveData ( UT_JSONWriter & writer ) const

overridevirtual

Writes the file data to the json writer, using the JSON serialization logic from PDG_File itself

Implements PDG_AttributeData.

void PDG_AttributeFile::saveData	(	const UT_StringHolder &	key,
		UT_OptionsHolder &	dict
	)		const

overridevirtual

Writes the file data to the UT_OptionsHolder, using the serialization logic from PDG_File itself

Implements PDG_AttributeData.

PDG_AttributeCast PDG_AttributeFile::valueForTag	(	Data &	value,
		int	index,
		const UT_StringHolder &	tag,
		QueryType	query = `eQueryReal`
	)		const

Returns the first matching file, starting from the specified index, that has the requested tag and type

void PDG_AttributeFile::values	(	Array &	values,
		QueryType	query = `eQueryReal`
	)		const

Returns all file paths that match the query type.

PDG_AttributeCast PDG_AttributeFile::valuesForEvaluator	(	UT_WorkBuffer &	buffer,
		const PDG_AttributeEvaluator &	evaluator,
		QueryType	query = `eQueryReal`
	)		const

Returns all file values using the configuration of the attribute evaluator object, filtered by the query type

void PDG_AttributeFile::valuesForTag	(	Array &	values,
		const UT_StringHolder &	tag,
		QueryType	query = `eQueryReal`
	)		const

Returns all file paths with the specified tag that match the query type

The documentation for this class was generated from the following file:

PDG/PDG_AttributeFile.h
