SOP_NodeVerb Class Referenceabstract

#include <SOP_NodeVerb.h>

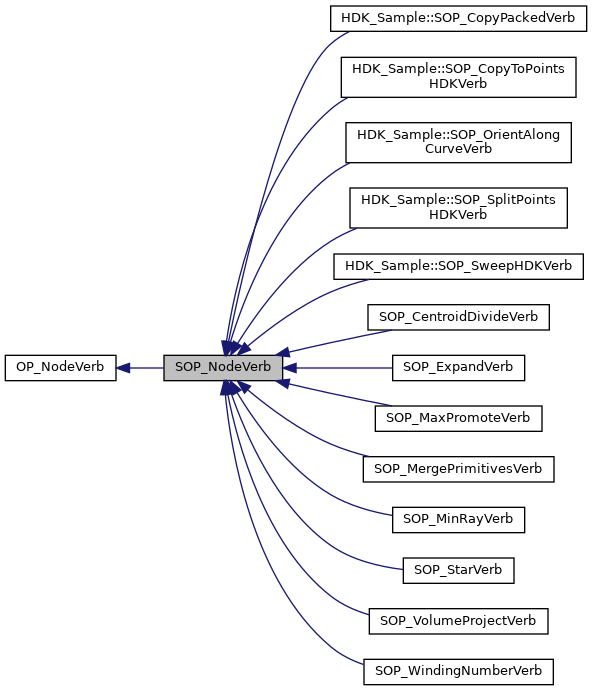

+ Inheritance diagram for SOP_NodeVerb:

Classes

class  CookParms

class  InputParms

class  NodeExecuteInfo

class  NodeInputs

class  PreCookedNodeInputs

class  ScopeForbiddenNodes


Public Types

enum  CookMode {
  COOK_INPLACE, COOK_DUPLICATE, COOK_GENERATOR, COOK_INSTANCE,
  COOK_GENERIC, COOK_PASSTHROUGH
}

typedef UT_Map< const OP_Node
*, NodeExecuteInfo > 		ForbiddenNodeMap


Public Member Functions

 SOP_NodeVerb ()

virtual SOP_NodeCache * allocCache () const

virtual SOP_NodeParms * allocParms () const =0

OP_NodeCache * baseAllocCache () const overridefinal

OP_NodeParms * baseAllocParms () const overridefinal

OP_OpTypeId category () const override

virtual bool doPartialInputCook () const

virtual bool doExprInputCook () const

virtual bool cookInputs (const InputParms &parms) const

virtual void setupLocalVariables (SOP_Node *sop, const UT_Array< GU_ConstDetailHandle > &inputs) const

virtual void resetLocalVariables (SOP_Node *sop) const

virtual bool evaluatesParametersDuringCook () const

virtual CookMode cookMode (const SOP_NodeParms *parms) const

virtual bool apexInplace () const

virtual void cook (const CookParms &cookparms) const =0
 Compute the output geometry. More...

void notifyGroupParmListeners (SOP_Node *oldsop, int groupparm_idx, int grouptype_idx, const GU_Detail *gdp, const GA_Group *group) const

virtual bool requiresCEFlush () const

virtual bool usesCE () const

- Public Member Functions inherited from OP_NodeVerb
 OP_NodeVerb ()

virtual ~OP_NodeVerb ()

 OP_NodeVerb (const OP_NodeVerb &)=delete

OP_NodeVerb & operator= (const OP_NodeVerb &)=delete

virtual UT_StringHolder name () const =0


Static Public Member Functions

static const SOP_NodeVerb * lookupVerb (const UT_StringRef &name)
 Finds a verb which matches the given name. More...

static void listVerbs (UT_StringArray &verbnames)

static const ForbiddenNodeMap * forbiddenNodes ()

static const ForbiddenNodeMap * forbiddenNodes (int thread)

- Static Public Member Functions inherited from OP_NodeVerb
static const OP_NodeVerb * lookupCategoryVerb (OP_OpTypeId cat, const UT_StringRef &name)
 Finds a verb which matches the given name. More...

static void listCategoryVerbs (OP_OpTypeId cat, UT_StringArray &verbnames)

static void registerVerb (OP_NodeVerb *verb)

static void unregisterVerb (OP_NodeVerb *verb)


Detailed Description

SOP_NodeVerb

This should be a singleton class. Build it with the Register template to allow it to be discoverable by name.

Definition at line 87 of file SOP_NodeVerb.h.

Member Typedef Documentation

typedef UT_Map<const OP_Node *, NodeExecuteInfo> SOP_NodeVerb::ForbiddenNodeMap

Definition at line 132 of file SOP_NodeVerb.h.

Member Enumeration Documentation

enum SOP_NodeVerb::CookMode
Enumerator
COOK_INPLACE
COOK_DUPLICATE
COOK_GENERATOR
COOK_INSTANCE
COOK_GENERIC
COOK_PASSTHROUGH

Definition at line 158 of file SOP_NodeVerb.h.

Constructor & Destructor Documentation

SOP_NodeVerb::SOP_NodeVerb ( )
inline

Definition at line 90 of file SOP_NodeVerb.h.

Member Function Documentation

virtual SOP_NodeCache* SOP_NodeVerb::allocCache ( ) const
inlinevirtual

Reimplemented in HDK_Sample::SOP_SweepHDKVerb, SOP_WindingNumberVerb, SOP_MinRayVerb, HDK_Sample::SOP_CopyPackedVerb, and HDK_Sample::SOP_CopyToPointsHDKVerb.

Definition at line 92 of file SOP_NodeVerb.h.

virtual SOP_NodeParms* SOP_NodeVerb::allocParms ( ) const
pure virtual

Implemented in HDK_Sample::SOP_SweepHDKVerb, SOP_WindingNumberVerb, SOP_VolumeProjectVerb, SOP_MinRayVerb, SOP_CentroidDivideVerb, SOP_MergePrimitivesVerb, SOP_ExpandVerb, SOP_StarVerb, SOP_MaxPromoteVerb, HDK_Sample::SOP_CopyPackedVerb, HDK_Sample::SOP_CopyToPointsHDKVerb, HDK_Sample::SOP_OrientAlongCurveVerb, and HDK_Sample::SOP_SplitPointsHDKVerb.

virtual bool SOP_NodeVerb::apexInplace ( ) const
inlinevirtual

Whether this verb's APEX callback will use an in-place port. Typically verbs that use a COOK_INPLACE or a COOK_PASSTHROUGH cook mode should use an in-place port in APEX.

Definition at line 738 of file SOP_NodeVerb.h.

OP_NodeCache* SOP_NodeVerb::baseAllocCache ( ) const
inlinefinaloverridevirtual

When working with a specific category one will use allocCache and allocParms, which these should chain to in the category baseclass.

Reimplemented from OP_NodeVerb.

Definition at line 96 of file SOP_NodeVerb.h.

OP_NodeParms* SOP_NodeVerb::baseAllocParms ( ) const
inlinefinaloverridevirtual

Implements OP_NodeVerb.

Definition at line 98 of file SOP_NodeVerb.h.

OP_OpTypeId SOP_NodeVerb::category ( ) const
inlineoverridevirtual

Implements OP_NodeVerb.

Definition at line 103 of file SOP_NodeVerb.h.

virtual void SOP_NodeVerb::cook ( const CookParms &  cookparms) const
pure virtual

Compute the output geometry.

Implemented in HDK_Sample::SOP_SweepHDKVerb, SOP_WindingNumberVerb, SOP_VolumeProjectVerb, SOP_MinRayVerb, SOP_CentroidDivideVerb, SOP_MergePrimitivesVerb, SOP_ExpandVerb, SOP_StarVerb, SOP_MaxPromoteVerb, HDK_Sample::SOP_CopyPackedVerb, HDK_Sample::SOP_CopyToPointsHDKVerb, HDK_Sample::SOP_OrientAlongCurveVerb, and HDK_Sample::SOP_SplitPointsHDKVerb.

virtual bool SOP_NodeVerb::cookInputs ( const InputParms &  parms) const
inlinevirtual

Definition at line 698 of file SOP_NodeVerb.h.

virtual CookMode SOP_NodeVerb::cookMode ( const SOP_NodeParms *  parms) const
inlinevirtual

Reimplemented in HDK_Sample::SOP_SweepHDKVerb, SOP_WindingNumberVerb, SOP_VolumeProjectVerb, SOP_MinRayVerb, SOP_CentroidDivideVerb, SOP_MergePrimitivesVerb, SOP_ExpandVerb, SOP_StarVerb, SOP_MaxPromoteVerb, HDK_Sample::SOP_CopyPackedVerb, HDK_Sample::SOP_CopyToPointsHDKVerb, HDK_Sample::SOP_OrientAlongCurveVerb, and HDK_Sample::SOP_SplitPointsHDKVerb.

Definition at line 733 of file SOP_NodeVerb.h.

virtual bool SOP_NodeVerb::doExprInputCook ( ) const
inlinevirtual

If doExprInputCook is true, we will also cook all expression inputs in cookInputs using the default method.

Definition at line 696 of file SOP_NodeVerb.h.

virtual bool SOP_NodeVerb::doPartialInputCook ( ) const
inlinevirtual

If doPartialInputCook is false, we do assume cookInputs() will apply to all inputs regardless of node parameters. If local variables require the inputs, it is required for this to be false for the inputs to be available when parameters are evaluated.

Definition at line 692 of file SOP_NodeVerb.h.

virtual bool SOP_NodeVerb::evaluatesParametersDuringCook ( ) const
inlinevirtual

Traditional nodes may evaluate parameters while cooking, this is required for dynamic local variables. If this is true, no pre-cooking of the parameter struture will be done in the traditional cook path avoiding double cooking parameters. Remember other cook paths will not have access to the sop so should use the parameter structure!

Definition at line 731 of file SOP_NodeVerb.h.

static const ForbiddenNodeMap* SOP_NodeVerb::forbiddenNodes ( )
static

During execution of a verb chain you may wish to disable the traditional cooking of nodes. This provides a set of nodes you do not want recursed into during the verb cook. It will be NULL if there are none or this thread isn't in a compiled execution path.

static const ForbiddenNodeMap* SOP_NodeVerb::forbiddenNodes ( int  thread)
static
static void SOP_NodeVerb::listVerbs ( UT_StringArray &  verbnames)
static
static const SOP_NodeVerb* SOP_NodeVerb::lookupVerb ( const UT_StringRef &  name)
static

Finds a verb which matches the given name.

void SOP_NodeVerb::notifyGroupParmListeners ( SOP_Node *  oldsop,
int  groupparm_idx,
int  grouptype_idx,
const GU_Detail *  gdp,
const GA_Group *  group
) const

This is used to update handles, it only has an effect if oldsop is non-null, ie, we are in the old cook path. Neither the group nor the gdp have to persist beyond this call. Pass -1 for the grouptype if there is no grouptype parameter.

virtual bool SOP_NodeVerb::requiresCEFlush ( ) const
inlinevirtual

Geometry elements can end up cached on the GPU. Some SOPs are able to handle this. Some are ambivalent (such as switch or null) And some expect all GPU buffers to be flushed prior to operating.

If requiresCEFlush() is true, all inputs will be flushed from the GPU to CPU prior to being cooked.

Definition at line 747 of file SOP_NodeVerb.h.

virtual void SOP_NodeVerb::resetLocalVariables ( SOP_Node *  sop) const
inlinevirtual

Definition at line 724 of file SOP_NodeVerb.h.

virtual void SOP_NodeVerb::setupLocalVariables ( SOP_Node *  sop,
const UT_Array< GU_ConstDetailHandle > &  inputs
) const
inlinevirtual

These are for the old-cook path to allow nodes to store relevant local variable information inside the SOP for callbacks. The evalVariableValue() should be guarded to ensure it doesn't run from a forbidden node. These can be used if the local variables depend only on the inputs and are not change for every parameter. If they change for every parameter, traditional cook paths will need to setup & evaluate explicitly in the cook method.

Definition at line 723 of file SOP_NodeVerb.h.

virtual bool SOP_NodeVerb::usesCE ( ) const
inlinevirtual

If usesCE() is true, it says some of its output geometry will still be on the GPU, which will require flushing to be used on the CPU.

Definition at line 750 of file SOP_NodeVerb.h.

The documentation for this class was generated from the following file:
