#include <rerootingSceneIndex.h>

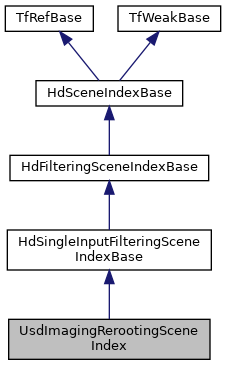

Inheritance diagram for UsdImagingRerootingSceneIndex:

Public Member Functions
USDIMAGING_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override

USDIMAGING_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector < HdSceneIndexBaseRefPtr >	GetInputScenes () const final

Public Member Functions inherited from HdSceneIndexBase
HD_API	HdSceneIndexBase ()

HD_API	~HdSceneIndexBase () override

HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const

HD_API std::string	GetDisplayName () const

HD_API void	SetDisplayName (const std::string &n)

HD_API void	AddTag (const TfToken &tag)

HD_API void	RemoveTag (const TfToken &tag)

HD_API bool	HasTag (const TfToken &tag) const

HD_API TfTokenVector	GetTags () const

Public Member Functions inherited from TfRefBase
	TfRefBase ()

size_t	GetCurrentCount () const
	Return the current reference count of this object. More...

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object. More...

const TfRefCount &	GetRefCount () const

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase ()

	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static UsdImagingRerootingSceneIndexRefPtr	New (HdSceneIndexBaseRefPtr const &inputScene, const SdfPath &srcPrefix, const SdfPath &dstPrefix)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
USDIMAGING_API	UsdImagingRerootingSceneIndex (HdSceneIndexBaseRefPtr const &inputScene, const SdfPath &srcPrefix, const SdfPath &dstPrefix)

USDIMAGING_API	~UsdImagingRerootingSceneIndex () override

void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

virtual HD_API void	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &entries)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)

HD_API bool	_IsObserved () const

Protected Member Functions inherited from TfRefBase
virtual TF_API	~TfRefBase ()

Protected Member Functions inherited from TfWeakBase
	~TfWeakBase ()

TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr )(TfRefBase const *, bool)

Detailed Description

UsdImagingRerootingSceneIndex

Drops all prims not under srcPrefix and moves those under srcPrefix to dstPrefix.

Data sources containing paths will be updated accordingly. That is, if it contains a path with srcPrefix as prefix, the prefix will be replaced by dstPrefix.

Note that this can be used as prefixing scene index by setting srcPrefix to the root path. It can also use to isolate part of the namespace by setting the srcPrefix and dstPrefix to be equal.

Definition at line 48 of file rerootingSceneIndex.h.

Constructor & Destructor Documentation

USDIMAGING_API UsdImagingRerootingSceneIndex::UsdImagingRerootingSceneIndex	(	HdSceneIndexBaseRefPtr const &	inputScene,
		const SdfPath &	srcPrefix,
		const SdfPath &	dstPrefix
	)

protected

USDIMAGING_API UsdImagingRerootingSceneIndex::~UsdImagingRerootingSceneIndex ( )

overrideprotected

Member Function Documentation

void UsdImagingRerootingSceneIndex::_PrimsAdded	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::AddedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void UsdImagingRerootingSceneIndex::_PrimsDirtied	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::DirtiedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

void UsdImagingRerootingSceneIndex::_PrimsRemoved	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::RemovedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

USDIMAGING_API SdfPathVector UsdImagingRerootingSceneIndex::GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath. This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

USDIMAGING_API HdSceneIndexPrim UsdImagingRerootingSceneIndex::GetPrim ( const SdfPath & primPath ) const

overridevirtual

Returns a pair of (prim type, datasource) for the object at primPath. If no such object exists, the type will be the empty token and the datasource will be null. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

static UsdImagingRerootingSceneIndexRefPtr UsdImagingRerootingSceneIndex::New	(	HdSceneIndexBaseRefPtr const &	inputScene,
		const SdfPath &	srcPrefix,
		const SdfPath &	dstPrefix
	)

inlinestatic

Definition at line 52 of file rerootingSceneIndex.h.

The documentation for this class was generated from the following file:

pxr/usdImaging/usdImaging/rerootingSceneIndex.h
