homogeneous.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/gf/vec3d.h"
#include "pxr/base/gf/vec3f.h"
#include "pxr/base/gf/vec4d.h"
#include "pxr/base/gf/vec4f.h"
#include "pxr/base/gf/api.h"

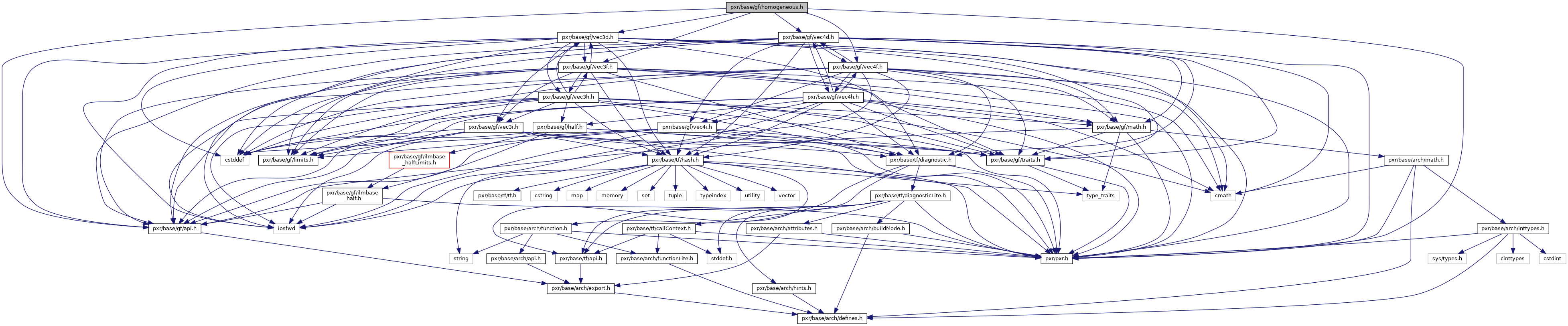

Include dependency graph for homogeneous.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
PXR_NAMESPACE_OPEN_SCOPE GF_API GfVec4f	GfGetHomogenized (const GfVec4f &v)
GF_API GfVec4f	GfHomogeneousCross (const GfVec4f &a, const GfVec4f &b)
GF_API GfVec4d	GfGetHomogenized (const GfVec4d &v)
GF_API GfVec4d	GfHomogeneousCross (const GfVec4d &a, const GfVec4d &b)
GfVec3f	GfProject (const GfVec4f &v)
GfVec3d	GfProject (const GfVec4d &v)

Detailed Description

Utility functions for GfVec4f and GfVec4d as homogeneous vectors

Definition in file homogeneous.h.

Function Documentation

PXR_NAMESPACE_OPEN_SCOPE GF_API GfVec4f GfGetHomogenized

(

const GfVec4f &

v

)

Returns a vector which is v homogenized. If the fourth element of v is 0, it is set to 1.

GF_API GfVec4d GfGetHomogenized

(

const GfVec4d &

v

)

GF_API GfVec4f GfHomogeneousCross	(	const GfVec4f &	a,
		const GfVec4f &	b
	)

Homogenizes a and b and then performs the cross product on the first three elements of each. Returns the cross product as a homogenized vector.

GF_API GfVec4d GfHomogeneousCross	(	const GfVec4d &	a,
		const GfVec4d &	b
	)

Homogenizes a and b and then performs the cross product on the first three elements of each. Returns the cross product as a homogenized vector.

GfVec3f GfProject ( const GfVec4f &  v )

inline

Projects homogeneous v into Euclidean space and returns the result as a Vec3f.

Definition at line 48 of file homogeneous.h.

GfVec3d GfProject ( const GfVec4d &  v )

inline

Projects homogeneous v into Euclidean space and returns the result as a Vec3d.

Definition at line 55 of file homogeneous.h.
