weakPtr.h File Reference
#include "pxr/pxr.h"
#include "pxr/base/tf/nullPtr.h"
#include "pxr/base/tf/refPtr.h"
#include "pxr/base/tf/tf.h"
#include "pxr/base/tf/weakBase.h"
#include "pxr/base/tf/weakPtrFacade.h"
#include <cstddef>
#include <type_traits>

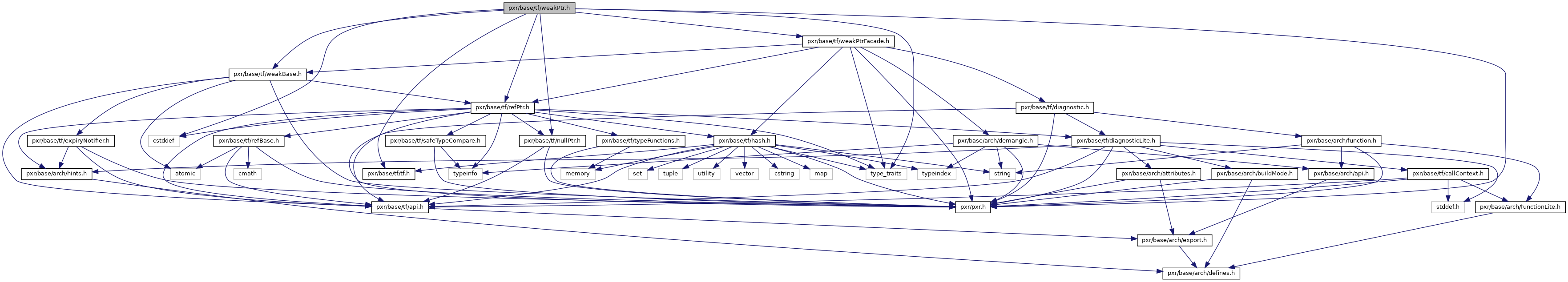

+ Include dependency graph for weakPtr.h:

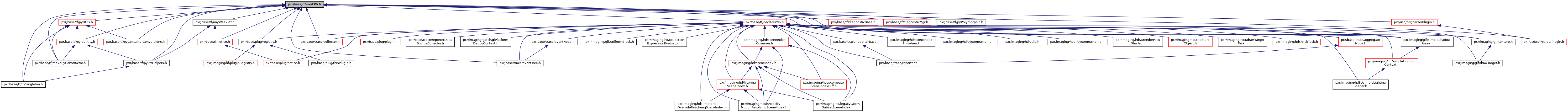

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


class  TfRefPtr< T >
class  TfWeakPtr< T >
class  TfWeakPtr< T >
struct  TfWeakPtr< T >::Rebind< U >
class  TfWeakPtr< void >
struct  Tf_HasGetWeakBase< T >
struct  Tf_SupportsWeakPtr< T >


#define TF_SUPPORTS_WEAKPTR(T)   (Tf_SupportsWeakPtr<T>::value)
#define TF_TRULY_SUPPORTS_WEAKPTR(T)   std::is_base_of<TfWeakBase, T >::value
#define TF_DECLARE_WEAK_POINTABLE_INTERFACE   virtual TfWeakBase const &__GetTfWeakBase__() const = 0


template<class U >
TfWeakPtr< U > TfCreateWeakPtr (U *p)
template<class U >
TfWeakPtr< U > TfCreateNonConstWeakPtr (U const *p)
template<class T >
TfRefPtr< T > TfCreateRefPtrFromProtectedWeakPtr (TfWeakPtr< T > const &p)

Detailed Description

Pointer storage with deletion detection.

Definition in file weakPtr.h.

Macro Definition Documentation

#define TF_DECLARE_WEAK_POINTABLE_INTERFACE   virtual TfWeakBase const &__GetTfWeakBase__() const = 0

Definition at line 427 of file weakPtr.h.

virtual TfWeakBase const &__GetTfWeakBase__() const { \
return *this; \

Definition at line 430 of file weakPtr.h.

#define TF_SUPPORTS_WEAKPTR (   T)    (Tf_SupportsWeakPtr<T>::value)

Definition at line 424 of file weakPtr.h.

#define TF_TRULY_SUPPORTS_WEAKPTR (   T)    std::is_base_of<TfWeakBase, T >::value

Definition at line 425 of file weakPtr.h.

Function Documentation

template<class U >
TfWeakPtr<U> TfCreateNonConstWeakPtr ( U const p)

Definition at line 237 of file weakPtr.h.

template<class T >
TfRefPtr<T> TfCreateRefPtrFromProtectedWeakPtr ( TfWeakPtr< T > const p)

Thread-safe creation of a Tf ref pointer from a Tf weak pointer.

This is thread-safe in the sense that the result will be either a ref pointer to a live object with non-zero ref-count, or a NULL ref pointer. However, this depends on the client to provide a guarantee to protect the pointed-to object.

Specifically, the caller must guarantee that the TfRefBase part of the pointed-to object is not destroyed during this call. It is fine if the destruction process for the object begins (due to the ref-count going to zero as another thread drops the last ref) as long as the TfRefBase portion is not destroyed. If object destruction begins because the ref-count goes to zero before this call completes, this function will reliably return a NULL ref pointer.

Note that this is not a general mechanism for safely converting weak pointers to ref pointers, because it relies on the type T to provide the above guarantee.

Definition at line 262 of file weakPtr.h.

template<class U >
TfWeakPtr<U> TfCreateWeakPtr ( U *  p)

Definition at line 232 of file weakPtr.h.
