OP_Operator.h File Reference

#include "OP_API.h"
#include "OP_DataTypes.h"
#include "OP_OperatorPair.h"
#include "OP_OTLDefinition.h"
#include "OP_OTLLicenseType.h"
#include "OP_Value.h"
#include <CH/CH_ExprLanguage.h>
#include <VEX/VEX_RslTypes.h>
#include <VEX/VEX_VexTypes.h>
#include <FS/FS_IndexFile.h>
#include <UT/UT_Array.h>
#include <UT/UT_Color.h>
#include <UT/UT_DeepString.h>
#include <UT/UT_Defines.h>
#include <UT/UT_Lock.h>
#include <UT/UT_SharedPtr.h>
#include <UT/UT_StringArray.h>
#include <UT/UT_StringHolder.h>
#include <UT/UT_ValArray.h>
#include <iosfwd>

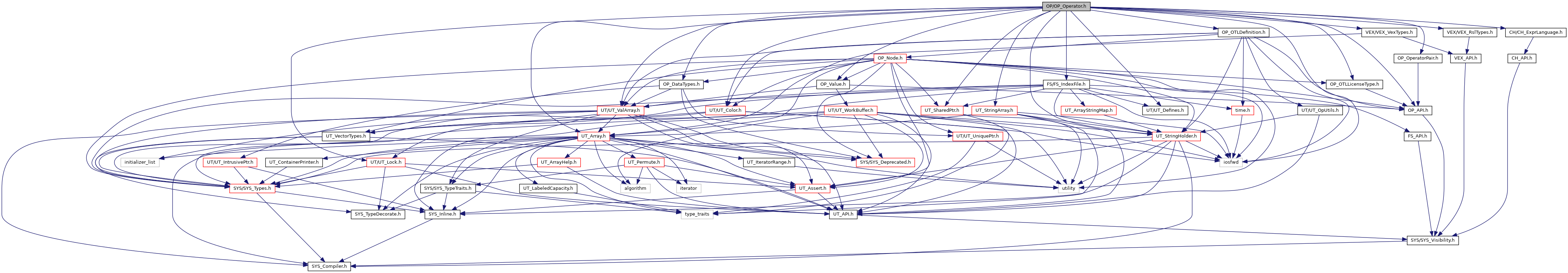

Include dependency graph for OP_Operator.h:

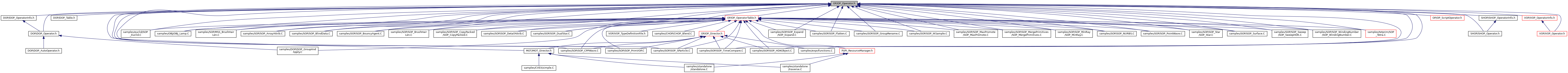

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UT_StringMap< T >
class	OP_SpecificData
class	OP_InputDataEditorConfig
class	OP_InputDataEditorConfigEx
class	OP_Operator
class	OP_UpdateTemplatesSink

Macros
#define	ENGLISH_NAME   "englishname"
#define	VOPNET_TAB_MENU_FLAG_NAME   "tabmenuflag"
#define	OP_FLAG_NETWORK   0x01
	Flags passed to the contructor: More...
#define	OP_FLAG_GENERATOR   0x02
#define	OP_FLAG_UNORDERED   0x04
#define	OP_FLAG_SCRIPTDEF   0x08
#define	OP_FLAG_MANAGER   0x10
#define	OP_FLAG_PRIMARYSUBNET   0x20
#define	OP_FLAG_OUTPUT   0x40
#define	OP_FLAG_EDITABLE_INPUT_DATA   0x80
#define	OP_MAX_INPUT_LABELS   4
#define	OP_MULTI_INPUT_MAX   9999
#define	OP_MAX_INDIRECT_INPUTS   500
#define	OP_MULTI_OUTPUT_MAX   9999

Typedefs
typedef UT_ValArray < OP_Operator * >	OP_OperatorList
typedef OP_Node *	OP_Ptr
typedef std::function< OP_Ptr(OP_Network *, const char *, OP_Operator *)>	OP_Constructor

Enumerations
enum	OP_EventScriptType { OP_EVENTSCRIPT_GLOBAL, OP_EVENTSCRIPT_OPTYPE, OP_EVENTSCRIPT_NODE }

Macro Definition Documentation

#define ENGLISH_NAME   "englishname"

Definition at line 49 of file OP_Operator.h.

#define OP_FLAG_EDITABLE_INPUT_DATA   0x80

Definition at line 88 of file OP_Operator.h.

#define OP_FLAG_GENERATOR   0x02

Examples:

CHOP/CHOP_Stair.C, COP2/COP2_SampleGenerator.C, euclid/SOP_Euclid.C, field3d/ROP_Field3D.C, ROP/ROP_Dumper.C, SHOP/SHOP_Multi.C, SHOP/SHOP_POVMaterial.C, SOP/SOP_CopRaster.C, SOP/SOP_DualStar.C, SOP/SOP_HDKObject.C, SOP/SOP_NURBS.C, tetprim/SOP_Tetra.C, and VOP/VOP_CustomContext.C.

Definition at line 82 of file OP_Operator.h.

#define OP_FLAG_MANAGER   0x10

Definition at line 85 of file OP_Operator.h.

#define OP_FLAG_NETWORK   0x01

Flags passed to the contructor:

Definition at line 81 of file OP_Operator.h.

#define OP_FLAG_OUTPUT   0x40

Definition at line 87 of file OP_Operator.h.

#define OP_FLAG_PRIMARYSUBNET   0x20

Definition at line 86 of file OP_Operator.h.

#define OP_FLAG_SCRIPTDEF   0x08

Definition at line 84 of file OP_Operator.h.

#define OP_FLAG_UNORDERED   0x04

Examples:

VOP/VOP_Switch.C.

Definition at line 83 of file OP_Operator.h.

#define OP_MAX_INDIRECT_INPUTS   500

Definition at line 98 of file OP_Operator.h.

#define OP_MAX_INPUT_LABELS   4

Definition at line 91 of file OP_Operator.h.

#define OP_MULTI_INPUT_MAX   9999

Definition at line 94 of file OP_Operator.h.

#define OP_MULTI_OUTPUT_MAX   9999

Definition at line 101 of file OP_Operator.h.

#define VOPNET_TAB_MENU_FLAG_NAME   "tabmenuflag"

Definition at line 50 of file OP_Operator.h.

Typedef Documentation

typedef std::function<OP_Ptr(OP_Network *, const char *, OP_Operator *)> OP_Constructor

Definition at line 107 of file OP_Operator.h.

typedef UT_ValArray<OP_Operator *> OP_OperatorList

Definition at line 103 of file OP_Operator.h.

typedef OP_Node* OP_Ptr

Definition at line 105 of file OP_Operator.h.

Enumeration Type Documentation

enum OP_EventScriptType

Enumerator
OP_EVENTSCRIPT_GLOBAL
OP_EVENTSCRIPT_OPTYPE
OP_EVENTSCRIPT_NODE

Definition at line 110 of file OP_Operator.h.
