OP_Network Class Referenceabstract

#include <OP_Network.h>

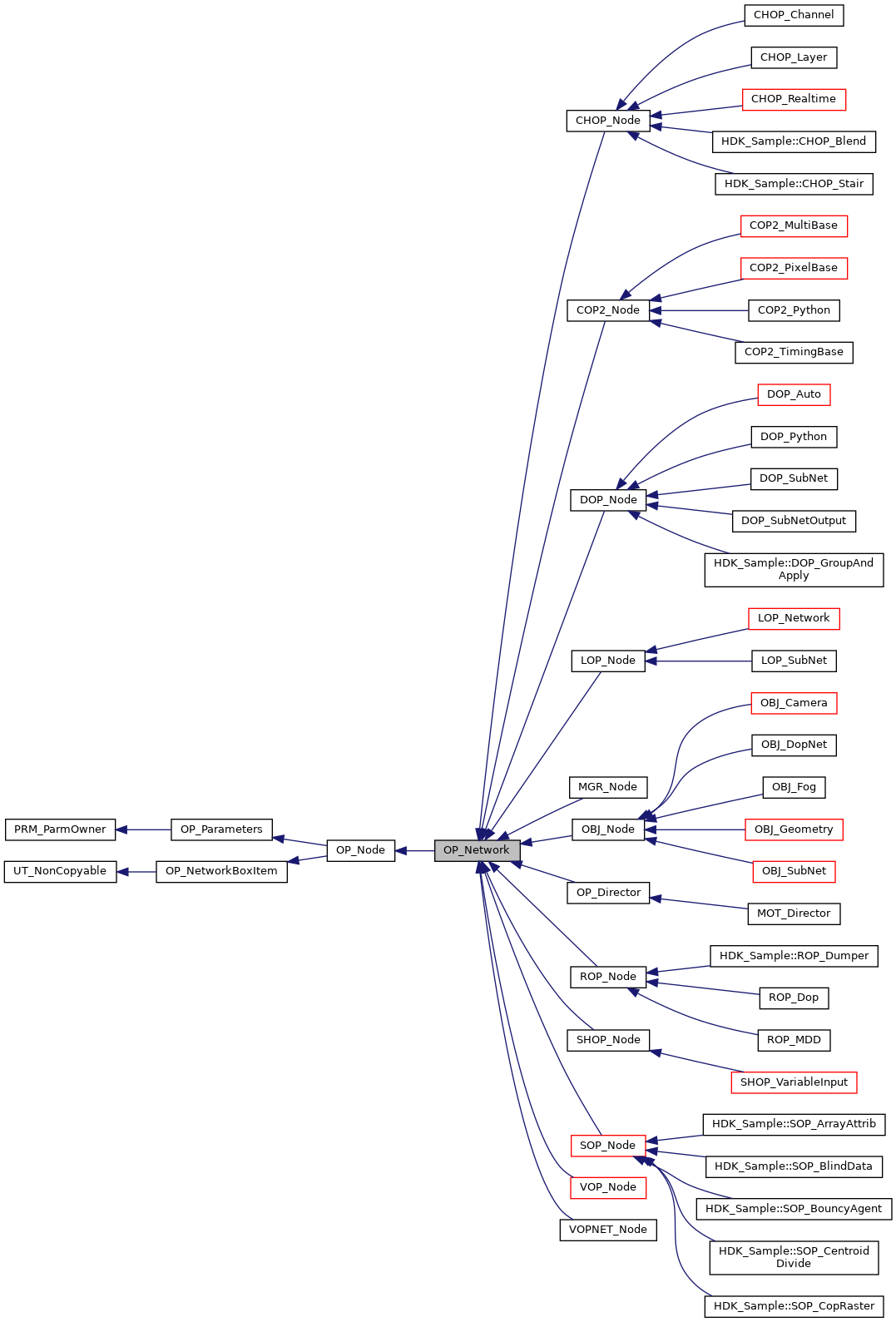

+ Inheritance diagram for OP_Network:

Public Member Functions

int getNchildren () const override

OP_NodegetChild (const char *name=0, int *hint=0) const override

OP_NodegetChild (int index) const override

virtual int getChildIndex (const OP_Node *) const

int isNetwork () const override

int getDandROpsEqual () override

int updateDandROpsEqual (int check_inputs=1) override

virtual void moveChildIndex (int srcindex, int dstindex)

virtual const char * getChildType () const

virtual OP_OpTypeId getChildTypeID () const =0

int getTemplateOps (UT_ValArray< OP_Node * > &list)

int getOpsByName (const char *op_name, UT_Array< OP_Node * > &list) const

OP_NodepeekCurrentNodePtr ()

void stashCurrentNodePtr (const OP_Node *child)

OP_NodegetStashedCurrentNodePtr () const

virtual OP_NodegetCurrentNodePtr ()

virtual OP_NodegetDisplayNodePtr ()

virtual OP_NodegetRenderNodePtr ()

virtual CHOP_NodegetAudioNodePtr ()

virtual const UT_ValArray
< OP_Node * > &
getOutputNodePtrs () const

virtual void childDeleted (OP_Node *)

virtual void childFlagChange (OP_Node *)

fpreal getChildrenScale () const

void setChildrenScale (fpreal scale)

virtual OP_OperatorFiltergetOperatorFilter ()

void getNetworkScopeStack (UT_StringArray &scope_stack)

bool isOperatorAllowedAsChild (OP_Operator *op)
 Returns true if the given op can be created as a child of this network. More...

virtual bool isOperatorAllowedInTabMenu (OP_Operator *op)
 Returns true if the given op can show up in the Tab menu. More...

bool isOperatorCreateAllowed (OP_Operator *op)
 Returns true if the given op can show up in the Tab menu. More...

bool isToolAllowed (const UT_StringHolder &tool_name, const UT_StringArray &submenus)
 Returns true if the given tool can appear in the Tab menu for this net. More...

OP_NodecreateNode (const char *type, const char *name=0, int notify=1, int explicitly=1, int loadcontents=1, int *aliasedScriptedOp=0, char *matIconFilename=0, bool exact_type=false)

OP_NodecreateNodeOfExactType (const char *type, const char *name=0)
 Convenience method for requesting en exact type. More...

OP_NetworkcreateProxyRefNode (const char *path) override

void getPotentialChildErrorNodes (OP_NodeList &nodes) const override

OP_NodecopyNode (const OP_Node *srcnode, const char *toname=NULL, bool reference_parameters=false)

bool copyItems (const OP_NetworkBoxItemList &srcitems, OP_NetworkBoxItemList &destitems, bool reference_parameters, bool relative_references, bool connect_outputs_to_multi_inputs)

void copyPickedItems (const OP_Network *srcnet, OP_ItemTypeMask item_type_mask, OP_Group *newnodes=nullptr, const OP_FixNameParms *fix_name_parms=nullptr)

OP_NetworkBoxcopyNetworkBox (OP_NetworkBox *srcnetbox, OP_NetworkBoxSaveType save_type, OP_NodeList *nodes=NULL, const char *toname=NULL, bool reference_parameters=false)

OP_PostItcopyPostItNote (OP_PostIt *src_note, const char *toname=0)

void copyPickedNodes (const OP_Network *srcnet, OP_Group *newnodes=0, const OP_FixNameParms *fix_name_parms=0)

virtual bool movePickedNodes (OP_Network *src_net, OP_NodeList *src_nodes_ptr=NULL, OP_NodeList *dest_nodes_ptr=NULL)

int destroyNode (OP_Node *node)

int destroyNodes (const OP_NodeList &nodes)

virtual int renameNode (OP_Node *node, const char *name, OP_RenameAction action=OP_RENAME_NORMAL)

OP_NetworkfindOrCreateMotionEffectsNetwork (bool create=true)

OP_NodedeleteImplicitAncestors (OP_Node &node, const char *state=0, OP_Node *keep_node=0, bool included=true)

OP_NodegetImplicitAncestors (OP_NodeList &implicit_nodes, OP_NodeList &border_nodes, OP_Node &node, const char *state=0, OP_Node *keep_node=0, bool included=true)

int getAllCollections (UT_ValArray< CH_Collection * > &list, int hide=0)

void uniqueNodeName (UT_String &name, UT_StringSet *fakeChildren=0)

virtual int isInvalidName (const char *name)

OP_ERROR savePickedItems (std::ostream &os, const OP_SaveFlags &flags, OP_ItemTypeMask item_type, OP_NetworkBoxSaveType save_type=OP_NETWORKBOX_SAVE_ALL_CONTENTS)

OP_ERROR saveAllItems (std::ostream &os, const OP_SaveFlags &flags, OP_ItemTypeMask item_type)

OP_ERROR saveSingle (std::ostream &os, OP_Node *op, const OP_SaveFlags &flags, const UT_String &name_override=UT_String())

OP_ERROR saveSingle (std::ostream &os, OP_Node *op, const OP_SaveFlags &flags, const OP_SaveFlags &childflags, std::set< int > *renaming_exclude_ids=NULL, const UT_String &name_override=UT_String())

OP_ERROR saveSingleNetworkBox (std::ostream &os, OP_NetworkBox &netbox, const OP_SaveFlags &flags, OP_NetworkBoxSaveType save_type, OP_NodeList *nodes=NULL)

OP_ERROR saveSinglePostIt (std::ostream &os, OP_PostIt &pnote, const OP_SaveFlags &flags)
 Save a single post it note. More...

OP_ERROR saveSingleDot (std::ostream &os, OP_Dot &dot, const OP_SaveFlags &flags)
 Save a single dot. More...

OP_ERROR saveOpList (std::ostream &os, const UT_Array< OP_Node * > &op_list, const OP_SaveFlags &save_flags, int *nsaved=NULL)

OP_ERROR saveItemList (std::ostream &os, const OP_NetworkBoxItemList &items, const OP_SaveFlags &save_flags)

const char * getClipboardFile (const char *file_prefix=0)

int saveToClipboard (int all, OP_TileType type=OP_TILE_NODE, int grouplist=0, OP_ItemTypeMask item_type=OP_ITEMTYPE_NODE, const char *file_prefix=0)

int loadFromClipboard (fpreal x=0, fpreal y=0, bool turn_off_display=false, const char *file_prefix=0)

bool loadNetwork (UT_IStream &is, int merge=0, const char *pattern=NULL, int overwrite=0, const OP_FixNameParms *fix_name_parms=NULL, UT_StringArray *src_names=NULL, UT_StringArray *dest_names=NULL)

bool loadIntoNetwork (UT_IStream &is, OP_OverwriteAction overwrite=OP_NO_OVERWRITE, bool merge=false, const char *pattern=NULL, const OP_FixNameParms *fix_name_parms=NULL, UT_StringArray *src_names=NULL, UT_StringArray *dest_names=NULL)

bool pasteNetworkForMove (UT_IStream &is, UT_StringArray &src_names, UT_StringArray &dest_names)

bool opShouldHandleChange (OP_EventType reason) override

void clearUnreferencedInputs () override

int getLoadCollisions (UT_IStream &is, OP_NodeList &node_list, UT_ValArray< OP_NetworkBox * > &netbox_list, UT_ValArray< OP_PostIt * > &pnote_list, const char *pattern="*")

void simulateNameCollisions (UT_StringArray &names)

const UT_ValArray< OP_Node * > * getSortedList ()

OP_NodegetAnyOutputOf (OP_Node *op) const

OP_NodegetAnyOP () const

char * findUniqueGroupName (const char *basename=0)

OP_GroupfindGroup (const char *name) const

OP_GroupcreateGroup (const char *name=0)

int destroyGroup (const char *name)

int destroyGroup (OP_Group *group)

int getNgroups () const

OP_GroupgetGroup (int index) const

int getGroups (UT_ValArray< OP_Group * > &list, int internal=0)

int getMemberships (const OP_Node *node, UT_ValArray< OP_Group * > &list, int internal=0)

char * findUniqueNetworkBoxName (const char *base=NULL)

char * findUniquePostItNoteName (const char *base=NULL)

char * findUniqueDotName (const char *base=NULL)

OP_NetworkBoxcreateNetworkBox (const char *name, OP_NetworkBoxItemList *items=NULL)

int getNnetworkBoxes () const

OP_NetworkBoxfindNetworkBox (const char *const_path) override

OP_NetworkBoxgetNetworkBox (int index) const

OP_NetworkBoxgetNetworkBox (const char *name) const

OP_PostItcreatePostItNote (const char *name)
 Pass in NULL as the name if you'd like a default name. More...

int getNpostItNotes () const

OP_PostItfindPostItNote (const char *const_path) override

OP_PostItgetPostItNote (int index) const

OP_PostItgetPostItNote (const char *name) const

OP_DotListgetDotList ()

int getNdots () const

OP_DotfindDot (const char *const_path) override

OP_DotgetDot (int index) const

OP_DotgetDot (const char *name) const

unsigned int nPicked (OP_ItemTypeMask item_type_mask, bool include_hidden_nodes) const

void getPickedItems (OP_ItemTypeMask item_type_mask, OP_NetworkBoxItemList &picked, bool include_hidden=false, bool recurse_picked_netboxes=false) const

void getAllItems (OP_ItemTypeMask item_type_mask, OP_NetworkBoxItemList &items) const
 Return all items that match the type mask. More...

bool destroyItem (OP_NetworkBoxItem *item)
 Returns true if the item was successfully deleted. More...

int destroyItems (const OP_NetworkBoxItemList &items)
 Returns the number of successfully deleted items. More...

OP_NetworkBoxItemfindItem (const char *const_path, OP_ItemTypeMask item_type=OP_ITEMTYPE_ALL) override

OP_NetworkBoxItemgetItem (const char *name, OP_ItemTypeMask item_type=OP_ITEMTYPE_ALL)

bool isSubNode (const OP_Node *node) const

void clearSelection (OP_TileType t, int grouplist)

void setAllPickFlags (OP_ItemTypeMask item_type, int value)

void pickRequest (OP_NetworkBoxItem *item, int shift)

void pickRequest (int shift)

void addPicked (const OP_Group *group)

void subPicked (const OP_Group *group)

OP_OperatorTablegetOperatorTable () const

virtual const char * getScriptDirectory ()

void clearUndoFlags () override

bool wantsParentInputs () const

int getNparentInputs () const

OP_SubnetIndirectInputfindParentInput (const char *const_path) override

OP_SubnetIndirectInputgetParentInput (int index) const

OP_SubnetIndirectInputgetParentInput (const char *name) const

int getIndirectString (OP_IndirectInput *, UT_String &)

OP_IndirectInputresolveIndirectString (const char *)

void inputConnectChanged (int which) override

void getAllConnectedChildren (int input_index, UT_Array< OP_Node * > &nodes, bool expandSubnets=true) const

void getAllConnectedChildrenNamed (const OP_ConnectorId &input_name, UT_Array< OP_Node * > &nodes, bool expandSubnets=true) const

virtual void setViewSetting (const char *)

virtual const char * getViewSetting () const

void dumpDependencies (std::ostream &os) override

void changeParmTemplate (PRM_Template *new_template) override

int getNumChildManagers (OP_OpTypeId type) const

void addChildManager (OP_OpTypeId type)

void removeChildManager (OP_OpTypeId type)

bool getSaveWithVopnets () override

void runDelScript () override

void clearDelScripts (int pickedOnly)

void unscopeChannels (bool recurse) override

void undisplayChannels (bool recurse) override

void unpinChannels (bool recurse) override

void globNetworkBoxes (const char *pat, UT_String *expand, UT_ValArray< OP_NetworkBox * > *list=0, OP_GlobContext *context=0, const char *prefix=" ") override

void globPostIts (const char *pat, UT_String *expand, UT_ValArray< OP_PostIt * > *list=0, OP_GlobContext *context=0, const char *prefix=" ") override

int getRepresentativeNodeId (OP_Node *changed_child, int current_rep_id)

bool changeChildNodeType (OP_Node *child, const char *newtype, bool keepname, bool keepparms, bool keepcontents, bool quiet, int *newChildId=NULL)

bool getIsSubNodeEditable (const OP_Node *subnode) const

bool hasAnyEditableSubNodes () const

const UT_SortedSet< int > & getEditableSubNodes () const

bool getMessageSubNodes (OP_NodeList &list) const

void getActiveOperatorsDefinedByOTL (UT_Set< OP_Operator * > &active_operators) const override

OP_SubnetIndirectInputgetNamedParentInput (const OP_ConnectorId &name) const

bool getIsClearingContentsOfEditableSubnodes ()

int64 getMemoryUsage (bool inclusive) const override

void setCachedMimeFile (const char *filename)

const char * getCachedMimeFile () const

void clearCachedMimeFile ()

bool hasCachedMimeFile () const

OP_ERROR getErrorSeverity () override

void getRawErrors (UT_Array< UT_Error > &errors, bool update) override

- Public Member Functions inherited from OP_Node
OP_NetworkgetParent () const

OP_NetworkgetRootCompiledParent () const

OP_NetworkgetParentNetwork () const override
 Returns the network that is our parent. More...

bool getIsContainedBy (const OP_Node *testparent) const

const UT_StringgetNetName () const
 Return the name of this node's parent. More...

virtual OP_OpTypeId getOpTypeID () const

virtual const char * getOpType () const

OP_ItemType getItemType () const override
 Our children should implement this and return what type of item they are. More...

const UT_StringgetDelScript () const
 Obtain the node's script which is called when it is being deleted. More...

bool setDelScript (const char *str)

void pickRequest (int shift)

bool notifyVarChange (const char *varname, OP_NodeList *changed_nodes=nullptr)

void getPickedChildren (OP_NodeList &picked, bool include_hidden=false) const

void getAllChildren (OP_NodeList &children) const

virtual OP_NodematchChild (const char *pattern, OP_Node *prevmatch=0, const char *optype=0, int casesensitive=0) const

virtual OP_NodematchChildBackwards (const char *pattern, OP_Node *prevmatch=0, const char *optype=0, int casesensitive=0) const

OP_ERROR getChildErrorSeverity ()

int getUniqueId () const

int64 getItemUniqueId () const override
 Functions to get hip-file-unique ids for any item type. More...

bool expandGroupPattern (const char *pattern, UT_String &result, bool expandToFullPaths=false)

bool patternContainsBundle (const char *pattern, const OP_Bundle *bundle) const

bool patternContainsGroup (const char *pattern, const OP_Group *group) const

virtual int isManager () const

virtual int isManagementNode () const

bool isEffectivelyAManagementNode () const

virtual bool isMaterialManager () const

virtual int isSubNetwork (bool includemanagementops) const

virtual int isInSubNetwork () const

bool isProxyRefNode () const

void setProxyRefNode (bool f)

virtual bool isOutputNode () const

virtual int whichOutputNode () const

int isNetworkWithKids () const

virtual int isVex () const

OP_BundlegetParmBundle (const char *parm_name, int vector_index, UT_String &pattern, OP_Network *creator, const char *filter)

void markBundleRefsAsUnused ()

void cleanUnusedBundleRefs ()

void cleanAllBundleRefs ()

virtual bool bundleChanged (const OP_Bundle *bundle)

void touchBundleParm (const char *name)

void touchBundleParm (int parm_index)

bool isInputAncestor (const OP_Node *parent, bool check_extra=true) const

bool isParentAncestor (const OP_Node *parent) const

const char * getInfoText (OP_Context &context, OP_NodeInfoParms &parms)

virtual void getNodeSpecificInfoText (OP_Context &context, OP_NodeInfoParms &parms)

OP_NodefindNode (const char *path, OTLSyncMode syncmode=OTLSYNC_DOSYNC) const
 Uses the path (eg. "/obj/geo1") to find a node in our hierarchy. More...

OP_NodefindSubNode (const char *path) const

SOP_NodegetSOPNode (const char *path, int addextra=0, bool *got_by_flag=nullptr) const

COP_Node * getCOPNode (const char *path, int addextra=0) const

COP2_NodegetCOP2Node (const char *path, int addextra=0) const

DOP_NodegetDOPNode (const char *path, int addextra=0) const

ROP_NodegetROPNode (const char *path, int addextra=0) const

CHOP_NodegetCHOPNode (const char *path, int addextra=0, bool *got_by_flag=nullptr) const

TOP_Node * getTOPNode (const char *path, int addextra=0) const

LOP_NodegetLOPNode (const char *path, int addextra=0) const

OBJ_NodegetOBJNode (const char *path, int addextra=0) const

OP_NodecastToOPNode () override

const OP_NodecastToOPNode () const override

virtual void getPathWithSubnet (UT_String &str) const
 Returns the path of this node relative to its getCreator() More...

void getPathWithSubnet (UT_StringHolder &str) const

void completePath (const char *prefixpath, UT_String &completepath) const

virtual CH_ChannelgetTrackChannel (const char *name)

virtual bool findParmFromTrack (const OP_FollowChanRefsOptions &opt, const char *trackname, OP_NodeParmRefCycle &cycle, OP_Node *&node, PRM_Parm *&parm, int &vecidx)

virtual void evaluateBatchParms (PRM_BatchList &list, fpreal now)

void globNodes (const char *pat, UT_String *expand, UT_Array< OP_Node * > *list=0, OP_GlobContext *context=0, const char *prefix=" ")

CH_ChannelfindChannel (const char *path)

void globChannels (const char *, UT_String &expand, OP_GlobContext *context=0, const char *prefix=" ") const

void globChannels (const char *pattern, CH_ChannelList &clist, OP_GlobContext *context=0, OP_Node *dependent=0)

void globChanRefs (const char *pattern, CH_ChannelRefList &list, OP_GlobContext *context=0, OP_Node *dependent=0, bool use_multi_match=true)

int globParms (const char *pattern, fpreal t, UT_Array< opParmData > &list, OP_GlobContext *context=0, OP_Node *dependent=0, int calc_value=1)

void globNodeParms (const char *pattern, fpreal t, UT_Array< opParmData > &list, OP_GlobContext *context, OP_Node *dependent, int calc_value, bool animated_only)

void globNodeChannels (const char *pattern, CH_ChannelList &list, OP_GlobContext *context, int *parm_start=nullptr, UT_IntArray *parm_indices=nullptr, UT_IntArray *parm_sub_indices=nullptr) const

void globNodeChanRefs (const char *pattern, CH_ChannelRefList &list, OP_GlobContext *context, int *parm_start=nullptr, UT_IntArray *parm_indices=nullptr, UT_IntArray *parm_sub_indices=nullptr, bool use_multi_match=true) const

int getAllChannels (CH_ChannelList &list, int scoped=0)

void opChanged (OP_EventType reason, void *data=0) override

virtual void referencedParmChanged (int pi)

virtual void forceRecook (bool evensmartcache=true)

virtual void reloadExternalFiles ()

virtual unsigned needToCook (OP_Context &context, bool queryonly=false)

virtual bool cook (OP_Context &context)

bool parallelCook (OP_Context &context)

template<typename F >
void cookLockedExecute (const F &functor)

OP_CookLockgetCookLock ()

UT_TaskStatetaskState ()

const UT_TaskStatetaskState () const

virtual OP_ERROR pubCookInputGroups (OP_Context &context, int alone=0)

void bumpVersionParm ()

int cookParmsModified () const

virtual int getDataClass () const

virtual void getXformOrder (UT_XformOrder &xord, const CH_Channel *chp) const

virtual OP_DataType getCookedDataType () const =0

virtual voidgetCookedData (const OP_Context &)

virtual void deleteCookedData ()=0

virtual int saveCookedData (std::ostream &os, OP_Context &, int binary=0)=0

virtual bool loadCookedData (UT_IStream &is, const char *path=0)

virtual int saveCookedData (const char *filename, OP_Context &)=0

virtual int getRelativeTransform (OP_Node &to, UT_Matrix4 &xform, OP_Context &context)

virtual int getRelativeTransform (OP_Node &to, UT_DMatrix4 &xform, OP_Context &context)

virtual int getRelativeCaptureTransform (OP_Node &to, UT_Matrix4 &xform, OP_Context &context)

virtual int getRelativeCaptureTransform (OP_Node &to, UT_DMatrix4 &xform, OP_Context &context)

virtual bool getWorldTransform (UT_Matrix4D &xform, OP_Context &)

virtual bool getIWorldTransform (UT_Matrix4D &xform, OP_Context &)

virtual bool getTransform (TransformMode mode, UT_Matrix4D &xform, OP_Context &)

bool getWorldTransform (UT_Matrix4F &xform, OP_Context &ctx)

bool getIWorldTransform (UT_Matrix4F &xform, OP_Context &ctx)

bool getTransform (TransformMode mode, UT_Matrix4F &xform, OP_Context &ctx)

void addTransformError (const OP_Node &node, const char *label=0) const

virtual bool getBoundingBox (UT_BoundingBox &box, OP_Context &)

virtual const char * getInternalOpTable () const

virtual OP_OperatorgetInternalOperator () const

virtual const char * inputLabel (unsigned idx) const

virtual const char * outputLabel (unsigned idx) const

const char * inputLabelNum (unsigned idx) const

const char * outputLabelNum (unsigned idx) const

virtual const char * inputConnectorLabel (unsigned idx)

virtual int isRefInput (unsigned idx) const

virtual int getAuxInput () const

virtual void getAuxInputName (OP_ConnectorId &name_out)

OP_LockTypes setLockState (OP_LockTypes state, bool saveundo=true)

OP_LockTypes getLockState () const

bool getLock () const

bool getSoftLock () const

void setSoftLock (bool on_off)

bool getHardLock () const

void setHardLock (bool on_off)

virtual OP_LockTypes setModelLock (OP_LockTypes state, void *modeler=nullptr, bool allow_softlock_promotion=false, UT_Undo *undo=nullptr)

int getNetworkLock (bool relaxedlockcheck=false, const OP_Node *inputNode=nullptr) const

bool setUnload (bool on_off)

bool getUnload () const

virtual bool isLoaded () const

virtual bool unloadData ()

void takeActivateFlag (uchar flag, bool enable=true, bool send_flag_event=true)

void takeDeactivateFlag (uchar flag)

bool takeIsActiveFlag (uchar flag) const

void setHasTakeData (bool onoff)

bool canAccessFlag (unsigned mask, uchar flag) const

bool setPicked (bool on_off, bool propagate_parent_event=true) override

bool setEditPicked (bool on_off, bool propagate_parent_event=true)

void setAutoscope (bool on_off)

bool isAutoscope ()

bool setCurrent (bool on_off)

bool setExpose (bool on_off)

bool setBypass (bool on_off)

bool setTemplate (bool on_off)

bool setFootprint (bool on_off)

bool setXray (bool on_off)

bool setDisplay (bool on_off)

bool setRender (bool on_off)

bool setHighlight (bool on_off)

bool setModified (bool on_off)

bool setSaveBypass (bool on_off)

bool setSaveData (bool on_off)

virtual bool setPickable (bool on_off)

virtual bool setAudio (bool on_off)

virtual bool setExport (bool on_off)

virtual bool setDebug (bool on_off)

virtual bool setDisplayOrigin (bool on_off_unchanged)

void userSetTemplate (bool onoff)

void userSetSelectableTemplate (bool onoff)

virtual void setFlag (char tag, int8 val)

virtual int8 getFlag (char tag) const

bool getPicked () const override

virtual bool getEditPicked () const

bool getCurrent () const

bool getDisplay () const

bool getRender () const

bool getHighlight () const

bool getBypass () const

bool getTemplate () const

bool getFootprint () const

bool getXray () const

bool getExpose () const

bool getModified () const

bool getSaveBypass () const

bool getSaveData () const

bool getHasTakeData () const override

virtual bool getPickable ()

virtual bool getAudio () const

virtual bool getExport () const

virtual bool getDebug () const

virtual bool getDisplayOrigin () const

bool getItemExpose () const override

void setItemExpose (bool expose) override

virtual bool getUseBypassLook (const OP_EditorContext &ctx) const

bool getDisplayDescriptiveName () const

bool setDisplayDescriptiveName (bool state)

bool getDisplayComment () const

bool setDisplayComment (bool state)

int8 getOutputForView () const

int8 setOutputForView (int8 output)

OP_NodegetPickableSelfOrParent ()

bool setCompress (bool on_off)

bool getCompress () const

void setCurrentAndPicked ()

virtual bool setVisible (bool onoff)

virtual bool getVisible () const

const OP_NodeFlagsflags () const

OP_NodeFlagsflags ()

virtual void getSaveFlagsString (UT_String &cmd, const char *flags, bool save_to_hip) const

virtual void getPreParmSaveFlagsString (UT_String &cmd) const

virtual void getPostParmSaveFlagsString (UT_String &cmd) const

int hasOpInterest (void *data, OP_EventMethod m) const

void addOpInterest (void *data, OP_EventMethod m)

void removeOpInterest (void *data, OP_EventMethod m)
 Remove notification callback added via addOpInterest() More...

int isBeingDeleted () const

void setNodeBeingDeleted (int beingdeleted)

bool setInhibitInputConsolidation (bool value)

virtual unsigned minInputs () const
 Minimum inputs that must be connected to a node for it to cook. More...

virtual unsigned maxInputs () const
 Maximum inputs that can be connected to a node. More...

virtual unsigned getNumVisibleInputs () const

virtual unsigned orderedInputs () const

virtual unsigned maxOutputs () const

virtual unsigned getNumVisibleOutputs () const

bool hasUnorderedInputs () const
 Returns true if the operator type says we have unordered inputs. More...

virtual unsigned nInputs () const

unsigned nConnectedInputs (bool check_subnet_inside=true) const

unsigned getActiveInputIndex () const

void setActiveInputIndex (unsigned idx)

OP_NodegetInput (unsigned idx, bool mark_used=false) const
 Returns the node connected to a particular input (may be null). More...

OP_NodegetInputFollowingOutputs (int input, DEP_MicroNode *depnode=0) const

int getConnectedInputIndex (int startAt=-1) const

int getNthConnectedInput (int n) const
 Gets the index of the Nth non-null connection to this node. More...

virtual void getParallelInputs (OP_Context &context, OP_NodeList &nodes) const

void forceClearInput (int idx)
 Forcibly clear an input. Used when deleting the input. More...

virtual OP_ERROR setInput (unsigned idx, OP_Node *op, unsigned outputIdx=0)
 Sets a given input to connect to an output of a particular node. More...

virtual OP_ERROR setIndirectInput (unsigned idx, OP_IndirectInput *input)
 Connects an input to an indirect input of our parent subnet. More...

virtual OP_ERROR setInputReference (unsigned idx, const char *label, int keeppos, unsigned outputIdx=0)
 Connects an input to particular node by name in the network. More...

int whichInputIs (const OP_Node *who) const

int whichInputIs (const OP_IndirectInput *who) const
 Returns the index of the first connection of an indirect input. More...

int whichInputIs (const OP_IndirectInput *whoi, int cnt) const

int whichOutputIs (const OP_Node *target_node, int input_on_target_node) const

int whichOutputIsFollowingIndirect (const OP_Node *target_node, int input_on_target_node) const

int whichInputIs (const OP_Node *source_node, int counter) const

void consolidateInputs ()

virtual bool allowConsolidatingInput (int idx)

virtual OP_InputgetInputReference (unsigned idx, bool grow)

virtual OP_InputgetInputReferenceConst (unsigned idx) const

virtual int doDeleteRewire () const

virtual void moveInput (int srcidx, int dstidx, bool forcesubnet=false)

OP_ERROR insertInput (unsigned idx, OP_Node *op, unsigned outputIdx)

OP_ERROR insertIndirectInput (unsigned idx, OP_IndirectInput *input)

virtual UT_Options getInputDataDefault (int idx) const

virtual int getInputEditorInputs ()

virtual bool allowInputEditorInputParm ()
 Returns true if editor should display parameter option menu button. More...

virtual bool allowInputEditorInputDelete ()
 Returns true if editor should display delete input button. More...

virtual bool getInputEditorInputLabel (UT_String &label, int idx)

virtual const OP_DataMicroNodedataMicroNodeConst () const

OP_DataMicroNodedataMicroNode ()

virtual const OP_DataMicroNodeparmListMicroNodeConst () const

OP_DataMicroNodeparmListMicroNode ()

bool hasIndepParmListMicroNode () const

DEP_MicroNodeflagMicroNode ()

DEP_MicroNodeparmMicroNode (int parm_idx, int vi)

const DEP_MicroNodeeventMicroNodeConst (OP_EventType e) const
 Accessors to event micro nodes. More...

DEP_MicroNodeeventMicroNode (OP_EventType e)

bool hasEventMicroNode (OP_EventType e) const

virtual void getOwnedMicroNodes (DEP_MicroNodeList &micronodes)

void propagateDirtyMicroNode (DEP_MicroNode &micronode, OP_EventType reason, void *data, bool send_root_event)

virtual void addExtraInput (OP_Node *op, OP_InterestType type)

void addExtraInput (OP_Node &op, int parm_i, int vec_i)

void addExtraInput (const OP_InterestRef &source_ref)

void addExtraInput (DEP_MicroNode &source_micronode)

void addMultiparmInterests (OP_Node *srcnode, PRM_Parm &parm)

void getExtraInputNodes (OP_NodeList &extras, bool remove_duplicates=true, bool data_interest=true, bool parm_interest=true, bool flag_interest=true, bool include_parmlist=true, bool follow_simulation_inputs=false) const

void getExtraOutputNodes (OP_NodeList &extras, bool remove_duplicates=true, bool data_interest=true, bool parm_interest=true, bool flag_interest=true) const

int getNumExtraInputs () const

void dumpExtraInputs (std::ostream &os, bool as_DOT, int indent_level=0) const

virtual bool buildDefaultCopContext (OP_Context &context, DEP_MicroNode *depnode=nullptr)

void addGenericOpNameReference (const UT_String &oppath)

void addGenericOpNameReference (const PRM_RefId &ref_id, OP_Node *node)

void addGenericOpInputReference (const PRM_RefId &ref_id, OP_Node *node)

bool getParmBaseNodePath (UT_String &path, int parm_index, int thread) const

void rebuildParmDependency (int parm_index) override

void clearParmDependency (int parm_index) override

void decrementOpReference (int node_id)

void dumpOpDependents (OP_Node *ref, int brief, std::ostream &os)

const OP_DependencyListgetOpDependents () const

int countReferences (int op_id)

void getExistingOpReferences (OP_NodeList &refs, bool recurse) const

void getFullOpReferences (OP_NodeList &refs, bool include_descendants) const

void getExistingOpDependents (OP_NodeList &deps, bool include_descendants) const

void getFullOpDependents (OP_NodeList &deps, bool include_descendants) const

void getParmsThatReference (const char *channame, UT_ValArray< PRM_Parm * > &parms, UT_IntArray &parmsubidxs)

unsigned nOutputEntries () const

int nOutputItems (int output_idx=-1) const

OP_NetworkBoxItemgetOutputItem (int idx, int output_idx=-1) const

bool hasAnyOutputNodes (bool through_dots=true, int output_idx=-1) const

void getOutputNodes (UT_Array< OP_Node * > &outputs, bool into_subnets=false, bool through_dots=true, int output_idx=-1) const

OP_NodegetFirstOutputNode (bool through_dots=true, int output_idx=-1) const

OP_NodegetOutputTowardsNode (const OP_Node *target)

void fillInfoTree (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms)

virtual void fillInfoTreeNodeSpecific (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms)

virtual bool fillInfoTreeChildSpecific (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms, OP_Node *child)

virtual OP_ERROR lockInput (unsigned idx, OP_Context &context)

virtual void unlockInput (unsigned idx)

virtual OP_ERROR lockInputs (OP_Context &context)

virtual void unlockInputs ()

int getCookCount () const

void triggerOutputChanged ()

void triggerUIChanged (OP_UIChangeType type=OP_UICHANGE_ANY)

virtual int cookedInputIndex () const

virtual OP_NodegetPassThroughNode (fpreal t, bool mark_used=false)

bool setMinimumCacheSize (int min_size)

OP_VERSION getVersionParms () const

virtual bool handleTimeChange (fpreal)

bool isTimeDependent (const OP_Context &context)

virtual bool isDiveable () const

virtual void getExtraNodesForCopyOrDelete (OP_NodeList &extras) const

virtual bool runCreateScript ()

void updateParmsToMatchCurrentUnits ()

bool getDelaySyncOTL () const

void setDelaySyncOTL (bool isdelayed)
 Shallowly sets the delayed sync flag,. More...

bool shouldDelaySyncOTL () const
 Determines if this node should do delayed syncing or not. More...

void syncDelayedOTL ()
 Verifies this node has been synchronized in case it was delayed. More...

virtual void matchOTLDefinition ()

virtual void unmatchOTLDefinition ()
 Unmatches (unlocks) the node from the current HDA definition. More...

virtual void handleOTLIndexFileCleared ()

const UT_StringgetSyncErrors () const

OP_ERROR getSyncErrorLevel () const
 Returns the error level generated in our last synchronization attempt. More...

bool isAnyAncestorBeingSynced () const

int getMatchesOTLDefinition () const
 Interface to flag that specifies whether or not we match our definition. More...

int getCanDeviateFromOTLDefinition () const

void setAllChildAssetPermissions (int permission)

void computeAllChildAssetPermissions ()

bool getIsEditableAssetSubNode () const

void turnOffAllChildExports ()

bool haveLicenseToAccessContents (OP_Node *opt_specific_child=nullptr) const

bool haveLicenseToAccessParentContents () const

bool haveAncestorWithoutFullLicense (bool ignore_self) const

OP_OTLLicenseType getLicense () const

OP_NodegetFirstExecLicenseOnlyAncestor (bool ignore_self=true) const

OP_NodegetLastExecLicenseOnlyAncestor (bool ignore_self=true) const

bool isCompiled () const

void saveWires (std::ostream &os, const char *name, int dogeneral=0)

void saveOutputWires (std::ostream &os, const char *name, int dogeneral=0)

virtual void saveIntrinsicCommand (std::ostream &os, const char *name)

virtual OP_ERROR saveCommand (std::ostream &os, const char *name, fpreal x, fpreal y, const char *netboxname, const OP_SaveCommandOptions &options)
 Writes to 'os' a string of hscript commands to recreate this node. More...

void saveParameterFlags (std::ostream &os, const char *name, const char *command, bool(PRM_Parm::*flag_method)(int) const, bool defaultstoo, bool reverse, UT_Array< opParmData > *parm_array)

void saveUserDataCommand (std::ostream &os, const char *node_name, bool omit_version=false)

virtual RampError rampCommand (bool remove, fpreal pos, float rgba[4])

RampError rampCommand (bool remove, fpreal pos, float rgba[4], UT_Ramp &ramp)

virtual bool loadRamp (UT_IStream &is, const char *path=0)

bool loadRamp (UT_IStream &is, UT_Ramp &ramp, const char *path=0)

OP_ERROR saveRamp (std::ostream &os, UT_Ramp &ramp, const char *name=0, int command=0)

bool getUserData (const UT_StringRef &key, UT_StringHolder &result) const

void setUserData (const UT_StringRef &key, const UT_StringHolder &data, bool save_undo)

bool hasUserData (const UT_StringRef &key) const

bool deleteUserData (const UT_StringRef &key, bool save_undo)

const UT_OptionsuserData () const

bool loadUserData (UT_IStream &is, const char *path=nullptr)

OP_ERROR saveUserData (std::ostream &os, const char *path)

void clearUserData (bool save_undo)

virtual void userDataChanged (const UT_StringHolder &key)

UT_SharedPtr< voidgetBlindData (const char *key) const

template<typename T >
UT_SharedPtr< TgetBlindData (const char *key) const

void setBlindData (const char *key, UT_SharedPtr< void > ptr)

bool hasBlindData (const char *key) const
 Returns true if this object stores a blind data with the given key. More...

bool deleteBlindData (const char *key)

void getDataBlockKeys (UT_StringArray &keys, const UT_StringHolder &type=UT_StringHolder()) const

OP_DataBlockPtr getDataBlock (const char *key) const

bool setDataBlock (const char *key, OP_DataBlockPtr ptr)

OP_ERROR saveDataBlocksPacket (std::ostream &os, const char *path_prefix, const UT_String &node_name)

bool loadDataBlocks (UT_IStream &is, const char *path)

bool clearDataBlocks ()

virtual void dataBlockChanged (const UT_StringHolder &key)

virtual int deleteNodeData (void *)

void propagateNodeDataDeleted ()

PY_OpaqueObjectgetCachedPythonObject (const UT_StringRef &key) const

void setCachedPythonObject (const UT_StringHolder &key, void *opaque_py_object)

bool deleteCachedPythonObject (const UT_StringRef &key)

void clearCachedPythonObjects ()

const OP_PythonObjectCachecachedPythonObjects () const

bool loadExtraInputs (UT_IStream &is, const char *path=0)

void saveOverrides (std::ostream &os)

void saveOverrides (std::ostream &os, OP_Node *root, const UT_String &rootpath, bool &added)

void saveChildOverrides (std::ostream &os, OP_Node *root, const UT_String &rootpath, bool &added)

bool loadOverride (UT_IStream &is)

UT_ErrorSeverity prmCookOverrides (fpreal t, int thread, const char *parm_name, int vec_idx) override

bool isParmPendingOverride (const char *parm_name, int vec_idx) const override

OP_ERROR cookOverrides (OP_Context &c)

virtual void removeOverrideDestination (OP_Node *)

virtual void removeOverrideDestination (OP_Node *, int)

void executeCommand (const char *command, std::ostream *out, std::ostream *err) const override

SYS_NO_DISCARD_RESULT
UT_UniquePtr
< PRM_ParmOwnerContext
pushAsPwd () const override

OP_ERROR executeHscriptScript (UT_String &script, const OP_Context &context)

OP_ERROR executePythonScript (UT_String &script, const OP_Context &context)

void addPythonNodeError (const PY_Result &py_result)

void saveInputs (std::ostream &os, bool compile_basic)

bool loadInputs (UT_IStream &is, const char *path=0, bool named=false)

void saveNamedInputs (std::ostream &os, bool compile_basic)

void saveNamedOutputs (std::ostream &os)

bool loadNamedOutputs (UT_IStream &is, const char *path=0)

void getEditableInputDataKeys (int idx, UT_StringArray &keys) const

const UT_OptionEntrygetEditableInputData (int idx, const UT_StringRef &key) const

bool setEditableInputData (int idx, const UT_StringHolder &key, const UT_OptionEntry &value)

void saveEditableInputData (std::ostream &os) const

bool loadEditableInputData (UT_IStream &is, const char *path)

UT_StringHolder getEditableInputString (int idx, const UT_StringRef &key) const

bool setEditableInputString (int idx, const UT_StringRef &key, const UT_StringHolder &str)

void checkInputs ()

virtual void saveDialogScriptExtraInfo (std::ostream &os)

virtual void createGalleryEntry (OP_GalleryEntry &entry)

void evalOpPathString (UT_String &val, int pi, int vi, fpreal t, int &op_id, fpreal &op_time, int expanded=1)

void evalOpPathString (UT_String &val, const char *pn, int &pi, int vi, fpreal t, int &op_id, fpreal &op_time, int expanded=1)

virtual int getTranslateParmIndex ()

void resolveInputReferences ()

void clearUndoFlags () override

void setAnyUndoFlag () override

void saveForUndoInput ()

void blockModify (int on_off, int propagate=1)

int isBlockModify () const

bool isModifyWaiting () const

virtual void propagateEndBlockModify ()

virtual const CL_ClipgetClip (OP_Context *context=0)

void getMotionEffectsNetworkPath (UT_String &path)

fpreal getLastCookTime () const

void getLastCookTime (UT_String &last_cook_time) const
 Return the last cook time as a formatted string. More...

void getCookInfo (UT_String &info) const
 Return the cook information as a formatted string. More...

void getCookInfoTree (UT_InfoTree &tree) const
 Return the cook information in a UT_InfoTree. More...

virtual int getNetOverviewColor (UT_Color &color)

virtual UT_RampgetRamp ()

virtual int isCookingRender () const

virtual void setCookingRender (int val)

virtual void clearInterrupted ()

bool wasInterrupted () const

void setRenameConflict ()

void setRunningCreateScript (int onoff)

virtual int outputCode (OP_OutputCodeParms &, OP_Context &)

virtual fpreal getTimeTransform (int input, fpreal t)

virtual void getInputRes (int input, fpreal t, const OP_Context &context, OP_Context &input_context)

UT_TokenStringgetHashCode (OP_Context &context, int group_mask=1)

virtual UT_TokenStringgetParmHashCode (OP_Context &context, int group_mask=1)

virtual int getNumInputsToHash ()

virtual OP_NodegetInputToHash (int i)

void clearHashCodeFlags ()

bool isHashCodeBuilt () const

void builtHashCode (bool b=true)

void buildInputHashCode (UT_TokenString &string, OP_Context &context, int group_mask, int level)

void setCreatorState (const char *s)

const UT_StringgetCreatorState () const

void builtExplicitly (int yn)

int wasBuiltExplicitly () const

bool matchesState (const char *state) const

virtual const PRM_TemplategetShaderParmTemplates ()

virtual void ensureInputsAndOutputsAreValid ()

void connectToInputNode (OP_Node &inputnode, int input_idx, int branch_off=0)

virtual int editCallback (CL_Track *track, fpreal t, fpreal newValue)

virtual const CH_LocalVariableresolveVariable (const char *name)

virtual const CH_LocalVariableresolveExtraVariableForSyntaxHighlight (const char *name)

virtual void setMapping (int idx, int type, const char *label=0)

virtual int getMapping (int idx, const char *&label) const

virtual int acceptDragDrop (DD_Source &src, const char *label)

virtual int testDragDrop (DD_Source &src)

virtual void getDragDropChoice (DD_Source &src, DD_ChoiceList &c)

bool hasComment () const

bool hasParmsNotAtFactoryDefault () const

bool hasAnimatedParms () const

bool hasChopOverriddenParms () const

void getCookPathNodes (OP_NodeList &nodes)

bool traverseChildren (bool(*callback)(OP_Node &, void *), void *data, bool recurse_into_subnets)

bool isCooking (bool include_ancestors) const

virtual bool usesFootprint () const

void getExternalReferences (UT_StringArray &reflist, UT_StringArray *nodelist=0, bool from_children_too=true, bool collapse=false, bool check_missing=false, bool show_missing_only=false)

virtual void preDelete ()

virtual DOP_ParentcastToDOPParent ()

virtual const DOP_ParentcastToDOPParent () const

OP_DopParentcastToOpDopParent ()

const OP_DopParentcastToOpDopParent () const

virtual VOP_CodeGeneratorgetVopCodeGenerator ()

virtual VOP_CodeGeneratorgetVopAutoCodeGenerator ()

virtual const VOP_CodeGeneratorgetVopAutoCodeGenerator () const

virtual void buildVopCodeGenerator ()

virtual VOP_ExportedParmsManagergetVopExportedParmsManager (bool create_if_needed=false)

int buildVexCommand (UT_String &result, const PRM_Template *templatelist, fpreal now, int start_parm=0, int end_parm=INT_MAX, bool use_parmvop_tag=true)

int buildVexCommandWithDependencies (OP_Node *owner, DEP_MicroNode *depnode, UT_String &result, const PRM_Template *templatelist, fpreal now, int start_parm=0, int end_parm=INT_MAX, bool use_parmvop_tag=true)

virtual void buildVexScript (UT_String &script, fpreal t, OP_Node *owner, UT_Map< int, bool > *visitlist=0)

virtual void buildVexScript (UT_String &script, fpreal t, DEP_MicroNode *depnode, UT_Map< int, bool > *visitlist=0)

virtual bool hasVexShaderParameter (const char *parm_name)

virtual bool getScriptMaterialInfo (UT_String &mat_info, VOP_ScriptMaterialCodeMapper *mapper)

virtual const char * getHDASubType ()

bool setChannelAlias (PRM_Parm &parm, int subindex, const char *alias_name)

void disconnectAllInputsOutputs (bool keepSelected, bool forceDisconnectOutputs=false)

void disconnectAllInputs ()

void disconnectAllOutputs ()

virtual void notifyParmRenameDependents (const UT_String &chan_name, const UT_String &old_chan_name)

void writeChannel (CH_Channel *channel, std::ostream &os, const char *name, bool frames)

void writeAllChannels (std::ostream &os, const char *name, bool frames, bool dochblock, bool dospareparms)

bool triggerParmCallback (PRM_Parm *parmptr, fpreal now, int value, void *data, const UT_Options *options=nullptr) override

int64 getMemoryUsage (bool inclusive) const override

int64 getExtraInputMemoryUsage () const

virtual void setChannelScope (const char *pattern, OP_ScopeOp scope_op, const OP_ScopeOptions &scope_opts)

const UT_StringgetItemName () const override

bool setItemName (const UT_String &name) override

const UT_StringHoldergetCachedDescriptiveName ()

bool changeSpareParms (UT_IStream &istream, UT_String &errors) override

void spareParmRemoved (const char *parmname) override

PRM_ParmListcreateObsoleteParmList () override

void resolveAndDeleteObsoleteParmList (PRM_ParmList *&obsolete_parms) override

unsigned referenceAllParameters (OP_Parameters *from, bool relative_references=true) override

void clearVersionUserData ()

void updateVersionUserData ()

void syncNodeVersionIfNeeded (bool *node_deleted, const char *from_version=nullptr, bool update_node_version=false)

void syncNodeVersion (const char *old_version, const char *current_version, bool *node_deleted) override

bool setGlobalFloatParam (const char *param, fpreal value, bool *warned)

bool setGlobalStringParam (const char *param, const char *strvalue, bool *warned)

void beginPropagateModification ()

void endPropagateModification ()

virtual bool hasDifferentMultiInputs () const

virtual bool canCreateNewOpType () const

virtual UT_StringgetMaterialIconFilename ()

virtual void setMaterialIconFilename (const char *)

virtual IMG_RastergetMaterialIconImage ()

virtual bool getMaterialIconAllowRegenerateFlag ()

virtual void setMaterialIconAllowRegenerateFlag (bool)

virtual bool willAutoconvertInputType (int input_idx)

bool isDependentOn (OP_Node *other_node, PRM_Parm *parm)

virtual bool getIsInputVisibleDefault (int idx)

bool verifyTemplatesWithParameters () const

OP_InputgetNamedInputReference (const OP_ConnectorId &input_name, bool grow)

OP_InputgetNamedInputReferenceConst (const OP_ConnectorId &input_name) const

OP_NodegetNamedInput (const OP_ConnectorId &input_name, bool mark_used=false) const

virtual int getInputFromName (const UT_String &in) const

virtual int getOutputFromName (const UT_String &out) const

virtual void getInputName (UT_String &in, int idx) const

virtual void getOutputName (UT_String &out, int idx) const

int getInputFromUniqueName (const OP_ConnectorId &id) const

int getOutputFromUniqueName (const OP_ConnectorId &id) const

void getUniqueInputName (OP_ConnectorId &id_out, int idx, bool grow)

bool getUniqueInputNameConst (OP_ConnectorId &id_out, int idx) const

void getUniqueOutputName (OP_ConnectorId &id_out, int idx)

bool getUniqueOutputNameConst (OP_ConnectorId &id_out, int idx) const

virtual OP_ERROR setNamedInput (const OP_ConnectorId &input_name, OP_Node *op, const OP_ConnectorId *output_name=nullptr)
 New input functions that use names instead of indices. More...

virtual OP_ERROR setNamedIndirectInput (const OP_ConnectorId &input_name, OP_IndirectInput *input)

virtual OP_ERROR setNamedInputReference (const OP_ConnectorId &input_name, const char *label, int, const OP_ConnectorId *output_name=nullptr)

OP_ERROR insertNamedInput (const OP_ConnectorId &input_name, OP_Node *op, const OP_ConnectorId *output_name)

OP_ERROR insertNamedIndirectInput (const OP_ConnectorId &input_name, OP_IndirectInput *input)

virtual void onCreated ()
 Overriden in VOPs. More...

virtual bool isOrderedInput (const OP_ConnectorId &input_name) const

OP_ConnectorId whichNamedInputIs (const OP_Node *who) const

OP_ConnectorId whichNamedInputIs (const OP_IndirectInput *who) const
 Returns the index of the first connection of an indirect input. More...

virtual bool willAutoconvertNamedInputType (const OP_ConnectorId &input_name)

OP_ConnectorInputIter traverseInputs (OP_ConnectorInputIter *prev_iter)

OP_ConnectorInputIter traverseConnectedInputs (OP_ConnectorInputIter *prev_iter)

OP_ConnectorInputIter getTraverseEndIterator ()

unsigned getInputsArraySize ()

unsigned isInput (unsigned idx)
 Deprecated in favour of getInputsArraySize() More...

void getLocalVarNames (UT_StringArray &out_vars)
 Retrieve a sorted list of local variables visible to this OP_Node. More...

bool setLocalVarActive (bool f)

bool isLocalVarActive () const
 Get the myLocalVarActive flag. More...

virtual UT_AttributeEvaluatorcreateAttributeEvaluator (const char *name)

virtual void getAttributeEvaluatorNames (UT_StringArray &names)

void recomputeCompiledHash ()

void clearCompiledHash ()

void directSendEvent (OP_EventType type, void *data=0)

virtual bool scopedChannelsDirty ()

virtual bool getActiveLayerContribution (const UT_String &track_name, fpreal t, fpreal &value, fpreal &weight)

virtual bool resolveExport (const PRM_Parm *p, int subindex, CH_ChannelRef &out_export)

virtual bool addOrMoveVisualizerToOutput (int outputidx)

const PRM_ParmtraverseRef (int *sub_idx, fpreal time, int parm_idx, int vec_idx) const override

OP_BundlegetParmBundle (const char *parm_name, int vector_index, UT_String &pattern, OP_Network *creator, const char *filter, bool subnet_inclusion)

virtual void getDefaultState (UT_String &default_state_name)

void clearInputContextOptionDepIfSafe (const UT_StringHolder &opt, const OP_Context &context)

virtual bool hasTransformTracks () const

virtual bool evaluateTransformTracks (OP_Context &context, OP_EvaluateTransformTracksArgs &args)

virtual bool evaluateTransformTracksTargets (OP_Context &context, OP_NodeList &nodes, OP_Node *caller)

const UT_StringHoldergetOriginalOperatorName () const

void setOriginalOperatorName (const UT_StringHolder &optype)

void getOriginalOperatorTableAndName (UT_WorkBuffer &name) const

void getOriginalOperatorTableAndName (UT_String &name) const

virtual bool isSelectionOwnerType () const

void addExtraInputs (const UT_Array< OP_InterestRef > &source_refs)
 Add many extra inputs in one call. See addExtraInput. More...

void addExtraInputs (const DEP_MicroNodeList &deps)

void addExtraInput (OP_Node *op, OP_InterestType type, DEP_MicroNodeList &sources_cache)

void addExtraInputs (const UT_Array< OP_Node * > &nodes, OP_InterestType type, DEP_MicroNodeList &sources_cache)

virtual bool isUsingCurrentFrameForVexTransformContext () const

OBJ_NodefindOBJNode (const char *path) const

SOP_NodefindSOPNode (const char *path) const

CHOPNET_Node * findCHOPNETNode (const char *path) const

CHOP_NodefindCHOPNode (const char *path) const

ROP_NodefindROPNode (const char *path) const

SHOP_NodefindSHOPNode (const char *path) const

COP_Node * findCOPNode (const char *path) const

COP2_NodefindCOP2Node (const char *path) const

COP2NET_Node * findCOP2NETNode (const char *path) const

VOP_NodefindVOPNode (const char *path) const

VOPNET_NodefindVOPNETNode (const char *path) const

DOP_NodefindDOPNode (const char *path) const

TOP_Node * findTOPNode (const char *path) const

TOPNET_Node * findTOPNETNode (const char *path) const

LOP_NodefindLOPNode (const char *path) const

OBJ_NodecastToOBJNode () const

SOP_NodecastToSOPNode () const

CHOPNET_Node * castToCHOPNETNode () const

CHOP_NodecastToCHOPNode () const

ROP_NodecastToROPNode () const

SHOP_NodecastToSHOPNode () const

COP_Node * castToCOPNode () const

COP2_NodecastToCOP2Node () const

COP2NET_Node * castToCOP2NETNode () const

VOP_NodecastToVOPNode () const

VOPNET_NodecastToVOPNETNode () const

DOP_NodecastToDOPNode () const

TOP_Node * castToTOPNode () const

TOPNET_Node * castToTOPNETNode () const

LOP_NodecastToLOPNode () const

const UT_StringgetComment () const
 Accessors for this node's comment string. More...

bool setComment (const char *str)
 Accessors for this node's comment string. More...

UT_Color getColor () const override

bool setColor (const UT_Color &col) override

bool getColorDefault () const

bool setColorDefault (bool usedefault)

const UT_StringHoldergetNodeShape () const
 Accessors for this node's shape. More...

void setNodeShape (const UT_StringHolder &shape)

void setXY (fpreal x, fpreal y) override
 Node position/scale is used by the UI. More...

fpreal getX () const override
 Node position/scale is used by the UI. More...

fpreal getY () const override
 Node position/scale is used by the UI. More...

fpreal getW () const override
 Node position/scale is used by the UI. More...

fpreal getH () const override
 Node position/scale is used by the UI. More...

int findString (const char *str, bool fullword, bool usewildcards) const override

int changeString (const char *from, const char *to, bool fullword) override

virtual UT_StringArraygetArrayForLoadedInputNames ()

virtual UT_StringArraygetArrayForLoadedOutputNames ()

virtual int beginVopCodeGeneratorUpdate ()

virtual void endVopCodeGeneratorUpdate (int update_level)

bool traverseInputs (bool(*callback)(OP_Node &, void *), void *data, TraverseOptions opts, OP_InterestType extra_interest_mask=OP_INTEREST_ALL)

bool traverseInputs (bool(*callback)(const OP_Node &, void *), void *data, TraverseOptions opts, OP_InterestType extra_interest_mask=OP_INTEREST_ALL) const

- Public Member Functions inherited from OP_Parameters
SYS_FORCE_INLINE const UT_StringgetName () const

SYS_FORCE_INLINE OP_OperatorgetOperator () const

bool updateParmsAndSpareParmsFlags ()

virtual bool referenceSingleParameter (OP_Parameters *from, int parm_idx, const char *relative_path=NULL)

void animate (unsigned idx)

void animate (const char *name)

void deAnimate (unsigned idx)

void deAnimate (const char *name)

CH_ChanneladdChannel (const char *name)

CH_ChannelgetChannel (const char *name)

const CH_ChannelgetChannel (const char *name) const

int destroyChannel (const char *name)

bool isObsoleteChannel (const char *name) const

void takeActivateParm (uint idx, bool enable=true)

void takeActivateParm (const char *name, bool enable=true)

void takeActivateParm (PRM_Parm *parm, bool enable=true)

void takeDeactivateParm (uint idx)

void takeDeactivateParm (const char *name)

void takeDeactivateParm (PRM_Parm *parm)

bool takeIsActiveParm (uint idx)

bool takeIsActiveParm (const char *name)

bool takeIsActiveParm (const PRM_Parm *parm)

void takeAutoActivateParm (PRM_Parm *) override

fpreal findKey (fpreal t, int direction) const

PRM_ChanState getChanState (fpreal t, bool scoped_only) const

PRM_ChanState isAtKey (fpreal t) const

void updatePending (fpreal t)

bool isPending (fpreal t)

OP_ChannelsgetChannels () const

virtual bool evalVariableValue (UT_String &val, int index, int thread)

virtual bool evalVariableValue (fpreal &val, int index, int thread)

virtual void getVariableString (int index, UT_String &value, int thread)

virtual float getVariableValue (int index, int thread)

int getNumParms () const

int getParmIndex (const UT_StringRef &name) const

PRM_ParmgetParm (int i)

const PRM_ParmgetParm (int i) const

PRM_ParmgetParm (const UT_StringRef &name)

const PRM_ParmgetParm (const UT_StringRef &name) const

bool hasParm (const UT_StringRef &name) const

PRM_ParmgetParmPtr (const UT_StringRef &name)

const PRM_ParmgetParmPtr (const UT_StringRef &name) const

PRM_ParmgetParmPtrInst (const char *name, const int *inst, int nestlevel=1)

const PRM_ParmgetParmPtrInst (const char *name, const int *inst, int nestlevel=1) const

bool getIsChangingSpareParms () const

void deleteAllSpareParms ()

PRM_ParmListcreateObsoleteParmList () override

void resolveAndDeleteObsoleteParmList (PRM_ParmList *&obsolete_parms) override

virtual void resolveObsoleteParms (PRM_ParmList *)

bool getParameterOrPropertyConst (const UT_StringRef &name, fpreal now, OP_Node *&op, PRM_Parm *&parm, PRM_ParmList *obsolete) const

virtual int findParametersOrProperties (fpreal now, OP_PropertyLookupList &list)

const OP_StatgetStat () const

OP_StatgetStat ()

bool enableParm (int pi, int state, int v=-1)

bool enableParm (const char *pn, int state, int v=-1)

bool enableParmInst (const char *name, const int *inst, int state, int nestlevel=1, int v=-1)

unsigned getEnableState (int pi, int v=-1)

unsigned getEnableState (const char *pn, int v=-1)

unsigned getEnableStateInst (const char *name, const int *inst, int nestlevel=1, int v=-1)

bool setVisibleState (int pi, bool state, int v=-1)

bool setVisibleState (const char *pn, bool state, int v=-1)

bool setVisibleStateInst (const char *name, const int *inst, int state, int nestlevel=1, int v=-1)

bool getVisibleState (int pi, int v=-1)

bool getVisibleState (const char *pn, int v=-1)

void evalString (UT_String &val, int pi, int vi, fpreal t) const

void evalString (UT_StringHolder &val, int pi, int vi, fpreal t) const

void evalStringT (UT_String &val, int pi, int vi, fpreal t, int thread) const

void evalStringT (UT_StringHolder &val, int pi, int vi, fpreal t, int thread) const

void evalString (UT_String &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalString (UT_StringHolder &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalStringT (UT_String &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalStringT (UT_StringHolder &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalString (UT_String &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalString (UT_StringHolder &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalStringT (UT_String &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalStringT (UT_StringHolder &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalString (UT_String &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalString (UT_StringHolder &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalStringT (UT_String &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalStringT (UT_StringHolder &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalStringRaw (UT_String &val, int pi, int vi, fpreal t) const

void evalStringRaw (UT_StringHolder &val, int pi, int vi, fpreal t) const

void evalStringRawT (UT_String &val, int pi, int vi, fpreal t, int thread) const

void evalStringRawT (UT_StringHolder &val, int pi, int vi, fpreal t, int thread) const

void evalStringRaw (UT_String &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalStringRaw (UT_StringHolder &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalStringRawT (UT_String &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalStringRawT (UT_StringHolder &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalStringRaw (UT_String &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalStringRaw (UT_StringHolder &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalStringRawT (UT_String &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalStringRawT (UT_StringHolder &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalStringRaw (UT_String &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalStringRaw (UT_StringHolder &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalStringRawT (UT_String &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalStringRawT (UT_StringHolder &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

PRM_DataItemHandle evalData (int pi, int vi, fpreal t) const

PRM_DataItemHandle evalDataT (int pi, int vi, fpreal t, int thread) const

PRM_DataItemHandle evalData (const UT_StringRef &pn, int vi, fpreal t) const

PRM_DataItemHandle evalDataT (const UT_StringRef &pn, int vi, fpreal t, int thread) const

PRM_DataItemHandle evalData (const UT_StringRef &pn, int *pi, int vi, fpreal t) const

PRM_DataItemHandle evalDataT (const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

PRM_DataItemHandle evalData (const PRM_Parm *parm, int vi, fpreal t) const

PRM_DataItemHandle evalDataT (const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalJSONMap (UT_JSONValueMap &val, int pi, int vi, fpreal t) const

void evalJSONMapT (UT_JSONValueMap &val, int pi, int vi, fpreal t, int thread) const

void evalJSONMap (UT_JSONValueMap &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalJSONMapT (UT_JSONValueMap &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalJSONMap (UT_JSONValueMap &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalJSONMapT (UT_JSONValueMap &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalJSONMap (UT_JSONValueMap &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalJSONMapT (UT_JSONValueMap &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalJSONMapRaw (UT_JSONValueMap &val, int pi, int vi, fpreal t) const

void evalJSONMapRawT (UT_JSONValueMap &val, int pi, int vi, fpreal t, int thread) const

void evalJSONMapRaw (UT_JSONValueMap &val, const UT_StringRef &pn, int vi, fpreal t) const

void evalJSONMapRawT (UT_JSONValueMap &val, const UT_StringRef &pn, int vi, fpreal t, int thread) const

void evalJSONMapRaw (UT_JSONValueMap &val, const UT_StringRef &pn, int *pi, int vi, fpreal t) const

void evalJSONMapRawT (UT_JSONValueMap &val, const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

void evalJSONMapRaw (UT_JSONValueMap &val, const PRM_Parm *parm, int vi, fpreal t) const

void evalJSONMapRawT (UT_JSONValueMap &val, const PRM_Parm *parm, int vi, fpreal t, int thread) const

CH_StringMeaning getStringMeaning (int pi, int vi, fpreal t) const

CH_StringMeaning getStringMeaning (const char *pn, int vi, fpreal t) const

CH_StringMeaning getStringMeaningInst (const char *name, const int *inst, int vi, fpreal t, int nest_level=1) const

CH_ExprLanguage getExprLanguage () const override

void setExprLanguage (CH_ExprLanguage language)

void insertMultiParmItem (const char *pn, int i)

void removeMultiParmItem (const char *pn, int i)

void updateMultiParmFromRamp (fpreal t, const UT_Ramp &ramp, PRM_Parm &m, bool add_wrap, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void updateRampFromMultiParm (fpreal t, const PRM_Parm &m, UT_Ramp &ramp, bool *time_dep=NULL, DEP_MicroNode *depnode=NULL) const

bool convertObsAnimatedToStringExpression (PRM_ParmList *obsolete_parms, const char *pn, int vi, fpreal t, UT_String &result, bool reset_obs)

bool expandString (UT_String &val, fpreal t, int thread, const char *channel_name=0)

bool isParmDirty (int idx, fpreal t)

bool isParmDirty (const char *n, fpreal t)

bool isParmDirtyInst (const char *name, const int *inst, fpreal t, int nestlevel=1)

void cacheParmValues (const OP_Context &context)

void clearParmCache ()

bool isParmTimeDependent (int idx, int comp=-1) const

bool isParmTimeDependent (const char *name, int comp=-1) const

int getErrorMessages (UT_String &messages, UT_ErrorSeverity severity=UT_ERROR_NONE)

int findError (const char *type, int code) const

int removeError (int idx)

void clearDuplicateErrors ()

void opMessage (int code, const char *m=0) const

void opWarning (int code, const char *m=0) const

void opError (int code, const char *m=0) const

void opFatal (int code, const char *m=0) const

void opLocalError (int code, const char *m=0)

void opLocalWarning (int code, const char *m=0)

void opLocalDeadlockError ()

void appendError (const char *type, int code, const char *m, UT_ErrorSeverity sev)

void clearErrors ()

void clearErrors (OP_Context &context)

exint getErrorVersion ()

bool hasDeadlockError () const

virtual OP_ERROR error (OP_Context &context)

bool hasError (OP_Context &context)

virtual OP_ERROR error ()

bool hasError ()

void stealErrors (UT_ErrorManager &src, bool borrow_only=false)

OP_ERROR getSaveError ()

bool isGettingSaveError () const

void addChannelError (const char *type, int code, const char *msg=0)

void chChanged (CH_Channel *ch, CH_CHANGE_TYPE reason)

virtual void saveParmsForUndo (bool scopedOnly=false, CH_Collection *collection=NULL)

void saveSingleParmForUndo (PRM_Parm *parm)

void saveParmForUndo (PRM_Parm *)

virtual void saveKeyFrameForUndo (CH_Channel *chp, fpreal gtime)

int getAnyUndoPending () const

int canAccess (unsigned mask) const

bool canAccess (unsigned mask, const PRM_Parm *parm) const

bool canAccessChannel (uint mask, const CH_Channel *chp) const

void updateUserMask ()

bool canModifyFromUI (const PRM_Parm *parm, int vi) const

virtual int reloadNewFiles (fpreal time_now)

void triggerOPChanged (OP_EventType reason, int index)

void parmChanged (int parm_index)

void parmExprChanged (int parm_index)

void operatorDeleted ()

void saveParmCommand (std::ostream &os, int values=0, int defaultstoo=1, bool spareparms=true) const

int loadParmCommand (int argc, const char *const argv[], int docallbacks, void *data, fpreal now, bool followchrefs, CMD_Args *args)

void commandParmCallback (void *data, fpreal now, int argc, char *argv[], CMD_Args *args)

void saveMultiParmInstanceCommand (std::ostream &os, const char *opname, bool spareparms) const

int64 getMemoryUsage (bool inclusive) const override

void bumpTakeReference (int dir)

int getTakeReferences () const

void createChannelGroupsFromFolders (CH_Group &parent_group, bool only_channels, bool leaf_channels_only=false, bool only_unlocked=true)

bool getAutoScopedChannel (PRM_Parm *parm, int vector_index, OP_GetAutoScopedOptions &opts, CH_ChannelRef &chref)
 Returns the scoped channel ref corresponding to a parameter. More...

void getAutoScopedChannels (CH_ChannelRefList &chlist, bool follow_layer_overrides=true, bool include_animated=false, bool follow_channel_refs=true, bool include_autoscope=true)

void getAutoScopedChannels (CH_ChannelRefList &chlist, OP_GetAutoScopedOptions &opts)

void getChopScopeChannels (UT_WorkBuffer &chopscope_cmd)

bool getParmIsVisible (const char *parmname)

const PRM_TemplategetInterfaceParmTemplates () const

const PRM_TemplategetSpareParmTemplates () const

const PRM_ScriptImportsgetSpareParmTemplateImports () const

const PRM_TemplategetSpareParmLayoutTemplates () const

const PRM_ScriptImportsgetSpareParmLayoutTemplateImports () const

int getSpareParmTemplatesId () const

int numSpareInputs () const

bool hasMultiparmInfo () const

OP_MultiparmInfogetMultiparmInfo ()

void initMultiparmInstance (UT_ValArray< PRM_Parm * > &parms) override

void addOrRemoveMultiparmInstance () override

bool savePresetContents (std::ostream &os) override

bool loadPresetContents (const char *tok, UT_IStream &is) override

void createParmMicroNode (const UT_StringRef &pn, int *pi)

virtual bool getParameterOrProperty (const UT_StringRef &name, fpreal now, OP_Node *&op, PRM_Parm *&parm, bool create_missing_multiparms, PRM_ParmList *obsolete=0)

virtual bool getParameterOrPropertyByChannel (const UT_StringRef &chname, fpreal now, OP_Node *&op, PRM_Parm *&parm, int &vector_index, PRM_ParmList *obsolete=0)

exint evalInt (int pi, int vi, fpreal t) const

exint evalIntT (int pi, int vi, fpreal t, int thread) const

exint evalInt (const UT_StringRef &pn, int vi, fpreal t) const

exint evalIntT (const UT_StringRef &pn, int vi, fpreal t, int thread) const

exint evalInt (const UT_StringRef &pn, int *pi, int vi, fpreal t) const

exint evalIntT (const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

exint evalInt (const PRM_Parm *parm, int vi, fpreal t) const

exint evalIntT (const PRM_Parm *parm, int vi, fpreal t, int thread) const

fpreal evalFloat (int pi, int vi, fpreal t) const

fpreal evalFloatT (int pi, int vi, fpreal t, int thread) const

fpreal evalFloat (const UT_StringRef &pn, int vi, fpreal t) const

fpreal evalFloatT (const UT_StringRef &pn, int vi, fpreal t, int thread) const

fpreal evalFloat (const UT_StringRef &pn, int *pi, int vi, fpreal t) const

fpreal evalFloatT (const UT_StringRef &pn, int *pi, int vi, fpreal t, int thread) const

fpreal evalFloat (const PRM_Parm *parm, int vi, fpreal t) const

fpreal evalFloatT (const PRM_Parm *parm, int vi, fpreal t, int thread) const

void evalFloats (int pi, fpreal64 *v, fpreal t) const

void evalFloatsT (int pi, fpreal64 *v, fpreal t, int thread) const

void evalFloats (const UT_StringRef &pn, fpreal64 *v, fpreal t) const

void evalFloatsT (const UT_StringRef &pn, fpreal64 *v, fpreal t, int thread) const

void evalFloats (const UT_StringRef &pn, int *pi, fpreal64 *v, fpreal t) const

void evalFloatsT (const UT_StringRef &pn, int *pi, fpreal64 *v, fpreal t, int thread) const

void evalFloats (const PRM_Parm *parm, fpreal64 *v, fpreal t) const

void evalFloatsT (const PRM_Parm *parm, fpreal64 *v, fpreal t, int thread) const

void evalFloatsT (int pi, fpreal32 *v, fpreal t, int thread) const

void evalFloats (int pi, fpreal32 *v, fpreal t) const

void evalFloatsT (const UT_StringRef &pn, fpreal32 *v, fpreal t, int thread) const

void evalFloats (const UT_StringRef &pn, fpreal32 *v, fpreal t) const

void evalFloatsT (const UT_StringRef &pn, int *pi, fpreal32 *v, fpreal t, int thread) const

void evalFloats (const UT_StringRef &pn, int *pi, fpreal32 *v, fpreal t) const

void evalFloatsT (const PRM_Parm *parm, fpreal32 *v, fpreal t, int thread) const

void evalFloats (const PRM_Parm *parm, fpreal32 *v, fpreal t) const

void evalFloatsInst (const UT_StringRef &name, const int *inst, fpreal32 *v, fpreal t, int nestlevel=1) const

exint evalIntInst (const UT_StringRef &name, const int *inst, int vi, fpreal t, int nestlevel=1) const

exint evalIntInstT (const UT_StringRef &name, const int *inst, int vi, fpreal t, int thread, int nestlevel=1) const

fpreal evalFloatInst (const UT_StringRef &name, const int *inst, int vi, fpreal t, int nestlevel=1) const

fpreal evalFloatInstT (const UT_StringRef &name, const int *inst, int vi, fpreal t, int thread, int nestlevel=1) const

void evalFloatsInst (const UT_StringRef &name, const int *inst, fpreal64 *v, fpreal t, int nestlevel=1) const

void evalFloatsInstT (const UT_StringRef &name, const int *inst, fpreal64 *v, fpreal t, int thread, int nestlevel=1) const

void evalStringInst (const UT_StringRef &name, const int *inst, UT_String &val, int vi, fpreal t, int nestlevel=1) const

void evalStringInst (const UT_StringRef &name, const int *inst, UT_StringHolder &val, int vi, fpreal t, int nestlevel=1) const

void evalStringInstT (const UT_StringRef &name, const int *inst, UT_String &val, int vi, fpreal t, int thread, int nestlevel=1) const

void evalStringInstT (const UT_StringRef &name, const int *inst, UT_StringHolder &val, int vi, fpreal t, int thread, int nestlevel=1) const

void evalStringInstRaw (const UT_StringRef &name, const int *inst, UT_String &val, int vi, fpreal t, int nestlevel=1) const

void evalStringInstRaw (const UT_StringRef &name, const int *inst, UT_StringHolder &val, int vi, fpreal t, int nestlevel=1) const

void evalStringInstRawT (const UT_StringRef &name, const int *inst, UT_String &val, int vi, fpreal t, int thread, int nestlevel=1) const

void evalStringInstRawT (const UT_StringRef &name, const int *inst, UT_StringHolder &val, int vi, fpreal t, int thread, int nestlevel=1) const

PRM_DataItemHandle evalDataInst (const UT_StringRef &name, const int *inst, int vi, fpreal t, int nestlevel=1) const

PRM_DataItemHandle evalDataInstT (const UT_StringRef &name, const int *inst, int vi, fpreal t, int thread, int nestlevel=1) const

void setIntInst (exint value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setFloatInst (fpreal value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setStringInst (const UT_StringRef &value, CH_StringMeaning meaning, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setDataInst (const PRM_DataItemHandle &value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

bool evalParameterOrProperty (const UT_StringRef &parm_name, int vec_index, fpreal now, int &value, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyT (const UT_StringRef &parm_name, int vec_index, fpreal now, int &value, int thread, PRM_Parm **parmptr=NULL) const

bool evalParameterOrProperty (const UT_StringRef &parm_name, int vec_index, fpreal now, fpreal &values, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyT (const UT_StringRef &parm_name, int vec_index, fpreal now, fpreal &values, int thread, PRM_Parm **parmptr=NULL) const

bool evalParameterOrProperty (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyT (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, int thread, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyRaw (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyRawT (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, int thread, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyExpr (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, PRM_Parm **parmptr=NULL) const

bool evalParameterOrPropertyExprT (const UT_StringRef &parm_name, int vec_index, fpreal now, UT_String &value, int thread, PRM_Parm **parmptr=NULL) const

bool evalVectorProperty (const UT_StringRef &parm_name, fpreal now, int *values, int vec_size, PRM_Parm **parmptr=NULL) const

bool evalVectorPropertyT (const UT_StringRef &parm_name, fpreal now, int *values, int vec_size, int thread, PRM_Parm **parmptr=NULL) const

bool evalVectorProperty (const UT_StringRef &parm_name, fpreal now, fpreal *values, int vec_size, PRM_Parm **parmptr=NULL) const

bool evalVectorPropertyT (const UT_StringRef &parm_name, fpreal now, fpreal *values, int vec_size, int thread, PRM_Parm **parmptr=NULL) const

void setInt (int parmi, int vectori, fpreal t, exint value)

void setInt (const char *parmname, int vectori, fpreal t, exint value)

void setInt (const char *parmname, int &parmi, int vectori, fpreal t, exint value)

void setFloat (int parmi, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setFloat (const char *parmname, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setFloat (const char *parmname, int &parmi, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setString (const UT_StringRef &val, CH_StringMeaning meaning, int parmi, int vectori, fpreal t)

void setString (const UT_StringRef &val, CH_StringMeaning meaning, const char *parmname, int vectori, fpreal t)

void setString (const UT_StringRef &val, CH_StringMeaning meaning, const char *parmname, int &parmi, int vectori, fpreal t)

void setData (int parmi, int vectori, fpreal t, const PRM_DataItemHandle &val)

void setData (const char *parmname, int vectori, fpreal t, const PRM_DataItemHandle &val)

void setData (const char *parmname, int &parmi, int vectori, fpreal t, const PRM_DataItemHandle &val)

void setChRefInt (int pi, int vi, fpreal t, exint val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefInt (const char *pn, int vi, fpreal t, exint val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefFloat (int pi, int vi, fpreal t, fpreal val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefFloat (const char *pn, int vi, fpreal t, fpreal val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefString (const UT_StringRef &val, CH_StringMeaning meaning, int pi, int vi, fpreal t, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefString (int pi, int vi, fpreal t, const UT_StringRef &val, CH_StringMeaning meaning, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefString (const UT_StringRef &val, CH_StringMeaning meaning, const char *pn, int vi, fpreal t, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefString (const char *pn, int vi, fpreal t, const UT_StringRef &val, CH_StringMeaning meaning, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefData (int pi, int vi, fpreal t, const PRM_DataItemHandle &val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefData (const char *pn, int vi, fpreal t, const PRM_DataItemHandle &val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

bool setParameterOrProperty (const char *parm_name, int vec_index, fpreal now, int32 value, bool set_key=false, bool propagate=true)

bool setParameterOrProperty (const char *parm_name, int vec_index, fpreal now, int64 value, bool set_key=false, bool propagate=true)

bool setParameterOrProperty (const char *parm_name, int vec_index, fpreal now, fpreal value, bool set_key=false, bool propagate=true)

bool setParameterOrProperty (const char *parm_name, int vec_index, fpreal now, const char *value, CH_StringMeaning meaning, bool set_key=false, bool propagate=true)

void setSilentInt (int parmi, int vectori, fpreal t, exint value)

void setSilentInt (const char *parmname, int vectori, fpreal t, exint value)

void setSilentInt (const char *parmname, int &parmi, int vectori, fpreal t, exint value)

void setSilentFloat (int parmi, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setSilentFloat (const char *parmname, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setSilentFloat (const char *parmname, int &parmi, int vectori, fpreal t, fpreal value, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING)

void setSilentString (const UT_StringRef &value, CH_StringMeaning meaning, int parmi, int vectori, fpreal t)

void setSilentString (const UT_StringRef &value, CH_StringMeaning meaning, const char *parmname, int vectori, fpreal t)

void setSilentString (const UT_StringRef &value, CH_StringMeaning meaning, const char *parmname, int &parmi, int vectori, fpreal t)

void setSilentData (int parmi, int vectori, fpreal t, const PRM_DataItemHandle &value)

void setSilentData (const char *parmname, int vectori, fpreal t, const PRM_DataItemHandle &value)

void setSilentData (const char *parmname, int &parmi, int vectori, fpreal t, const PRM_DataItemHandle &value)

void setSilentIntInst (exint value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setSilentFloatInst (fpreal value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setSilentStringInst (const UT_StringRef &value, CH_StringMeaning meaning, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setSilentDataInst (const PRM_DataItemHandle &value, const char *parmname, const int *inst, int vectori, fpreal t, int nestlevel=1)

void setChRefInt (const char *parmname, int &pi, int vi, fpreal t, exint val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefFloat (const char *parmname, int &pi, int vi, fpreal t, fpreal val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefString (const UT_StringRef &val, CH_StringMeaning meaning, const char *parmname, int &pi, int vi, fpreal t, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

void setChRefData (const char *parmname, int &pi, int vi, fpreal t, const PRM_DataItemHandle &val, PRM_AddKeyType add_key=PRM_AK_MARK_PENDING, bool propagate=true)

PRM_ParmgetParmActivationControl (const UT_StringRef &parm_name)

- Public Member Functions inherited from PRM_ParmOwner
const char * getFullPath (UT_String &str) const

const char * getFullPath (UT_WorkBuffer &str) const

UT_StringHolder getFullPath () const

SYS_FORCE_INLINE PRM_ParmListgetParmList ()

SYS_FORCE_INLINE const
PRM_ParmList
getParmList () const

virtual bool createSpareParametersForLoad (UT_StringArray &, PRM_ParmNameMap &, UT_String &)

bool isPendingOverride () const

const char * getPendingOverrideString () const

void setPendingOverrideString (const char *s)

- Public Member Functions inherited from OP_NetworkBoxItem
 OP_NetworkBoxItem ()

virtual ~OP_NetworkBoxItem ()

bool setXYWithBoundsChecks (fpreal x, fpreal y)

void validateSafeBounds (fpreal &x, fpreal &y)

void validateSafeBounds (fpreal &x, fpreal &y, fpreal &w, fpreal &h)

void moveToGoodPosition (bool relativetoinputs=true, bool moveinputs=true, bool moveoutputs=true, bool moveunconnected=true)

void setOwnerBox (OP_NetworkBox *box)

OP_NetworkBoxgetOwnerBox () const

bool hasOwnerBox (const OP_NetworkBoxItem *item) const

OP_NetworkBoxgetMinimizedOwnerBox () const

void getPathFromParent (UT_String &str, const OP_Node *parent) const

void getPathFromParent (UT_WorkBuffer &str, const OP_Node *parent) const

void getRelativePathTo (const OP_NetworkBoxItem *base_item, UT_String &result) const
 Returns the path of this item relative to 'base_item'. More...

OP_NetworkgetCreator () const

OP_NetworkgetCodeCreator () const

void getConnectedItems (OP_NetworkBoxItemList &connected, bool inputs, bool recursive, bool include_this_item) const
 Fills an array with all network box items connected to this item. More...

int64 getMemoryUsage (bool inclusive) const


Static Public Member Functions

static const char * getScriptFromTable (const char *table)

static const char * getOpTypeFromTable (const char *table)

static bool canDestroyNode (OP_Node *node)
 Returns true if it is safe at this time to destroy this node. More...

static void fixName (const char *name, const OP_FixNameParms &fix_name_parms, UT_String &fixed_name)

static bool isOpWritten (UT_IStream &is)

static OP_OperatorTablegetOperatorTable (const UT_StringRef &op_type, const char *script_path=0)

static void saveOTLBackupInformation (std::ostream &os, const OP_OperatorList &fallbackops, const OP_OperatorList &dummyops)

static void saveFallbacksPathsFor (std::ostream &os, UT_Set< OP_Operator * > otloptable)

static bool warnDeprecatedOpsOnLoad ()

static void setWarnDeprecatedOpsOnLoad (bool enable)

static int syncContentsLevel ()

- Static Public Member Functions inherited from OP_Node
static const OP_TypeInfogetOpInfoFromOpTypeID (OP_OpTypeId opid)

static const OP_TypeInfogetOpInfoFromOpTypeName (const char *name)

static const OP_TypeInfogetOpInfoFromTableName (const char *name)

static const OP_TypeInfogetOpInfoFromScriptDir (const char *dir)

static bool isValidOpName (const UT_StringView &s, bool allow_rel_paths=false, bool ignore_node_names_env_var=false)
 Set allow_rel_paths to true to accept "." or ".." as valid paths. More...

static bool isValidOpName (const char *s, bool allow_rel_paths=false, bool ignore_node_names_env_var=false)

static bool isValidOpName (const UT_String &str, bool allow_rel_paths=false, bool ignore_node_names_env_var=false)

static bool isValidOpPath (const UT_StringRef &s)

static bool forceValidOpName (UT_String &name)

static OP_NodelookupNode (int unique_id, bool include_proxy=false)

static int getNumUniqueIds ()

static void getAllNodes (OP_NodeList &nodes)

static void getValueAsBundlePaths (fpreal t, UT_WorkBuffer &resultbuf, PRM_Parm *parm, int index, OP_Node *srcnode)

static void getValueAsBundlePaths (fpreal t, OP_NodeList &resultnodes, PRM_Parm *parm, int index, OP_Node *srcnode)

static bool parallelCook (OP_Context &context, const OP_NodeList &nodes)
 Cook the given node list in parallel. More...

static void repositionOpsMaxY (OP_NetworkBoxItemList &items, fpreal x, fpreal y)

static DEP_MicroNodegetEvalChannelMicroNode (int thread)

static void addMultiparmInterests (const OP_InterestRef &target_ref, OP_Node *srcnode, PRM_Parm &parm)

static void addMultiparmInterests (DEP_MicroNode &target, OP_Node *srcnode, PRM_Parm &parm)

static void addExprOpDependency (const char *arg_str, const PRM_RefId &ref_id, OP_InterestType interest_type)

static void addExprOpDependency1From2 (const char *arg_str1, const char *arg_str2, const PRM_RefId &ref_id, OP_InterestType interest_type)

static void addExprOpParmDependency (const char *arg_str, const PRM_RefId &ref_id, OP_InterestType interest_type)

static void changeExprOpRef (const char *arg_str, char *&new_arg, const char *new_fullpath, const char *old_fullpath, const char *old_cwd)

static void changeExprOpRef1From2 (const char *arg_str1, const char *arg_str2, char *&new_arg1, char *&new_arg2, const char *new_fullpath, const char *old_fullpath, const char *old_cwd)

static void changeExprOpParmRef (const char *arg_str, char *&new_arg, const char *new_fullpath, const char *old_fullpath, const char *old_cwd, const char *chan_name, const char *old_chan_name)

static void moveAndUpdateDependencies (const OP_NodeList &src_nodes, const OP_NodeList &dest_nodes)

static void updateChannelPtrs (CH_CollectionList &parents)

static int getGlobbedNodes (OP_Node *cwd, UT_String &holder, const char *pattern, UT_WorkArgs &argv, OP_GlobContext *context)

static int getGlobbedNetworkBoxes (OP_Node *cwd, UT_String &holder, const char *pattern, UT_WorkArgs &argv, OP_GlobContext *context)

static int getGlobbedPostIts (OP_Node *cwd, UT_String &holder, const char *pattern, UT_WorkArgs &argv, OP_GlobContext *context)

static void propagateMatchOTLDefinitionToAncestors (OP_Node *node, bool sync_flag)
 Utility function for syncing/unsyncing all uncestor nodes. More...

static const char * internalUserDataPrefix ()
 Prefix to use for internally used user data. More...

static int findOpFramePair (const char *path, int &op_id, fpreal &frame)

static void buildXformOrder (int trs, int xyz, UT_XformOrder &order)
 Build a UT_XformOrder out of TRS and XYZ parameter values. More...

static const UT_XformOrderbuildXformOrder (int trs, int xyz)

static UT_XformOrder::rstOrder getMainOrder (int trs)
 Translate a TRS parameter menu index into the UT_XformOrder type. More...

static int getMainOrderMenuIndex (UT_XformOrder::rstOrder order)

static UT_XformOrder::xyzOrder getRotOrder (int xyz)
 Translate a XYZ parameter menu index into the UT_XformOrder type. More...

static int getRotOrderMenuIndex (UT_XformOrder::xyzOrder order)

static UT_Vector3R getXformPivot (int trs, fpreal tx, fpreal ty, fpreal tz, fpreal px, fpreal py, fpreal pz)

static UT_Vector3R getXformPivot (int trs, fpreal tx, fpreal ty, fpreal tz, fpreal px, fpreal py, fpreal pz, fpreal pivot_rx, fpreal pivot_ry, fpreal pivot_rz, bool inverse=false)

static UT_Vector3R getPivotParmValue (int trs, fpreal tx, fpreal ty, fpreal tz, fpreal px, fpreal py, fpreal pz)

static UT_Vector3R getPivotParmValue (int trs, fpreal tx, fpreal ty, fpreal tz, fpreal px, fpreal py, fpreal pz, fpreal pivot_rx, fpreal pivot_ry, fpreal pivot_rz, bool inverse=false)

static void buildXform (int trs, int xyz, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, float px, float py, float pz, UT_Matrix4 &mat)

static void buildXform (int trs, int xyz, double tx, double ty, double tz, double rx, double ry, double rz, double sx, double sy, double sz, double px, double py, double pz, UT_DMatrix4 &mat)

static void buildXform (int trs, int xyz, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, const UT_Matrix4F::PivotSpace &pivot, UT_Matrix4 &mat)

static void buildXform (int trs, int xyz, double tx, double ty, double tz, double rx, double ry, double rz, double sx, double sy, double sz, const UT_DMatrix4::PivotSpace &pivot, UT_DMatrix4 &mat)

static void buildXform (int trs, int xyz, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, float s_xy, float s_xz, float s_yz, float px, float py, float pz, UT_Matrix4 &mat)

static void buildXform (int trs, int xyz, double tx, double ty, double tz, double rx, double ry, double rz, double sx, double sy, double sz, double s_xy, double s_xz, double s_yz, double px, double py, double pz, UT_DMatrix4 &mat)

static void buildXform (int trs, int xyz, float tx, float ty, float tz, float rx, float ry, float rz, float sx, float sy, float sz, float s_xy, float s_xz, float s_yz, const UT_Matrix4F::PivotSpace &pivot, UT_Matrix4 &mat)

static void buildXform (int trs, int xyz, double tx, double ty, double tz, double rx, double ry, double rz, double sx, double sy, double sz, double s_xy, double s_xz, double s_yz, const UT_DMatrix4::PivotSpace &pivot, UT_DMatrix4 &mat)

static void buildXform (const UT_Matrix4F::FullTransformModel &parms, UT_Matrix4F &mat)

static void buildXform (const UT_Matrix4D::FullTransformModel &parms, UT_Matrix4D &mat)

static void buildXform (int trs, float tx, float ty, float rz, float sx, float sy, float px, float py, UT_Matrix3 &mat)

static void buildXform (int trs, double tx, double ty, double rz, double sx, double sy, double px, double py, UT_DMatrix3 &mat)

static void buildXform (int trs, float tx, float ty, float rz, float sx, float sy, float s_xy, float px, float py, UT_Matrix3 &mat)

static void buildXform (int trs, double tx, double ty, double rz, double sx, double sy, double s_xy, double px, double py, UT_DMatrix3 &mat)

static void clearAllPendingUndoFlags ()

static OP_EditCallback getEditCallback (void *&data)

static void buildQuadricXform (UT_Matrix4 &mat, float tx, float ty, float tz, float sx, float sy, float sz, char axis= 'y', float rx=0.0f, float ry=0.0f, float rz=0.0f)

static void buildQuadricXform (UT_DMatrix4 &mat, double tx, double ty, double tz, double sx, double sy, double sz, char axis= 'y', double rx=0.0, double ry=0.0, double rz=0.0)

static int buildOpMenu (OP_Network *net, PRM_Name *theMenu, int theMenuSize, int(*doAdd)(OP_Node *)=0, int startItem=0, const PRM_Parm *parm=0, int showSubnets=1, int expandSubnets=1, bool recurse=false)

static void buildPreDefRulesMenu (PRM_Name *menu, OP_PreDefRules &pdr)

static int getNameSerialIndex ()

static void printOpMemoryUsageStats (std::ostream &os)

static bool getDoingBulkNotification ()

static bool isDirectorDoingBulkNotification ()

static bool createNewOpType (OP_Node *node, UT_String &errors, const char *typeName=nullptr, const char *typeLabel=nullptr, const char *otlFile=nullptr, const char *metaSource=nullptr, const char *comment=nullptr, const char *version=nullptr, const char *newName=nullptr, int minimumInputs=-1, int maximumInputs=-1, bool ignore_external_references=false, bool compress_contents=false, bool force=false, int *newNodeId=nullptr, bool compile_contents=false, bool change_node_type=true, bool create_backup=true)

static void startBulkNotifications (const OP_NodeList &changed, OP_Node *caller=nullptr)

static void endBulkNotifications (const OP_NodeList &changed)

static UT_StringHolder defaultInputName (int idx)

static UT_StringHolder defaultOutputName (int idx)

static const UT_ColorgetGlobalDefaultColor ()

static fpreal getFlagWidth ()
 Get the width of flags. More...

static fpreal getNodeHeight ()
 Get the default node height. More...

static fpreal getNodeButtonWidth ()

static fpreal getConnectorHeight ()
 Get the default connector height. More...

static bool canDestroyNodes (OP_Network *src_net, const OP_NodeList *nodes)

static void addInputNodeErrorToManager (UT_ErrorManager *error, OP_Node *src)

static void addExtraInputs (const UT_Array< OP_InterestRef > &target_refs, const UT_Array< OP_InterestRef > &source_refs)

static void addExtraInput (OP_Node &source, int source_pi, int source_vi, OP_Node &target, int target_pi, int target_vi)
 Optimized version of addExtraInput that doesn't create OP_InterestRef. More...

static bool getMicroNodesFromRef (OP_Node *op, OP_InterestType type, DEP_MicroNodeList &micronodes, bool data_target)

static bool getMicroNodesFromRef (OP_Node &op, int parm_i, int vec_i, DEP_MicroNodeList &micronodes)

static void addExtraInput (OP_Node &source, PRM_Parm &source_parm, int source_vi, OP_Node &target, PRM_Parm &target_parm, int target_vi)
 Optimized version of addExtraInput that doesn't create OP_InterestRef. More...

static void addExtraInputToEvalChannel (int thread, OP_Node &op, OP_InterestType type)

static void addExtraInputToEvalChannel (int thread, OP_Node &op, int parm_i, int vec_i)

static void addExtraInputToEvalChannel (int thread, const OP_InterestRef &source_ref)

static void addExtraInputToEvalChannel (int thread, DEP_MicroNode &src_micronode)

static void addExtraInput (const OP_InterestRef &target_ref, const OP_InterestRef &source_ref)

static void addExtraInput (const OP_InterestRef &target_ref, DEP_MicroNode &source_micronode)

static void addExtraInput (DEP_MicroNode &target_micronode, const OP_InterestRef &source_ref)

- Static Public Member Functions inherited from OP_Parameters
static bool followChannelReferencesOneStep (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx)

static bool followChannelReferencesOneStepT (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx, int thread)

static void followChannelReferences (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx)

static bool followChannelReferencesWithDeps (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx, CH_Channel *chp)

static void followChannelReferencesT (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx, int thread)

static bool followChannelReferencesWithDepsT (const OP_FollowChanRefsOptions &opt, OP_Node *&newop, PRM_Parm *&newparm, int &newvecidx, int thread, CH_Channel *chp)

static void followChannelReferences (const OP_FollowChanRefsOptions &opt, CH_ChannelRef &ref)

static void followChannelReferencesT (const OP_FollowChanRefsOptions &opt, CH_ChannelRef &ref, int thread)

static void getValueAsProcessedNodePaths (fpreal t, UT_WorkBuffer &resultbuf, const PRM_Parm *parm, int index, const OP_Node *srcnode)

static void getValueAsProcessedNodePaths (fpreal t, UT_Array< UT_StringHolder > &resultarr, const PRM_Parm *parm, int index, const OP_Node *srcnode)

static void setBatchParms (PRM_BatchList &list, fpreal now, bool set_key=false, bool create_channels=false)

static bool canSetBatchParms (PRM_BatchList &list, fpreal now)

static void buildMParmInst (const PRM_Template *templates, UT_StringArray &mparm_inst, UT_IntArray &mparm_lvl, int level)

static bool isMParmInstance (const char *chname, const UT_StringArray &mparm_inst, const UT_IntArray &mparm_lvl)

static void getLayersFromScopedChannels (const CH_ChannelRefList &ori_refs, CH_ChannelRefList &layer_refs)

static UT_StringHolder getParmActivationControlName (const UT_StringRef &parm_name)

- Static Public Member Functions inherited from OP_NetworkBoxItem
static fpreal getMaxSafeX ()
 The following methods return the safe extents of the position of items. More...

static fpreal getMinSafeX ()

static fpreal getMaxSafeY ()

static fpreal getMinSafeY ()

static OP_NetworkBoxItemlookupItem (const OP_ItemType &type, int64 id)

static OP_NetworkBoxItemlookupItem (const OP_ItemId &id)


Protected Member Functions

 OP_Network (OP_Network *parent, const char *name, OP_Operator *op)

 ~OP_Network () override

void clearAndDestroy () override

void clearAndDestroyNodes ()

int propagateModification (OP_Node *by_whom, OP_EventType reason, int parm_index, OP_PropagateData &prop_data) override

void buildOpDependencies () override

void notifyRenameDependents (const UT_String &full_from, OP_NodeList &cook_nodes) override

void notifyRenameReferences (const UT_String &full_from, OP_NodeList &cook_nodes) override

void rebuildOpDependents (bool proxy_only) override

void cloneFromProxyRefNode (OP_Network *proxy) override

OP_NetworkcloneToProxyRefNode () override

int hasProxyRefNodes () const override

void removeProxyRefNode (OP_Network *proxy)

void moveProxyRefNodes (OP_Network *dest) override

void moveDependencies (OP_Node *from_node) override

bool load (UT_IStream &is, const char *ext="", const char *path=0) override

virtual void beginLoadingInNetwork ()
 Called upon entering and exiting loadNetwork() method. More...

virtual void endLoadingInNetwork ()

virtual void finishedLoadingChildOrder ()

virtual void finishedLoadingNetwork (bool is_child_call=false)

bool syncContents (UT_IStream &is) override

virtual void addNode (OP_Node *node, int notify=1, int explicitly=1)

OP_NodefindConnectedNode (OP_Node *op) const

OP_NodegetPreferredDisplayNodePtr (OP_Node *skipthisnode) const

void resetDisplayNodePtr (OP_Node *skipthisnode=0)

OP_NodegetPreferredRenderNodePtr (OP_Node *skipthisnode) const

void resetRenderNodePtr (OP_Node *skipthisnode=0)

OP_NodegetPreferredAudioNodePtr (OP_Node *skipthisnode) const

void resetAudioNodePtr (OP_Node *skipthisnode=0)

virtual CHOP_Node ** getAudioNodeRef ()

void validateStatusNodePtrs (const OP_NodeList &skipnodes)

virtual void updateExtraFlagPtrs ()

void nodeUnlocked () override

bool canDestroyNode () override
 Return true if it is safe at this time to destroy this node. More...

virtual void destroySingleNode (OP_Node *node)

void modifyAllChildNodeNames (bool renamepickableobjects, const char *prefix, int &id, std::set< int > *renaming_exclude_ids=NULL)

void traverseScope (const char *pattern, OP_ScopeOp scope_op, const OP_ScopeOptions &scope_opts) override

virtual void getAdditionalUndoNodes (const OP_NodeList &orig_list, OP_NodeList &nodes_for_input_undo)

virtual bool getAllowSavingChild (OP_Node *node, const OP_SaveFlags &flags)
 Returns true if the child at node can should be saved, false otherwise. More...

- Protected Member Functions inherited from OP_Node
 OP_Node (OP_Network *parent, const char *name, OP_Operator *entry)

 ~OP_Node () override

void doGetFullPath (UT_WorkBuffer &str) const override
 Implement the method from PRM_ParmOwner. More...

virtual void buildLocalVarNames (UT_StringArray &out_vars)

UT_StringHolder evaluateDisableExpression (const PRM_Parm &prm, const UT_StringRef &function) const override

void resolveUnresolvedLoadedInputs ()

void finishedLoadingParentNetwork ()

void setNewParent (OP_Network *new_parent)

void setLegacyConnectingInputIndex (int index)

virtual void clearCache ()

void clearInterruptedImpl (bool allow_recook)

virtual OP_ERROR cookMe (OP_Context &context)=0

virtual OP_ERROR bypassMe (OP_Context &context, int &copied_input)=0

virtual void doOverridePreCook ()

virtual void doOverridePostCook ()

int getSourceCount () const

virtual int bumpSourceCount (int d)

virtual OP_ERROR cookInputGroups (OP_Context &context, int alone=0)

virtual OP_ERROR saveIntrinsic (std::ostream &os, const OP_SaveFlags &flags)

virtual OP_ERROR save (std::ostream &os, const OP_SaveFlags &flags, const char *path_prefix="", const UT_String &name_override=UT_String())

OP_ERROR saveUserDataPacket (std::ostream &os, const char *path_prefix, const UT_String &node_name)

bool loadIntrinsicParentUneditable (UT_IStream &is, const char *path=0)

bool loadIntrinsic (UT_IStream &is, const char *path=0)

virtual bool loadPacket (UT_IStream &is, short class_id, short sig, const char *path=0)

virtual bool loadPacket (UT_IStream &is, const char *token, const char *path=0)

bool loadParentUneditable (UT_IStream &is, const char *ext="", const char *path=0)

virtual void loadStart ()

virtual void loadFinished ()

void loadContentsSection ()

void setMatchesOTLDefinition (int matches)
 Sets the flag idicating if the node is synced (matched) to the HDA. More...

virtual const char * getFileExtension (int binary) const =0

virtual const char * getDataFileExtension (int binary) const

virtual void checkTimeDependencies (int do_parms=1, int do_inputs=1, int do_extras=1)

virtual void checkContextOptionDependencies (int do_parms)

void sendEvent (OP_EventType type, void *data=0)

int haveSeenDataModification (exint modification_id)

OP_CachegetCookCache ()

virtual void saveFlagsForUndo ()

void saveForUndoLayout ()

void clearDependency ()
 Clears all cook dependencies (i.e., items that may cause it to cook) More...

bool dirtyForTimeChange (fpreal t)

void stealDependents (OP_Node *other)

bool hasOpDependents ()

void clearOpReferences ()

virtual int removeOpDependent (int op_id, const PRM_RefId &ref_id, OP_InterestType mask=OP_INTEREST_ALL)
 removeOpDependent() returns the number of dependents removed More...

virtual int removeOpDependent (int op_id, OP_InterestType mask=OP_INTEREST_ALL)

void buildOpDependencies () override

void checkChannelDependencies (CH_Channel *ch, CH_CHANGE_TYPE reason) override

void notifyOpDependents (OP_InterestType interest, bool recurse)

void notifyRenameDependents (const UT_String &full_from)

void notifyRenameReferences (const UT_String &full_from)

virtual void handleOpDependency (int referenced_op_id, const OP_Dependency &op_dep, OP_InterestType interest_type, bool &need_cook, const char *old_fullpath, const char *old_cwd, const char *old_chan_name)

virtual void buildParmDependency (int parm_index)

void addOpNameReference (const PRM_RefId &ref_id, const UT_String &op_path, OP_InterestType type)

void addChannelNameReference (const PRM_RefId &ref_id, const UT_StringRef &op_path, const UT_StringRef &chan_name, OP_InterestType type)

OP_NodegetNodeOrCreateProxy (const UT_StringRef &op_path)

void addOpReference (const PRM_RefId &ref_id, OP_Node *node, const PRM_RefId &source_ref_id, OP_InterestType type)

void removeOpReference (const PRM_RefId &ref_id, OP_InterestType mask=OP_INTEREST_ALL)

void removeOpReference (const PRM_RefId &ref_id, int op_id, OP_InterestType mask=OP_INTEREST_ALL)

bool changeOpPathRef (UT_String &value_str, const char *new_fullpath, const char *old_fullpath, const char *old_cwd, const char *new_cwd)

void handleStringParmOpPathDependency (int parm_index, int vi, const char *new_fullpath, const char *old_fullpath, const char *old_cwd)

void notifyNodeDeletion ()

virtual void nodeDeleted (OP_Node *op, int propagate=1)

void startCookTimer (const OP_Context &context)

void stopCookTimer (const OP_Context &context)

virtual const char * getCookTimerLabel (const OP_Context &context) const

void permissionError (const char *chname=0) override

void addInputError (unsigned input_idx)

void addInputNodeError (OP_Node *src)

virtual bool isInputConnectedInsideSubnet (int input_idx) const

virtual bool isNamedInputConnectedInsideSubnet (const OP_ConnectorId &input_name) const

virtual void setUniqueId (int id)

void changeOpDependentUniqueId (int old_id, int new_id)

void changeOpReferenceUniqueId (int old_id, int new_id)

virtual void clearUniqueId ()

void setAllowBuildDependencies (int yesno)

int allowBuildDependencies () const

void evaluateAllParms (fpreal t)

virtual void getMyExternalReferences (UT_StringArray &reflist, UT_StringArray *nodelist=0, bool collapse=false, bool check_missing=false, bool show_missing_only=false)

void getExternalFiles (UT_StringArray &files, const char *stringparm, int framestart, int frameend, bool collapse, bool check_missing, bool show_only_missing, UT_KnownPath path)

virtual void getDescriptiveParmName (UT_String &str) const

virtual void getDescriptiveName (UT_String &str) const

void dirtyDescriptiveNameCache ()
 Marks our cached descriptive name as dirty. More...

virtual bool cookedDataUsesAllParameters () const

virtual bool cookedDataNeedsErrors () const

virtual bool cookDataForAnyOutput () const

bool getIsRunningInCreateScript () const

virtual void refreshRepresentativeNode (OP_Node &changed_child)

virtual void setupConnectorsAfterLoad ()

void convertOpdefToAbsolutePath (UT_String &str) const override

bool isCookedTime (fpreal t) const

virtual void dumpMicroNodes (std::ostream &os, bool as_DOT, int indent_level) const

void deleteInput (int idx)

void deleteInput (const OP_ConnectorId &input_name)

virtual void doDeleteInput (int idx)
 Performs actual removal from the member input array. More...

void updateErrorSeverity ()
 Update the error severity of this node. More...

virtual void onInputAllocated (OP_Input *new_input, int index)
 Overriden in VOPs. More...

void checkConnectorsConsistency ()
 Debug method for checking connector consistency. More...

void gatherInputs (UT_Array< OP_InputPair > &input_pairs)

void gatherOutputs (UT_Array< OP_OutputPair > &output_pairs)

void renameInput (OP_Input *input, int new_id)

void notifyChannelOpDependents (PRM_Parm *in_parm, int vecid)

void beginScriptBlockingDel ()

void endScriptBlockingDel ()

- Protected Member Functions inherited from OP_Parameters
void doGetFullPath (UT_WorkBuffer &str) const override
 Compute the full path of the node. More...

bool updateParmDisableConditional (PRM_Parm &parm, bool force, const UT_StringArray *skip=0)

bool updateParmHideConditional (PRM_Parm &parm, const UT_StringArray *skip=0)

bool updateParmDisableIfInactive (PRM_Parm &parm, bool disable=true)

virtual unsigned disableParms ()

virtual bool updateParmsFlags ()

virtual bool preUpdateParmsFlags ()

void saveMultiParmForUndo (int index)

void stealGlobalErrors ()

void stealErrors (OP_Parameters &src)

UT_LockedRawPtr
< UT_ErrorManager, OP_Lock
getLockedErrorManager ()

SYS_FORCE_INLINE bool checkExpressionError (const PRM_Parm *parm, int thread) const

void resetParmEventHandler ()

intallocIndirect (int size=64)

 OP_Parameters (const char *name, OP_Operator *entry)

 OP_Parameters (const OP_Parameters &source, const char *name)

 ~OP_Parameters () override

void initializeParms (OP_Channels *channels)

virtual int rename (const char *newname)

virtual bool createSpareParameterFromChannel (const char *chname)

virtual bool createSpareParametersFromChannels (UT_BitArray &selection, const CH_ChannelList &channels)

CH_LocalVariablegetVariable (int i) const

CH_LocalVariablegetVariable (const char *name) const

OP_ERROR saveChannels (std::ostream &os, int binary, bool compiled, bool selected, bool pending_state)

OP_ERROR saveParmChannels (int parm_index, std::ostream &os, int binary, bool compiled)

OP_ERROR saveParameters (std::ostream &os, int binary, bool compiled)

OP_ERROR saveChannelAliases (std::ostream &os, int binary)

bool loadChannels (UT_IStream &is, const char *path, CH_Collection *obsolete_channels)

bool loadParameters (UT_IStream &is, const char *path, PRM_ParmList *obsolete_parms)

bool loadChannelAliases (UT_IStream &is, const char *path=0)

bool loadOldSpareParms (UT_IStream &is)

virtual void ensureErrorsAreUpdatedSubclass ()

virtual void ensureSpareParmsAreUpdatedSubclass ()

- Protected Member Functions inherited from PRM_ParmOwner
 PRM_ParmOwner ()

virtual
