#include <OP_NetworkBoxItem.h>

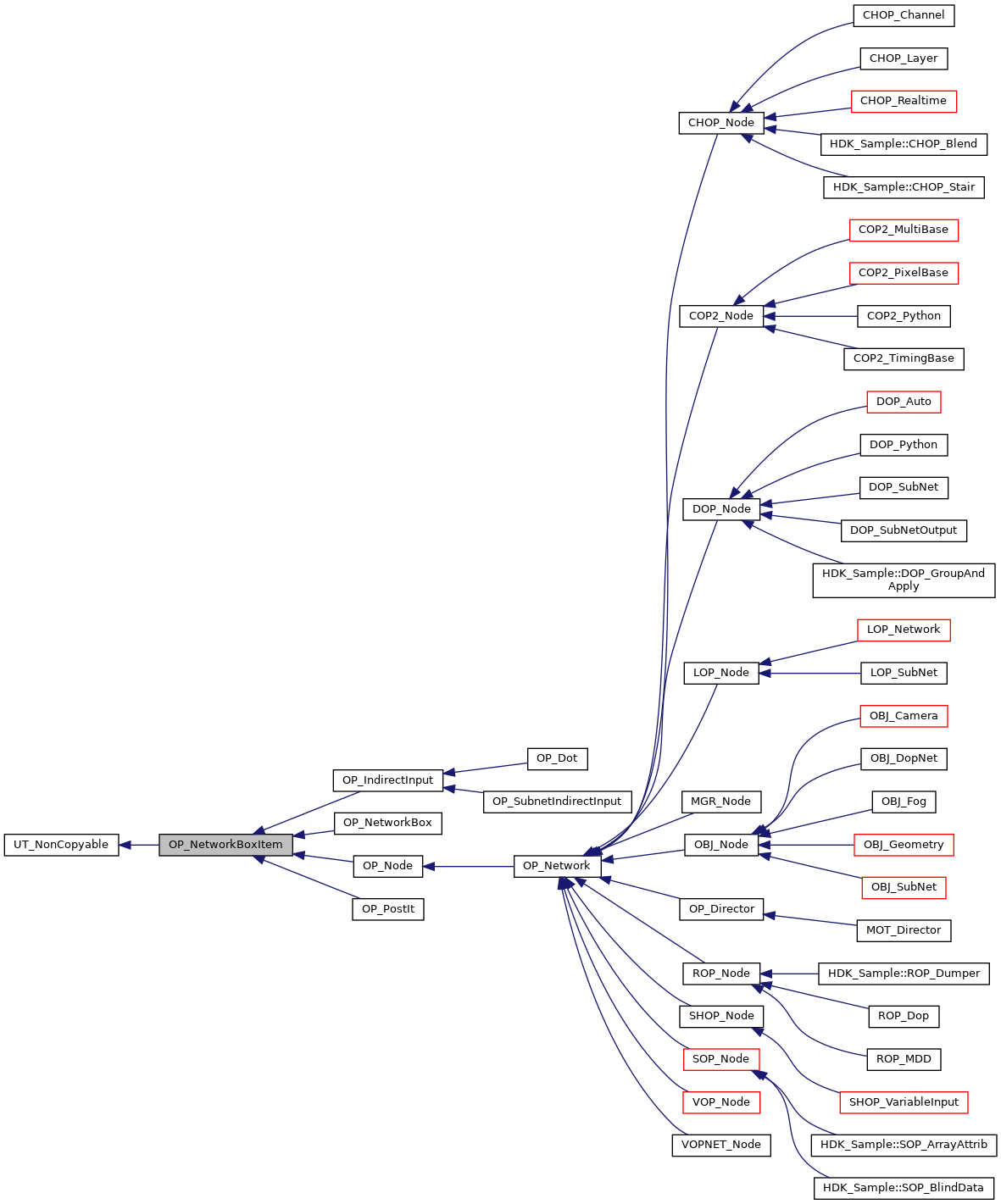

Inheritance diagram for OP_NetworkBoxItem:

Public Member Functions
	OP_NetworkBoxItem ()

virtual	~OP_NetworkBoxItem ()

virtual void	setXY (fpreal x, fpreal y)=0

virtual fpreal	getX () const =0

virtual fpreal	getY () const =0

virtual fpreal	getW () const =0

virtual fpreal	getH () const =0

bool	setXYWithBoundsChecks (fpreal x, fpreal y)

void	validateSafeBounds (fpreal &x, fpreal &y)

void	validateSafeBounds (fpreal &x, fpreal &y, fpreal &w, fpreal &h)

void	moveToGoodPosition (bool relativetoinputs=true, bool moveinputs=true, bool moveoutputs=true, bool moveunconnected=true)

void	setOwnerBox (OP_NetworkBox *box)

OP_NetworkBox *	getOwnerBox () const

bool	hasOwnerBox (const OP_NetworkBoxItem *item) const

OP_NetworkBox *	getMinimizedOwnerBox () const

virtual bool	setPicked (bool on_off, bool propagate_parent_event=true)=0

virtual bool	getPicked () const =0

virtual OP_Network *	getParentNetwork () const =0
	Returns the network that is our parent. More...

void	getPathFromParent (UT_String &str, const OP_Node *parent) const

void	getPathFromParent (UT_WorkBuffer &str, const OP_Node *parent) const

void	getRelativePathTo (const OP_NetworkBoxItem *base_item, UT_String &result) const
	Returns the path of this item relative to 'base_item'. More...

virtual UT_Color	getColor () const
	Accessors for color used in the network view. More...

virtual bool	setColor (const UT_Color &color)

virtual OP_ItemType	getItemType () const =0
	Our children should implement this and return what type of item they are. More...

virtual const UT_String &	getItemName () const =0

virtual bool	setItemName (const UT_String &name)=0

virtual int64	getItemUniqueId () const =0
	Functions to get hip-file-unique ids for any item type. More...

virtual bool	getItemExpose () const

virtual void	setItemExpose (bool expose)

OP_Network *	getCreator () const

OP_Network *	getCodeCreator () const

void	getConnectedItems (OP_NetworkBoxItemList &connected, bool inputs, bool recursive, bool include_this_item) const
	Fills an array with all network box items connected to this item. More...

int64	getMemoryUsage (bool inclusive) const

Static Public Member Functions
static fpreal	getMaxSafeX ()
	The following methods return the safe extents of the position of items. More...

static fpreal	getMinSafeX ()

static fpreal	getMaxSafeY ()

static fpreal	getMinSafeY ()

static OP_NetworkBoxItem *	lookupItem (const OP_ItemType &type, int64 id)

static OP_NetworkBoxItem *	lookupItem (const OP_ItemId &id)

Protected Attributes
UT_Color	myColor

Additional Inherited Members
Protected Member Functions inherited from UT_NonCopyableNS::UT_NonCopyable
	UT_NonCopyable ()=default

	~UT_NonCopyable ()=default

	UT_NonCopyable (const UT_NonCopyable &)=delete

UT_NonCopyable &	operator= (const UT_NonCopyable &)=delete

Detailed Description

Definition at line 40 of file OP_NetworkBoxItem.h.

Constructor & Destructor Documentation

OP_NetworkBoxItem::OP_NetworkBoxItem ( )

virtual OP_NetworkBoxItem::~OP_NetworkBoxItem ( )

virtual

Member Function Documentation

OP_Network* OP_NetworkBoxItem::getCodeCreator ( ) const

Get the first parent node which has a VOP_CodeGenerator (i.e. has getVopCodeGenerator() defined.

virtual UT_Color OP_NetworkBoxItem::getColor ( ) const

inlinevirtual

Accessors for color used in the network view.

Reimplemented in OP_Node.

Definition at line 114 of file OP_NetworkBoxItem.h.

void OP_NetworkBoxItem::getConnectedItems	(	OP_NetworkBoxItemList &	connected,
		bool	inputs,
		bool	recursive,
		bool	include_this_item
	)		const

Fills an array with all network box items connected to this item.

OP_Network* OP_NetworkBoxItem::getCreator ( ) const

getCreator is similar to getParentNetwork but it climbs the tree to find the network that originally created this network type. This means that if you're down in a sub-network you climb right up to the parent of all the sub-nets. For SOPs this will return the object, for COPs the icenet, for TOPs the Shader, for CHOPs the chopnet, for POPs the popnet. If the parent tree is truncated for some reason, we return whatever node is at the top.

Examples:: SOP/SOP_Cop2Raster.C, and SOP/SOP_HDKObject.C.

virtual fpreal OP_NetworkBoxItem::getH ( ) const

pure virtual

Implemented in VOP_Node, OBJ_Node, SOP_Node, COP2_Node, OP_Node, CHOP_Node, ROP_Node, SHOP_Node, DOP_Node, LOP_Node, OP_NetworkBox, VOPNET_Node, OP_PostIt, OBJ_SopNet, OP_Dot, and OP_SubnetIndirectInput.

virtual bool OP_NetworkBoxItem::getItemExpose ( ) const

inlinevirtual

Basically the same as OP_Node::getExpose(), but abstracted to a higher level so we can call it on all items.

Reimplemented in OP_Node.

Definition at line 133 of file OP_NetworkBoxItem.h.

virtual const UT_String& OP_NetworkBoxItem::getItemName ( ) const

pure virtual

Basically the same as OP_Node::getName(), but abstracted to a higher level so we can call it on all items.

Implemented in OP_Node, OP_NetworkBox, OP_PostIt, OP_Dot, and OP_SubnetIndirectInput.

virtual OP_ItemType OP_NetworkBoxItem::getItemType ( ) const

pure virtual

Our children should implement this and return what type of item they are.

Implemented in OP_Node, OP_NetworkBox, OP_PostIt, OP_Dot, and OP_SubnetIndirectInput.

virtual int64 OP_NetworkBoxItem::getItemUniqueId ( ) const

pure virtual

Functions to get hip-file-unique ids for any item type.

Implemented in OP_Node, OP_NetworkBox, OP_PostIt, OP_Dot, and OP_SubnetIndirectInput.

static fpreal OP_NetworkBoxItem::getMaxSafeX ( )

inlinestatic

The following methods return the safe extents of the position of items.

Definition at line 63 of file OP_NetworkBoxItem.h.

static fpreal OP_NetworkBoxItem::getMaxSafeY ( )

inlinestatic

Definition at line 65 of file OP_NetworkBoxItem.h.

int64 OP_NetworkBoxItem::getMemoryUsage ( bool inclusive ) const

inline

Returns the amount of memory owned by this OP_NetworkBoxItem (JUST this class; not subclasses)

Definition at line 159 of file OP_NetworkBoxItem.h.

OP_NetworkBox* OP_NetworkBoxItem::getMinimizedOwnerBox ( ) const

Returns the highest level owner box that is minimized. In other words, the netbox that contains this item that is visible in a network editor.

static fpreal OP_NetworkBoxItem::getMinSafeX ( )

inlinestatic

Definition at line 64 of file OP_NetworkBoxItem.h.

static fpreal OP_NetworkBoxItem::getMinSafeY ( )

inlinestatic

Definition at line 66 of file OP_NetworkBoxItem.h.

OP_NetworkBox* OP_NetworkBoxItem::getOwnerBox ( ) const

virtual OP_Network* OP_NetworkBoxItem::getParentNetwork ( ) const

pure virtual

Returns the network that is our parent.

Implemented in OP_Node, OP_NetworkBox, OP_PostIt, OP_IndirectInput, and VOP_AutoConvert.

void OP_NetworkBoxItem::getPathFromParent	(	UT_String &	str,
		const OP_Node *	parent
	)		const

inline

Sets 'str' to be the path from 'parent' to this item. Pass in NULL for 'parent' if you'd like the full path returned.

Definition at line 100 of file OP_NetworkBoxItem.h.

void OP_NetworkBoxItem::getPathFromParent	(	UT_WorkBuffer &	str,
		const OP_Node *	parent
	)		const

virtual bool OP_NetworkBoxItem::getPicked ( ) const

pure virtual

Implemented in OP_Node, OP_NetworkBox, OP_IndirectInput, and OP_PostIt.

void OP_NetworkBoxItem::getRelativePathTo	(	const OP_NetworkBoxItem *	base_item,
		UT_String &	result
	)		const

Returns the path of this item relative to 'base_item'.

virtual fpreal OP_NetworkBoxItem::getW ( ) const

pure virtual

Implemented in VOP_Node, OBJ_Node, SOP_Node, COP2_Node, OP_Node, CHOP_Node, ROP_Node, SHOP_Node, DOP_Node, LOP_Node, OP_NetworkBox, VOPNET_Node, OP_PostIt, OBJ_SopNet, OP_Dot, and OP_SubnetIndirectInput.

virtual fpreal OP_NetworkBoxItem::getX ( ) const

pure virtual

Implemented in OP_Node, OP_IndirectInput, OP_NetworkBox, and OP_PostIt.

virtual fpreal OP_NetworkBoxItem::getY ( ) const

pure virtual

Implemented in OP_Node, OP_IndirectInput, OP_NetworkBox, and OP_PostIt.

bool OP_NetworkBoxItem::hasOwnerBox ( const OP_NetworkBoxItem * item ) const

static OP_NetworkBoxItem* OP_NetworkBoxItem::lookupItem	(	const OP_ItemType &	type,
		int64	id
	)

static

static OP_NetworkBoxItem* OP_NetworkBoxItem::lookupItem ( const OP_ItemId & id )

static

void OP_NetworkBoxItem::moveToGoodPosition	(	bool	relativetoinputs = `true`,
		bool	moveinputs = `true`,
		bool	moveoutputs = `true`,
		bool	moveunconnected = `true`
	)

Set the node's location to a "good" position, using either the input or output nodes as the basis for the decision of what "good" means. The keepcentered flag tells us to move every item in our parent network except us. The moveconnected flag causes this function to move items connected to the other side of this item to avoid overlaps when we move this item.

virtual bool OP_NetworkBoxItem::setColor ( const UT_Color & color )

virtual

Reimplemented in OP_Node, OP_IndirectInput, VOP_Block, SOP_BlockEnd, and SOP_BlockBegin.

virtual void OP_NetworkBoxItem::setItemExpose ( bool expose )

inlinevirtual

Reimplemented in OP_Node.

Definition at line 135 of file OP_NetworkBoxItem.h.

virtual bool OP_NetworkBoxItem::setItemName ( const UT_String & name )

pure virtual

Implemented in OP_Node, OP_NetworkBox, OP_PostIt, OP_Dot, and OP_SubnetIndirectInput.

void OP_NetworkBoxItem::setOwnerBox ( OP_NetworkBox * box )

The owner box of an OP_NetworkBoxItem is the OP_NetworkBox which it's held in. If a box has no owner, its owner box will be returned as NULL. Owner box is NULL by default on construction.

virtual bool OP_NetworkBoxItem::setPicked	(	bool	on_off,
		bool	propagate_parent_event = `true`
	)

pure virtual

Implemented in OP_Node, OP_NetworkBox, OP_IndirectInput, and OP_PostIt.

virtual void OP_NetworkBoxItem::setXY	(	fpreal	x,
		fpreal	y
	)

pure virtual

Get and set the position of this item. Units are absolute, as opposed to relative units found in OPUI.

Implemented in OP_Node, OP_IndirectInput, OP_NetworkBox, and OP_PostIt.

bool OP_NetworkBoxItem::setXYWithBoundsChecks	(	fpreal	x,
		fpreal	y
	)

Set the node's location with setXY(), but first check if the new position is valid. Also update any netboxes containing this node and send an OP_UI_MOVED event.

void OP_NetworkBoxItem::validateSafeBounds	(	fpreal &	x,
		fpreal &	y
	)

void OP_NetworkBoxItem::validateSafeBounds	(	fpreal &	x,
		fpreal &	y,
		fpreal &	w,
		fpreal &	h
	)

Member Data Documentation

UT_Color OP_NetworkBoxItem::myColor

protected

Allow subclasses direct access to myColor to allow them to edit this color without risk of generating undo blocks or change events.

Definition at line 168 of file OP_NetworkBoxItem.h.

The documentation for this class was generated from the following file:

OP/OP_NetworkBoxItem.h
