agentUtils.h File Reference
#include "api.h"
#include "purpose.h"
#include "pxr/base/vt/array.h"
#include "pxr/usd/usd/timeCode.h"
#include <GU/GU_AgentDefinition.h>
#include <GU/GU_AgentLayer.h>
#include <GU/GU_AgentRig.h>
#include <GU/GU_AgentShapeLib.h>
#include <UT/UT_StringArray.h>

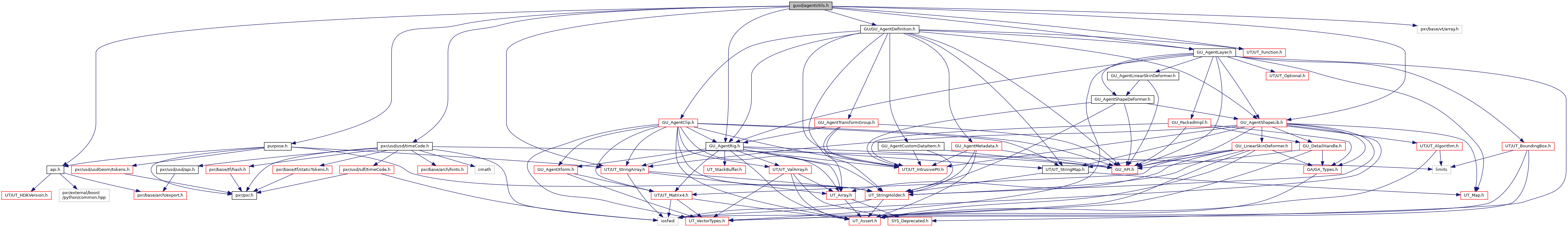

+ Include dependency graph for agentUtils.h:

Go to the source code of this file.

Classes

struct  GusdSkinImportParms


Typedefs

using GusdSkinnedPrimCallback = std::function< bool(exint i, const GusdSkinImportParms &parms, const VtTokenArray &jointNames, const VtMatrix4dArray &invBindTransforms)>


Functions

GUSD_API GU_AgentRigPtr GusdCreateAgentRig (const UT_StringHolder &name, const UsdSkelSkeletonQuery &skelQuery, bool createLocomotionJoint=true)
 Create an agent rig from a skelQuery. More...

GUSD_API GU_AgentRigPtr GusdCreateAgentRig (const UT_StringHolder &name, const UsdSkelTopology &topology, const VtTokenArray &jointNames, bool createLocomotionJoint=true)

GUSD_API GU_AgentShapeLibPtr GusdCreateAgentShapeLib (const UsdSkelBinding &binding, UsdTimeCode time=UsdTimeCode::EarliestTime(), const char *lod=nullptr, GusdPurposeSet purpose=GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY), UT_ErrorSeverity sev=UT_ERROR_WARNING, const GT_RefineParms *refineParms=nullptr)

GUSD_API bool GusdCoalesceAgentShapes (GU_Detail &gd, const UsdSkelBinding &binding, UsdTimeCode time=UsdTimeCode::EarliestTime(), const char *lod=nullptr, GusdPurposeSet purpose=GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY), UT_ErrorSeverity sev=UT_ERROR_WARNING, const GT_RefineParms *refineParms=nullptr)

GUSD_API bool GusdReadSkinnablePrim (GU_Detail &gd, const UsdSkelSkinningQuery &skinningQuery, const VtTokenArray &jointNames, const VtMatrix4dArray &invBindTransforms, UsdTimeCode time=UsdTimeCode::EarliestTime(), const char *lod=nullptr, GusdPurposeSet purpose=GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY), UT_ErrorSeverity sev=UT_ERROR_ABORT, const GT_RefineParms *refineParms=nullptr)

GUSD_API bool GusdReadSkinnablePrims (const UsdSkelBinding &binding, UT_Array< GU_DetailHandle > &details, UsdTimeCode time=UsdTimeCode::EarliestTime(), const char *lod=nullptr, GusdPurposeSet purpose=GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY), UT_ErrorSeverity sev=UT_ERROR_WARNING, const GT_RefineParms *refineParms=nullptr)

GUSD_API bool GusdCreateCaptureAttribute (GU_Detail &detail, const UsdSkelSkinningQuery &skinningQuery, const VtTokenArray &jointNames, const VtMatrix4dArray &invBindTransforms)

GUSD_API bool GusdForEachSkinnedPrim (const UsdSkelBinding &binding, const GusdSkinImportParms &parms, const GusdSkinnedPrimCallback &callback)

GUSD_API bool GusdGetJointNames (const UsdSkelSkeleton &skel, VtTokenArray &jointNames)


Detailed Description

Utilities for translating agents to/from USD.

These do not provide complete, automatic conversion to/from USD at this stage. Rather, these utilities may be used to build out a conversion pipeline, such as generating all of the various JSON files needed to build out the components of GU_Agent primitives.

Definition in file agentUtils.h.

Typedef Documentation

using GusdSkinnedPrimCallback = std::function<bool(exint i, const GusdSkinImportParms &parms, const VtTokenArray &jointNames, const VtMatrix4dArray &invBindTransforms)>

Definition at line 166 of file agentUtils.h.

Function Documentation

GUSD_API bool GusdCoalesceAgentShapes ( GU_Detail gd,
const UsdSkelBinding binding,
UsdTimeCode  time = UsdTimeCode::EarliestTime(),
const char *  lod = nullptr,
GusdPurposeSet  purpose = GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY),
UT_ErrorSeverity  sev = UT_ERROR_WARNING,
const GT_RefineParms refineParms = nullptr
)

Read in all skinnable shapes for binding, coalescing them into gd. The sev defines the error severity when reading in each shape. If the severity is less than UT_ERROR_ABORT, the invalid shape is skipped. Otherwise, creation of the coalesced detail fails if errors are produced processing any shapes.

GUSD_API GU_AgentRigPtr GusdCreateAgentRig ( const UT_StringHolder name,
const UsdSkelSkeletonQuery skelQuery,
bool  createLocomotionJoint = true
)

Create an agent rig from a skelQuery.

GUSD_API GU_AgentRigPtr GusdCreateAgentRig ( const UT_StringHolder name,
const UsdSkelTopology topology,
const VtTokenArray &  jointNames,
bool  createLocomotionJoint = true
)

Create an agent rig from topology and jointNames. Each joint name must be unique.

GUSD_API GU_AgentShapeLibPtr GusdCreateAgentShapeLib ( const UsdSkelBinding binding,
UsdTimeCode  time = UsdTimeCode::EarliestTime(),
const char *  lod = nullptr,
GusdPurposeSet  purpose = GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY),
UT_ErrorSeverity  sev = UT_ERROR_WARNING,
const GT_RefineParms refineParms = nullptr
)

Create a shape library where every skinning target of binding is a separate shape. The sev defines the error severity when reading in each shape. If the severity is less than UT_ERROR_ABORT, the invalid shape is skipped. Otherwise, creation of the shape lib fails if errors are produced processing any shapes.

GUSD_API bool GusdCreateCaptureAttribute ( GU_Detail detail,
const UsdSkelSkinningQuery skinningQuery,
const VtTokenArray &  jointNames,
const VtMatrix4dArray &  invBindTransforms
)

Create the boneCapture attribute on the geometry. Requires the skel:jointIndices and skel:jointWeights primvars to have been imported as attributes, unless the geometry is rigidly deformed.

GUSD_API bool GusdForEachSkinnedPrim ( const UsdSkelBinding binding,
const GusdSkinImportParms parms,
const GusdSkinnedPrimCallback callback
)

Invokes the callback for each skinnable prim, possibly in parallel. This can be used for customized importing of shapes.

GUSD_API bool GusdGetJointNames ( const UsdSkelSkeleton skel,
VtTokenArray &  jointNames
)

Returns the skeleton's list of joint names, preferring the 'jointNames' attribute over the 'joints' attribute.

GUSD_API bool GusdReadSkinnablePrim ( GU_Detail gd,
const UsdSkelSkinningQuery skinningQuery,
const VtTokenArray &  jointNames,
const VtMatrix4dArray &  invBindTransforms,
UsdTimeCode  time = UsdTimeCode::EarliestTime(),
const char *  lod = nullptr,
GusdPurposeSet  purpose = GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY),
UT_ErrorSeverity  sev = UT_ERROR_ABORT,
const GT_RefineParms refineParms = nullptr
)

Read in a skinnable prim given by skinningQuery into gd. The jointNames array provides the names of the joints of the bound Skeleton, using the ordering specified on the Skeleton. The invBindTransforms array holds the inverse of the Skeleton's bind transforms. Errors encountered while reading the skinnable primitive are reported with a severity of sev.

GUSD_API bool GusdReadSkinnablePrims ( const UsdSkelBinding binding,
UT_Array< GU_DetailHandle > &  details,
UsdTimeCode  time = UsdTimeCode::EarliestTime(),
const char *  lod = nullptr,
GusdPurposeSet  purpose = GusdPurposeSet(GUSD_PURPOSE_DEFAULT|GUSD_PURPOSE_PROXY),
UT_ErrorSeverity  sev = UT_ERROR_WARNING,
const GT_RefineParms refineParms = nullptr
)

Read shapes for each shape in binding. The sev defines the error severity when reading in each shape. If the severity is less than UT_ERROR_ABORT, invalid shapes are skipped, and an empty detail handle is stored in details for the corresponding shape. Otherwise, the process returns false if errors are encountered processing any shapes.
