HdStTextureObject Class Reference

#include <textureObject.h>

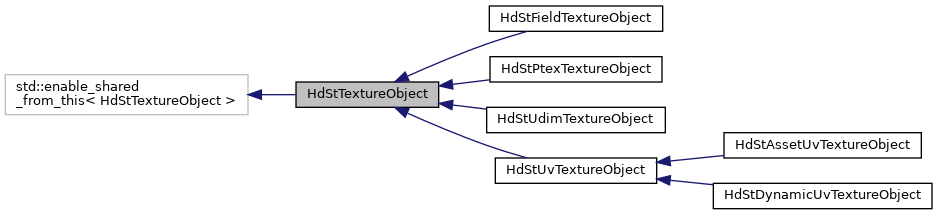

Inheritance diagram for HdStTextureObject:

Public Member Functions
const HdStTextureIdentifier &	GetTextureIdentifier () const
size_t	GetTargetMemory () const
HDST_API void	SetTargetMemory (size_t)
virtual HDST_API bool	IsValid () const =0
virtual HDST_API HdTextureType	GetTextureType () const =0
virtual HDST_API	~HdStTextureObject ()

Protected Member Functions
	HdStTextureObject (const HdStTextureIdentifier &textureId, HdSt_TextureObjectRegistry *textureObjectRegistry)
HDST_API HdStResourceRegistry *	_GetResourceRegistry () const
HDST_API Hgi *	_GetHgi () const
HDST_API std::string	_GetDebugName (const HdStTextureIdentifier &textureId) const
HDST_API bool	_GetPremultiplyAlpha (const HdStSubtextureIdentifier *const subId) const
HDST_API HioImage::SourceColorSpace	_GetSourceColorSpace (const HdStSubtextureIdentifier *const subId) const
virtual HDST_API void	_Load ()=0
virtual HDST_API void	_Commit ()=0
HDST_API void	_AdjustTotalTextureMemory (int64_t memDiff)
HDST_API void	_AddToTotalTextureMemory (const HgiTextureHandle &texture)
HDST_API void	_SubtractFromTotalTextureMemory (const HgiTextureHandle &texture)

Friends
class	HdSt_TextureObjectRegistry

Detailed Description

Base class for a texture object. The actual GPU resources will be allocated during the commit phase.

Definition at line 58 of file textureObject.h.

Constructor & Destructor Documentation

virtual HDST_API HdStTextureObject::~HdStTextureObject ( )

virtual

HdStTextureObject::HdStTextureObject ( const HdStTextureIdentifier &  textureId, HdSt_TextureObjectRegistry *  textureObjectRegistry  )

protected

Member Function Documentation

HDST_API void HdStTextureObject::_AddToTotalTextureMemory ( const HgiTextureHandle &  texture )

protected

Compute memory of texture and add to total texture memory amount maintained by registry.

HDST_API void HdStTextureObject::_AdjustTotalTextureMemory ( int64_t  memDiff )

protected

Add signed number to total texture memory amount maintained by registry.

virtual HDST_API void HdStTextureObject::_Commit ( )

protectedpure virtual

Commit texture to GPU (not thread-safe)

Implemented in HdStFieldTextureObject, HdStAssetUvTextureObject, HdStDynamicUvTextureObject, HdStPtexTextureObject, and HdStUdimTextureObject.

HDST_API std::string HdStTextureObject::_GetDebugName ( const HdStTextureIdentifier &  textureId ) const

protected

HDST_API Hgi* HdStTextureObject::_GetHgi ( ) const

protected

HDST_API bool HdStTextureObject::_GetPremultiplyAlpha ( const HdStSubtextureIdentifier *const  subId ) const

protected

HDST_API HdStResourceRegistry* HdStTextureObject::_GetResourceRegistry ( ) const

protected

HDST_API HioImage::SourceColorSpace HdStTextureObject::_GetSourceColorSpace ( const HdStSubtextureIdentifier *const  subId ) const

protected

virtual HDST_API void HdStTextureObject::_Load ( )

protectedpure virtual

Load texture to CPU (thread-safe)

Implemented in HdStFieldTextureObject, HdStAssetUvTextureObject, HdStDynamicUvTextureObject, HdStPtexTextureObject, and HdStUdimTextureObject.

HDST_API void HdStTextureObject::_SubtractFromTotalTextureMemory ( const HgiTextureHandle &  texture )

protected

Compute memory of texture and subtract to total texture memory amount maintained by registry.

size_t HdStTextureObject::GetTargetMemory ( ) const

inline

Get the target memory for the texture.

Definition at line 69 of file textureObject.h.

const HdStTextureIdentifier& HdStTextureObject::GetTextureIdentifier ( ) const

inline

Get texture identifier

Definition at line 65 of file textureObject.h.

virtual HDST_API HdTextureType HdStTextureObject::GetTextureType ( ) const

pure virtual

Get texture type

Implemented in HdStFieldTextureObject, HdStUvTextureObject, HdStPtexTextureObject, and HdStUdimTextureObject.

virtual HDST_API bool HdStTextureObject::IsValid ( ) const

pure virtual

Is texture valid? Only correct after commit phase.

E.g., no file at given file path. Consulted by clients to determine whether to use the fallback value.

Implemented in HdStFieldTextureObject, HdStAssetUvTextureObject, HdStDynamicUvTextureObject, HdStPtexTextureObject, and HdStUdimTextureObject.

HDST_API void HdStTextureObject::SetTargetMemory

(

size_t

)

Set the target memory (in bytes).

When uploading the texture to the GPU, it will be downsampled to meet this target memory.

Friends And Related Function Documentation

friend class HdSt_TextureObjectRegistry

friend

Definition at line 144 of file textureObject.h.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hdSt/textureObject.h
