UsdImagingNodeGraphAdapter Class Reference

Delegates invalidation responsibility of a Noge Graph prim to an ancestor Material prim. More...

#include <materialAdapter.h>

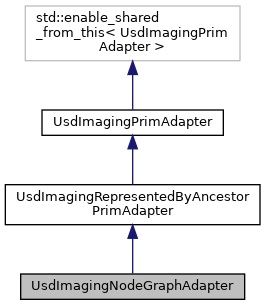

Inheritance diagram for UsdImagingNodeGraphAdapter:

Public Types
using	BaseAdapter = UsdImagingRepresentedByAncestorPrimAdapter
Public Types inherited from UsdImagingRepresentedByAncestorPrimAdapter
using	BaseAdapter = UsdImagingPrimAdapter
Public Types inherited from UsdImagingPrimAdapter
enum	PopulationMode { RepresentsSelf, RepresentsSelfAndDescendents, RepresentedByAncestor }

Public Member Functions
	UsdImagingNodeGraphAdapter ()
Public Member Functions inherited from UsdImagingRepresentedByAncestorPrimAdapter
	UsdImagingRepresentedByAncestorPrimAdapter ()
TfTokenVector	GetImagingSubprims (UsdPrim const &prim) override
PopulationMode	GetPopulationMode () override
SdfPath	Populate (UsdPrim const &prim, UsdImagingIndexProxy *index, UsdImagingInstancerContext const *instancerContext=nullptr) override
void	TrackVariability (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits *timeVaryingBits, UsdImagingInstancerContext const *instancerContext=nullptr) const override
void	UpdateForTime (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, HdDirtyBits requestedBits, UsdImagingInstancerContext const *instancerContext=nullptr) const override
HdDirtyBits	ProcessPropertyChange (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &propertyName) override
void	MarkDirty (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits dirty, UsdImagingIndexProxy *index) override
Public Member Functions inherited from UsdImagingPrimAdapter
virtual USDIMAGING_API	~UsdImagingPrimAdapter ()=default
virtual USDIMAGING_API HdDirtyBits	ProcessPrimChange (UsdPrim const &prim, SdfPath const &cachePath, TfTokenVector const &changedFields)
virtual USDIMAGING_API void	ProcessPrimResync (SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	ProcessPrimRemoval (SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkRefineLevelDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkReprDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkCullStyleDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkRenderTagDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkTransformDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkVisibilityDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkMaterialDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkLightParamsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkWindowPolicyDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	MarkCollectionsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)
virtual USDIMAGING_API void	InvokeComputation (SdfPath const &cachePath, HdExtComputationContext *context)
virtual USDIMAGING_API std::vector< VtArray< TfToken > >	GetInstanceCategories (UsdPrim const &prim)
	Return an array of the categories used by each instance. More...
virtual USDIMAGING_API GfMatrix4d	GetInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time) const
virtual USDIMAGING_API size_t	SampleInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, GfMatrix4d *sampleValues)
virtual USDIMAGING_API SdfPath	GetInstancerId (UsdPrim const &usdPrim, SdfPath const &cachePath) const
	Return the instancerId for this prim. More...
virtual USDIMAGING_API SdfPathVector	GetInstancerPrototypes (UsdPrim const &usdPrim, SdfPath const &cachePath) const
	Return the list of known prototypes of this prim. More...
virtual USDIMAGING_API size_t	SamplePrimvar (UsdPrim const &usdPrim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, VtValue *sampleValues, VtIntArray *sampleIndices)
virtual USDIMAGING_API PxOsdSubdivTags	GetSubdivTags (UsdPrim const &usdPrim, SdfPath const &cachePath, UsdTimeCode time) const
	Get the subdiv tags for this prim. More...
virtual USDIMAGING_API GfMatrix4d	GetRelativeInstancerTransform (SdfPath const &instancerPath, SdfPath const &protoInstancerPath, UsdTimeCode time) const
virtual USDIMAGING_API SdfPath	GetScenePrimPath (SdfPath const &cachePath, int instanceIndex, HdInstancerContext *instancerCtx) const
virtual USDIMAGING_API SdfPathVector	GetScenePrimPaths (SdfPath const &cachePath, std::vector< int > const &instanceIndices, std::vector< HdInstancerContext > *instancerCtxs) const
virtual USDIMAGING_API SdfPath	GetDataSharingId (SdfPath const &cachePath) const
virtual USDIMAGING_API bool	PopulateSelection (HdSelection::HighlightMode const &highlightMode, SdfPath const &cachePath, UsdPrim const &usdPrim, int const hydraInstanceIndex, VtIntArray const &parentInstanceIndices, HdSelectionSharedPtr const &result) const
virtual USDIMAGING_API HdVolumeFieldDescriptorVector	GetVolumeFieldDescriptors (UsdPrim const &usdPrim, SdfPath const &id, UsdTimeCode time) const
virtual USDIMAGING_API VtValue	GetLightParamValue (const UsdPrim &prim, const SdfPath &cachePath, const TfToken &paramName, UsdTimeCode time) const
USDIMAGING_API GfMatrix4d	GetRootTransform () const
	The root transform provided by the delegate. More...
USDIMAGING_API void	SetDelegate (UsdImagingDelegate *delegate)
	A thread-local XformCache provided by the delegate. More...
virtual USDIMAGING_API bool	IsChildPath (const SdfPath &path) const
	The root transform provided by the delegate. More...
virtual USDIMAGING_API bool	GetVisible (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
virtual USDIMAGING_API TfToken	GetPurpose (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &instanceInheritablePurpose) const
USDIMAGING_API TfToken	GetInheritablePurpose (UsdPrim const &prim) const
virtual USDIMAGING_API GfMatrix4d	GetTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, bool ignoreRootTransform=false) const
virtual USDIMAGING_API size_t	SampleTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, size_t maxNumSamples, float *sampleTimes, GfMatrix4d *sampleValues)
	Samples the transform for the given prim. More...
virtual USDIMAGING_API VtValue	Get (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, VtIntArray *outIndices) const
virtual USDIMAGING_API HdCullStyle	GetCullStyle (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Gets the cullstyle of a specific path in the scene graph. More...
USDIMAGING_API SdfPath	GetMaterialUsdPath (UsdPrim const &prim) const
USDIMAGING_API TfToken	GetModelDrawMode (UsdPrim const &prim)
USDIMAGING_API HdModelDrawMode	GetFullModelDrawMode (UsdPrim const &prim)
USDIMAGING_API VtArray < VtIntArray >	GetPerPrototypeIndices (UsdPrim const &prim, UsdTimeCode time) const
virtual USDIMAGING_API VtValue	GetTopology (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
virtual USDIMAGING_API GfRange3d	GetExtent (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
virtual USDIMAGING_API bool	GetDoubleSided (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Reads double-sided from the given prim. If not authored, returns false. More...
virtual USDIMAGING_API SdfPath	GetMaterialId (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	The root transform provided by the delegate. More...
virtual USDIMAGING_API VtValue	GetMaterialResource (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	The root transform provided by the delegate. More...
virtual USDIMAGING_API const TfTokenVector &	GetExtComputationSceneInputNames (SdfPath const &cachePath) const
virtual USDIMAGING_API HdExtComputationInputDescriptorVector	GetExtComputationInputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const
virtual USDIMAGING_API HdExtComputationOutputDescriptorVector	GetExtComputationOutputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const
virtual USDIMAGING_API HdExtComputationPrimvarDescriptorVector	GetExtComputationPrimvars (UsdPrim const &prim, SdfPath const &cachePath, HdInterpolation interpolation, const UsdImagingInstancerContext *instancerContext) const
virtual USDIMAGING_API VtValue	GetExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext *instancerContext) const
virtual USDIMAGING_API size_t	SampleExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext *instancerContext, size_t maxSampleCount, float *sampleTimes, VtValue *sampleValues)
virtual USDIMAGING_API std::string	GetExtComputationKernel (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const
virtual USDIMAGING_API VtValue	GetInstanceIndices (UsdPrim const &instancerPrim, SdfPath const &instancerCachePath, SdfPath const &prototypeCachePath, UsdTimeCode time) const
virtual bool	IsSupported (UsdImagingIndexProxy const *index) const
	Returns true if the adapter can be populated into the target index. More...
virtual USDIMAGING_API TfToken	GetImagingSubprimType (UsdPrim const &prim, TfToken const &subprim)
virtual USDIMAGING_API HdContainerDataSourceHandle	GetImagingSubprimData (UsdPrim const &prim, TfToken const &subprim, const UsdImagingDataSourceStageGlobals &stageGlobals)
virtual USDIMAGING_API HdDataSourceLocatorSet	InvalidateImagingSubprim (UsdPrim const &prim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType)
virtual USDIMAGING_API HdDataSourceLocatorSet	InvalidateImagingSubprimFromDescendent (UsdPrim const &prim, UsdPrim const &descendentPrim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType)
virtual USDIMAGING_API bool	ShouldCullChildren () const
virtual USDIMAGING_API bool	ShouldIgnoreNativeInstanceSubtrees () const
virtual USDIMAGING_API bool	IsInstancerAdapter () const
virtual USDIMAGING_API bool	CanPopulateUsdInstance () const

Detailed Description

Delegates invalidation responsibility of a Noge Graph prim to an ancestor Material prim.

Definition at line 166 of file materialAdapter.h.

Member Typedef Documentation

using UsdImagingNodeGraphAdapter::BaseAdapter = UsdImagingRepresentedByAncestorPrimAdapter

Definition at line 170 of file materialAdapter.h.

Constructor & Destructor Documentation

UsdImagingNodeGraphAdapter::UsdImagingNodeGraphAdapter ( )

inline

Definition at line 172 of file materialAdapter.h.

---

The documentation for this class was generated from the following file:

• pxr/usdImaging/usdImaging/materialAdapter.h
