UsdProcGenerativeProcedural Class Reference

#include <generativeProcedural.h>

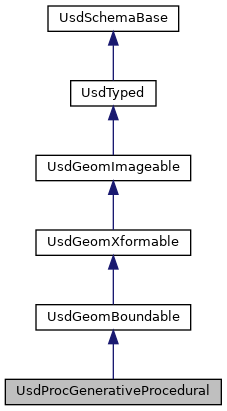

Inheritance diagram for UsdProcGenerativeProcedural:

Public Member Functions
	UsdProcGenerativeProcedural (const UsdPrim &prim=UsdPrim())
	UsdProcGenerativeProcedural (const UsdSchemaBase &schemaObj)
virtual USDPROC_API	~UsdProcGenerativeProcedural ()
	Destructor. More...
USDPROC_API UsdAttribute	GetProceduralSystemAttr () const
USDPROC_API UsdAttribute	CreateProceduralSystemAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
Public Member Functions inherited from UsdGeomBoundable
	UsdGeomBoundable (const UsdPrim &prim=UsdPrim())
	UsdGeomBoundable (const UsdSchemaBase &schemaObj)
virtual USDGEOM_API	~UsdGeomBoundable ()
	Destructor. More...
USDGEOM_API UsdAttribute	GetExtentAttr () const
USDGEOM_API UsdAttribute	CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDGEOM_API bool	ComputeExtent (const UsdTimeCode &time, VtVec3fArray *extent) const
Public Member Functions inherited from UsdGeomXformable
	UsdGeomXformable (const UsdPrim &prim=UsdPrim())
	UsdGeomXformable (const UsdSchemaBase &schemaObj)
virtual USDGEOM_API	~UsdGeomXformable ()
	Destructor. More...
USDGEOM_API UsdAttribute	GetXformOpOrderAttr () const
USDGEOM_API UsdAttribute	CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDGEOM_API UsdGeomXformOp	AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetXformOp (UsdGeomXformOp::Type const opType, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddTranslateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddTranslateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddTranslateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetTranslateXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetTranslateYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetTranslateZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetTranslateOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddScaleXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddScaleYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddScaleZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetScaleXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetScaleYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetScaleZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetScaleOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateXYZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateXZYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateYXZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateYZXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateZXYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetRotateZYXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetOrientOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API UsdGeomXformOp	GetTransformOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
USDGEOM_API bool	SetResetXformStack (bool resetXform) const
USDGEOM_API bool	GetResetXformStack () const
USDGEOM_API bool	SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const
USDGEOM_API std::vector < UsdGeomXformOp >	GetOrderedXformOps (bool *resetsXformStack) const
USDGEOM_API bool	ClearXformOpOrder () const
	Clears the local transform stack. More...
USDGEOM_API UsdGeomXformOp	MakeMatrixXform () const
USDGEOM_API bool	TransformMightBeTimeVarying () const
USDGEOM_API bool	TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const
USDGEOM_API bool	GetTimeSamples (std::vector< double > *times) const
USDGEOM_API bool	GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const
USDGEOM_API bool	GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const
USDGEOM_API bool	GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const
Public Member Functions inherited from UsdGeomImageable
	UsdGeomImageable (const UsdPrim &prim=UsdPrim())
	UsdGeomImageable (const UsdSchemaBase &schemaObj)
virtual USDGEOM_API	~UsdGeomImageable ()
	Destructor. More...
USDGEOM_API UsdAttribute	GetVisibilityAttr () const
USDGEOM_API UsdAttribute	CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDGEOM_API UsdAttribute	GetPurposeAttr () const
USDGEOM_API UsdAttribute	CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
USDGEOM_API UsdRelationship	GetProxyPrimRel () const
USDGEOM_API UsdRelationship	CreateProxyPrimRel () const
USDGEOM_API void	MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
USDGEOM_API void	MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
USDGEOM_API TfToken	ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const
USDGEOM_API UsdAttribute	GetPurposeVisibilityAttr (const TfToken &purpose=UsdGeomTokens->default_) const
USDGEOM_API TfToken	ComputeEffectiveVisibility (const TfToken &purpose=UsdGeomTokens->default_, const UsdTimeCode &time=UsdTimeCode::Default()) const
USDGEOM_API PurposeInfo	ComputePurposeInfo () const
USDGEOM_API PurposeInfo	ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const
USDGEOM_API TfToken	ComputePurpose () const
USDGEOM_API UsdPrim	ComputeProxyPrim (UsdPrim *renderPrim=NULL) const
USDGEOM_API bool	SetProxyPrim (const UsdPrim &proxy) const
USDGEOM_API bool	SetProxyPrim (const UsdSchemaBase &proxy) const
USDGEOM_API GfBBox3d	ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
USDGEOM_API GfBBox3d	ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
USDGEOM_API GfBBox3d	ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
USDGEOM_API GfMatrix4d	ComputeLocalToWorldTransform (UsdTimeCode const &time) const
USDGEOM_API GfMatrix4d	ComputeParentToWorldTransform (UsdTimeCode const &time) const
Public Member Functions inherited from UsdTyped
	UsdTyped (const UsdPrim &prim=UsdPrim())
	UsdTyped (const UsdSchemaBase &schemaObj)
virtual USD_API	~UsdTyped ()
	Destructor. More...
Public Member Functions inherited from UsdSchemaBase
bool	IsConcrete () const
bool	IsTyped () const
bool	IsAPISchema () const
	Returns whether this is an API schema or not. More...
bool	IsAppliedAPISchema () const
bool	IsMultipleApplyAPISchema () const
UsdSchemaKind	GetSchemaKind () const
	Returns the kind of schema this class is. More...
USD_API	UsdSchemaBase (const UsdPrim &prim=UsdPrim())
	Construct and store prim as the held prim. More...
USD_API	UsdSchemaBase (const UsdSchemaBase &otherSchema)
	Construct and store for the same prim held by otherSchema. More...
virtual USD_API	~UsdSchemaBase ()
	Destructor. More...
USD_API	operator bool () const
UsdPrim	GetPrim () const
	Return this schema object's held prim. More...
SdfPath	GetPath () const
	Shorthand for GetPrim()->GetPath(). More...
USD_API const UsdPrimDefinition *	GetSchemaClassPrimDefinition () const

Static Public Member Functions
static USDPROC_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USDPROC_API UsdProcGenerativeProcedural	Get (const UsdStagePtr &stage, const SdfPath &path)
static USDPROC_API UsdProcGenerativeProcedural	Define (const UsdStagePtr &stage, const SdfPath &path)
Static Public Member Functions inherited from UsdGeomBoundable
static USDGEOM_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USDGEOM_API UsdGeomBoundable	Get (const UsdStagePtr &stage, const SdfPath &path)
static USDGEOM_API bool	ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, VtVec3fArray *extent)
static USDGEOM_API bool	ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, const GfMatrix4d &transform, VtVec3fArray *extent)
Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USDGEOM_API UsdGeomXformable	Get (const UsdStagePtr &stage, const SdfPath &path)
static USDGEOM_API bool	GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)
static USDGEOM_API bool	GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)
static USDGEOM_API bool	GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)
static USDGEOM_API bool	IsTransformationAffectedByAttrNamed (const TfToken &attrName)
Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USDGEOM_API UsdGeomImageable	Get (const UsdStagePtr &stage, const SdfPath &path)
static USDGEOM_API const TfTokenVector &	GetOrderedPurposeTokens ()
Static Public Member Functions inherited from UsdTyped
static USD_API const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)
static USD_API UsdTyped	Get (const UsdStagePtr &stage, const SdfPath &path)
Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVector &	GetSchemaAttributeNames (bool includeInherited=true)

Static Public Attributes
static const UsdSchemaKind	schemaKind = UsdSchemaKind::ConcreteTyped
Static Public Attributes inherited from UsdGeomBoundable
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractTyped
Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractTyped
Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractTyped
Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractBase
Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind	schemaKind = UsdSchemaKind::AbstractBase

Protected Member Functions
USDPROC_API UsdSchemaKind	_GetSchemaKind () const override
Protected Member Functions inherited from UsdTyped
USD_API bool	_IsCompatible () const override
Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind	_GetSchemaType () const
const TfType &	_GetType () const
USD_API UsdAttribute	_CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const

Friends
class	UsdSchemaRegistry

Detailed Description

Represents an abstract generative procedural prim which delivers its input parameters via properties (including relationships) within the "primvars:" namespace.

It does not itself have any awareness or participation in the execution of the procedural but rather serves as a means of delivering a procedural's definition and input parameters.

The value of its "proceduralSystem" property (either authored or provided by API schema fallback) indicates to which system the procedural definition is meaningful.

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdProcTokens. So to set an attribute to the value "rightHanded", use UsdProcTokens->rightHanded as the value.

Definition at line 57 of file generativeProcedural.h.

Constructor & Destructor Documentation

UsdProcGenerativeProcedural::UsdProcGenerativeProcedural ( const UsdPrim &  prim = UsdPrim() )

inlineexplicit

Construct a UsdProcGenerativeProcedural on UsdPrim prim . Equivalent to UsdProcGenerativeProcedural::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 69 of file generativeProcedural.h.

UsdProcGenerativeProcedural::UsdProcGenerativeProcedural ( const UsdSchemaBase &  schemaObj )

inlineexplicit

Construct a UsdProcGenerativeProcedural on the prim held by schemaObj . Should be preferred over UsdProcGenerativeProcedural(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 77 of file generativeProcedural.h.

virtual USDPROC_API UsdProcGenerativeProcedural::~UsdProcGenerativeProcedural ( )

virtual

Destructor.

Member Function Documentation

USDPROC_API UsdSchemaKind UsdProcGenerativeProcedural::_GetSchemaKind ( ) const

overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See Also

UsdSchemaKind

Reimplemented from UsdGeomBoundable.

USDPROC_API UsdAttribute UsdProcGenerativeProcedural::CreateProceduralSystemAttr	(	VtValue const &	defaultValue = VtValue(),
		bool	writeSparsely = false
	)		const

See GetProceduralSystemAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

static USDPROC_API UsdProcGenerativeProcedural UsdProcGenerativeProcedural::Define ( const UsdStagePtr &  stage, const SdfPath &  path  )

static

Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

If a prim adhering to this schema at path is already defined on this stage, return that prim. Otherwise author an SdfPrimSpec with specifier == SdfSpecifierDef and this schema's prim type name for the prim at path at the current EditTarget. Author SdfPrimSpec s with specifier == SdfSpecifierDef and empty typeName at the current EditTarget for any nonexistent, or existing but not Defined ancestors.

The given path must be an absolute prim path that does not contain any variant selections.

If it is impossible to author any of the necessary PrimSpecs, (for example, in case path cannot map to the current UsdEditTarget's namespace) issue an error and return an invalid UsdPrim.

Note that this method may return a defined prim whose typeName does not specify this schema class, in case a stronger typeName opinion overrides the opinion at the current EditTarget.

static USDPROC_API UsdProcGenerativeProcedural UsdProcGenerativeProcedural::Get ( const UsdStagePtr &  stage, const SdfPath &  path  )

static

Return a UsdProcGenerativeProcedural holding the prim adhering to this schema at path on stage. If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdProcGenerativeProcedural(stage->GetPrimAtPath(path));

USDPROC_API UsdAttribute UsdProcGenerativeProcedural::GetProceduralSystemAttr

(

)

const

The name or convention of the system responsible for evaluating the procedural. NOTE: A fallback value for this is typically set via an API schema.

Declaration	token proceduralSystem
C++ Type	TfToken
Usd Type	SdfValueTypeNames->Token

static USDPROC_API const TfTokenVector& UsdProcGenerativeProcedural::GetSchemaAttributeNames ( bool  includeInherited = true )

static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes. Does not include attributes that may be authored by custom/extended methods of the schemas involved.

Friends And Related Function Documentation

friend class UsdSchemaRegistry

friend

Definition at line 141 of file generativeProcedural.h.

Member Data Documentation

const UsdSchemaKind UsdProcGenerativeProcedural::schemaKind = UsdSchemaKind::ConcreteTyped

static

Compile time constant representing what kind of schema this class is.

See Also

UsdSchemaKind

Definition at line 63 of file generativeProcedural.h.

---

The documentation for this class was generated from the following file:

• pxr/usd/usdProc/generativeProcedural.h
