UsdVolVolume Class Reference

#include <volume.h>

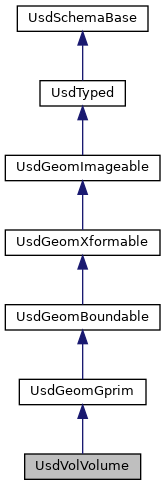

+ Inheritance diagram for UsdVolVolume:

Public Member Functions

 UsdVolVolume (const UsdPrim &prim=UsdPrim())

 UsdVolVolume (const UsdSchemaBase &schemaObj)

virtual USDVOL_API ~UsdVolVolume ()
 Destructor. More...

- Public Member Functions inherited from UsdGeomGprim
 UsdGeomGprim (const UsdPrim &prim=UsdPrim())

 UsdGeomGprim (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomGprim ()
 Destructor. More...

USDGEOM_API UsdAttribute GetDisplayColorAttr () const

USDGEOM_API UsdAttribute CreateDisplayColorAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDisplayOpacityAttr () const

USDGEOM_API UsdAttribute CreateDisplayOpacityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDoubleSidedAttr () const

USDGEOM_API UsdAttribute CreateDoubleSidedAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetOrientationAttr () const

USDGEOM_API UsdAttribute CreateOrientationAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomPrimvar GetDisplayColorPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayColorPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

USDGEOM_API UsdGeomPrimvar GetDisplayOpacityPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayOpacityPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

- Public Member Functions inherited from UsdGeomBoundable
 UsdGeomBoundable (const UsdPrim &prim=UsdPrim())

 UsdGeomBoundable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomBoundable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetExtentAttr () const

USDGEOM_API UsdAttribute CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

- Public Member Functions inherited from UsdGeomXformable
 UsdGeomXformable (const UsdPrim &prim=UsdPrim())

 UsdGeomXformable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomXformable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetXformOpOrderAttr () const

USDGEOM_API UsdAttribute CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomXformOp AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API bool SetResetXformStack (bool resetXform) const

USDGEOM_API bool GetResetXformStack () const

USDGEOM_API bool SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const

USDGEOM_API std::vector
< UsdGeomXformOp
GetOrderedXformOps (bool *resetsXformStack) const

USDGEOM_API bool ClearXformOpOrder () const
 Clears the local transform stack. More...

USDGEOM_API UsdGeomXformOp MakeMatrixXform () const

USDGEOM_API bool TransformMightBeTimeVarying () const

USDGEOM_API bool TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const

USDGEOM_API bool GetTimeSamples (std::vector< double > *times) const

USDGEOM_API bool GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const

- Public Member Functions inherited from UsdGeomImageable
 UsdGeomImageable (const UsdPrim &prim=UsdPrim())

 UsdGeomImageable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomImageable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetVisibilityAttr () const

USDGEOM_API UsdAttribute CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetPurposeAttr () const

USDGEOM_API UsdAttribute CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdRelationship GetProxyPrimRel () const

USDGEOM_API UsdRelationship CreateProxyPrimRel () const

USDGEOM_API void MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API void MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API TfToken ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const

USDGEOM_API TfToken ComputeVisibility (const TfToken &parentVisibility, UsdTimeCode const &time=UsdTimeCode::Default()) const

USDGEOM_API PurposeInfo ComputePurposeInfo () const

USDGEOM_API PurposeInfo ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const

USDGEOM_API TfToken ComputePurpose () const

USDGEOM_API UsdPrim ComputeProxyPrim (UsdPrim *renderPrim=NULL) const

USDGEOM_API bool SetProxyPrim (const UsdPrim &proxy) const

USDGEOM_API bool SetProxyPrim (const UsdSchemaBase &proxy) const

USDGEOM_API GfBBox3d ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfMatrix4d ComputeLocalToWorldTransform (UsdTimeCode const &time) const

USDGEOM_API GfMatrix4d ComputeParentToWorldTransform (UsdTimeCode const &time) const

USDGEOM_API UsdGeomPrimvar CreatePrimvar (const TfToken &attrName, const SdfValueTypeName &typeName, const TfToken &interpolation=TfToken(), int elementSize=-1) const

USDGEOM_API UsdGeomPrimvar GetPrimvar (const TfToken &name) const

USDGEOM_API std::vector
< UsdGeomPrimvar
GetPrimvars () const

USDGEOM_API std::vector
< UsdGeomPrimvar
GetAuthoredPrimvars () const

USDGEOM_API bool HasPrimvar (const TfToken &name) const

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())

 UsdTyped (const UsdSchemaBase &schemaObj)

virtual USD_API ~UsdTyped ()

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const

bool IsTyped () const

bool IsAPISchema () const
 Returns whether this is an API schema or not. More...

bool IsAppliedAPISchema () const

bool IsMultipleApplyAPISchema () const

UsdSchemaType GetSchemaType () const

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim. More...

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema. More...

virtual USD_API ~UsdSchemaBase ()
 Destructor. More...

USD_API operator bool () const

UsdPrim GetPrim () const
 Return this schema object's held prim. More...

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath(). More...

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const


Static Public Member Functions

static USDVOL_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDVOL_API UsdVolVolume Get (const UsdStagePtr &stage, const SdfPath &path)

static USDVOL_API UsdVolVolume Define (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdGeomGprim
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomGprim Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdGeomBoundable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomBoundable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, VtVec3fArray *extent)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, const GfMatrix4d &transform, VtVec3fArray *extent)

- Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomXformable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)

static USDGEOM_API bool GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)

static USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)

static USDGEOM_API bool IsTransformationAffectedByAttrNamed (const TfToken &attrName)

- Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomImageable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API const
TfTokenVector
GetOrderedPurposeTokens ()

- Static Public Member Functions inherited from UsdTyped
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaType schemaType = UsdSchemaType::ConcreteTyped

- Static Public Attributes inherited from UsdGeomGprim
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomBoundable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaType schemaType = UsdSchemaType::AbstractBase

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaType schemaType = UsdSchemaType::AbstractBase


Protected Member Functions

USDVOL_API UsdSchemaType _GetSchemaType () const override

- Protected Member Functions inherited from UsdTyped
USD_API bool _IsCompatible () const override

- Protected Member Functions inherited from UsdSchemaBase
const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Field Attachment and Inspection

typedef std::map< TfToken,
SdfPath
FieldMap

USDVOL_API FieldMap GetFieldPaths () const

USDVOL_API bool HasFieldRelationship (const TfToken &name) const

USDVOL_API SdfPath GetFieldPath (const TfToken &name) const

USDVOL_API bool CreateFieldRelationship (const TfToken &name, const SdfPath &fieldPath) const

USDVOL_API bool BlockFieldRelationship (const TfToken &name) const


Detailed Description

A renderable volume primitive. A volume is made up of any number of FieldBase primitives bound together in this volume. Each FieldBase primitive is specified as a relationship with a namespace prefix of "field".

The relationship name is used by the renderer to associate individual fields with the named input parameters on the volume shader. Using this indirect approach to connecting fields to shader parameters (rather than using the field prim's name) allows a single field to be reused for different shader inputs, or to be used as different shader parameters when rendering different Volumes. This means that the name of the field prim is not relevant to its contribution to the volume prims which refer to it. Nor does the field prim's location in the scene graph have any relevance, and Volumes may refer to fields anywhere in the scene graph. However, unless Field prims need to be shared by multiple Volumes, a Volume's Field prims should be located under the Volume in namespace, for enhanced organization.

Definition at line 73 of file volume.h.

Member Typedef Documentation

Return a map of field relationship names to the fields themselves, represented as prim paths. This map provides all the information that should be needed to tie fields to shader parameters and render this volume.

The field relationship names that server as the map keys will have the field namespace stripped from them.

Definition at line 184 of file volume.h.

Constructor & Destructor Documentation

UsdVolVolume::UsdVolVolume ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdVolVolume on UsdPrim prim . Equivalent to UsdVolVolume::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 85 of file volume.h.

UsdVolVolume::UsdVolVolume ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdVolVolume on the prim held by schemaObj . Should be preferred over UsdVolVolume(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 93 of file volume.h.

virtual USDVOL_API UsdVolVolume::~UsdVolVolume ( )
virtual

Destructor.

Member Function Documentation

USDVOL_API UsdSchemaType UsdVolVolume::_GetSchemaType ( ) const
overrideprotectedvirtual

Returns the type of schema this class belongs to.

See Also
UsdSchemaType

Reimplemented from UsdGeomGprim.

USDVOL_API bool UsdVolVolume::BlockFieldRelationship ( const TfToken name) const

Blocks an existing field relationship on this volume, ensuring it will not be enumerated by GetFieldPaths().

Returns true if the relationship existed, false if it did not. In other words the return value indicates whether the volume prim was changed.

The name lookup automatically applies the field relationship namespacing, if it isn't specified in the name token.

USDVOL_API bool UsdVolVolume::CreateFieldRelationship ( const TfToken name,
const SdfPath fieldPath
) const

Creates a relationship on this volume that targets the specified field. If an existing relationship exists with the same name, it is replaced (since only one target is allowed for each named relationship).

Returns true if the relationship was successfully created and set - it is legal to call this method for a field relationship that already "exists", i.e. already posesses scene description, as this is the only method we provide for setting a field relatioonship's value, to help enforce that field relationships can have only a single (or no) target.

Parameters
fieldPath- can be a prim path, or the path of another relationship, to effect Relationship Forwarding

The name lookup automatically applies the field relationship namespacing, if it isn't specified in the name token.

static USDVOL_API UsdVolVolume UsdVolVolume::Define ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

If a prim adhering to this schema at path is already defined on this stage, return that prim. Otherwise author an SdfPrimSpec with specifier == SdfSpecifierDef and this schema's prim type name for the prim at path at the current EditTarget. Author SdfPrimSpec s with specifier == SdfSpecifierDef and empty typeName at the current EditTarget for any nonexistent, or existing but not Defined ancestors.

The given path must be an absolute prim path that does not contain any variant selections.

If it is impossible to author any of the necessary PrimSpecs, (for example, in case path cannot map to the current UsdEditTarget's namespace) issue an error and return an invalid UsdPrim.

Note that this method may return a defined prim whose typeName does not specify this schema class, in case a stronger typeName opinion overrides the opinion at the current EditTarget.

static USDVOL_API UsdVolVolume UsdVolVolume::Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdVolVolume holding the prim adhering to this schema at path on stage. If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdVolVolume(stage->GetPrimAtPath(path));
USDVOL_API SdfPath UsdVolVolume::GetFieldPath ( const TfToken name) const

Checks if there is an existing field relationship with a given name, and if so, returns the path to the Field prim it targets, or else the empty path.

The name lookup automatically applies the field relationship namespacing, if it isn't specified in the name token.

USDVOL_API FieldMap UsdVolVolume::GetFieldPaths ( ) const

Return a map of field relationship names to the fields themselves, represented as prim paths. This map provides all the information that should be needed to tie fields to shader parameters and render this volume.

The field relationship names that server as the map keys will have the field namespace stripped from them.

static USDVOL_API const TfTokenVector& UsdVolVolume::GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes. Does not include attributes that may be authored by custom/extended methods of the schemas involved.

USDVOL_API bool UsdVolVolume::HasFieldRelationship ( const TfToken name) const

Checks if there is an existing field relationship with a given name. This query will return true even for a field relationship that has been blocked and therefore will not contribute to the map returned by GetFieldRelationships()

The name lookup automatically applies the field relationship namespacing, if it isn't specified in the name token.

Friends And Related Function Documentation

friend class UsdSchemaRegistry
friend

Definition at line 157 of file volume.h.

Member Data Documentation

const UsdSchemaType UsdVolVolume::schemaType = UsdSchemaType::ConcreteTyped
static

Compile time constant representing what kind of schema this class is.

See Also
UsdSchemaType

Definition at line 79 of file volume.h.


The documentation for this class was generated from the following file:
