UsdGeomGprim Class Reference

#include <gprim.h>

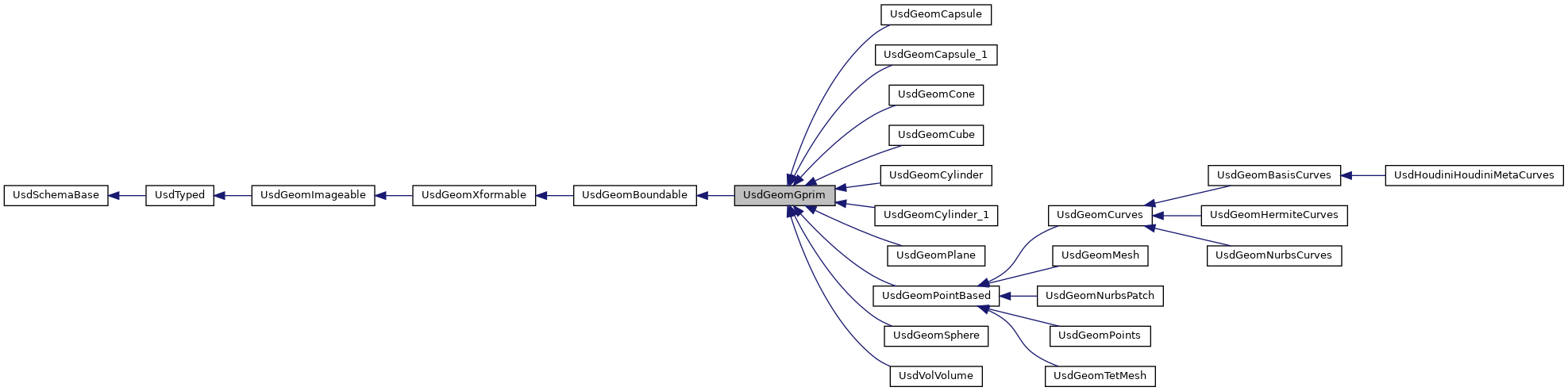

+ Inheritance diagram for UsdGeomGprim:

Public Member Functions

 UsdGeomGprim (const UsdPrim &prim=UsdPrim())

 UsdGeomGprim (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomGprim ()
 Destructor. More...

USDGEOM_API UsdAttribute GetDisplayColorAttr () const

USDGEOM_API UsdAttribute CreateDisplayColorAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDisplayOpacityAttr () const

USDGEOM_API UsdAttribute CreateDisplayOpacityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDoubleSidedAttr () const

USDGEOM_API UsdAttribute CreateDoubleSidedAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetOrientationAttr () const

USDGEOM_API UsdAttribute CreateOrientationAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomPrimvar GetDisplayColorPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayColorPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

USDGEOM_API UsdGeomPrimvar GetDisplayOpacityPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayOpacityPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

- Public Member Functions inherited from UsdGeomBoundable
 UsdGeomBoundable (const UsdPrim &prim=UsdPrim())

 UsdGeomBoundable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomBoundable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetExtentAttr () const

USDGEOM_API UsdAttribute CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

- Public Member Functions inherited from UsdGeomXformable
 UsdGeomXformable (const UsdPrim &prim=UsdPrim())

 UsdGeomXformable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomXformable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetXformOpOrderAttr () const

USDGEOM_API UsdAttribute CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomXformOp AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API bool SetResetXformStack (bool resetXform) const

USDGEOM_API bool GetResetXformStack () const

USDGEOM_API bool SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const

USDGEOM_API std::vector
< UsdGeomXformOp
GetOrderedXformOps (bool *resetsXformStack) const

USDGEOM_API bool ClearXformOpOrder () const
 Clears the local transform stack. More...

USDGEOM_API UsdGeomXformOp MakeMatrixXform () const

USDGEOM_API bool TransformMightBeTimeVarying () const

USDGEOM_API bool TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const

USDGEOM_API bool GetTimeSamples (std::vector< double > *times) const

USDGEOM_API bool GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const

- Public Member Functions inherited from UsdGeomImageable
 UsdGeomImageable (const UsdPrim &prim=UsdPrim())

 UsdGeomImageable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomImageable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetVisibilityAttr () const

USDGEOM_API UsdAttribute CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetPurposeAttr () const

USDGEOM_API UsdAttribute CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdRelationship GetProxyPrimRel () const

USDGEOM_API UsdRelationship CreateProxyPrimRel () const

USDGEOM_API void MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API void MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API TfToken ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const

USDGEOM_API TfToken ComputeVisibility (const TfToken &parentVisibility, UsdTimeCode const &time=UsdTimeCode::Default()) const

USDGEOM_API PurposeInfo ComputePurposeInfo () const

USDGEOM_API PurposeInfo ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const

USDGEOM_API TfToken ComputePurpose () const

USDGEOM_API UsdPrim ComputeProxyPrim (UsdPrim *renderPrim=NULL) const

USDGEOM_API bool SetProxyPrim (const UsdPrim &proxy) const

USDGEOM_API bool SetProxyPrim (const UsdSchemaBase &proxy) const

USDGEOM_API GfBBox3d ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfMatrix4d ComputeLocalToWorldTransform (UsdTimeCode const &time) const

USDGEOM_API GfMatrix4d ComputeParentToWorldTransform (UsdTimeCode const &time) const

USDGEOM_API UsdGeomPrimvar CreatePrimvar (const TfToken &attrName, const SdfValueTypeName &typeName, const TfToken &interpolation=TfToken(), int elementSize=-1) const

USDGEOM_API UsdGeomPrimvar GetPrimvar (const TfToken &name) const

USDGEOM_API std::vector
< UsdGeomPrimvar
GetPrimvars () const

USDGEOM_API std::vector
< UsdGeomPrimvar
GetAuthoredPrimvars () const

USDGEOM_API bool HasPrimvar (const TfToken &name) const

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())

 UsdTyped (const UsdSchemaBase &schemaObj)

virtual USD_API ~UsdTyped ()

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const

bool IsTyped () const

bool IsAPISchema () const
 Returns whether this is an API schema or not. More...

bool IsAppliedAPISchema () const

bool IsMultipleApplyAPISchema () const

UsdSchemaType GetSchemaType () const

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim. More...

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema. More...

virtual USD_API ~UsdSchemaBase ()
 Destructor. More...

USD_API operator bool () const

UsdPrim GetPrim () const
 Return this schema object's held prim. More...

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath(). More...

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const


Static Public Member Functions

static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomGprim Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdGeomBoundable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomBoundable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, VtVec3fArray *extent)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, const GfMatrix4d &transform, VtVec3fArray *extent)

- Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomXformable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)

static USDGEOM_API bool GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)

static USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)

static USDGEOM_API bool IsTransformationAffectedByAttrNamed (const TfToken &attrName)

- Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomImageable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API const
TfTokenVector
GetOrderedPurposeTokens ()

- Static Public Member Functions inherited from UsdTyped
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomBoundable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaType schemaType = UsdSchemaType::AbstractTyped

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaType schemaType = UsdSchemaType::AbstractBase

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaType schemaType = UsdSchemaType::AbstractBase


Protected Member Functions

USDGEOM_API UsdSchemaType _GetSchemaType () const override

- Protected Member Functions inherited from UsdGeomXformable
USDGEOM_API UsdSchemaType _GetSchemaType () const override

- Protected Member Functions inherited from UsdTyped
USD_API bool _IsCompatible () const override

- Protected Member Functions inherited from UsdSchemaBase
const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Detailed Description

Base class for all geometric primitives.

Gprim encodes basic graphical properties such as doubleSided and orientation, and provides primvars for "display color" and "display opacity" that travel with geometry to be used as shader overrides.

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdGeomTokens. So to set an attribute to the value "rightHanded", use UsdGeomTokens->rightHanded as the value.

Definition at line 66 of file gprim.h.

Constructor & Destructor Documentation

UsdGeomGprim::UsdGeomGprim ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdGeomGprim on UsdPrim prim . Equivalent to UsdGeomGprim::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 78 of file gprim.h.

UsdGeomGprim::UsdGeomGprim ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdGeomGprim on the prim held by schemaObj . Should be preferred over UsdGeomGprim(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 86 of file gprim.h.

virtual USDGEOM_API UsdGeomGprim::~UsdGeomGprim ( )
virtual

Destructor.

Member Function Documentation

USDGEOM_API UsdSchemaType UsdGeomGprim::_GetSchemaType ( ) const
overrideprotectedvirtual

Returns the type of schema this class belongs to.

See Also
UsdSchemaType

Reimplemented from UsdGeomBoundable.

Reimplemented in UsdGeomMesh, UsdGeomNurbsPatch, UsdGeomHermiteCurves, UsdGeomNurbsCurves, UsdVolVolume, UsdGeomPoints, UsdGeomSphere, and UsdGeomPointBased.

USDGEOM_API UsdAttribute UsdGeomGprim::CreateDisplayColorAttr ( VtValue const defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDisplayColorAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdGeomPrimvar UsdGeomGprim::CreateDisplayColorPrimvar ( const TfToken interpolation = TfToken(),
int  elementSize = -1
) const

Convenience function to create the displayColor primvar, optionally specifying interpolation and elementSize

See Also
CreateDisplayColorAttr(), GetDisplayColorPrimvar()
USDGEOM_API UsdAttribute UsdGeomGprim::CreateDisplayOpacityAttr ( VtValue const defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDisplayOpacityAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdGeomPrimvar UsdGeomGprim::CreateDisplayOpacityPrimvar ( const TfToken interpolation = TfToken(),
int  elementSize = -1
) const

Convenience function to create the displayOpacity primvar, optionally specifying interpolation and elementSize

See Also
CreateDisplayOpacityAttr(), GetDisplayOpacityPrimvar()
USDGEOM_API UsdAttribute UsdGeomGprim::CreateDoubleSidedAttr ( VtValue const defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDoubleSidedAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomGprim::CreateOrientationAttr ( VtValue const defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetOrientationAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

static USDGEOM_API UsdGeomGprim UsdGeomGprim::Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdGeomGprim holding the prim adhering to this schema at path on stage. If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdGeomGprim(stage->GetPrimAtPath(path));
USDGEOM_API UsdAttribute UsdGeomGprim::GetDisplayColorAttr ( ) const

It is useful to have an "official" colorSet that can be used as a display or modeling color, even in the absence of any specified shader for a gprim. DisplayColor serves this role; because it is a UsdGeomPrimvar, it can also be used as a gprim override for any shader that consumes a displayColor parameter.

Declaration color3f[] primvars:displayColor
C++ Type VtArray<GfVec3f>
Usd Type SdfValueTypeNames->Color3fArray
USDGEOM_API UsdGeomPrimvar UsdGeomGprim::GetDisplayColorPrimvar ( ) const

Convenience function to get the displayColor Attribute as a Primvar.

See Also
GetDisplayColorAttr(), CreateDisplayColorPrimvar()
USDGEOM_API UsdAttribute UsdGeomGprim::GetDisplayOpacityAttr ( ) const

Companion to displayColor that specifies opacity, broken out as an independent attribute rather than an rgba color, both so that each can be independently overridden, and because shaders rarely consume rgba parameters.

Declaration float[] primvars:displayOpacity
C++ Type VtArray<float>
Usd Type SdfValueTypeNames->FloatArray
USDGEOM_API UsdGeomPrimvar UsdGeomGprim::GetDisplayOpacityPrimvar ( ) const

Convenience function to get the displayOpacity Attribute as a Primvar.

See Also
GetDisplayOpacityAttr(), CreateDisplayOpacityPrimvar()
USDGEOM_API UsdAttribute UsdGeomGprim::GetDoubleSidedAttr ( ) const

Although some renderers treat all parametric or polygonal surfaces as if they were effectively laminae with outward-facing normals on both sides, some renderers derive significant optimizations by considering these surfaces to have only a single outward side, typically determined by control-point winding order and/or orientation. By doing so they can perform "backface culling" to avoid drawing the many polygons of most closed surfaces that face away from the viewer.

However, it is often advantageous to model thin objects such as paper and cloth as single, open surfaces that must be viewable from both sides, always. Setting a gprim's doubleSided attribute to true instructs all renderers to disable optimizations such as backface culling for the gprim, and attempt (not all renderers are able to do so, but the USD reference GL renderer always will) to provide forward-facing normals on each side of the surface for lighting calculations.

Declaration uniform bool doubleSided = 0
C++ Type bool
Usd Type SdfValueTypeNames->Bool
Variability SdfVariabilityUniform
USDGEOM_API UsdAttribute UsdGeomGprim::GetOrientationAttr ( ) const

Orientation specifies whether the gprim's surface normal should be computed using the right hand rule, or the left hand rule. Please see UsdGeom_WindingOrder for a deeper explanation and generalization of orientation to composed scenes with transformation hierarchies.

Declaration uniform token orientation = "rightHanded"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Variability SdfVariabilityUniform
Allowed Values rightHanded, leftHanded
static USDGEOM_API const TfTokenVector& UsdGeomGprim::GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes. Does not include attributes that may be authored by custom/extended methods of the schemas involved.

Friends And Related Function Documentation

friend class UsdSchemaRegistry
friend

Definition at line 125 of file gprim.h.

Member Data Documentation

const UsdSchemaType UsdGeomGprim::schemaType = UsdSchemaType::AbstractTyped
static

Compile time constant representing what kind of schema this class is.

See Also
UsdSchemaType

Definition at line 72 of file gprim.h.


The documentation for this class was generated from the following file:
