UsdGeomMesh Class Reference

#include <mesh.h>

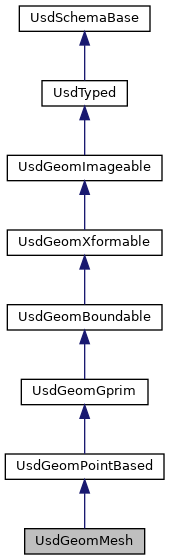

+ Inheritance diagram for UsdGeomMesh:

Public Member Functions

 UsdGeomMesh (const UsdPrim &prim=UsdPrim())

 UsdGeomMesh (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomMesh ()
 Destructor. More...

USDGEOM_API UsdAttribute GetFaceVertexIndicesAttr () const

USDGEOM_API UsdAttribute CreateFaceVertexIndicesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetFaceVertexCountsAttr () const

USDGEOM_API UsdAttribute CreateFaceVertexCountsAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetSubdivisionSchemeAttr () const

USDGEOM_API UsdAttribute CreateSubdivisionSchemeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetInterpolateBoundaryAttr () const

USDGEOM_API UsdAttribute CreateInterpolateBoundaryAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetFaceVaryingLinearInterpolationAttr () const

USDGEOM_API UsdAttribute CreateFaceVaryingLinearInterpolationAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetTriangleSubdivisionRuleAttr () const

USDGEOM_API UsdAttribute CreateTriangleSubdivisionRuleAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetHoleIndicesAttr () const

USDGEOM_API UsdAttribute CreateHoleIndicesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetCornerIndicesAttr () const

USDGEOM_API UsdAttribute CreateCornerIndicesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetCornerSharpnessesAttr () const

USDGEOM_API UsdAttribute CreateCornerSharpnessesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetCreaseIndicesAttr () const

USDGEOM_API UsdAttribute CreateCreaseIndicesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetCreaseLengthsAttr () const

USDGEOM_API UsdAttribute CreateCreaseLengthsAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetCreaseSharpnessesAttr () const

USDGEOM_API UsdAttribute CreateCreaseSharpnessesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API size_t GetFaceCount (UsdTimeCode timeCode=UsdTimeCode::Default()) const

- Public Member Functions inherited from UsdGeomPointBased
 UsdGeomPointBased (const UsdPrim &prim=UsdPrim())

 UsdGeomPointBased (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomPointBased ()
 Destructor. More...

USDGEOM_API UsdAttribute GetPointsAttr () const

USDGEOM_API UsdAttribute CreatePointsAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetVelocitiesAttr () const

USDGEOM_API UsdAttribute CreateVelocitiesAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetAccelerationsAttr () const

USDGEOM_API UsdAttribute CreateAccelerationsAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetNormalsAttr () const

USDGEOM_API UsdAttribute CreateNormalsAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API TfToken GetNormalsInterpolation () const

USDGEOM_API bool SetNormalsInterpolation (TfToken const &interpolation)

USDGEOM_API bool ComputePointsAtTime (VtArray< GfVec3f > *points, const UsdTimeCode time, const UsdTimeCode baseTime) const

USDGEOM_API bool ComputePointsAtTimes (std::vector< VtArray< GfVec3f >> *pointsArray, const std::vector< UsdTimeCode > &times, const UsdTimeCode baseTime) const

- Public Member Functions inherited from UsdGeomGprim
 UsdGeomGprim (const UsdPrim &prim=UsdPrim())

 UsdGeomGprim (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomGprim ()
 Destructor. More...

USDGEOM_API UsdAttribute GetDisplayColorAttr () const

USDGEOM_API UsdAttribute CreateDisplayColorAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDisplayOpacityAttr () const

USDGEOM_API UsdAttribute CreateDisplayOpacityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetDoubleSidedAttr () const

USDGEOM_API UsdAttribute CreateDoubleSidedAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetOrientationAttr () const

USDGEOM_API UsdAttribute CreateOrientationAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomPrimvar GetDisplayColorPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayColorPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

USDGEOM_API UsdGeomPrimvar GetDisplayOpacityPrimvar () const

USDGEOM_API UsdGeomPrimvar CreateDisplayOpacityPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const

- Public Member Functions inherited from UsdGeomBoundable
 UsdGeomBoundable (const UsdPrim &prim=UsdPrim())

 UsdGeomBoundable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomBoundable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetExtentAttr () const

USDGEOM_API UsdAttribute CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API bool ComputeExtent (const UsdTimeCode &time, VtVec3fArray *extent)

- Public Member Functions inherited from UsdGeomXformable
 UsdGeomXformable (const UsdPrim &prim=UsdPrim())

 UsdGeomXformable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomXformable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetXformOpOrderAttr () const

USDGEOM_API UsdAttribute CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdGeomXformOp AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetXformOp (UsdGeomXformOp::Type const opType, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetTranslateOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetScaleOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateXYZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateXZYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateYXZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateYZXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateZXYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetRotateZYXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetOrientOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API UsdGeomXformOp GetTransformOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const

USDGEOM_API bool SetResetXformStack (bool resetXform) const

USDGEOM_API bool GetResetXformStack () const

USDGEOM_API bool SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const

USDGEOM_API std::vector
< UsdGeomXformOp
GetOrderedXformOps (bool *resetsXformStack) const

USDGEOM_API bool ClearXformOpOrder () const
 Clears the local transform stack. More...

USDGEOM_API UsdGeomXformOp MakeMatrixXform () const

USDGEOM_API bool TransformMightBeTimeVarying () const

USDGEOM_API bool TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const

USDGEOM_API bool GetTimeSamples (std::vector< double > *times) const

USDGEOM_API bool GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const

- Public Member Functions inherited from UsdGeomImageable
 UsdGeomImageable (const UsdPrim &prim=UsdPrim())

 UsdGeomImageable (const UsdSchemaBase &schemaObj)

virtual USDGEOM_API ~UsdGeomImageable ()
 Destructor. More...

USDGEOM_API UsdAttribute GetVisibilityAttr () const

USDGEOM_API UsdAttribute CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdAttribute GetPurposeAttr () const

USDGEOM_API UsdAttribute CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const

USDGEOM_API UsdRelationship GetProxyPrimRel () const

USDGEOM_API UsdRelationship CreateProxyPrimRel () const

USDGEOM_API void MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API void MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API TfToken ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const

USDGEOM_API UsdAttribute GetPurposeVisibilityAttr (const TfToken &purpose=UsdGeomTokens->default_) const

USDGEOM_API TfToken ComputeEffectiveVisibility (const TfToken &purpose=UsdGeomTokens->default_, const UsdTimeCode &time=UsdTimeCode::Default()) const

USDGEOM_API PurposeInfo ComputePurposeInfo () const

USDGEOM_API PurposeInfo ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const

USDGEOM_API TfToken ComputePurpose () const

USDGEOM_API UsdPrim ComputeProxyPrim (UsdPrim *renderPrim=NULL) const

USDGEOM_API bool SetProxyPrim (const UsdPrim &proxy) const

USDGEOM_API bool SetProxyPrim (const UsdSchemaBase &proxy) const

USDGEOM_API GfBBox3d ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfBBox3d ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const

USDGEOM_API GfMatrix4d ComputeLocalToWorldTransform (UsdTimeCode const &time) const

USDGEOM_API GfMatrix4d ComputeParentToWorldTransform (UsdTimeCode const &time) const

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())

 UsdTyped (const UsdSchemaBase &schemaObj)

virtual USD_API ~UsdTyped ()
 Destructor. More...

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const

bool IsTyped () const

bool IsAPISchema () const
 Returns whether this is an API schema or not. More...

bool IsAppliedAPISchema () const

bool IsMultipleApplyAPISchema () const

UsdSchemaKind GetSchemaKind () const
 Returns the kind of schema this class is. More...

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim. More...

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema. More...

virtual USD_API ~UsdSchemaBase ()
 Destructor. More...

USD_API operator bool () const

UsdPrim GetPrim () const
 Return this schema object's held prim. More...

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath(). More...

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const


Static Public Member Functions

static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomMesh Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API UsdGeomMesh Define (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool ValidateTopology (const VtIntArray &faceVertexIndices, const VtIntArray &faceVertexCounts, size_t numPoints, std::string *reason=nullptr)

static USDGEOM_API bool IsSharpnessInfinite (const float sharpness)

- Static Public Member Functions inherited from UsdGeomPointBased
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API
UsdGeomPointBased
Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool ComputeExtent (const VtVec3fArray &points, VtVec3fArray *extent)

static USDGEOM_API bool ComputeExtent (const VtVec3fArray &points, const GfMatrix4d &transform, VtVec3fArray *extent)

static USDGEOM_API bool ComputePointsAtTime (VtArray< GfVec3f > *points, UsdStageWeakPtr &stage, UsdTimeCode time, const VtVec3fArray &positions, const VtVec3fArray &velocities, UsdTimeCode velocitiesSampleTime, const VtVec3fArray &accelerations, float velocityScale=1.0)

- Static Public Member Functions inherited from UsdGeomGprim
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomGprim Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdGeomBoundable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomBoundable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, VtVec3fArray *extent)

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, const GfMatrix4d &transform, VtVec3fArray *extent)

- Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomXformable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API bool GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)

static USDGEOM_API bool GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)

static USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)

static USDGEOM_API bool IsTransformationAffectedByAttrNamed (const TfToken &attrName)

- Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USDGEOM_API UsdGeomImageable Get (const UsdStagePtr &stage, const SdfPath &path)

static USDGEOM_API const
TfTokenVector
GetOrderedPurposeTokens ()

- Static Public Member Functions inherited from UsdTyped
static USD_API const
TfTokenVector
GetSchemaAttributeNames (bool includeInherited=true)

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaKind schemaKind = UsdSchemaKind::ConcreteTyped

static USDGEOM_API const float SHARPNESS_INFINITE

- Static Public Attributes inherited from UsdGeomPointBased
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped

- Static Public Attributes inherited from UsdGeomGprim
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped

- Static Public Attributes inherited from UsdGeomBoundable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped

- Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped

- Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase


Protected Member Functions

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override

- Protected Member Functions inherited from UsdGeomPointBased
USDGEOM_API UsdSchemaKind _GetSchemaKind () const override

- Protected Member Functions inherited from UsdGeomXformable
USDGEOM_API UsdSchemaKind _GetSchemaKind () const override

- Protected Member Functions inherited from UsdTyped
USD_API bool _IsCompatible () const override

- Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind _GetSchemaType () const

const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Detailed Description

Encodes a mesh with optional subdivision properties and features.

As a point-based primitive, meshes are defined in terms of points that are connected into edges and faces. Many references to meshes use the term 'vertex' in place of or interchangeably with 'points', while some use 'vertex' to refer to the 'face-vertices' that define a face. To avoid confusion, the term 'vertex' is intentionally avoided in favor of 'points' or 'face-vertices'.

The connectivity between points, edges and faces is encoded using a common minimal topological description of the faces of the mesh. Each face is defined by a set of face-vertices using indices into the Mesh's points array (inherited from UsdGeomPointBased) and laid out in a single linear faceVertexIndices array for efficiency. A companion faceVertexCounts array provides, for each face, the number of consecutive face-vertices in faceVertexIndices that define the face. No additional connectivity information is required or constructed, so no adjacency or neighborhood queries are available.

A key property of this mesh schema is that it encodes both subdivision surfaces and simpler polygonal meshes. This is achieved by varying the subdivisionScheme attribute, which is set to specify Catmull-Clark subdivision by default, so polygonal meshes must always be explicitly declared. The available subdivision schemes and additional subdivision features encoded in optional attributes conform to the feature set of OpenSubdiv (https://graphics.pixar.com/opensubdiv/docs/subdivision_surfaces.html).

A Note About Primvars

The following list clarifies the number of elements for and the interpolation behavior of the different primvar interpolation types for meshes:

  • constant: One element for the entire mesh; no interpolation.
  • uniform: One element for each face of the mesh; elements are typically not interpolated but are inherited by other faces derived from a given face (via subdivision, tessellation, etc.).
  • varying: One element for each point of the mesh; interpolation of point data is always linear.
  • vertex: One element for each point of the mesh; interpolation of point data is applied according to the subdivisionScheme attribute.
  • faceVarying: One element for each of the face-vertices that define the mesh topology; interpolation of face-vertex data may be smooth or linear, according to the subdivisionScheme and faceVaryingLinearInterpolation attributes.

Primvar interpolation types and related utilities are described more generally in Interpolation of Geometric Primitive Variables.

A Note About Normals

Normals should not be authored on a subdivision mesh, since subdivision algorithms define their own normals. They should only be authored for polygonal meshes (subdivisionScheme = "none").

The normals attribute inherited from UsdGeomPointBased is not a generic primvar, but the number of elements in this attribute will be determined by its interpolation. See UsdGeomPointBased::GetNormalsInterpolation() . If normals and primvars:normals are both specified, the latter has precedence. If a polygonal mesh specifies neither normals nor primvars:normals, then it should be treated and rendered as faceted, with no attempt to compute smooth normals.

The normals generated for smooth subdivision schemes, e.g. Catmull-Clark and Loop, will likewise be smooth, but others, e.g. Bilinear, may be discontinuous between faces and/or within non-planar irregular faces.

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdGeomTokens. So to set an attribute to the value "rightHanded", use UsdGeomTokens->rightHanded as the value.

Definition at line 133 of file mesh.h.

Constructor & Destructor Documentation

UsdGeomMesh::UsdGeomMesh ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdGeomMesh on UsdPrim prim . Equivalent to UsdGeomMesh::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 145 of file mesh.h.

UsdGeomMesh::UsdGeomMesh ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdGeomMesh on the prim held by schemaObj . Should be preferred over UsdGeomMesh(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 153 of file mesh.h.

virtual USDGEOM_API UsdGeomMesh::~UsdGeomMesh ( )
virtual

Destructor.

Member Function Documentation

USDGEOM_API UsdSchemaKind UsdGeomMesh::_GetSchemaKind ( ) const
overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See Also
UsdSchemaKind

Reimplemented from UsdGeomGprim.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateCornerIndicesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetCornerIndicesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateCornerSharpnessesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetCornerSharpnessesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateCreaseIndicesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetCreaseIndicesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateCreaseLengthsAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetCreaseLengthsAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateCreaseSharpnessesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetCreaseSharpnessesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateFaceVaryingLinearInterpolationAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetFaceVaryingLinearInterpolationAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateFaceVertexCountsAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetFaceVertexCountsAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateFaceVertexIndicesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetFaceVertexIndicesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateHoleIndicesAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetHoleIndicesAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateInterpolateBoundaryAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetInterpolateBoundaryAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateSubdivisionSchemeAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetSubdivisionSchemeAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

USDGEOM_API UsdAttribute UsdGeomMesh::CreateTriangleSubdivisionRuleAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetTriangleSubdivisionRuleAttr(), and also Usd_Create_Or_Get_Property for when to use Get vs Create. If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

static USDGEOM_API UsdGeomMesh UsdGeomMesh::Define ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

If a prim adhering to this schema at path is already defined on this stage, return that prim. Otherwise author an SdfPrimSpec with specifier == SdfSpecifierDef and this schema's prim type name for the prim at path at the current EditTarget. Author SdfPrimSpec s with specifier == SdfSpecifierDef and empty typeName at the current EditTarget for any nonexistent, or existing but not Defined ancestors.

The given path must be an absolute prim path that does not contain any variant selections.

If it is impossible to author any of the necessary PrimSpecs, (for example, in case path cannot map to the current UsdEditTarget's namespace) issue an error and return an invalid UsdPrim.

Note that this method may return a defined prim whose typeName does not specify this schema class, in case a stronger typeName opinion overrides the opinion at the current EditTarget.

static USDGEOM_API UsdGeomMesh UsdGeomMesh::Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdGeomMesh holding the prim adhering to this schema at path on stage. If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdGeomMesh(stage->GetPrimAtPath(path));
USDGEOM_API UsdAttribute UsdGeomMesh::GetCornerIndicesAttr ( ) const

The indices of points for which a corresponding sharpness value is specified in cornerSharpnesses (so the size of this array must match that of cornerSharpnesses).

Declaration int[] cornerIndices = []
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetCornerSharpnessesAttr ( ) const

The sharpness values associated with a corresponding set of points specified in cornerIndices (so the size of this array must match that of cornerIndices). Use the constant SHARPNESS_INFINITE for a perfectly sharp corner.

Declaration float[] cornerSharpnesses = []
C++ Type VtArray<float>
Usd Type SdfValueTypeNames->FloatArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetCreaseIndicesAttr ( ) const

The indices of points grouped into sets of successive pairs that identify edges to be creased. The size of this array must be equal to the sum of all elements of the creaseLengths attribute.

Declaration int[] creaseIndices = []
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetCreaseLengthsAttr ( ) const

The length of this array specifies the number of creases (sets of adjacent sharpened edges) on the mesh. Each element gives the number of points of each crease, whose indices are successively laid out in the creaseIndices attribute. Since each crease must be at least one edge long, each element of this array must be at least two.

Declaration int[] creaseLengths = []
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetCreaseSharpnessesAttr ( ) const

The per-crease or per-edge sharpness values for all creases. Since creaseLengths encodes the number of points in each crease, the number of elements in this array will be either len(creaseLengths) or the sum over all X of (creaseLengths[X] - 1). Note that while the RI spec allows each crease to have either a single sharpness or a value per-edge, USD will encode either a single sharpness per crease on a mesh, or sharpnesses for all edges making up the creases on a mesh. Use the constant SHARPNESS_INFINITE for a perfectly sharp crease.

Declaration float[] creaseSharpnesses = []
C++ Type VtArray<float>
Usd Type SdfValueTypeNames->FloatArray
USDGEOM_API size_t UsdGeomMesh::GetFaceCount ( UsdTimeCode  timeCode = UsdTimeCode::Default()) const

Returns the number of faces as defined by the size of the faceVertexCounts array at timeCode.

snippets.dox GetCount

See Also
GetFaceVertexCountsAttr()
USDGEOM_API UsdAttribute UsdGeomMesh::GetFaceVaryingLinearInterpolationAttr ( ) const

Specifies how elements of a primvar of interpolation type "faceVarying" are interpolated for subdivision surfaces. Interpolation can be as smooth as a "vertex" primvar or constrained to be linear at features specified by several options. Valid values correspond to choices available in OpenSubdiv:

  • none: No linear constraints or sharpening, smooth everywhere
  • cornersOnly: Sharpen corners of discontinuous boundaries only, smooth everywhere else
  • cornersPlus1: The default, same as "cornersOnly" plus additional sharpening at points where three or more distinct face-varying values occur
  • cornersPlus2: Same as "cornersPlus1" plus additional sharpening at points with at least one discontinuous boundary corner or only one discontinuous boundary edge (a dart)
  • boundaries: Piecewise linear along discontinuous boundaries, smooth interior
  • all: Piecewise linear everywhere

These are illustrated and described in more detail in the OpenSubdiv documentation: https://graphics.pixar.com/opensubdiv/docs/subdivision_surfaces.html#face-varying-interpolation-rules

Declaration token faceVaryingLinearInterpolation = "cornersPlus1"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Allowed Values none, cornersOnly, cornersPlus1, cornersPlus2, boundaries, all
USDGEOM_API UsdAttribute UsdGeomMesh::GetFaceVertexCountsAttr ( ) const

Provides the number of vertices in each face of the mesh, which is also the number of consecutive indices in faceVertexIndices that define the face. The length of this attribute is the number of faces in the mesh. If this attribute has more than one timeSample, the mesh is considered to be topologically varying.

Declaration int[] faceVertexCounts
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetFaceVertexIndicesAttr ( ) const

Flat list of the index (into the points attribute) of each vertex of each face in the mesh. If this attribute has more than one timeSample, the mesh is considered to be topologically varying.

Declaration int[] faceVertexIndices
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetHoleIndicesAttr ( ) const

The indices of all faces that should be treated as holes, i.e. made invisible. This is traditionally a feature of subdivision surfaces and not generally applied to polygonal meshes.

Declaration int[] holeIndices = []
C++ Type VtArray<int>
Usd Type SdfValueTypeNames->IntArray
USDGEOM_API UsdAttribute UsdGeomMesh::GetInterpolateBoundaryAttr ( ) const

Specifies how subdivision is applied for faces adjacent to boundary edges and boundary points. Valid values correspond to choices available in OpenSubdiv:

  • none: No boundary interpolation is applied and boundary faces are effectively treated as holes
  • edgeOnly: A sequence of boundary edges defines a smooth curve to which the edges of subdivided boundary faces converge
  • edgeAndCorner: The default, similar to "edgeOnly" but the smooth boundary curve is made sharp at corner points

These are illustrated and described in more detail in the OpenSubdiv documentation: https://graphics.pixar.com/opensubdiv/docs/subdivision_surfaces.html#boundary-interpolation-rules

Declaration token interpolateBoundary = "edgeAndCorner"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Allowed Values none, edgeOnly, edgeAndCorner
static USDGEOM_API const TfTokenVector& UsdGeomMesh::GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes. Does not include attributes that may be authored by custom/extended methods of the schemas involved.

USDGEOM_API UsdAttribute UsdGeomMesh::GetSubdivisionSchemeAttr ( ) const

The subdivision scheme to be applied to the surface. Valid values are:

  • catmullClark: The default, Catmull-Clark subdivision; preferred for quad-dominant meshes (generalizes B-splines); interpolation of point data is smooth (non-linear)
  • loop: Loop subdivision; preferred for purely triangular meshes; interpolation of point data is smooth (non-linear)
  • bilinear: Subdivision reduces all faces to quads (topologically similar to "catmullClark"); interpolation of point data is bilinear
  • none: No subdivision, i.e. a simple polygonal mesh; interpolation of point data is linear

Polygonal meshes are typically lighter weight and faster to render, depending on renderer and render mode. Use of "bilinear" will produce a similar shape to a polygonal mesh and may offer additional guarantees of watertightness and additional subdivision features (e.g. holes) but may also not respect authored normals.

Declaration uniform token subdivisionScheme = "catmullClark"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Variability SdfVariabilityUniform
Allowed Values catmullClark, loop, bilinear, none
USDGEOM_API UsdAttribute UsdGeomMesh::GetTriangleSubdivisionRuleAttr ( ) const

Specifies an option to the subdivision rules for the Catmull-Clark scheme to try and improve undesirable artifacts when subdividing triangles. Valid values are "catmullClark" for the standard rules (the default) and "smooth" for the improvement.

See https://graphics.pixar.com/opensubdiv/docs/subdivision_surfaces.html#triangle-subdivision-rule

Declaration token triangleSubdivisionRule = "catmullClark"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Allowed Values catmullClark, smooth
static USDGEOM_API bool UsdGeomMesh::IsSharpnessInfinite ( const float  sharpness)
static

Returns whether or not sharpness is considered infinite.

The sharpness value is usually intended for 'creaseSharpness' or 'cornerSharpness' arrays and a return value of true indicates that the crease or corner is perfectly sharp.

static USDGEOM_API bool UsdGeomMesh::ValidateTopology ( const VtIntArray &  faceVertexIndices,
const VtIntArray &  faceVertexCounts,
size_t  numPoints,
std::string reason = nullptr
)
static

Validate the topology of a mesh. This validates that the sum of faceVertexCounts is equal to the size of the faceVertexIndices array, and that all face vertex indices in the faceVertexIndices array are in the range [0, numPoints). Returns true if the topology is valid, or false otherwise. If the topology is invalid and reason is non-null, an error message describing the validation error will be set.

Friends And Related Function Documentation

friend class UsdSchemaRegistry
friend

Definition at line 217 of file mesh.h.

Member Data Documentation

const UsdSchemaKind UsdGeomMesh::schemaKind = UsdSchemaKind::ConcreteTyped
static

Compile time constant representing what kind of schema this class is.

See Also
UsdSchemaKind

Definition at line 139 of file mesh.h.

const float UsdGeomMesh::SHARPNESS_INFINITE
static

As an element of a 'creaseSharpness' or 'cornerSharpness' array, indicates that the crease or corner is perfectly sharp.

Definition at line 619 of file mesh.h.


The documentation for this class was generated from the following file:
