MeshToVolume.h File Reference

Convert polygonal meshes that consist of quads and/or triangles into signed or unsigned distance field volumes. More...

#include <openvdb/Platform.h>
#include <openvdb/Types.h>
#include <openvdb/math/FiniteDifference.h>
#include <openvdb/math/Proximity.h>
#include <openvdb/util/NullInterrupter.h>
#include <openvdb/util/Util.h>
#include <openvdb/util/Assert.h>
#include <openvdb/thread/Threading.h>
#include <openvdb/openvdb.h>
#include "ChangeBackground.h"
#include "Prune.h"
#include "SignedFloodFill.h"
#include <tbb/blocked_range.h>
#include <tbb/enumerable_thread_specific.h>
#include <tbb/parallel_for.h>
#include <tbb/parallel_reduce.h>
#include <tbb/partitioner.h>
#include <tbb/task_group.h>
#include <tbb/task_arena.h>
#include <algorithm>
#include <cmath>
#include <deque>
#include <limits>
#include <memory>
#include <sstream>
#include <type_traits>
#include <vector>

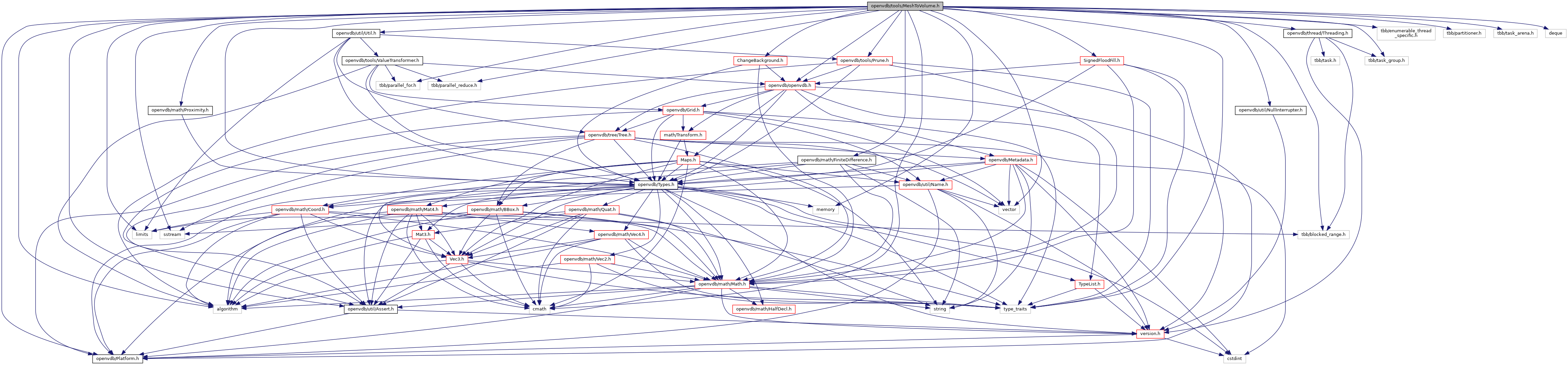

Include dependency graph for MeshToVolume.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	openvdb::OPENVDB_VERSION_NAME::tools::QuadAndTriangleDataAdapter< PointType, PolygonType >
	Contiguous quad and triangle data adapter class. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::MeshToVoxelEdgeData
	Extracts and stores voxel edge intersection data from a mesh. More...
struct	openvdb::OPENVDB_VERSION_NAME::tools::MeshToVoxelEdgeData::EdgeData
	Internal edge data type. More...
class	openvdb::OPENVDB_VERSION_NAME::tools::MeshToVoxelEdgeData::GenEdgeData

Namespaces
	openvdb
	openvdb::OPENVDB_VERSION_NAME
	openvdb::OPENVDB_VERSION_NAME::tools

Enumerations
enum	openvdb::OPENVDB_VERSION_NAME::tools::MeshToVolumeFlags { openvdb::OPENVDB_VERSION_NAME::tools::UNSIGNED_DISTANCE_FIELD = 0x1, openvdb::OPENVDB_VERSION_NAME::tools::DISABLE_INTERSECTING_VOXEL_REMOVAL = 0x2, openvdb::OPENVDB_VERSION_NAME::tools::DISABLE_RENORMALIZATION = 0x4, openvdb::OPENVDB_VERSION_NAME::tools::DISABLE_NARROW_BAND_TRIMMING = 0x8 }
	Mesh to volume conversion flags. More...
enum	openvdb::OPENVDB_VERSION_NAME::tools::InteriorTestStrategy { openvdb::OPENVDB_VERSION_NAME::tools::EVAL_EVERY_VOXEL = 0, openvdb::OPENVDB_VERSION_NAME::tools::EVAL_EVERY_TILE = 1 }
	Different staregies how to determine sign of an SDF when using interior test. More...

Functions
template<typename GridType , typename MeshDataAdapter , typename InteriorTest = std::nullptr_t>
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToVolume (const MeshDataAdapter &mesh, const math::Transform &transform, float exteriorBandWidth=3.0f, float interiorBandWidth=3.0f, int flags=0, typename GridType::template ValueConverter< Int32 >::Type *polygonIndexGrid=nullptr, InteriorTest interiorTest=nullptr, InteriorTestStrategy interiorTestStrat=EVAL_EVERY_VOXEL)
template<typename GridType , typename MeshDataAdapter , typename Interrupter , typename InteriorTest = std::nullptr_t>
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToVolume (Interrupter &interrupter, const MeshDataAdapter &mesh, const math::Transform &transform, float exteriorBandWidth=3.0f, float interiorBandWidth=3.0f, int flags=0, typename GridType::template ValueConverter< Int32 >::Type *polygonIndexGrid=nullptr, InteriorTest interiorTest=nullptr, InteriorTestStrategy interiorTestStrategy=EVAL_EVERY_VOXEL)
	Convert polygonal meshes that consist of quads and/or triangles into signed or unsigned distance field volumes. More...
template<typename GridType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Convert a triangle mesh to a level set volume. More...
template<typename GridType , typename Interrupter >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (Interrupter &interrupter, const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Adds support for a interrupter callback used to cancel the conversion. More...
template<typename GridType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec4I > &quads, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Convert a quad mesh to a level set volume. More...
template<typename GridType , typename Interrupter >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (Interrupter &interrupter, const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec4I > &quads, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Adds support for a interrupter callback used to cancel the conversion. More...
template<typename GridType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Convert a triangle and quad mesh to a level set volume. More...
template<typename GridType , typename Interrupter >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToLevelSet (Interrupter &interrupter, const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float halfWidth=float(LEVEL_SET_HALF_WIDTH))
	Adds support for a interrupter callback used to cancel the conversion. More...
template<typename GridType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToSignedDistanceField (const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float exBandWidth, float inBandWidth)
	Convert a triangle and quad mesh to a signed distance field with an asymmetrical narrow band. More...
template<typename GridType , typename Interrupter >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToSignedDistanceField (Interrupter &interrupter, const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float exBandWidth, float inBandWidth)
	Adds support for a interrupter callback used to cancel the conversion. More...
template<typename GridType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToUnsignedDistanceField (const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float bandWidth)
	Convert a triangle and quad mesh to an unsigned distance field. More...
template<typename GridType , typename Interrupter >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::meshToUnsignedDistanceField (Interrupter &interrupter, const openvdb::math::Transform &xform, const std::vector< Vec3s > &points, const std::vector< Vec3I > &triangles, const std::vector< Vec4I > &quads, float bandWidth)
	Adds support for a interrupter callback used to cancel the conversion. More...
template<typename GridType , typename VecType >
GridType::Ptr	openvdb::OPENVDB_VERSION_NAME::tools::createLevelSetBox (const math::BBox< VecType > &bbox, const openvdb::math::Transform &xform, typename VecType::ValueType halfWidth=LEVEL_SET_HALF_WIDTH)
	Return a grid of type GridType containing a narrow-band level set representation of a box. More...
template<typename FloatTreeT >
void	openvdb::OPENVDB_VERSION_NAME::tools::traceExteriorBoundaries (FloatTreeT &tree)
	Traces the exterior voxel boundary of closed objects in the input volume tree. Exterior voxels are marked with a negative sign, voxels with a value below 0.75 are left unchanged and act as the boundary layer. More...
template<typename T , Index Log2Dim, typename InteriorTest >
void	openvdb::OPENVDB_VERSION_NAME::tools::floodFillLeafNode (tree::LeafNode< T, Log2Dim > &leafNode, const InteriorTest &interiorTest)
template<typename FloatTreeT , typename InteriorTest >
void	openvdb::OPENVDB_VERSION_NAME::tools::evaluateInteriorTest (FloatTreeT &tree, InteriorTest interiorTest, InteriorTestStrategy interiorTestStrategy)
	Sets the sign of voxel values of tree based on the interiorTest More...
std::ostream &	openvdb::OPENVDB_VERSION_NAME::tools::operator<< (std::ostream &ostr, const MeshToVoxelEdgeData::EdgeData &rhs)
MeshToVoxelEdgeData::EdgeData	openvdb::OPENVDB_VERSION_NAME::tools::Abs (const MeshToVoxelEdgeData::EdgeData &x)

Detailed Description

Convert polygonal meshes that consist of quads and/or triangles into signed or unsigned distance field volumes.

Note

The signed distance field conversion requires a closed surface but not necessarily a manifold surface. Supports surfaces with self intersections and degenerate faces and is independent of mesh surface normals / polygon orientation.

Author

Mihai Alden

Definition in file MeshToVolume.h.
