UN_Include.h File Reference

#include "UN_API.h"
#include <UNI/UNI_Include.h>
#include <UT/UT_Array.h>
#include <UT/UT_ArrayMap.h>
#include <UT/UT_Options.h>
#include <UT/UT_StringHolder.h>
#include <UT/UT_UniquePtr.h>
#include <SYS/SYS_Types.h>
#include <SYS/SYS_Hash.h>

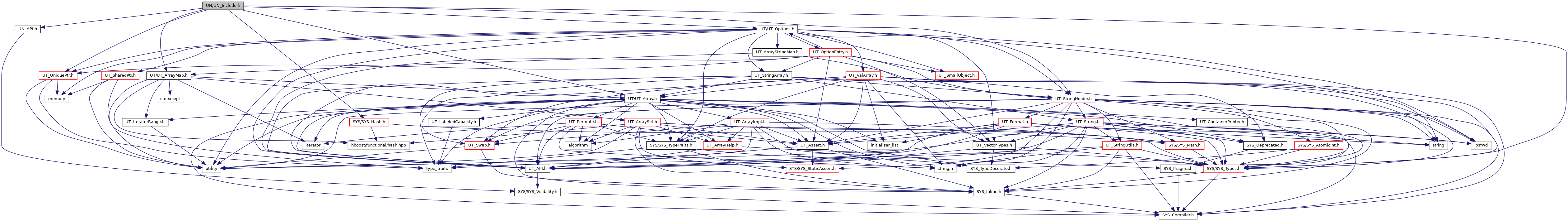

Include dependency graph for UN_Include.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	UN_DataNumber
class	UN_DataSize
class	UN_DataIndex
class	UN_DataIndexSpan
class	UN_DataIDRemapT< ID >
	Adaptor of the UN_DataIDRemap to specific data types. More...
class	UN_DataIDRemap
class	UN_DataIDRemapT< ID >
	Adaptor of the UN_DataIDRemap to specific data types. More...
class	UN_DataMergeInfo
class	UN_IDRemapInfo
	Package of remappings for various data ID types (nodes, ports, subnets). More...
class	UN_GraphMergeInfo
	Information about the result of a merge from another graph. More...
struct	UT::DefaultClearer< T >
struct	UT::DefaultClearer< UN_DataIndex >

Namespaces
	UT

Macros
#define	UN_DATA_INDEX(Class)
#define	UN_DATA_ID(SubClass, BaseClass)
#define	UN_NUMBER_FORMATTER(IdOrIndexType)
	For debug printouts, etc: More...
#define	UN_INDEX_CLEARER(ID)   template<> struct DefaultClearer<ID>: public DefaultClearer<UN_DataIndex>{};

Typedefs
using	UN_DataID = UNI_ID
using	UN_DataIDList = UT_Array< UN_DataID >
using	UN_PortKind = UNI_PortKind
	Differentiates between input and output ports. More...
using	UN_Options = UT_Options
using	UN_OptionsPtr = UT_UniquePtr< UN_Options >

Macro Definition Documentation

#define UN_DATA_ID	(		SubClass,
			BaseClass
	)

Value:

using SubClass = BaseClass; \
using SubClass##List  = BaseClass##List; \
using SubClass##Remap = UN_DataIDRemapT< SubClass >; \

Data ID is unique throughout the lifespan of a graph, but only for within the same data class (eg, nodes). Ie, a node may have same data id as a wire. So it's a good idea to keep these type spaces separate. Defines types for various data ID numbers. Note, since UN is an implementation of the UNI interface, it reuses (aliases) the UNI IDs to avoid frequent type casts. However, it is possible to decouple them if really needed in the future.

Definition at line 267 of file UN_Include.h.

#define UN_DATA_INDEX

(

Class

)

Value:

class Class : public UN_DataIndex \
{ \
public: \
    explicit    Class( UN_DataIndex data_index = UN_DataIndex() ) \
                    : UN_DataIndex( data_index ) {} \
}; \
   \
using Class##List = UT_Array< Class >; \

An index into a data container, referring to a data object. Indices may be reused for new data objects, if old ones were deleted.

Definition at line 229 of file UN_Include.h.

#define UN_INDEX_CLEARER

(

ID

)

template<> struct DefaultClearer<ID>: public DefaultClearer<UN_DataIndex>{};

Definition at line 605 of file UN_Include.h.

#define UN_NUMBER_FORMATTER

(

IdOrIndexType

)

Value:

inline size_t \
UTformatBuffer(char *buffer, size_t buffer_size, const IdOrIndexType &v)   \
{                                                                          \
    UT::Format::Writer w(buffer, buffer_size);                             \
    UT::Format::Formatter f;                                               \
    return f.format(w, #IdOrIndexType "({})", {v.exintValue()});           \
} \
inline size_t \
UTformatBuffer(char *buffer, size_t buffer_size,                            \
               const UT_Array<IdOrIndexType> &v)                            \
{                                                                           \
    UT::Format::Writer w(buffer, buffer_size);                              \
    UT::Format::Formatter f;                                                \
    size_t bytesWritten = w("UT_Array<" #IdOrIndexType ">([",              \
                     sizeof("UT_Array<" #IdOrIndexType ">([")-1);           \
    bool first = true;                                                      \
    for (auto &&item : v)                                                   \
    {                                                                       \
        bytesWritten += f.format(w, first ? "{}" : ", {}",                  \
                {item.exintValue()});                                       \
	first = false;                                                      \
    }                                                                       \
    bytesWritten += w("])", 2);                                              \
    return bytesWritten;                                                    \
}

For debug printouts, etc:

Definition at line 551 of file UN_Include.h.

Typedef Documentation

using UN_DataID = UNI_ID

A unique identifier of a particular data object. Data objects of the same type (eg, nodes or ports) are assigned a unique ID in a given graph, and no two data objects of that type share same ID, withing the lifespan of the given graph. Ie, unlike indices, the IDs are not reused for new data objects, even if some old objects were deleted.

Definition at line 254 of file UN_Include.h.

using UN_DataIDList = UT_Array< UN_DataID >

Definition at line 255 of file UN_Include.h.

using UN_Options = UT_Options

Graph serialization to UT_Options. Using UT_UniquePtr<UT_Options> to return values, to indicate the ownership. Using UT_UniquePtr<UT_OPtions> rather than UT_OptionsHolder because it is more flexible: it's easier to further edit options (editing UT_OptionsHolder is cumbersome), and it's easy to create UT_OptionsHolder from the UT_UniquePtr, if need be.

Definition at line 639 of file UN_Include.h.

using UN_OptionsPtr = UT_UniquePtr<UN_Options>

Definition at line 640 of file UN_Include.h.

using UN_PortKind = UNI_PortKind

Differentiates between input and output ports.

Definition at line 619 of file UN_Include.h.
