#include <PDG_Scheduler.h>

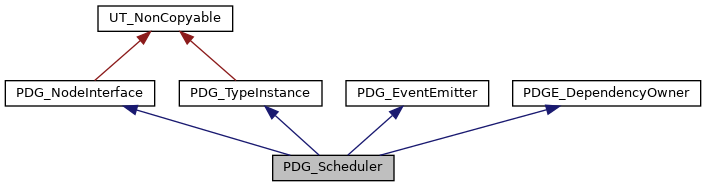

Inheritance diagram for PDG_Scheduler:

Public Types
enum	ScheduleResult { eCookCanceled, eCookFailed, eCookSucceeded, eFailed, eSucceeded, eDeferred, eFullDeferred }

enum	TickResult { eSchedulerReady, eSchedulerBusy, eSchedulerCancelCook }

enum	AcceptResult { eSchedulerAccept, eSchedulerReject, eSchedulerDefault }

enum	WorkItemDataSource { eSourceJSONFile, eSourceRPCMessage }

enum	TempDirCleanup { eCleanupNone, eCleanupShutdown, eCleanupCook }

Public Types inherited from PDG_NodeInterface
using	ParameterGroupArray = UT_Array< ParameterGroup >

using	DependencyArray = UT_Array< AutoFileDependency >

Public Types inherited from PDGT_TypeInstance< EnumType >
using	BaseType = PDGT_BaseType< EnumType >

Public Types inherited from PDGE_DependencyOwner
using	Array = UT_Array< PDGE_DependencyOwner * >

using	Set = UT_ArraySet< PDGE_DependencyOwner * >

Public Member Functions
	PDG_Scheduler (const PDG_BaseType *type, const PDGT_ValueArgs &extra_args, const UT_StringHolder &name)

	~PDG_Scheduler () override

const PDG_EventFilter &	supportedEventTypes () const override
	Returns the list of supported event types. More...

int64	getMemoryUsage (bool inclusive) const override
	Returns the memory usage of this owner instance. More...

UT_StringHolder	debugName () const override
	Debug name method, required by PDGE_DependencyOwner. More...

void	resetOwner () override
	Resets the dependency owner. More...

PDGE_Dependency *	isCookedDep ()
	Returns the is cooked dep for this scheduler. More...

PDGE_Dependency *	isSetupDep ()
	Returns the is cooked dep for this scheduler. More...

const UT_StringHolder &	name () const
	Returns the name of the shceudler. More...

bool	reloadInstance (UT_WorkBuffer &errors) override

const PDG_NodeInterface *	templateInterface () const override

const PDG_SchedulerType *	typeObject () const
	Returns the type object that defines the scheduler. More...

bool	canSchedule (const PDG_WorkItem *work_item)

virtual void	onScheduleStatic (const PDG_WorkItemMap &dependencies, const PDG_WorkItemMap &dependents, const PDG_WorkItemArray &ready_items)=0
	Called when the scheduler should process a static dependency graph. More...

virtual ScheduleResult	onSchedule (PDG_WorkItem *work_item)=0

virtual void	onCancelWorkItems (const PDG_WorkItemArray &work_item, PDG_Node *node)=0
	Called when a specific work item should be canceled. More...

virtual bool	onStart ()=0

virtual bool	onStop ()=0

virtual bool	onStartCook (bool static_cook, const PDG_NodeSet &)=0
	Called when cooking begins. More...

virtual bool	onStopCook (bool cancel)=0
	Called when cooking completes or is canceled. More...

virtual void	onConfigureCook (PDG_CookOptions *cook_ptions)=0

virtual bool	onSetupCook ()=0

virtual TickResult	onTick ()=0
	Called periodically during cooking to update state. More...

virtual AcceptResult	onAcceptWorkItem (const PDG_WorkItem *work_item)=0

virtual bool	onTransferFile (const UT_StringHolder &file_path)
	Custom file transfer logic, implemented per-scheduler. More...

bool	transferFile (const PDG_WorkItem *work_item, const PDG_File &file, PDG_FileUtils::TransferType default_type, bool check_type, UT_WorkBuffer &errors) const

bool	transferFile (const UT_StringHolder &file_path, PDG_FileUtils::TransferType default_type, bool check_type, UT_WorkBuffer &errors) const

bool	transferFile (const UT_StringHolder &root_path, const UT_StringHolder &file_path, const UT_StringHolder &sub_path, PDG_FileUtils::TransferType default_type, bool check_type, UT_WorkBuffer &errors) const

UT_StringHolder	formatTransferPath (const UT_StringHolder &local_path, PDG_FileUtils::TransferType default_type, bool local, bool check_type) const

UT_StringHolder	formatTransferPath (const UT_StringHolder &root_path, const UT_StringHolder &local_path, const UT_StringHolder &sub_path, PDG_FileUtils::TransferType default_type, bool local, bool check_type) const

UT_StringHolder	localizePath (const UT_StringHolder &deloc_path) const
	Returns the local version of the given path. More...

UT_StringHolder	delocalizePath (const UT_StringHolder &local_path) const
	Returns the delocalized (remote) version of the given local path. More...

UT_StringHolder	jobName (const PDG_WorkItem *work_item) const
	Returns the job name for the specified work item. More...

virtual UT_StringHolder	expandCommandTokens (const UT_StringHolder &command, const PDG_WorkItem *work_item)=0
	Expands special tokens in the command string. More...

virtual UT_StringHolder	submitAsJob (const UT_StringHolder &graph_file, const UT_StringHolder &node_name)=0
	cook the output node in the graph context of the given file as a single job More...

void	setWorkingDir (const UT_StringHolder &local_path, const UT_StringHolder &remote_path)

void	setTempDir (const UT_StringHolder &local_path, const UT_StringHolder &remote_path)

void	setScriptDir (const UT_StringHolder &local_path, const UT_StringHolder &remote_path)

void	setAcceptInProcess (bool in_process)
	sets whether or not the scheduler accepts in-process work items More...

UT_StringHolder	workingDir (bool local) const

UT_StringHolder	tempDir (bool local) const

UT_StringHolder	scriptDir (bool local) const

UT_StringHolder	logDir (bool local) const

UT_StringHolder	dataDir (bool local) const

virtual UT_StringHolder	applicationBin (const UT_StringHolder &name, const PDG_WorkItem *work_item)

virtual UT_StringHolder	workItemResultServerAddr ()=0

virtual UT_StringHolder	getLogURI (const PDG_WorkItem *work_item)=0
	returns a URI for the workitem cook log (text file) More...

virtual UT_StringHolder	getStatusURI (const PDG_WorkItem *work_item)=0
	returns a URI for the workitem status page if relevant More...

virtual bool	endSharedServer (const UT_StringHolder &sharedserver_name)=0
	Terminate the give shared server. More...

virtual void	clearSharedServerInfo (const UT_StringHolder &sharedserver_name)
	Clears metadata associated with the given shared server name. More...

virtual UT_StringHolder	setSharedServerInfo (const UT_StringHolder &sharedserver_name, const PDGT_ValueArgs &info)
	Sets metadata associated with the given shared server name, returns full name. More...

PDGT_ValueArgs	getSharedServerInfo (const UT_StringHolder &sharedserver_name)
	Gets metadata associated with the given shared server name. More...

UT_StringArray	getSharedServers ()
	Gets the list of shared servers. More...

virtual void	cleanTempDirectory ()
	Delete the temporary directory and all its contents. More...

void	stop (bool exiting)
	Called to stop the scheduler. More...

bool	startCook (PDG_CookState &cook_state)
	Called when a cook begins with the cook state data for that cook. More...

void	stopCook ()
	Called when a cook stops. More...

void	cancelCook (bool pause)
	Cancels an active cook. More...

bool	tick (PDG_Scheduler::TickResult &tick_result)
	Ticks the scheduler. More...

bool	cookWorkItem (PDG_WorkItem *work_item)
	Cooks a specific work item using it's internal cook method. More...

void	submitStatic ()
	Submits a static cook with this scheduler. More...

virtual PDG_WorkItemState	queueWorkItem (PDG_WorkItem *work_item)

void	removeWorkItem (const PDG_WorkItem *work_item)
	Removes a work item from any internal tracking lists. More...

bool	cancelWorkItem (PDG_WorkItem *work_item)
	Cancels a cook for a specific work tiem. More...

void	cancelNode (PDG_Node *node)
	Cancels a cook for a specific node. More...

void	onWorkItemPriorityChanged (PDG_WorkItem *work_item)

void	process (bool skip_ready_items)

bool	isRunning (int count=0)

bool	isRunning (const PDG_WorkItem *work_item)

bool	isDefault ()

bool	isWaitForFailures () const

bool	isValidateOutputFiles () const

bool	isCheckExpectedOutputFiles () const

bool	isCompressWorkItemData () const

virtual PDGN::PDGN_PollingClientNNG *	getPollingClient ()

WorkItemDataSource	workItemDataSource () const

int	numRunningItems () const

int	numFailedItems () const

int	numQueuedItems () const

void	setContext (PDG_GraphContext *context)

PDG_GraphContext *	context () const

void	dependencyGraph (PDG_WorkItemMap &dependencies, PDG_WorkItemMap &dependents, PDG_WorkItemArray &ready, bool expand)

virtual bool	startService (UT_WorkBuffer &errors, PDG_Service *service)
	Starts a service using this scheduler. More...

virtual bool	stopService (UT_WorkBuffer &errors, PDG_Service *service, bool cancel)
	Stops a service that was started with this scheduler. More...

virtual bool	startServiceClient (UT_WorkBuffer &errors, PDG_Service service, PDG_ServiceClient client)
	Starts a job for the specified service client. More...

virtual bool	stopServiceClient (UT_WorkBuffer &errors, PDG_Service service, PDG_ServiceClient client)
	Stops the job associated with a specific client process. More...

template<typename T , typename D = T>
bool	evaluateOverride (T &result, PDG_NodeInterface node, const UT_StringHolder &prefix, const UT_StringHolder &parm, PDG_WorkItem work_item, const D &default_value, UT_WorkBuffer &errors) const

void	onWorkItemSetStringArray (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const PDG_AttributeString::Array &value)

void	onWorkItemSetFloatArray (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const PDG_AttributeFloat::Array &value)

void	onWorkItemSetIntArray (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const PDG_AttributeInteger::Array &value)

void	onWorkItemSetFileArray (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const PDG_AttributeFile::Array &value)

void	onWorkItemSetDictArray (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const UT_Array< UT_OptionsHolder > &value)

void	onWorkItemSetPyObject (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const UT_StringHolder &pyobject_repr)

void	onWorkItemSetString (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const UT_StringHolder &value, int attrib_index)

void	onWorkItemSetFloat (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, fpreal value, int attrib_index)

void	onWorkItemSetInt (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, exint value, int attrib_index)

void	onWorkItemSetFile (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const PDG_AttributeFile::Data &value, int attrib_index)

void	onWorkItemSetDict (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &attribute_name, const UT_OptionsHolder &dict_repr, int attrib_index)

void	onWorkItemAddOutput (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &path, const UT_StringHolder &tag, PDG_File::Hash hash_code, bool active_only)

void	onWorkItemAddOutputs (PDG_WorkItemID work_item_id, int index, const UT_StringArray &paths, const UT_StringHolder &tags, const PDG_File::HashArray &hashes, bool active_only)

void	onWorkItemAddOutputs (PDG_WorkItemID work_item_id, int index, const UT_StringArray &paths, const UT_StringArray &tags, const PDG_File::HashArray &hashes, bool active_only)

void	onWorkItemInvalidateCache (PDG_WorkItemID work_item_id, int index)

void	onWorkItemSucceeded (PDG_WorkItemID work_item_id, int index, fpreal cook_duration)

void	onWorkItemFailed (PDG_WorkItemID work_item_id, int index)

void	onWorkItemCanceled (PDG_WorkItemID work_item_id, int index)

void	onWorkItemStartCook (PDG_WorkItemID work_item_id, int index, bool clear_outputs)

void	onWorkItemSetCustomState (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &custom_state)

void	onWorkItemSetCookPercent (PDG_WorkItemID work_item_id, int index, fpreal &cook_percent)

void	onWorkItemAppendLog (PDG_WorkItemID work_item_id, int index, const UT_StringHolder &log_data, PDG_WorkItemLogType log_type)

PDG_WorkItemEvalState	isWorkItemReady (PDG_WorkItemID work_item_id, int index)

void	addError (const UT_StringHolder &message) const override
	Emits errors or warnings from the scheduler as PDG_Events. More...

void	addWarning (const UT_StringHolder &message) const override
	Adds a warning to the node interface – implemented in subclasses. More...

bool	asJSON (UT_JSONWriter &writer, bool skip_defaults) const

virtual fpreal	tickPeriod () const

virtual int	maxItemsPerTick () const

virtual int	maxConcurrentTasks () const

PDG_PathMappingMode	mapMode () const

PDG_FileTransferType	transferType () const

UT_StringHolder	transferRoot () const

Public Member Functions inherited from PDG_NodeInterface
	PDG_NodeInterface (UT_StringHolder name="", UT_StringHolder data_type="")

virtual	~PDG_NodeInterface ()

int64	getMemoryUsage (bool inclusive) const

void	cloneFrom (const PDG_NodeInterface &interface)

void	addBuiltinPorts (PDG_NodeType type, PDG_NodeSubtype sub_type)
	Adds builtin ports for the specified node type and subtype. More...

PDG_WorkItemDataType *	workItemDataType ()
	Queries the work item data type associated with this node. More...

const PDG_WorkItemDataType *	workItemDataType () const

bool	resolveWorkItemDataType (UT_WorkBuffer &errors)
	Resolves and caches the work item data type. More...

const PDG_PortArray &	ports (PDG_PortType type) const
	Returns the list of all ports of the specified type. More...

const PDG_PortArray &	inputPorts () const

const PDG_PortArray &	outputPorts () const

const PDG_PortArray &	parameters () const

const ParameterGroupArray &	parameterGroups () const
	Returns the list of parameter groups for the node. More...

bool	parametersForTag (const UT_StringHolder &tag, PDG_PortArray &parameters) const
	Returns the list of parameters with the specified tag. More...

const PDG_PortArray &	customParameters () const
	Returns the list of custom parameter ports. More...

PDG_Port *	port (PDG_PortType type, int index) const

PDG_Port *	port (PDG_PortType type, const UT_StringHolder &name) const

PDG_Port *	port (const UT_StringHolder &name) const

PDG_Port *	inputPort (int index) const
	Specialized functions for finding input ports by name or index. More...

PDG_Port *	inputPort (const UT_StringHolder &name) const

bool	inputPortsForNode (PDG_Node *node, PDG_PortArray &ports) const

bool	inputPortsForWorkItem (const PDG_WorkItem *work_item, PDG_PortArray &ports) const

bool	isWorkItemFromInputPort (const PDG_WorkItem *work_item, const UT_StringHolder &name) const

PDG_Port *	outputPort (int index) const
	Sepcialized functions for finding output ports by name or index. More...

PDG_Port *	outputPort (const UT_StringHolder &name) const

PDG_Port *	parameter (const UT_StringHolder &name, int multi=-1) const

PDGT_Value *	paramValue (const UT_StringHolder &name, int index=0) const

PDGT_Value *	defaultParamValue (const UT_StringHolder &name, int index=0) const

int	portCount (PDG_PortType type) const

int	inputCount () const

int	outputCount () const

int	parameterCount () const

bool	hasUnorderedPorts () const

int	numOrderedPorts () const

PDG_Port *	addPort (PDG_PortType type, const PDG_WorkItemDataType *data_type, const UT_StringHolder &name, const UT_StringHolder &label, const UT_StringArray &tags=UT_StringArray(), int size=0, bool ordered=true, bool custom=false)

PDG_Port *	addParameter (PDGT_Value::DataType data_type, const UT_StringHolder &name, const UT_StringHolder &label, const UT_StringArray &tags, int size=1, bool custom=false)

PDG_Port *	addParameter (PDGT_Value::DataType data_type, const UT_StringHolder &name, const UT_StringHolder &label, int size=1, bool custom=false)
	Adds a parameter with a data type, name, label and optional size. More...

bool	removeParameter (const UT_StringHolder &name)

void	addFileDependency (const UT_StringHolder &file_path)
	Adds a new file dependency to the node interface. More...

void	addParameterGroup (const UT_StringHolder &name, bool root=true, bool multiparm=false)
	Adds a new parameter group to the node interface. More...

void	endParameterGroup ()
	Ends the current parameter group. More...

const UT_StringHolder &	templateName () const

bool	isValid () const
	Returns true if the node interface is valid. More...

const DependencyArray &	autoDependencies () const
	Returns the list of external files that this node depends on. More...

const PDG_Port::ExpressionVars &	commonVars () const

PDG_ApplicationShim::Node *	appNode () const

template<typename T , typename... Args>
void	setAppNode (Args &&...args)
	Sets the underlying app node. More...

const PDG_AttributeInfo &	attributeInfo () const

void	setAttributeInfo (const PDG_AttributeInfo &info)
	Clears and sets the attribute info for this interface. More...

const PDG_JobScriptInfo &	scriptInfo () const
	Returns the script info for this node interface. More...

void	setScriptInfo (const PDG_JobScriptInfo &info)
	Sets the script info for the interface. More...

void	setServiceCompatibility (const UT_StringHolder &service_type_name, bool compatible)

template<typename... Args>
void	addErrorFmt (const char *fmt, Args &&...args) const
	Adds an error using a format string, instead of plain string. More...

template<typename... Args>
void	addWarningFmt (const char *fmt, Args &&...args) const
	Adds a warning using a format string, instead of plain string. More...

template<typename T >
bool	evaluate (T &result, const UT_StringHolder &name, const PDG_WorkItem *work_item=nullptr, int index=0, int multi=-1) const
	Evaluates a parameter and reports errors if desired. More...

bool	evaluateRaw (UT_StringHolder &result, const UT_StringHolder &name, const PDG_WorkItem *work_item=nullptr, int index=0, int multi=-1) const

template<typename T >
bool	evaluateArray (T &result, const UT_StringHolder &name, const PDG_WorkItem *work_item=nullptr, int multi=-1) const
	Evaluates a parameter as an array and reports errors if desired. More...

Public Member Functions inherited from PDG_EventEmitter
	PDG_EventEmitter (PDG_EventQueue *event_queue, bool block_destruction)

virtual	~PDG_EventEmitter ()

int64	getMemoryUsage (bool inclusive) const
	Returns memory usage for this event emitter instance. More...

bool	addEventHandler (PDG_EventHandler *handler)
	Adds an event handlers that listens for all types of events. More...

bool	addEventHandler (PDG_EventHandler *handler, PDG_EventType event)
	Adds an event handlers that listens for a specific event. More...

bool	addEventHandler (PDG_EventHandler *handler, const PDG_EventFilter &filter)

void	removeEventHandler (PDG_EventHandler *handler)
	Removes an event handler from this emitter. More...

void	removeAllEventHandlers (bool user_handler_only=false)

void	emitEvent (const PDG_Event &event, bool immediate=false) const
	Emit an event to all handlers. More...

void	eventHandlers (PDG_EventHandlerArray &handlers) const

void	setEventQueue (PDG_EventQueue *event_queue)

void	clearEventQueue ()

bool	shouldEmit (const PDG_Event &event) const

Public Member Functions inherited from PDGT_TypeInstance< EnumType >
	PDGT_TypeInstance ()

	PDGT_TypeInstance (const PDGT_BaseType< EnumType > *base_type, const PDGT_ValueArgs &extra_args)

virtual	~PDGT_TypeInstance ()

const BaseType *	type () const

const UT_StringHolder &	typeName () const

const PDGT_ValueArgs &	extraArgs () const

bool	compareType (const BaseType *other_type, bool deep=true) const

void	setReloading (bool is_reloading)

bool	isReloading () const

Public Member Functions inherited from PDGE_DependencyOwner
	PDGE_DependencyOwner ()
	Constructs a new dependency owner, which must have a string name. More...

virtual	~PDGE_DependencyOwner ()

virtual UT_StringHolder	debugGroup () const

Static Public Member Functions
static PDG_Scheduler *	fromJSON (const UT_JSONValue value, PDG_GraphContext context, UT_WorkBuffer &errors)
	Reads and constructs a scheduler from JSON and returns the instance. More...

Static Public Member Functions inherited from PDGE_DependencyOwner
template<typename T >
static void	cast (UT_Array< T > &out, const Array &in)
	Converts an owner array to an array of the specified type. More...

template<typename T >
static void	cast (Array &out, const UT_Array< T > &in)
	Converts an array of the specified type to an owner array. More...

template<typename T >
static void	cast (Array &out, const UT_Array< UT_UniquePtr< T >> &in)

Protected Member Functions
PDG_WorkItem *	workItemChecked (PDG_WorkItemID work_item_id, int index)
	Find the workitem and report error if not found. More...

PDGE_Dependency::State	evalResolve (PDGE_Resolutions &resolutions, const PDGE_Evaluator &evaluator, PDGE_Dependency *dependency) override
	Called when a dependency owned by this object is resolved. More...

Protected Member Functions inherited from PDGE_DependencyOwner
virtual int	evalUnresolve (PDGE_Dependency::Array &, PDGE_Dependency *)

virtual PDGE_Dependency::State	evalPartial (PDGE_Resolutions &, const PDGE_Evaluator &, PDGE_Dependency *, const Array &)

const PDGE_Dependency::Set &	propagateSet ()
	Returns the propagate set for this owner. More...

void	addPropagate (PDGE_Dependency *dependency)
	Adds an entry to the propagate set. More...

Additional Inherited Members
Static Public Attributes inherited from PDG_NodeInterface
static const UT_StringHolder	theProcessorCommandTypeParm

static const UT_StringHolder	theProcessorCommandParm

static const UT_StringHolder	theProcessorWorkItemGenerationParm

static const UT_StringHolder	theProcessorCacheModeParm

static const UT_StringHolder	theProcessorCookTypeParm

static const UT_StringHolder	theProcessorServiceNameParm

static const UT_StringHolder	theProcessorServiceResetWhenParm

static const UT_StringHolder	theProcessorServiceResetTypeParm

static const UT_StringHolder	theProcessorUseServiceBlockParm

static const UT_StringHolder	theProcessorPriorityTypeParm

static const UT_StringHolder	theProcessorPriorityExpressionParm

static const UT_StringHolder	theProcessorLabelTypeParm

static const UT_StringHolder	theProcessorLabelExpressionParm

static const UT_StringHolder	theProcessorUseScheduleWhenParm

static const UT_StringHolder	theProcessorScheduleWhenParm

static const UT_StringHolder	theFeedbackBeginParm

static const UT_StringHolder	theFeedbackFilesParm

static const UT_StringHolder	theFeedbackAttribsParm

static const UT_StringHolder	theFeedbackAttribPatternParm

static const UT_StringHolder	thePartitionerSortParm

static const UT_StringHolder	thePartitionerSortAttribParm

static const UT_StringHolder	thePartitionerSortDirectionParm

static const UT_StringHolder	thePartitionerSortRequiredParm

static const UT_StringHolder	thePartitionerWhenParm

static const UT_StringHolder	thePartitionerIgnoreFailures

static const UT_StringHolder	thePartitionerSplitEnabledParm

static const UT_StringHolder	thePartitionerSplitAttributeParm

static const UT_StringHolder	thePartitionerSplitMissingParm

static const UT_StringHolder	thePartitionerSplitDefaultParm

static const UT_StringHolder	thePartitionerSplitPartialParm

static const UT_StringHolder	thePartitionerTargetTypeParm

static const UT_StringHolder	thePartitionerTargetParm

static const UT_StringHolder	thePartitionerMergeParm

static const UT_StringHolder	thePartitionerMergeOutputsParm

static const UT_StringHolder	thePartitionerMergeAttribsParm

static const UT_StringHolder	thePartitionerMergeOpParm

static const UT_StringHolder	thePartitionerMergePatternParm

static const UT_StringHolder	thePartitionerMergePreserveParm

static const UT_StringHolder	thePartitionerStoreIDsParm

static const UT_StringHolder	thePartitionerIDAttribParm

static const UT_StringHolder	thePartitionerSetFrameParm

static const UT_StringHolder	theSchedulerWorkingDirParm

static const UT_StringHolder	theSchedulerDataSourceParm

static const UT_StringHolder	theSchedulerValidateOutputsParm

static const UT_StringHolder	theSchedulerCheckExpectedOutputsParm

static const UT_StringHolder	theSchedulerCompressWorkItemDataParm

static const UT_StringHolder	theSchedulerTickPeriodParm

static const UT_StringHolder	theSchedulerMaxItemsParm

static const UT_StringHolder	theSchedulerUseMaxTasksParm

static const UT_StringHolder	theSchedulerMaxTasksParm

static const UT_StringHolder	theSchedulerMapModeParm

static const UT_StringHolder	theSchedulerMapZoneParm

static const UT_StringHolder	theSchedulerUseMapZoneParm

static const UT_StringHolder	theSchedulerWaitForFailuresParm

static const UT_StringHolder	theSchedulerDeleteTempDirParm

static const UT_StringHolder	theSchedulerTransferTypeParm

static const UT_StringHolder	theSchedulerTransferRootParm

static const UT_StringHolder	theSchedulerRpcTimeout

static const UT_StringHolder	theSchedulerRpcRetries

static const UT_StringHolder	theSchedulerRpcBackoff

static const UT_StringHolder	theSchedulerRpcBatch

static const UT_StringHolder	theSchedulerRpcRelease

static const UT_StringHolder	theSchedulerRpcIgnoreErrors

static const UT_StringHolder	theSchedulerRpcMaxErrors

static const UT_StringHolder	theTagExpandName

static const UT_StringHolder	theTagOpDepDirty

static const UT_StringHolder	theTagOpDepRegen

static const UT_StringHolder	theTagExtraInput

static const UT_StringHolder	theSeparatorLabel

static const UT_StringHolder	theGenerateMenuScript

static const UT_StringHolder	theCacheModeMenuScript

Protected Attributes inherited from PDG_NodeInterface
PDG_AttributeInfo	myAttributeInfo

PDG_JobScriptInfo	myScriptInfo

Protected Attributes inherited from PDGT_TypeInstance< EnumType >
const BaseType *	myBaseType

PDGT_ValueArgs	myExtraArgs

bool	myReloading

Detailed Description

Definition at line 60 of file PDG_Scheduler.h.

Member Enumeration Documentation

enum PDG_Scheduler::AcceptResult

Enumerator
eSchedulerAccept	The scheduler is able to handle the specified work item.
eSchedulerReject	The scheduler is not able to handle the specified work item.
eSchedulerDefault	The scheduler cannot tell if can/can't schedule the specified work item, and the default logic for checking should be used instead

Definition at line 114 of file PDG_Scheduler.h.

enum PDG_Scheduler::ScheduleResult

Enumerator
eCookCanceled	The work item was cooked, and should be marked as canceled.
eCookFailed	The work item was cooked, and should be marked as failed.
eCookSucceeded	The work item was cooked, and should be marked as succeeded.
eFailed	The call to schedule the work item failed.
eSucceeded	The call to schedule the work item succeeded.
eDeferred	The scheduler cannot handle the work item at this time.
eFullDeferred	The scheduler cannot handle any work items at this time, and all further scheduling requests will be deferred

Definition at line 69 of file PDG_Scheduler.h.

enum PDG_Scheduler::TempDirCleanup

Enumerator
eCleanupNone	The temp file dir is not cleaned up automatically.
eCleanupShutdown	The temp file dir is cleaned up when the scheduler is removed or the session shuts down
eCleanupCook	The temp file dir is cleaned up after the scheduler finishes cooking

Definition at line 144 of file PDG_Scheduler.h.

enum PDG_Scheduler::TickResult

Enumerator
eSchedulerReady	The scheduler is ready to accept work items.
eSchedulerBusy	The scheduler is busy, and cannot process additional work items.
eSchedulerCancelCook	The scheduler has encountered some sort of fatal error or request to cancel, and will not longer accept work items for the remainder of the cook.

Definition at line 97 of file PDG_Scheduler.h.

enum PDG_Scheduler::WorkItemDataSource

Enumerator
eSourceJSONFile	Work item data is transfered to the farm using a shared drive, by writing it to .json file on disk.
eSourceRPCMessage	Work item data is transfered via RPC.

Definition at line 131 of file PDG_Scheduler.h.

Constructor & Destructor Documentation

PDG_Scheduler::PDG_Scheduler	(	const PDG_BaseType *	type,
		const PDGT_ValueArgs &	extra_args,
		const UT_StringHolder &	name
	)

PDG_Scheduler::~PDG_Scheduler ( )

override

Member Function Documentation

void PDG_Scheduler::addError ( const UT_StringHolder & message ) const

overridevirtual

Emits errors or warnings from the scheduler as PDG_Events.

Reimplemented from PDG_NodeInterface.

void PDG_Scheduler::addWarning ( const UT_StringHolder & message ) const

overridevirtual

Adds a warning to the node interface – implemented in subclasses.

Reimplemented from PDG_NodeInterface.

virtual UT_StringHolder PDG_Scheduler::applicationBin	(	const UT_StringHolder &	name,
		const PDG_WorkItem *	work_item
	)

virtual

Returns the path to an application for the given name, for example "python", "hython"

bool PDG_Scheduler::asJSON	(	UT_JSONWriter &	writer,
		bool	skip_defaults
	)		const

Writes the current parameter value configuration of this scheduler to JSON

void PDG_Scheduler::cancelCook ( bool pause )

Cancels an active cook.

void PDG_Scheduler::cancelNode ( PDG_Node * node )

Cancels a cook for a specific node.

bool PDG_Scheduler::cancelWorkItem ( PDG_WorkItem * work_item )

Cancels a cook for a specific work tiem.

bool PDG_Scheduler::canSchedule ( const PDG_WorkItem * work_item )

Returns true if the scheduler is able to queue the specified work item, else false.

virtual void PDG_Scheduler::cleanTempDirectory ( )

virtual

Delete the temporary directory and all its contents.

virtual void PDG_Scheduler::clearSharedServerInfo ( const UT_StringHolder & sharedserver_name )

virtual

Clears metadata associated with the given shared server name.

PDG_GraphContext* PDG_Scheduler::context ( ) const

bool PDG_Scheduler::cookWorkItem ( PDG_WorkItem * work_item )

Cooks a specific work item using it's internal cook method.

UT_StringHolder PDG_Scheduler::dataDir ( bool local ) const

Returns the path to the directory where work items are serialized before their commands are executed. When local is true, returns the aboslute path on the local file system.

UT_StringHolder PDG_Scheduler::debugName ( ) const

inlineoverridevirtual

Debug name method, required by PDGE_DependencyOwner.

Implements PDGE_DependencyOwner.

Definition at line 171 of file PDG_Scheduler.h.

UT_StringHolder PDG_Scheduler::delocalizePath ( const UT_StringHolder & local_path ) const

Returns the delocalized (remote) version of the given local path.

void PDG_Scheduler::dependencyGraph	(	PDG_WorkItemMap &	dependencies,
		PDG_WorkItemMap &	dependents,
		PDG_WorkItemArray &	ready,
		bool	expand
	)

virtual bool PDG_Scheduler::endSharedServer ( const UT_StringHolder & sharedserver_name )

pure virtual

Terminate the give shared server.

PDGE_Dependency::State PDG_Scheduler::evalResolve	(	PDGE_Resolutions &	,
		const PDGE_Evaluator &	,
		PDGE_Dependency *
	)

overrideprotectedvirtual

Called when a dependency owned by this object is resolved.

Reimplemented from PDGE_DependencyOwner.

template<typename T , typename D = T>

bool PDG_Scheduler::evaluateOverride	(	T &	result,
		PDG_NodeInterface *	node,
		const UT_StringHolder &	prefix,
		const UT_StringHolder &	parm,
		PDG_WorkItem *	work_item,
		const D &	default_value,
		UT_WorkBuffer &	errors
	)		const

inline

Definition at line 502 of file PDG_Scheduler.h.

virtual UT_StringHolder PDG_Scheduler::expandCommandTokens	(	const UT_StringHolder &	command,
		const PDG_WorkItem *	work_item
	)

pure virtual

Expands special tokens in the command string.

UT_StringHolder PDG_Scheduler::formatTransferPath	(	const UT_StringHolder &	local_path,
		PDG_FileUtils::TransferType	default_type,
		bool	local,
		bool	check_type
	)		const

Returns the path on the scheduler that a local file will be copied to, using the standard file transfer mechanism

UT_StringHolder PDG_Scheduler::formatTransferPath	(	const UT_StringHolder &	root_path,
		const UT_StringHolder &	local_path,
		const UT_StringHolder &	sub_path,
		PDG_FileUtils::TransferType	default_type,
		bool	local,
		bool	check_type
	)		const

Returns the path on the scheduler that a local file will be copied to. Unlike the above method, this method preserves the directory structure relative to the specified root directory

static PDG_Scheduler* PDG_Scheduler::fromJSON	(	const UT_JSONValue *	value,
		PDG_GraphContext *	context,
		UT_WorkBuffer &	errors
	)

static

Reads and constructs a scheduler from JSON and returns the instance.

virtual UT_StringHolder PDG_Scheduler::getLogURI ( const PDG_WorkItem * work_item )

pure virtual

returns a URI for the workitem cook log (text file)

int64 PDG_Scheduler::getMemoryUsage ( bool inclusive ) const

overridevirtual

Returns the memory usage of this owner instance.

Reimplemented from PDGE_DependencyOwner.

virtual PDGN::PDGN_PollingClientNNG* PDG_Scheduler::getPollingClient ( )

inlinevirtual

Definition at line 457 of file PDG_Scheduler.h.

PDGT_ValueArgs PDG_Scheduler::getSharedServerInfo ( const UT_StringHolder & sharedserver_name )

Gets metadata associated with the given shared server name.

UT_StringArray PDG_Scheduler::getSharedServers ( )

Gets the list of shared servers.

virtual UT_StringHolder PDG_Scheduler::getStatusURI ( const PDG_WorkItem * work_item )

pure virtual

returns a URI for the workitem status page if relevant

bool PDG_Scheduler::isCheckExpectedOutputFiles ( ) const

bool PDG_Scheduler::isCompressWorkItemData ( ) const

PDGE_Dependency* PDG_Scheduler::isCookedDep ( )

inline

Returns the is cooked dep for this scheduler.

Definition at line 178 of file PDG_Scheduler.h.

bool PDG_Scheduler::isDefault ( )

bool PDG_Scheduler::isRunning ( int count = 0 )

bool PDG_Scheduler::isRunning ( const PDG_WorkItem * work_item )

PDGE_Dependency* PDG_Scheduler::isSetupDep ( )

inline

Returns the is cooked dep for this scheduler.

Definition at line 182 of file PDG_Scheduler.h.

bool PDG_Scheduler::isValidateOutputFiles ( ) const

bool PDG_Scheduler::isWaitForFailures ( ) const

PDG_WorkItemEvalState PDG_Scheduler::isWorkItemReady	(	PDG_WorkItemID	work_item_id,
		int	index
	)

UT_StringHolder PDG_Scheduler::jobName ( const PDG_WorkItem * work_item ) const

Returns the job name for the specified work item.

UT_StringHolder PDG_Scheduler::localizePath ( const UT_StringHolder & deloc_path ) const

Returns the local version of the given path.

UT_StringHolder PDG_Scheduler::logDir ( bool local ) const

Returns the path to the directory where log files generated during the cook should be written. When local is true, returns the aboslute path on the local file system.

PDG_PathMappingMode PDG_Scheduler::mapMode ( ) const

virtual int PDG_Scheduler::maxConcurrentTasks ( ) const

virtual

virtual int PDG_Scheduler::maxItemsPerTick ( ) const

virtual

const UT_StringHolder& PDG_Scheduler::name ( void ) const

inline

Returns the name of the shceudler.

Definition at line 186 of file PDG_Scheduler.h.

int PDG_Scheduler::numFailedItems ( ) const

int PDG_Scheduler::numQueuedItems ( ) const

int PDG_Scheduler::numRunningItems ( ) const

virtual AcceptResult PDG_Scheduler::onAcceptWorkItem ( const PDG_WorkItem * work_item )

pure virtual

Returns an enum indicating whether or not the scheduler accepts the specified work item

virtual void PDG_Scheduler::onCancelWorkItems	(	const PDG_WorkItemArray &	work_item,
		PDG_Node *	node
	)

pure virtual

Called when a specific work item should be canceled.

virtual void PDG_Scheduler::onConfigureCook ( PDG_CookOptions * cook_ptions )

pure virtual

Called once at the start of the cook, to allow the scheduler to set any custom cook options

virtual ScheduleResult PDG_Scheduler::onSchedule ( PDG_WorkItem * work_item )

pure virtual

Called whenever the scheduler should schedule a work item. This is a required callback.

virtual void PDG_Scheduler::onScheduleStatic	(	const PDG_WorkItemMap &	dependencies,
		const PDG_WorkItemMap &	dependents,
		const PDG_WorkItemArray &	ready_items
	)

pure virtual

Called when the scheduler should process a static dependency graph.

virtual bool PDG_Scheduler::onSetupCook ( )

pure virtual

Called at the before cooking on the background thread to setup anything needed for a cook.

virtual bool PDG_Scheduler::onStart ( )

pure virtual

Called when the scheduler is first started, should be used to initialize scheduler state, threads, etc. This is an optional callback.

virtual bool PDG_Scheduler::onStartCook	(	bool	static_cook,
		const PDG_NodeSet &
	)

pure virtual

Called when cooking begins.

virtual bool PDG_Scheduler::onStop ( )

pure virtual

Called when the scheduler is stopped, to clean up any resources held by the scheduler (sockets, threads, etc). Optional callback.

virtual bool PDG_Scheduler::onStopCook ( bool cancel )

pure virtual

Called when cooking completes or is canceled.

virtual TickResult PDG_Scheduler::onTick ( )

pure virtual

Called periodically during cooking to update state.

virtual bool PDG_Scheduler::onTransferFile ( const UT_StringHolder & file_path )

virtual

Custom file transfer logic, implemented per-scheduler.

void PDG_Scheduler::onWorkItemAddOutput	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	path,
		const UT_StringHolder &	tag,
		PDG_File::Hash	hash_code,
		bool	active_only
	)

void PDG_Scheduler::onWorkItemAddOutputs	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringArray &	paths,
		const UT_StringHolder &	tags,
		const PDG_File::HashArray &	hashes,
		bool	active_only
	)

void PDG_Scheduler::onWorkItemAddOutputs	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringArray &	paths,
		const UT_StringArray &	tags,
		const PDG_File::HashArray &	hashes,
		bool	active_only
	)

void PDG_Scheduler::onWorkItemAppendLog	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	log_data,
		PDG_WorkItemLogType	log_type
	)

void PDG_Scheduler::onWorkItemCanceled	(	PDG_WorkItemID	work_item_id,
		int	index
	)

void PDG_Scheduler::onWorkItemFailed	(	PDG_WorkItemID	work_item_id,
		int	index
	)

void PDG_Scheduler::onWorkItemInvalidateCache	(	PDG_WorkItemID	work_item_id,
		int	index
	)

void PDG_Scheduler::onWorkItemPriorityChanged ( PDG_WorkItem * work_item )

void PDG_Scheduler::onWorkItemSetCookPercent	(	PDG_WorkItemID	work_item_id,
		int	index,
		fpreal &	cook_percent
	)

void PDG_Scheduler::onWorkItemSetCustomState	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	custom_state
	)

void PDG_Scheduler::onWorkItemSetDict	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const UT_OptionsHolder &	dict_repr,
		int	attrib_index
	)

void PDG_Scheduler::onWorkItemSetDictArray	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const UT_Array< UT_OptionsHolder > &	value
	)

void PDG_Scheduler::onWorkItemSetFile	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const PDG_AttributeFile::Data &	value,
		int	attrib_index
	)

void PDG_Scheduler::onWorkItemSetFileArray	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const PDG_AttributeFile::Array &	value
	)

void PDG_Scheduler::onWorkItemSetFloat	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		fpreal	value,
		int	attrib_index
	)

void PDG_Scheduler::onWorkItemSetFloatArray	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const PDG_AttributeFloat::Array &	value
	)

void PDG_Scheduler::onWorkItemSetInt	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		exint	value,
		int	attrib_index
	)

void PDG_Scheduler::onWorkItemSetIntArray	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const PDG_AttributeInteger::Array &	value
	)

void PDG_Scheduler::onWorkItemSetPyObject	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const UT_StringHolder &	pyobject_repr
	)

void PDG_Scheduler::onWorkItemSetString	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const UT_StringHolder &	value,
		int	attrib_index
	)

void PDG_Scheduler::onWorkItemSetStringArray	(	PDG_WorkItemID	work_item_id,
		int	index,
		const UT_StringHolder &	attribute_name,
		const PDG_AttributeString::Array &	value
	)

void PDG_Scheduler::onWorkItemStartCook	(	PDG_WorkItemID	work_item_id,
		int	index,
		bool	clear_outputs
	)

void PDG_Scheduler::onWorkItemSucceeded	(	PDG_WorkItemID	work_item_id,
		int	index,
		fpreal	cook_duration
	)

void PDG_Scheduler::process ( bool skip_ready_items )

virtual PDG_WorkItemState PDG_Scheduler::queueWorkItem ( PDG_WorkItem * work_item )

virtual

Queues a work item and returns a state that represents the result of the operation

bool PDG_Scheduler::reloadInstance ( UT_WorkBuffer & errors )

overridevirtual

Called when the type object should reload itself because of a change to the underlying Python module

Reimplemented from PDGT_TypeInstance< EnumType >.

void PDG_Scheduler::removeWorkItem ( const PDG_WorkItem * work_item )

Removes a work item from any internal tracking lists.

void PDG_Scheduler::resetOwner ( )

overridevirtual

Resets the dependency owner.

Reimplemented from PDGE_DependencyOwner.

UT_StringHolder PDG_Scheduler::scriptDir ( bool local ) const

returns the temp script directory (network) path, equivalent to the PDG_SCRIPTDIR command token when local is false. When local is true, returns the absolute path to the temp script on the local file system

void PDG_Scheduler::setAcceptInProcess ( bool in_process )

sets whether or not the scheduler accepts in-process work items

void PDG_Scheduler::setContext ( PDG_GraphContext * context )

void PDG_Scheduler::setScriptDir	(	const UT_StringHolder &	local_path,
		const UT_StringHolder &	remote_path
	)

set the script directory local and network path, equivalent to the PDG_SCRIPTDIR

virtual UT_StringHolder PDG_Scheduler::setSharedServerInfo	(	const UT_StringHolder &	sharedserver_name,
		const PDGT_ValueArgs &	info
	)

virtual

Sets metadata associated with the given shared server name, returns full name.

void PDG_Scheduler::setTempDir	(	const UT_StringHolder &	local_path,
		const UT_StringHolder &	remote_path
	)

set the temp directory local and network path, equivalent to the PDG_TEMP

void PDG_Scheduler::setWorkingDir	(	const UT_StringHolder &	local_path,
		const UT_StringHolder &	remote_path
	)

set the working directory local and network path, equivalent to the PDG_DIR

bool PDG_Scheduler::startCook ( PDG_CookState & cook_state )

Called when a cook begins with the cook state data for that cook.

virtual bool PDG_Scheduler::startService	(	UT_WorkBuffer &	errors,
		PDG_Service *	service
	)

inlinevirtual

Starts a service using this scheduler.

Definition at line 475 of file PDG_Scheduler.h.

virtual bool PDG_Scheduler::startServiceClient	(	UT_WorkBuffer &	errors,
		PDG_Service *	service,
		PDG_ServiceClient *	client
	)

inlinevirtual

Starts a job for the specified service client.

Definition at line 488 of file PDG_Scheduler.h.

void PDG_Scheduler::stop ( bool exiting )

Called to stop the scheduler.

void PDG_Scheduler::stopCook ( )

Called when a cook stops.

virtual bool PDG_Scheduler::stopService	(	UT_WorkBuffer &	errors,
		PDG_Service *	service,
		bool	cancel
	)

inlinevirtual

Stops a service that was started with this scheduler.

Definition at line 481 of file PDG_Scheduler.h.

virtual bool PDG_Scheduler::stopServiceClient	(	UT_WorkBuffer &	errors,
		PDG_Service *	service,
		PDG_ServiceClient *	client
	)

inlinevirtual

Stops the job associated with a specific client process.

Definition at line 495 of file PDG_Scheduler.h.

virtual UT_StringHolder PDG_Scheduler::submitAsJob	(	const UT_StringHolder &	graph_file,
		const UT_StringHolder &	node_name
	)

pure virtual

cook the output node in the graph context of the given file as a single job

void PDG_Scheduler::submitStatic ( )

Submits a static cook with this scheduler.

const PDG_EventFilter& PDG_Scheduler::supportedEventTypes ( ) const

overridevirtual

Returns the list of supported event types.

Implements PDG_EventEmitter.

UT_StringHolder PDG_Scheduler::tempDir ( bool local ) const

returns the temp directory (network) path, equivalent to the PDG_TEMP command token when local is false. When local is true, returns the absolute path to the shared temp on the local file system

const PDG_NodeInterface* PDG_Scheduler::templateInterface ( ) const

overridevirtual

Returns the node interface/template that describes the default parameters and connections for the scheduler

Reimplemented from PDG_NodeInterface.

bool PDG_Scheduler::tick ( PDG_Scheduler::TickResult & tick_result )

Ticks the scheduler.

virtual fpreal PDG_Scheduler::tickPeriod ( ) const

virtual

bool PDG_Scheduler::transferFile	(	const PDG_WorkItem *	work_item,
		const PDG_File &	file,
		PDG_FileUtils::TransferType	default_type,
		bool	check_type,
		UT_WorkBuffer &	errors
	)		const

Transfers a file for a work item that uses this scheduler, using the transfer settings on the scheduler itself.

bool PDG_Scheduler::transferFile	(	const UT_StringHolder &	file_path,
		PDG_FileUtils::TransferType	default_type,
		bool	check_type,
		UT_WorkBuffer &	errors
	)		const

Transfers a file from the local machine to the machine that will be executing processor tasks, e.g. a remote machine on the farm.

bool PDG_Scheduler::transferFile	(	const UT_StringHolder &	root_path,
		const UT_StringHolder &	file_path,
		const UT_StringHolder &	sub_path,
		PDG_FileUtils::TransferType	default_type,
		bool	check_type,
		UT_WorkBuffer &	errors
	)		const

Transfers a file from the local machine to the machine that will be executing processor tasks, e.g. a remote machine on the farm. This variant of the method preserves the directory structure relative to the specified root directory

UT_StringHolder PDG_Scheduler::transferRoot ( ) const

PDG_FileTransferType PDG_Scheduler::transferType ( ) const

const PDG_SchedulerType* PDG_Scheduler::typeObject ( ) const

Returns the type object that defines the scheduler.

UT_StringHolder PDG_Scheduler::workingDir ( bool local ) const

returns the working directory (network) path, equivalent to the PDG_DIR command token when local is false. When local is true, returns the absolute path to the shared root on the local file system

PDG_WorkItem* PDG_Scheduler::workItemChecked	(	PDG_WorkItemID	work_item_id,
		int	index
	)

protected

Find the workitem and report error if not found.

WorkItemDataSource PDG_Scheduler::workItemDataSource ( ) const

virtual UT_StringHolder PDG_Scheduler::workItemResultServerAddr ( )

pure virtual

returns the server endpoint for work item results, in format <HOST>:<PORT>, equivalent to the PDG_RESULT_SERVER command token

The documentation for this class was generated from the following file:

PDG/PDG_Scheduler.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
