vec3h.h File Reference

#include "pxr/pxr.h"
#include "pxr/base/tf/diagnostic.h"
#include "pxr/base/gf/api.h"
#include "pxr/base/gf/limits.h"
#include "pxr/base/gf/traits.h"
#include "pxr/base/gf/math.h"
#include "pxr/base/gf/half.h"
#include <hboost/functional/hash.hpp>
#include <cstddef>
#include <cmath>
#include <iosfwd>
#include "pxr/base/gf/vec3d.h"
#include "pxr/base/gf/vec3f.h"
#include "pxr/base/gf/vec3i.h"

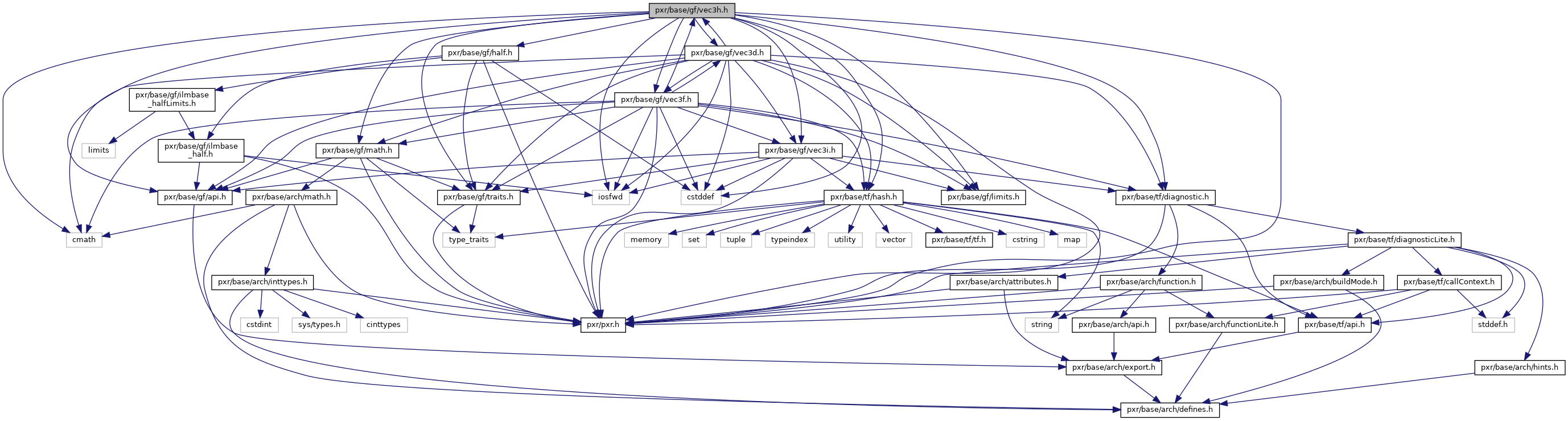

Include dependency graph for vec3h.h:

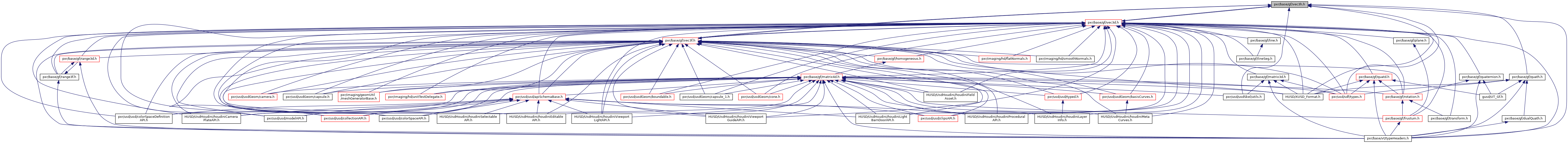

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	GfIsGfVec< class GfVec3h >
class	GfVec3h

Functions
GF_API std::ostream &	operator<< (std::ostream &, GfVec3h const &)
GfVec3h	GfCompMult (GfVec3h const &v1, GfVec3h const &v2)
	Returns component-wise multiplication of vectors v1 and v2. More...
GfVec3h	GfCompDiv (GfVec3h const &v1, GfVec3h const &v2)
	Returns component-wise quotient of vectors v1 and v2. More...
GfHalf	GfDot (GfVec3h const &v1, GfVec3h const &v2)
	Returns the dot (inner) product of two vectors. More...
GfHalf	GfGetLength (GfVec3h const &v)
	Returns the geometric length of v. More...
GfHalf	GfNormalize (GfVec3h *v, GfHalf eps=0.001)
GfVec3h	GfGetNormalized (GfVec3h const &v, GfHalf eps=0.001)
GfVec3h	GfGetProjection (GfVec3h const &a, GfVec3h const &b)
GfVec3h	GfGetComplement (GfVec3h const &a, GfVec3h const &b)
bool	GfIsClose (GfVec3h const &v1, GfVec3h const &v2, double tolerance)
GF_API bool	GfOrthogonalizeBasis (GfVec3h *tx, GfVec3h *ty, GfVec3h *tz, bool normalize, double eps=GF_MIN_ORTHO_TOLERANCE)
GF_API void	GfBuildOrthonormalFrame (GfVec3h const &v0, GfVec3h *v1, GfVec3h *v2, GfHalf eps=0.001)
GfVec3h	GfCross (GfVec3h const &v1, GfVec3h const &v2)
	Returns the cross product of v1 and v2. More...
GfVec3h	operator^ (GfVec3h const &v1, GfVec3h const &v2)
GF_API GfVec3h	GfSlerp (double alpha, GfVec3h const &v0, GfVec3h const &v1)
	Spherical linear interpolation in three dimensions. More...

Function Documentation

GF_API void GfBuildOrthonormalFrame	(	GfVec3h const &	v0,
		GfVec3h *	v1,
		GfVec3h *	v2,
		GfHalf	eps = 0.001
	)

GfVec3h GfCompDiv ( GfVec3h const &  v1, GfVec3h const &  v2  )

inline

Returns component-wise quotient of vectors v1 and v2.

Definition at line 365 of file vec3h.h.

GfVec3h GfCompMult ( GfVec3h const &  v1, GfVec3h const &  v2  )

inline

Returns component-wise multiplication of vectors v1 and v2.

Definition at line 355 of file vec3h.h.

GfVec3h GfCross ( GfVec3h const &  v1, GfVec3h const &  v2  )

inline

Returns the cross product of v1 and v2.

Definition at line 447 of file vec3h.h.

GfHalf GfDot ( GfVec3h const &  v1, GfVec3h const &  v2  )

inline

Returns the dot (inner) product of two vectors.

Definition at line 375 of file vec3h.h.

GfVec3h GfGetComplement ( GfVec3h const &  a, GfVec3h const &  b  )

inline

Returns the orthogonal complement of a.GetProjection(b). That is:

a - a.GetProjection(b)

Definition at line 420 of file vec3h.h.

GfHalf GfGetLength ( GfVec3h const &  v )

inline

Returns the geometric length of v.

Definition at line 382 of file vec3h.h.

GfVec3h GfGetNormalized ( GfVec3h const &  v, GfHalf  eps = 0.001  )

inline

Returns a normalized (unit-length) vector with the same direction as v. If the length of this vector is smaller than eps, the vector divided by eps is returned.

Definition at line 400 of file vec3h.h.

GfVec3h GfGetProjection ( GfVec3h const &  a, GfVec3h const &  b  )

inline

Returns the projection of a onto b. That is:

b * (a * b)

Definition at line 410 of file vec3h.h.

bool GfIsClose ( GfVec3h const &  v1, GfVec3h const &  v2, double  tolerance  )

inline

Tests for equality within a given tolerance, returning true if the length of the difference vector is less than or equal to tolerance.

Definition at line 428 of file vec3h.h.

GfHalf GfNormalize ( GfVec3h *  v, GfHalf  eps = 0.001  )

inline

Normalizes *v in place to unit length, returning the length before normalization. If the length of *v is smaller than eps then *v is set to *v/eps. The original length of *v is returned.

Definition at line 391 of file vec3h.h.

GF_API bool GfOrthogonalizeBasis	(	GfVec3h *	tx,
		GfVec3h *	ty,
		GfVec3h *	tz,
		bool	normalize,
		double	eps = GF_MIN_ORTHO_TOLERANCE
	)

GF_API GfVec3h GfSlerp	(	double	alpha,
		GfVec3h const &	v0,
		GfVec3h const &	v1
	)

Spherical linear interpolation in three dimensions.

GF_API std::ostream& operator<<	(	std::ostream &	,
		GfVec3h const &
	)

Output a GfVec3h.

GfVec3h operator^ ( GfVec3h const &  v1, GfVec3h const &  v2  )

inline

Returns the cross product of v1 and v2.

See Also

GfCross()

Definition at line 458 of file vec3h.h.
