UT_Gf.h File Reference

#include "pxr/pxr.h"
#include "UT_TypeTraits.h"
#include "pxr/base/gf/quaternion.h"
#include "pxr/base/gf/quatd.h"
#include "pxr/base/gf/quatf.h"
#include "pxr/base/gf/quath.h"
#include "pxr/base/gf/vec4d.h"
#include "pxr/base/gf/vec4f.h"
#include <SYS/SYS_TypeTraits.h>
#include <UT/UT_VectorTypes.h>

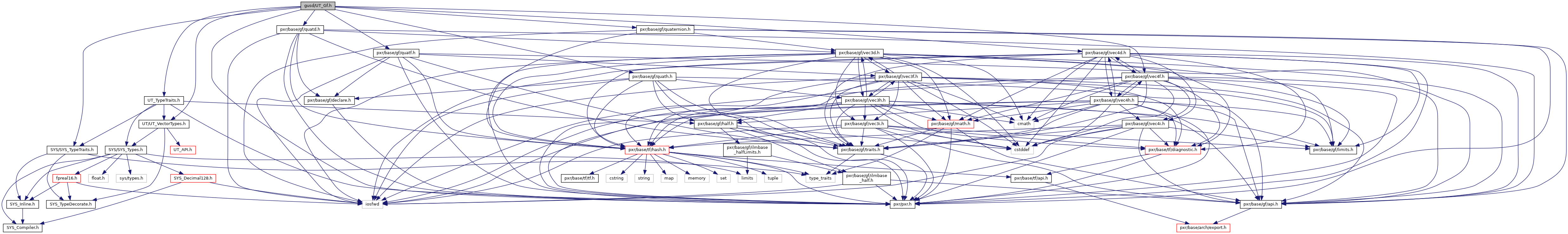

Include dependency graph for UT_Gf.h:

Go to the source code of this file.

Classes
struct	GusdUT_Gf
	Helpers for working with Gf types (vectors, matrices, etc.) within the HDK. More...
struct	GusdUT_Gf::TypeEquivalence< GF_OR_UT_TYPE >
struct	GusdUT_Gf::Castable< GF_OR_UT_TYPE >

Macros
#define	_GUSDUT_DECLARE_UNCASTABLE(TYPE)
	Declare a type as being uncastable. More...
#define	_GUSDUT_DECLARE_PARTIAL_EQUIVALENCE(TYPE, GFTYPE, UTTYPE, ALTTYPE)
#define	_GUSDUT_DECLARE_EQUIVALENCE(GFTYPE, UTTYPE)

Functions
	GUSDUT_DECLARE_POD_TUPLE (class GfVec2h, fpreal16, 2)
	Declare POD tuples for Gf types. More...
	GUSDUT_DECLARE_POD_TUPLE (class GfVec3h, fpreal16, 3)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec4h, fpreal16, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec2f, fpreal32, 2)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec3f, fpreal32, 3)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec4f, fpreal32, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec2d, fpreal64, 2)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec3d, fpreal64, 3)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec4d, fpreal64, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec2i, int32, 2)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec3i, int32, 3)
	GUSDUT_DECLARE_POD_TUPLE (class GfVec4i, int32, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfQuath, fpreal16, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfQuatf, fpreal32, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfQuatd, fpreal64, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix2f, fpreal32, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix3f, fpreal32, 9)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix4f, fpreal32, 16)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix2d, fpreal64, 4)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix3d, fpreal64, 9)
	GUSDUT_DECLARE_POD_TUPLE (class GfMatrix4d, fpreal64, 16)
PXR_NAMESPACE_CLOSE_SCOPE	SYS_DECLARE_IS_POD (PXR_NS::GfHalf)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec2h)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec3h)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec4h)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec2f)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec3f)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec4f)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec2d)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec3d)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec4d)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec2i)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec3i)
	SYS_DECLARE_IS_POD (PXR_NS::GfVec4i)
	SYS_DECLARE_IS_POD (PXR_NS::GfQuath)
	SYS_DECLARE_IS_POD (PXR_NS::GfQuatf)
	SYS_DECLARE_IS_POD (PXR_NS::GfQuatd)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix2f)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix3f)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix4f)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix2d)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix3d)
	SYS_DECLARE_IS_POD (PXR_NS::GfMatrix4d)
PXR_NAMESPACE_OPEN_SCOPE	_GUSDUT_DECLARE_UNCASTABLE (class GfQuaternion)
	_GUSDUT_DECLARE_UNCASTABLE (class GfQuatf)
	_GUSDUT_DECLARE_UNCASTABLE (class GfQuatd)
	_GUSDUT_DECLARE_UNCASTABLE (UT_QuaternionF)
	_GUSDUT_DECLARE_UNCASTABLE (UT_QuaternionD)
	_GUSDUT_DECLARE_UNCASTABLE (UT_QuaternionH)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec2h, UT_Vector2H)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec3h, UT_Vector3H)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec4h, UT_Vector4H)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec2d, UT_Vector2D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec3d, UT_Vector3D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec4d, UT_Vector4D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec2f, UT_Vector2F)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec3f, UT_Vector3F)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec4f, UT_Vector4F)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec2i, UT_Vector2i)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec3i, UT_Vector3i)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfVec4i, UT_Vector4i)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfQuatd, UT_QuaternionD)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfQuatf, UT_QuaternionF)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfQuath, UT_QuaternionH)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix2d, UT_Matrix2D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix3d, UT_Matrix3D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix4d, UT_Matrix4D)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix2f, UT_Matrix2F)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix3f, UT_Matrix3F)
	_GUSDUT_DECLARE_EQUIVALENCE (class GfMatrix4f, UT_Matrix4F)

Macro Definition Documentation

#define _GUSDUT_DECLARE_EQUIVALENCE	(		GFTYPE,
			UTTYPE
	)

Value:

_GUSDUT_DECLARE_PARTIAL_EQUIVALENCE(GFTYPE,GFTYPE,UTTYPE,UTTYPE); \
    _GUSDUT_DECLARE_PARTIAL_EQUIVALENCE(UTTYPE,GFTYPE,UTTYPE,GFTYPE);

Declare type equivalent between UT and Gf types. Only a single equivalence relationship may be defined per type.

The type info for both types must be declared first!

Definition at line 245 of file UT_Gf.h.

#define _GUSDUT_DECLARE_PARTIAL_EQUIVALENCE	(		TYPE,
			GFTYPE,
			UTTYPE,
			ALTTYPE
	)

Value:

template <>                                                         \
    struct GusdUT_Gf::TypeEquivalence<TYPE> {                           \
        static const bool   isSpecialized = true;                       \
        typedef GFTYPE GfType;                                          \
        typedef UTTYPE UtType;                                          \
        typedef ALTTYPE AltType;                                        \
    };

Declare a partial type equivalence. This specifies a one-way type equivalence.

Definition at line 232 of file UT_Gf.h.

#define _GUSDUT_DECLARE_UNCASTABLE

(

TYPE

)

Value:

template <>                                 \
    struct GusdUT_Gf::Castable<TYPE>            \
    {                                           \
        static const bool value = false;        \
    };

Declare a type as being uncastable.

Definition at line 222 of file UT_Gf.h.

Function Documentation

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec2h	,
		UT_Vector2H
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec3h	,
		UT_Vector3H
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec4h	,
		UT_Vector4H
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec2d	,
		UT_Vector2D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec3d	,
		UT_Vector3D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec4d	,
		UT_Vector4D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec2f	,
		UT_Vector2F
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec3f	,
		UT_Vector3F
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec4f	,
		UT_Vector4F
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec2i	,
		UT_Vector2i
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec3i	,
		UT_Vector3i
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfVec4i	,
		UT_Vector4i
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfQuatd	,
		UT_QuaternionD
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfQuatf	,
		UT_QuaternionF
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfQuath	,
		UT_QuaternionH
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix2d	,
		UT_Matrix2D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix3d	,
		UT_Matrix3D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix4d	,
		UT_Matrix4D
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix2f	,
		UT_Matrix2F
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix3f	,
		UT_Matrix3F
	)

_GUSDUT_DECLARE_EQUIVALENCE	(	class GfMatrix4f	,
		UT_Matrix4F
	)

PXR_NAMESPACE_OPEN_SCOPE _GUSDUT_DECLARE_UNCASTABLE

(

class GfQuaternion

)

_GUSDUT_DECLARE_UNCASTABLE

(

class GfQuatf

)

_GUSDUT_DECLARE_UNCASTABLE

(

class GfQuatd

)

_GUSDUT_DECLARE_UNCASTABLE

(

UT_QuaternionF

)

_GUSDUT_DECLARE_UNCASTABLE

(

UT_QuaternionD

)

_GUSDUT_DECLARE_UNCASTABLE

(

UT_QuaternionH

)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec2h	,
		fpreal16	,
		2
	)

Declare POD tuples for Gf types.

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec3h	,
		fpreal16	,
		3
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec4h	,
		fpreal16	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec2f	,
		fpreal32	,
		2
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec3f	,
		fpreal32	,
		3
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec4f	,
		fpreal32	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec2d	,
		fpreal64	,
		2
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec3d	,
		fpreal64	,
		3
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec4d	,
		fpreal64	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec2i	,
		int32	,
		2
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec3i	,
		int32	,
		3
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfVec4i	,
		int32	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfQuath	,
		fpreal16	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfQuatf	,
		fpreal32	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfQuatd	,
		fpreal64	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix2f	,
		fpreal32	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix3f	,
		fpreal32	,
		9
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix4f	,
		fpreal32	,
		16
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix2d	,
		fpreal64	,
		4
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix3d	,
		fpreal64	,
		9
	)

GUSDUT_DECLARE_POD_TUPLE	(	class GfMatrix4d	,
		fpreal64	,
		16
	)

PXR_NAMESPACE_CLOSE_SCOPE SYS_DECLARE_IS_POD

(

PXR_NS::GfHalf

)

Declare types as PODs, so that UT_Arrays of the types can be optimized. This is done to ensure that Gf types are handled in the same manner as UT types: the same is done for UT types as well (see UT/UT_VectorTypes.h).

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec2h

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec3h

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec4h

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec2f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec3f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec4f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec2d

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec3d

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec4d

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec2i

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec3i

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfVec4i

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfQuath

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfQuatf

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfQuatd

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix2f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix3f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix4f

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix2d

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix3d

)

SYS_DECLARE_IS_POD

(

PXR_NS::GfMatrix4d

)
