#include <SIM_Force.h>

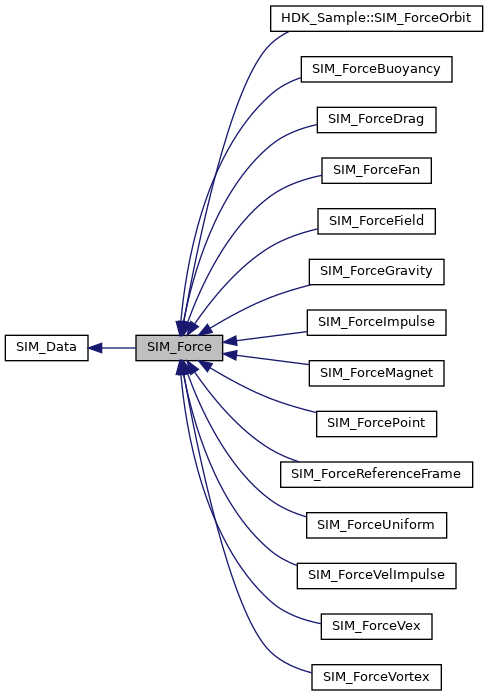

Inheritance diagram for SIM_Force:

Public Types
enum	SIM_ForceSample { SIM_FORCE_SAMPLEPOINT, SIM_FORCE_SAMPLECIRCLE, SIM_FORCE_SAMPLESPHERE }

Public Member Functions
void	getForce (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

bool	getForceSet (const SIM_Object &object, const UT_Vector3Array &positions, const UT_Vector3Array &velocities, const UT_Vector3Array &angvelocities, const UT_FloatArray &masses, UT_Vector3Array &forces, UT_Vector3Array &torques) const

SIM_ForceResolver *	getForceResolver (const SIM_Object &object) const

void	getForceOnCircle (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &normal, const fpreal radius, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

void	getForceOnSphere (const SIM_Object &object, const UT_Vector3 &position, const fpreal radius, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

void	getForceJacobian (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Matrix &dFdX, UT_Matrix &dFdV) const

SIM_ForceSample	getOptimalForceSampling () const

void	getPointForces (SIM_PointForceCallback &cb, const SIM_Object &object, const GU_ConstDetailHandle &gdh, const UT_DMatrix4 &geoxform, const SIM_Position position, const SIM_Motion motion, bool forcesinworldspace) const

Public Member Functions inherited from SIM_Data
const UT_StringHolder &	getDataType () const

void	initialize (const SIM_SubdataBehavior &subdatabehavior)

void	makeEqual (const SIM_Data *source, const SIM_SubdataBehavior &subdatabehavior)

void	setParameters (const SIM_Options &parms)

void	interpolate (const SIM_Data source1, const SIM_Data source2, fpreal interp)

int64	getMemorySize () const

bool	getIsAlternateRepresentation () const

bool	saveToFile (const char *filename, UT_CompressionType compressionType) const

bool	saveToStream (std::ostream &os, UT_CompressionType compressionType) const

void	appendFullDataPath (const SIM_Data *subdata, bool useobjectid, UT_String &datapath) const

bool	loadFromFile (const char *filename)

bool	loadFromStream (UT_IStream &is, bool skiptype=false)

bool	getIsOfType (const UT_StringRef &datatype) const

const void *	getConstPointerToType (const UT_StringRef &datatype) const

void *	getPointerToType (const UT_StringRef &datatype)

int	getNumSubData () const
	Get the number of sub-data items attached to this data. More...

const UT_StringHolder &	getSubDataName (int index) const
	Get the name of the sub-data at a particular index location. More...

int	getSubDataIndex (const SIM_Data *subdata) const

bool	buildSubDataPath (const SIM_Data *subdata, UT_String &pathto) const

const SIM_Query &	getQueryObject () const

SIM_Options *	getUserOptions ()

const SIM_Options *	getConstUserOptions () const

long	getGuideParmVersion () const

void	addGuideDep (DEP_MicroNode &src) const

virtual bool	getGuideGeometryList (const SIM_RootData &root, const char *datapath, const SIM_Time &t, UT_Array< GU_ConstDetailHandle > &detailArray, UT_Array< UT_DMatrix4 > &xformArray) const

GU_ConstDetailHandle	getGuideGeometry (const SIM_RootData &root, const char *datapath, UT_DMatrix4 &xform, const SIM_Time &t) const

void	buildGuideOptions (SIM_Options &options, const SIM_Time &time) const

SIM_Data *	getSubData (int index)

const SIM_Data *	getConstSubData (int index) const

SIM_Data *	getNamedSubData (const char *dataname)

const SIM_Data *	getConstNamedSubData (const char *dataname) const

void	filterSubData (SIM_DataArray &ncdp, UT_StringArray names, const SIM_DataFilter &ncfilter, const char startfrom, const SIM_DataFilter &recursefilter)

void	filterConstSubData (SIM_ConstDataArray &dp, UT_StringArray names, const SIM_DataFilter &filter, const char startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	getNthSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter)

const SIM_Data *	getNthConstSubData (UT_String name, const SIM_DataFilter &filter, int n, const char startfrom, const SIM_DataFilter &recurseFilter) const

void	forEachSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter)

void	forEachConstSubData (SIM_EachDataCallback &cb, const SIM_DataFilter &filter, const char *startfrom, const SIM_DataFilter &recurseFilter) const

SIM_Data *	createNamedSubData (const char dataname, const char datatype, int creationflags, UT_String *newdatanameptr=NULL)

SIM_Data *	getOrCreateAlternateRepresentation (const char dataname, const char datatype) const

void	interpolateSubData (const SIM_Data &source1, const SIM_Data &source2, fpreal interp, const SIM_DataFilter &interpdata, const SIM_DataFilter &recurse)

void	setNamedSubData (const char dataname, const SIM_Data data, int setflags)

void	createUniqueSubDataName (const SIM_Data *subdata, UT_String &dataname) const

void	removeNamedSubData (const char *dataname)
	Remove some existing sub-data by name. More...

void	removeSubData (int index)
	Remove some existing sub-data by index. More...

void	moveNamedSubData (const char oldname, const char newname)

const UT_Guid &	getUniqueId () const

long	getReferenceCount () const

int	getCreatorId () const
	Get the ID of the node that created this data. More...

OP_Node *	getCreatorNode () const
	Use the creator ID to look up the OP_Node that created this data. More...

OP_Node *	getOwnerNetwork () const
	Look up the owner node of our engine to get the DOP Network pointer. More...

const SIM_Engine &	getEngine () const
	Get the engine that created us (from our data factory). More...

int	getCreatorIndex () const
	Get the output index of the creator node that generated this data. More...

const SIM_Time &	getCreationTime () const
	Get the creation time for this data. More...

bool	getIsSelected () const
	Get the selected flag for this data. More...

void	setIsSelected (bool selected) const

bool	getSelectionRepresentsObject () const

void	copyCreationInfoFrom (const SIM_Data *source)

OP_Node &	getNodePathsRelativeTo () const

OP_Node *	getOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

OBJ_Node *	getOBJNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return an OBJ_Node. More...

SOP_Node *	getSOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a SOP_Node. More...

DOP_Node *	getDOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a DOP_Node. More...

COP2_Node *	getCOP2Node (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a COP2_Node. More...

CHOP_Node *	getCHOPNode (const char *path, bool addinterest) const
	Given a path relative to our creator node, return a CHOP_Node. More...

void	addOPInterest (OP_Node *node) const
	Adds an interest in the specified node to our engine's owner node. More...

void	addError (const SIM_RootData root, int errorcode, const char errorparm, UT_ErrorSeverity severity) const
	Adds an error to our SIM_Engine. More...

void	makeMemberDataUnique ()

virtual void	makeMemberDataUniqueSubclass ()

Protected Member Functions
	SIM_Force (const SIM_DataFactory *factory)

	~SIM_Force () override

void	applyNoise (const UT_Vector3 &pos, UT_Vector3 &forceortorque) const

void	applyNoise (const UT_Vector3 &pos, UT_Vector3 &force, UT_Vector3 &torque) const

void	applyNoiseJacobian (const UT_Vector3 &pos, UT_Matrix &dFdX, UT_Matrix &dFdV) const

virtual void	getForceSubclass (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

virtual SIM_ForceResolver *	getForceResolverSubclass (const SIM_Object &object) const

virtual bool	getForceSetSubclass (const SIM_Object &object, const UT_Vector3Array &positions, const UT_Vector3Array &velocities, const UT_Vector3Array &angvelocities, const UT_FloatArray &masses, UT_Vector3Array &forces, UT_Vector3Array &torque) const

virtual void	getForceOnCircleSubclass (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &normal, const fpreal radius, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

virtual void	getForceOnSphereSubclass (const SIM_Object &object, const UT_Vector3 &position, const fpreal radius, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Vector3 &force, UT_Vector3 &torque) const

virtual void	getForceJacobianSubclass (const SIM_Object &object, const UT_Vector3 &position, const UT_Vector3 &velocity, const UT_Vector3 &angvel, const fpreal mass, UT_Matrix &dFdX, UT_Matrix &dFdV) const

virtual SIM_ForceSample	getOptimalForceSamplingSubclass () const

Protected Member Functions inherited from SIM_Data
	SIM_Data (const SIM_DataFactory *factory)

virtual	~SIM_Data ()

void	handleModification (int code=-1)

void	setNeedsToRecalculateMemorySize () const

void	deleteQueryObjectIfNotBuilding () const
	Deletes the query object for this data, if there is one. More...

void	deleteGuideObjectIfNotBuilding () const
	Delete the guide geometry for this data, if it exists. More...

void	initAlternateRepresentation () const

void	setNeedsInitialization (bool needsinit) const
	Flags an alternate representation subdata as requiring initialization. More...

bool	getNeedsInitialization () const
	Tests whether an alternate representation requires initialization. More...

bool	saveOptionPacket (std::ostream &os, const char name, const SIM_Options opts) const

bool	loadOptionPacket (UT_IStream &is, const char name, SIM_Options opts) const

bool	getIsDoingSimplifiedSaveLoad () const

void	initializeFromParmDefaults ()

void	setSelectionRepresentsObject (bool representsobject)

virtual void	setNeedsInitializationSubclass (bool needsinit) const

virtual void	initializeSubclass ()

virtual void	makeEqualSubclass (const SIM_Data *source)

virtual void	saveSubclass (std::ostream &os) const

virtual void	saveIOSubclass (std::ostream &os, SIM_DataThreadedIO *io) const

virtual bool	loadSubclass (UT_IStream &is)

virtual bool	loadIOSubclass (UT_IStream &is, SIM_DataThreadedIO *io)

virtual SIM_Query *	createQueryObjectSubclass () const

virtual long	getGuideParmVersionSubclass () const

virtual SIM_Guide *	createGuideObjectSubclass () const

virtual void	buildGuideGeometrySubclass (const SIM_RootData &root, const SIM_Options &options, const GU_DetailHandle &gdh, UT_DMatrix4 *xform, const SIM_Time &t) const

virtual void	setParametersSubclass (const SIM_Options &parms)

virtual void	setNamedSubDataSubclass (const char dataname, const SIM_Data data)

virtual void	removeNamedSubDataSubclass (const char *dataname)

virtual void	interpolateSubclass (const SIM_Data source1, const SIM_Data source2, fpreal interp)

virtual int64	getMemorySizeSubclass () const

virtual void	handleModificationSubclass (int code)

virtual bool	getIsAlternateRepresentationSubclass () const

virtual void	initAlternateRepresentationSubclass (const SIM_Data &)

virtual void *	getCastToType (const UT_StringRef &datatype) const

virtual const UT_StringHolder &	getDataTypeSubclass () const

const SIM_Data *	getAlternateRepresentationOf () const

Additional Inherited Members
Static Public Member Functions inherited from SIM_Data
static bool	getDataTypeFromFile (const char *filename, UT_String &datatype)

static bool	getDataTypeFromStream (UT_IStream &is, UT_String &datatype)

static const void *	castConstPointerToType (const SIM_Data *data, const UT_StringRef &datatype)

static void *	castPointerToType (SIM_Data *data, const UT_StringRef &datatype)

Static Protected Member Functions inherited from SIM_Data
static const PRM_Template *	getEmptyTemplateList ()

static const SIM_DopDescription *	getEmptyDopDescription ()
	A DOP description that says not to create an automatic DOP. More...

static void	getDataTypeSuperclasses (UT_StringArray &)

Detailed Description

This is the definition of the SIM_Force interface. The only function that needs to be overridden (besides any standard SIM_Data overrides) is the getForceSubclass() function.

Examples:: SIM/SIM_ForceOrbit.h, and SIM/SIM_SolverHair.C.

Definition at line 46 of file SIM_Force.h.

Member Enumeration Documentation

enum SIM_Force::SIM_ForceSample

Enumerator
SIM_FORCE_SAMPLEPOINT
SIM_FORCE_SAMPLECIRCLE
SIM_FORCE_SAMPLESPHERE

Definition at line 49 of file SIM_Force.h.

Constructor & Destructor Documentation

SIM_Force::SIM_Force ( const SIM_DataFactory * factory )

explicitprotected

SIM_Force::~SIM_Force ( )

overrideprotected

Member Function Documentation

void SIM_Force::applyNoise	(	const UT_Vector3 &	pos,
		UT_Vector3 &	forceortorque
	)		const

protected

Looks for a SIM_Noise subdata and multiplies the force or torque vector by the noise value at the specified position.

Examples:: SIM/SIM_ForceOrbit.C.

void SIM_Force::applyNoise	(	const UT_Vector3 &	pos,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

protected

Looks for a SIM_Noise subdata and multiplies the force and torque vector by the noise value at the specified position. This is equivalent to calling the alternate applyNoise function twice, but eliminates the need to look up the noise value twice.

void SIM_Force::applyNoiseJacobian	(	const UT_Vector3 &	pos,
		UT_Matrix &	dFdX,
		UT_Matrix &	dFdV
	)		const

protected

The dFdX and dFdV jacobians should already be filled out with the jacobians of this force prior to noise. They are then scaled to match the magnitude of the noise at this location.

void SIM_Force::getForce	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

Returns the force and torque applied by this force to a point. This function calls getForceSubclass().

void SIM_Force::getForceJacobian	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Matrix &	dFdX,
		UT_Matrix &	dFdV
	)		const

Returns the derivatives of force & torque with respect to position and velocity. The jacobians are 6x6 matrices which will be initialized as UT_Matrix(1, 6, 1, 6).

virtual void SIM_Force::getForceJacobianSubclass	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Matrix &	dFdX,
		UT_Matrix &	dFdV
	)		const

protectedvirtual

Returns the derivatives of force & torque with respect to position and velocity. The jacobians are 6x6 matrices indexed from 1 (ie, dFdX(1,1) is first element). The default behaviour is to return 0 matrices. Note that the matrices are already initialized to 0 when this is called.

Reimplemented in SIM_ForceField, and SIM_ForceDrag.

void SIM_Force::getForceOnCircle	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	normal,
		const fpreal	radius,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

Returns the force and torque applied by this force to a circle. This function calls getForceOnCircleSubclass().

virtual void SIM_Force::getForceOnCircleSubclass	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	normal,
		const fpreal	radius,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

protectedvirtual

Returns the force and torque applied by this force to a circle. The outputs may be modified according to the information passed in about the object to which the force is being applied. The default implementation calls getForce() and assumes this is the force on a unit area. So the force and torque are then scaled by the area of the circle.

Reimplemented in HDK_Sample::SIM_ForceOrbit, SIM_ForceField, SIM_ForceFan, SIM_ForceImpulse, SIM_ForceVelImpulse, SIM_ForceGravity, and SIM_ForceDrag.

void SIM_Force::getForceOnSphere	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const fpreal	radius,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

Returns the force and torque applied by this force to a sphere. This function calls getForceOnSphereSubclass().

virtual void SIM_Force::getForceOnSphereSubclass	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const fpreal	radius,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

protectedvirtual

Returns the force and torque applied by this force to a sphere. The outputs may be modified according to the information passed in about the object to which the force is being applied. The default implementation calls getForce() and assumes that the result is a force per unit volume. The force and torque are then scaled by the volume of the sphere.

Reimplemented in HDK_Sample::SIM_ForceOrbit, SIM_ForceImpulse, SIM_ForceVelImpulse, SIM_ForceGravity, and SIM_ForceBuoyancy.

SIM_ForceResolver* SIM_Force::getForceResolver ( const SIM_Object & object ) const

Creates a resolver to evaluate this force on the given object. The caller must delete the returned resolver.

virtual SIM_ForceResolver* SIM_Force::getForceResolverSubclass ( const SIM_Object & object ) const

protectedvirtual

Creates a force resolver to evaluate this force in a threadsafe manner.

Reimplemented in SIM_ForceDrag, SIM_ForceField, SIM_ForcePoint, SIM_ForceFan, SIM_ForceUniform, SIM_ForceReferenceFrame, SIM_ForceBuoyancy, SIM_ForceImpulse, SIM_ForceVelImpulse, and SIM_ForceGravity.

bool SIM_Force::getForceSet	(	const SIM_Object &	object,
		const UT_Vector3Array &	positions,
		const UT_Vector3Array &	velocities,
		const UT_Vector3Array &	angvelocities,
		const UT_FloatArray &	masses,
		UT_Vector3Array &	forces,
		UT_Vector3Array &	torques
	)		const

Returns the forces and torques applied by this force to a list of points. This function calls getForceSetSubclass(). This function is available so that subclasses that implement getForceSetSubclass can make use of multithreading for a set of force calculations. Returns true if ok, false otherwise. (We use this return value to determine whether or not a subclass actually implements this function)

virtual bool SIM_Force::getForceSetSubclass	(	const SIM_Object &	object,
		const UT_Vector3Array &	positions,
		const UT_Vector3Array &	velocities,
		const UT_Vector3Array &	angvelocities,
		const UT_FloatArray &	masses,
		UT_Vector3Array &	forces,
		UT_Vector3Array &	torque
	)		const

protectedvirtual

Returns the forces and torques applied by this force to a list of points. Returns true if ok, false otherwise. This return value is used to determine whether or not subclasses actually implement this function. If this is implemented, it is the implementations responsibility to resize the forces & torque arrays appropriately.

Reimplemented in SIM_ForceVortex, and SIM_ForceVex.

virtual void SIM_Force::getForceSubclass	(	const SIM_Object &	object,
		const UT_Vector3 &	position,
		const UT_Vector3 &	velocity,
		const UT_Vector3 &	angvel,
		const fpreal	mass,
		UT_Vector3 &	force,
		UT_Vector3 &	torque
	)		const

protectedvirtual

Returns the force and torque applied by this force to a point. The outputs may be modified according to the information passed in about the object to which the force is being applied. The default implementation sets the force and torque to zero.

Reimplemented in HDK_Sample::SIM_ForceOrbit, SIM_ForceVortex, SIM_ForceField, SIM_ForcePoint, SIM_ForceFan, SIM_ForceUniform, SIM_ForceReferenceFrame, SIM_ForceDrag, SIM_ForceMagnet, SIM_ForceBuoyancy, SIM_ForceImpulse, SIM_ForceVelImpulse, SIM_ForceGravity, and SIM_ForceVex.

SIM_ForceSample SIM_Force::getOptimalForceSampling ( ) const

Allows solvers to query what the optimal sampling type for this force would be. Solvers do not have to respect this. This should be user overrideable so users can trade efficiency for accuracy.

virtual SIM_ForceSample SIM_Force::getOptimalForceSamplingSubclass ( ) const

protectedvirtual

Allows solvers to query what the optimal sampling type for this force would be. Solvers do not have to respect this. This should be user overrideable so users can trade efficiency for accuracy.

Reimplemented in SIM_ForceVortex, SIM_ForceField, SIM_ForceImpulse, SIM_ForceVelImpulse, SIM_ForceGravity, SIM_ForceFan, SIM_ForceDrag, SIM_ForceBuoyancy, SIM_ForcePoint, SIM_ForceUniform, SIM_ForceReferenceFrame, SIM_ForceMagnet, and SIM_ForceVex.

void SIM_Force::getPointForces	(	SIM_PointForceCallback &	cb,
		const SIM_Object &	object,
		const GU_ConstDetailHandle &	gdh,
		const UT_DMatrix4 &	geoxform,
		const SIM_Position *	position,
		const SIM_Motion *	motion,
		bool	forcesinworldspace
	)		const

This is a convenience function for applying a force to each point in a piece of geometry. For each point in the geometry, the force on that point is calculated with the getForce() function. The result of each call is passed to the SIM_PointForceCallback::forceCallback() function, along with the point number. The position, velocity, and mass for each point come from the point attributes (if they exist), modified by the SIM_Position or SIM_Motion data if they are passed in.

Examples:: SIM/SIM_SolverHair.C.

The documentation for this class was generated from the following file:

SIM/SIM_Force.h

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
