Houdini 21.0 Networks and parameters

Recipe data format

Details the data format for recipes.

On this page

Overview

Various asData() methods on HOM objects generate or accept JSON-like data in the same format used by recipes. These data structures contain only types that map to JSON (floats, ints, booleans, None/null, dicts/objects, and lists/arrays). This page uses Python type names (for example, list instead of JSON’s array).

For more information, see Saving and using recipes.

Tip

To display recipe data nicely in the Python shell, you can use the indent argument to json.dumps() or the pprint function.

>>> from json import dumps
>>> print(dumps(data, indent=4))
...
>>> from recipeutils import pprint
>>> pprint(data)

json.dumps() puts dictionary values on separate lines, so it can use more vertical space. pprint tries to merge values onto the same line and matches the indentation of previous lines, so it can use more horizontal space.

Parm Value

This stores the value of a parameter. A parameter can have one or more components, and each component can be a literal value (float, int, or string), Expression, or Keyframes Data. Parameters with a single component return one of these three types, while parameters with multiple components return a list that can contain any of these data types.

[
    1.0,
    {
        "expression": "sin($T)"
    },
    {
        "keyframes": [
            {
                "frame": 1,
                "value": 0.0,
                "slope": 0.0,
                "accel": 0.0,
                "inaccel": 0.33,
                "expression": "bezier()"
            },
            {
                "frame": 48,
                "value": 1.0,
                "slope": 0.0,
                "accel": 0.0,
                "inaccel": 0.65,
                "expression": "bezier()"
            }
        ]
    }
]

See:

Expression

This represents a parameter component when it contains an expression. It can have the following keys:

expression: str

The string representation of the expression.

language: str

The language of the expression.

An example of expression data:

{
    "expression": "$F",
    "language": "Hscript"
},

Keyframes

This represents a parameter component when it contains keyframes.

keyframes: list[Keyframe Data]

A list of Keyframe Data.

frame: float

The keyframe’s frame number.

time: float

The keyframe’s time in seconds.

epxression: str

The keyframe’s expression.

value: float

The value leaving the keyframe.

invalue: float

The value entering the keyframe.

slope: float

The slope leaving the keyframe.

inslope: float

The slope entering the keyframe.

accel: float

The acceleration leaving the keyframe.

inaccel: float

The acceleration entering the keyframe.

accelasratio: bool

Whenever acceleration should be interpreted as ratio.

extrapolation_before: str

Returns extrapolation before the first keyframe which defines how a parm value is evaluated outside the keyframe range.

extrapolation_after: str

Returns extrapolation after the last keyframe which defines how a parm value is evaluated outside the keyframe range.

An example of keyframes data for a float parameter with two keyframes data:

{
    "keyframes": [
        {
            "frame": 1,
            "value": 1.0,
            "slope": 0.0,
            "accel": 0.0,
            "inaccel": 0.33,
            "expression": "bezier()"
        },
        {
            "frame": 24,
            "value": 2.0,
            "slope": 0.0,
            "accel": 0.0,
            "inaccel": 0.33,
            "expression": "bezier()"
        }
    ]
}

Parm

While a parameter is most commonly associated with its value, the value is not the only property a parameter can hold. A parameter can have the following keys:

value: Parm Value Data

The value of each component of the parameter.

lock: bool | list[bool]

The locked state of each component of the parameter.

visible: bool

Whenever the parameter is visible in the parameter pane.

points: list[Ramp Point Data]

Ramp type parameters store a list of ramp point data under this key. The length of the list controls the number of points on the ramp.

A Ramp Point Data contains the following items:

pos: float

The point position on the ramp.

value: float | Sequence[float]

A single float for a Float Ramp or a tuple of three floats for a Color Ramp.

interp: str

The interpolation of the ramp point.

An example of the points key storing a Color Ramp set to Black To Orange:

[
    {
        "pos": 0.0,
        "value": [
            0.0,
            0.0,
            0.0
        ],
        "interp": "linear"
    },
    {
        "pos": 1.0,
        "value": [
            1.0,
            0.324,
            0.1
        ],
        "interp": "linear"
    }
]

See:

dictionary: dict[str, str]

A Key-Value Dictionary type parameter stores its dictionary under this key.

geometry: str

A Geometry Data type parameter stores its geometry under this key.

multiparms: list[Parameters]

An example of the multiparms key storing two sets of multi-parameter instances.

[
    {
        "export_enable#": True,
        "export_fieldname#": "density",
        "export_visible#": "smoke"
    },
    {
        "export_enable#": True,
        "export_fieldname#": "temperature",
        "export_visible#": "invisible"
    },
]

See:

metadata: Parm Meta Data

Stores additional information about the parameter.

type: str

The type of the parameter (for example, float or ramp_rgb).

label: str

The label of the parameter.

spare: bool

Stores whether the parameter is a spare (user-defined) parameter.

path: str

The full path to this parameter.

An example of the metadata key:

{
    "type": "toggle",
    "label": "Enable Blending",
    "spare": False,
    "path": "/obj/geo1/attribblur1/enableblending"
}

See:

Parameters

This maps parameter names to Parm data.

The following is an example for a set of parameters:

{
    "group": {
        "value": "group1"
    },
    "attributes": {
        "value": "P"
    },
    "method": {
        "value": "uniform"
    },
    "iterations": {
        "value": 1
    },
    "mode": {
        "value": "laplacian"
    },
    "frequency": {
        "value": 0.1
    },
    "stepsize": {
        "value": 0.5
    }
    "blurramp": {
        "points": [
            {
                "pos": 0.0,
                "value": 0.0,
                "interp": "monotonecubic"
            },
            {
                "pos": 0.5,
                "value": 1.0,
                "interp": "monotonecubic"
            },
            {
                "pos": 1.0,
                "value": 0.0,
                "interp": "monotonecubic"
            }
        ]
    }

}

All .asData() functions have a brief (or parms_as_brief) option, which omits defaults and some single-key dicts for a more compact output. When you pass brief=True, where parm data would only have a single value, points, or multiparms key, the dict is replaced by just the value. For example:

{
    "group": "group1",
    "attributes": "P",
    "method": "uniform",
    "iterations": 1,
    "mode": "laplacian",
    "frequency": 0.1,
    "stepsize": 0.5,
    "blurramp": [
        {
            "pos": 0.0,
            "value": 0.0,
            "interp": "monotonecubic"
        },
        {
            "pos": 0.5,
            "value": 1.0,
            "interp": "monotonecubic"
        },
        {
            "pos": 1.0,
            "value": 0.0,
            "interp": "monotonecubic"
        }
    ]
}

When a Parm Data would hold other keys (for example, lock alongside value key), the parm data is a full dict. For example:

{
    "group": "group1",
    "attributes": "P",
    "method": "uniform",
    "iterations": {
        "value": 1,
        "locked": True
    },
    "mode": "laplacian",
    "frequency": 0.1,
    "stepsize": 0.5,
    "blurramp": [
        {
            "pos": 0.0,
            "value": 0.0,
            "interp": "monotonecubic"
        },
        {
            "pos": 0.5,
            "value": 1.0,
            "interp": "monotonecubic"
        },
        {
            "pos": 1.0,
            "value": 0.0,
            "interp": "monotonecubic"
        }
    ]
}

See:

Parm Template

This is data for a template to describe a parameter in the parameter pane.

type: str

The type of the parameter, based on hou.parmTemplateInterfaceType.

label: str

The label that’s displayed in the parameter pane.

label_hidden: bool

The hidden state of the label in the parameter pane.

num_components: int

The number of components for this parameter.

help: str

The help that Houdini displays when you hover over the parameter label in the parameter pane.

hidden: bool

The visible state in the parameter pane.

joins_with_next: bool

Whether this parameter is displayed on the same line as the next parameter in the parameter pane.

disable_when: str

The condition to turn off the parameter in the parameter pane.

hide_when: str

The condition to hide the parameter in the parameter pane.

no_cook_when: str

The no cook condition.

tab_disable_when: str

The condition to turn off the tab folder in the parameter pane.

tab_hide_when: str

The condition to hide the tab folder in the parameter pane.

tags: dict[str, Any]

A dictionary of extra data stored in the parm template.

script_callback: str

The script that Houdini runs when this parameter changes.

script_callback_language: str

The language of the script that Houdini runs when this parameter changes.

default_value: Parm Value Data

The default value for new parameter instances.

default_points: list[Ramp Point Data]

The default ramp points for new parameter instances.

min_value: float

The minimum value of the parameter.

max_value: float

The maximum value of the parameter.

strict_min: bool

Whether the maximum value is strictly enforced.

strict_max: bool

Whether the minimum value is strictly enforced.

icon_names: str

The icons corresponding to the menu items.

item_generator_script: str

The script used to generate menu items, or an empty string if there’s no script.

item_generator_script_language: str

The script language used to generate menu items.

column_labels: list[str]

The labels for each column of a label parameter template.

show_controls: bool

Whether this ramp parameter has the controls expanded by default.

color_type: str

The color space in which to interpolate color ramp keys.

folder_names: str

The names of the folders in this set.

tab_group_end: bool

Whether this folder is the last in the folder set.

tab_conditionals: str

The conditionals that affect the folder tab generated by this parameter template.

parmtemplates: Parm Template Data Dict

The nested dictionary of parmtemplates if this is a folder or multi-parm parmtemplate.

The following is an example of data for a parameter template:

{
    "type": "integer",
    "label": "Start Frame",
    "tags": {
        "script_callback_language": "python"
    },
    "menu_type": "normal",
    "default_value": 1,
    "min_value": 1,
    "max_value": 240,
    "strict_min": True
}

Parm Templates

This maps template names to Parm Template Data.

An example of a toggle and float parameter template:

{
    "enablestartframe": {
        "type": "toggle",
        "label": "Enable Start Frame",
        "label_hidden": True,
        "joins_with_next": True,
        "tags": {
            "script_callback_language": "python"
        }
    },
    "startframe": {
        "type": "integer",
        "label": "Start Frame",
        "disable_when": "{ enablestartframe != 1 }",
        "tags": {
            "script_callback_language": "python"
        },
        "menu_type": "normal",
        "default_value": 1,
        "min_value": 1,
        "max_value": 240,
        "strict_min": True
    }
}

Parm Template Block

This dictionary indicates after which existing template to insert the contained templates.

When spare parameters are added to a node, this data helps to store only the continuous blocks of spare parameter templates.

insert_after: str

The name of the parameter template that’s placed before the block of parameter templates.

insert_first: str

The name of the folder parmtemplate when the block is the first in the folder.

parmtemplates: Parm Templates

The dictionary of continuous parmtemplates contained by this block.

Network Item

This dictionary stores data for a network item such as nodes, sticky notes, network box, network dot, and subnetwork indirect inputs.

It can have the following keys:

Note

It’s possible to have both inputs and outputs keys, but if you're generating recipe data you should use only one. This means you consistently specify wires either as outputs on upstream items or inputs on downstream items. When Houdini creates recipes it only creates inputs keys on downstream items.

type: str

The type of the network item. For nodes this is the node type name (for example, box for a SOP Box node). For a sticky note, network box, or network dot this must be StickyNote, NetworkBox, or NetworkDot respectively.

inputs: list[Input Data]

This stores a list of Network Item Input Data that represent a connection that links the inputs of this node with the output of other nodes upstream.

Each Input Data has the following keys:

from: str

The name of the node to which this node’s input (given by to_index) connects.

from_index: int | str

The output index of the node (given by from) that connects to the input index (given by to_index) of this node. The index can also be a named output, which is used in the Vop context.

to_index: int | str

The input index of this node connects to the output index (given by from_index) of the node given by from. The index can also be a named input, which is used in the Vop context.

The following is an example of the inputs key:

{
    "from": "box1",
    "from_index": 0,
    "to_index": 0
}

See:

outputs: list[Network Item Output Data]

This stores a list of Network Item Output Data that represent a connection that links the outputs of this node with the input of other nodes downstream.

A Network Item Output Data always has the following keys:

from_index: int | str

The output index of this node connects to the input index (given by to_index) of the node given by to. The index can also be a named output, which is used in the Vop context.

to_index: int | str

The input index of the node (given by to) that connects to the output index (given by from_index) of this node. The index can also be a named input, which is used in the Vop context.

to: str

The name of the node to which this node’s output (given by from_index) connects.

An example of a Network Item Output Data that connects downstream to a node named box1:

{
    "from_index": 0,
    "to_index": 0,
    "to": "box1"
}

See:

color: list[float]

The color of the item’s tile in the network editor.

size: list[float]

The size of the item’s tile in the network editor.

position: list[float]

The position of the item’s tile in the network editor.

comment: str

The node’s comment string.

user_data: dict[str, Any]

The user-defined dictionary data for this node.

parms: Parameters

A dictionary of Parm Data that contains data for the parameters of this node.

parmtemplates: Union[Parm Templates, Parm Template Block Data, list[Parm Template Block Data]

This stores the parmtemplate data for this node.

flags: dict[str, bool]

This stores flags of this node.

children: Network Items

This stores a nested dictionary of child items (if any) for this node.

Note

When capturing the data, opened Digital Assets capture their content under the children key and closed Digital Assets are considered to have no children.

When setting a Network Item Data that contains a children key to a closed Digital Asset, the Digital Asset is opened and its content is replaced by the data in the children key.

See:

editables: Network Items

This stores a nested dictionary of editable dive-target items (if any) for this node.

See:

pinned: bool

The pinned state for a network dot item.

box_content: list[str]

This stores a list of network item names inside the network box.

text: str

The text displayed on a sticky note.

text_color: list[float]

The color of the text displayed on a sticky note.

text_size: float

The size of the text displayed on a sticky note.

draw_background: bool

The drawing of a colored background for a sticky note.

minimized: bool

The minimized state of a sticky note.

metadata: Network Item Metadata

This stores additional information for the network item.

The Network Item Metadata can have the following items:

category: str

The category type of this item (for example, Sop or Dop).

path: str

The full path to this item.

parent: bool

The full path to the parent of this item.

The following is an example of a network item’s metadata key:

{
    "category": "Sop",
    "path": "/obj/geo1/box1",
    "parent": "/obj/geo1"
}

The following is an example of data for a network item:

{
    "type": "box",
    "parms": {
        "divrate": [2, 2, 2],
    }
    "inputs": {
        "from": "bound1",
        "from_index": 0,
        "to_index": 0
    },
    "position": [0, 2.63],
    "color": [0.58, 0.21, 0.47],
    "flags": {
        "colordefault": False
    },
}

See:

Network Items

Data for multiple network items is collected under this dictionary, which stores the Network Item Data. The item’s name is the key.

The position values for each Network Item Data are captured as a global network space position by default. When capturing the data, you can provide the anchor_position (hou.Vector2) option to calculate all positions relative to that position.

{
    "box1": {
        "type": "box",
        "position": [-0.5, 2.85],
        "parms": {
            "type": "polymesh",
            "divrate": [2, 2, 2]
        }
    },
    "__dot1": {
        "type": "NetworkDot",
        "inputs": [
            {
                "from": "box1",
                "from_index": 0,
                "to_index": 0
            }
        ],
        "position": [0, 2],
        "color": [0.7, 0.7, 0.7]
    },
    "OUT": {
        "type": "null",
        "inputs": [
            {
                "from": "__dot1",
                "from_index": 0,
                "to_index": 0
            }
        ],
        "position": [-0.5, 0.85],
        "flags": {
            "display": True,
            "render": True
        }
    }
}

See:

Cluster

This data type is a higher-level abstraction over the Network Item Data Dict to store more information along with the set of network items. It can contain the following items:

tags: Cluster Tag Data

Tags provide a way to name one or more captured items for specific purposes stored under the children key.

The Cluster Tag Data can have the following items:

target_tag: str

The name of the node to use as the target node.

When the Cluster Data is captured for a selected set of items, you can tag one of those items as the target node. The name of the target node is stored under this key. All network item positions are captured relative to the target node’s position.

When creating the items of the Cluster Data, you can provide an already existing node as the target node. The Network Item Data stored under this name then apply to the provided target node instead. One advantage is that captured channel references correctly point to the newly provided target node.

frame_tags: list[str]

A list of node names that're framed in the network editor.

selected_tags: list[str]

A list of node names that're selected in the network editor.

current_tag: str

The node name that’s selected last in the network editor.

children: Network Items

This stores data for all the network items this cluster holds.

The following example shows the Cluster Data captured for the three selected nodes:

{
    "tags": {
        "target_tag": "transform1",
        "frame_tags": ["OUT", ],
        "selected_tags": ["box1", "OUT"]
        "current_tag": ["OUT"]
    }
    "children": {
        "transform1": {
            "type": "xform",
            "inputs": [
                {
                    "from": "box1",
                    "from_index": 0,
                    "to_index": 0
                }
            ],
            "position": [0, 0],
        },
        "box1": {
            "type": "box",
            "position": [0, 1],
            "parms": {
                "type": "polymesh",
                "divrate": [2, 2, 2]
            }
        },
        "OUT": {
            "type": "null",
            "inputs": [
                {
                    "from": "transform1",
                    "from_index": 0,
                    "to_index": 0
                }
            ],
            "position": [0, -1],
            "flags": {
                "display": True,
                "render": True
            }
        }
    },
}

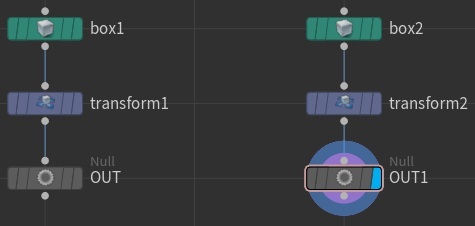

When the transform2 node is the target node (in the same network) that applies the captured data, the following items are created. The function returns a mapping between the item names in the data and the created Houdini objects.

{
    "target_node": <hou.SopNode of type xform at /obj/geo1/transform2>,
    "items": {
        "box1": <hou.SopNode of type box
                    at /obj/geo1/box2>,
        "OUT": <hou.SopNode of type null
                at /obj/geo1/OUT1>
    }
}

See:

Recipe

Recipes are stored in data Digital Assets. The recipe data is stored in the data.recipe.json section.

The recipe data can have the following items:

data

This stores the captured data based on the selected Houdini objects.

properties

This stores essential information about this recipe so it can function.

The properties dictionary can have the following keys:

label: str

The label of the recipe that’s displayed in Houdini.

name: str

The internal name of the recipe. This is the name you can use to invoke the recipe from the Python shell.

nodetype_category: str

The category type of the node that captured the recipe.

nodetype_patterns: list[str]

Node Preset and Decoration recipes display in the recipe menu for the node types that the recipe is assigned to. This list defines those node types.

recipe_category: str

This defines the type of the recipe.

visible: bool

This sets when the recipe should be visible and usable in menus.

tool

For recipe categories such as Tool, this holds information about the tool that’s displayed in the tab menu.

The tool dictionary can have the following keys:

icon: str

The icon name to display in the tab menu.

tab_submenu: list[str]`

A list of the tab menu location where the recipe is displayed.

options

Stores capture options used when the recipe was made.

info

Stores basic information about the recipe.

author: str

The creator of the recipe.

comment: str

An optional comment that describes the purpose of the recipe.

created: str

The date and time when the recipe was made.

data_version: str

The version number of the data model used to capture the recipe.

houdini_version: str

The Houdini version used to capture the recipe.

The following is an example of recipe data:

{
    "data": {
        "type": "lsystem",
        "parms": {
            "angleinit": 27.0,
            "anglescale": 0.699999988,
            "picfile": "$HFS/houdini/pic/circle.pic",
            "premise": "A",
            "randscale": 0.5,
            "randseed": 3,
            "rule1": "A=-F+A:0.50",
            "rule2": "A=+F-A:0.50",
            "stepinit": 0.100000001,
            "stepscale": 0.5,
            "thickinit": 0.100000001,
            "thickscale": 0.899999976,
            "vertinc": 0.100000001
        }
    },
    "info": {
        "author": "sidefx",
        "comment": "",
        "created": "May 10, 2024 - 21:58:28",
        "data_version": "1.0",
        "houdini_version": "20.5.231"
    },
    "options": {
        "children": False,
        "default_parmvalues": False,
        "editables": False,
        "evaluate_parmvalues": False,
        "flags": False,
        "metadata": False,
        "nodes_only": False,
        "parms_as_brief": True,
        "parmtemplates": "spare_only",
        "verbose": False
    },
    "properties": {
        "label": "Crack",
        "name": "sop/lsystem::sidefx::crack",
        "nodetype_category": "Sop",
        "nodetype_name": "lsystem",
        "nodetype_patterns": [
            "Sop/lsystem"
        ],
        "recipe_category": "node_preset_recipe",
        "visible": True
    }
}

Networks and parameters

Networks

  • Network editor

    How to create, move, copy, and edit nodes.

  • Network navigation

    How to move around the networks and move between networks.

  • Connecting (wiring) nodes

    How to connect nodes to each other to make them work together.

  • Network types and node flags

    Flags represent some state information on the node, such as which node represents the output of the network. Different network types have different flags.

  • Badges

    Badges indicate some status information about a node. They usually appear as a row of icons below the name of the node.

  • Node Info

    The node info window shows a quick overview of statistics and information about a particular node.

  • Find nodes in a network

    How to use the Find dialog to find nodes based on various criteria.

Editing parameters

Next steps

Expressions

Recipes

Reference

Guru level
