Labs Texture Sheets 2.0 render node

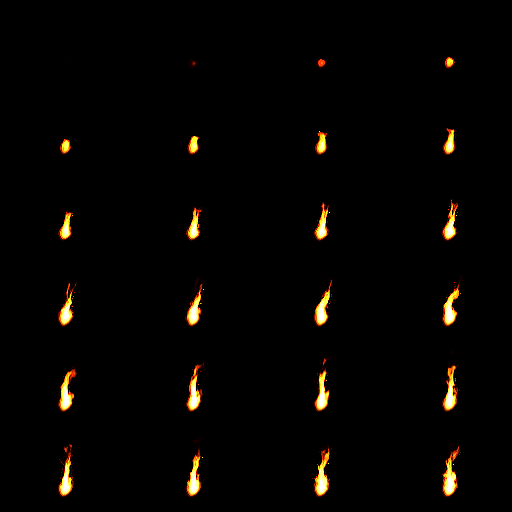

Render an image sequence and assemble it as a single sheet (subUv, flipbook)

A common workflow is to render out an image sequence and then assemble the sequence into a single sheet using the Mosaic node.

This node automates that process by combining the whole process into a single button, it also allows to render out normal maps both through the volumes or RGB lights.

Parameters

Render

Triggers rendering the whole process

Base Settings

Asset Name

Descriptive Name of the project, will be assembled in the filename as sequence_dir/assetname.frame.exr

Sequence Directory

Working directory for the individual images

Render Sequence

Triggers rendering only the color sequence

Render N Sequence

Triggers rendering only the normal images sequence

Render RGB Sequence

Triggers rendering only the RBG lights images sequence

Export Normal

Toggles rendering out the normals from the volume

Render RGB Lights (Normals)

Toggles the rendering out of the normals from RGB lights

Render Emission Layer

Toggles rendering the emission values of the fire

Maps

Channel Pack Normal, Emission, Alpha

Toggles packing different maps together, this can be setup under the Channel Packing Tab

Map Directory

Path to the final output directory, where the compiled sheets will be written out to

Render Color Map

Triggers the assembling of the color map

Render Normal Map

Triggers the assembling of the normal map

Render Packed Map

Triggers the assembling of the packed map

Nodes

Node To Render

SOP to be included in the rendering

Camera

Camera object to be used for rendering

Settings

Start/End/Inc

Allows you to set your desired export frame range.

Images per Line

Number of Columns on the final sheet

Resolution

Size of the final sheet

No. Of Frames

READ ONLY Display of how many frames will be assembled

Atlas Layout

READ ONLY Display of how many rows vs columns on the final sheet

Override Camera Resolution (Based on Atlas Settings)

If this is turned on the camera resolution will match the settings for the final texture atlas.

Camera Resolution

READ ONLY Display of the camera resolution for each frame

Override Resolution

READ ONLY Display of the actual render resolution for each frame (could be changed by turning on Override Camera Resolution)

Render Settings

These are all promoted up from the Mantra ROP

Channel Packing

Set Composite View

Button to setup a COP network preview to visualize the channel packing of the final texture.

Texture Preview

Select which map to preview

Reload Sequences

Refresh the sequence files

Red

In the packed Map, what does the red channel represent

Green

In the packed Map, what does the green channel represent

Blue

In the packed Map, what does the blue channel represent

Alpha

In the packed Map, what does the alpha channel represent

Blend N and RGB Lights

Blend between the volume normals and the light based normals

Advanced Settings

Normals

Flip Green Channel

Invert the Y channel of the Normal texture

Calculate N from:

Specify which volume the Normal will be based on

Sequence

Image Sequence

Filepath for the color image sequence

N Image Sequence

Filepath for the normal image sequence

RGB Image Sequence

Filepath for the rgb normal image sequence

Image Sequence Internal

Full path to the individual frames that are written out

Maps

Color Map

Filepath to the final assembled image

Normal Map

Filepath to the final assembled normal image

Packed Map

Filepath to the final assembled packed image
