#include "CH_API.h"
#include "CH_Bookmark.h"
#include "CH_BookmarkPropagateData.h"
#include "CH_ChannelRef.h"
#include "CH_EvalContextFwd.h"
#include "CH_ExprLanguage.h"
#include "CH_KeyState.h"
#include "CH_Tweener.h"
#include "CH_Types.h"
#include <DEP/DEP_ContextOptions.h>
#include <DEP/DEP_MicroNode.h>
#include <UT/UT_Assert.h>
#include <UT/UT_Color.h>
#include <UT/UT_Function.h>
#include <UT/UT_IntArray.h>
#include <UT/UT_JSONParser.h>
#include <UT/UT_JSONWriter.h>
#include <UT/UT_Lock.h>
#include <UT/UT_Map.h>
#include <UT/UT_NonCopyable.h>
#include <UT/UT_ScopeExit.h>
#include <UT/UT_Set.h>
#include <UT/UT_String.h>
#include <UT/UT_StringArray.h>
#include <UT/UT_StringMap.h>
#include <UT/UT_SuperInterval.h>
#include <UT/UT_TBBSpinLock.h>
#include <UT/UT_Thread.h>
#include <UT/UT_ThreadSpecificValue.h>
#include <UT/UT_UniquePtr.h>
#include <UT/UT_ValArray.h>
#include <SYS/SYS_Floor.h>
#include <SYS/SYS_Hash.h>
#include <SYS/SYS_Inline.h>
#include <SYS/SYS_Math.h>
#include <SYS/SYS_Types.h>
#include <iosfwd>

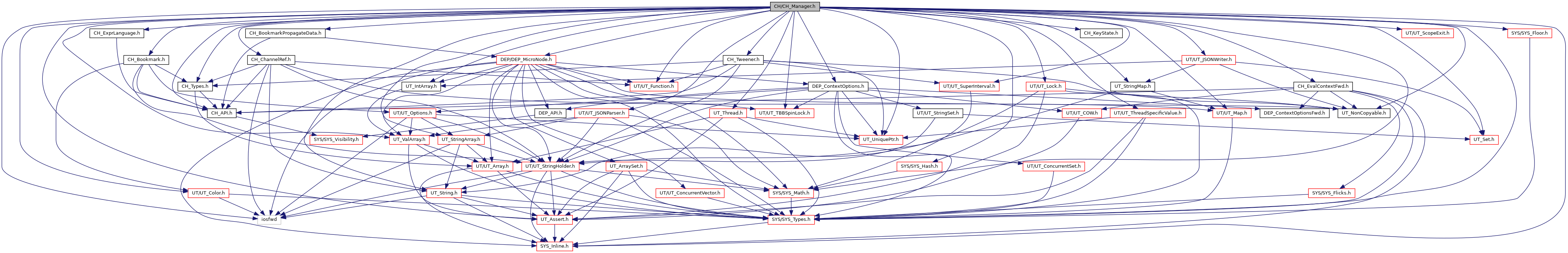

Include dependency graph for CH_Manager.h:

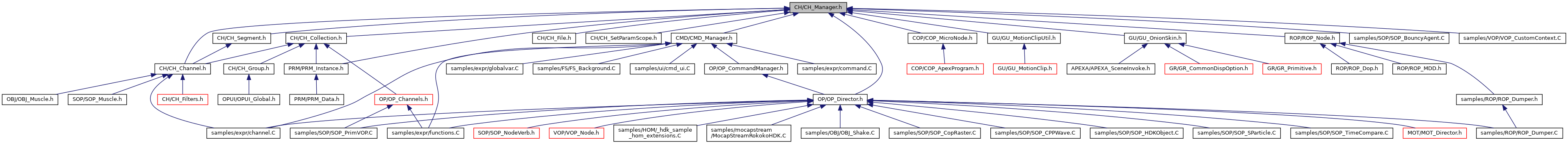

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	CH_ChannelColorManager

class	CH_ChannelChanged

class	CH_LoadInfo

class	CH_ScopedChannelsBase

class	CH_ScopedChannels

class	CH_Manager

struct	CH_Manager::chParamKey::Hasher

class	CH_AutoEvaluateTime
	Push & restore the evaluation time (and optionally a channel collection) More...

class	CH_AutoEvalCollection

class	CH_ActiveLayerContrib

class	CH_AutoIgnoreUpdateScope

class	CH_ScopeUndo

class	CH_ContextOptionTracker

Typedefs
typedef bool(*	CH_StringVarEvalFunc )(UT_String &val, int varid, int thread)

typedef bool(*	CH_FloatVarEvalFunc )(fpreal &val, int varid, int thread)

typedef bool(*	CH_IntVarEvalFunc )(int &val, int varid, int thread)

typedef UT_Function< void(const UT_StringHolder &)>	CH_DefaultContextOptionCallback

Functions
CH_API void	CHsortChannels (CH_ChannelList &channels)

CH_API void	CHsortChannelRefs (CH_ChannelRefList &channels)

CH_API void	CHsortChannelPaths (UT_StringArray &channel_paths)

CH_API void	CHsortLayerRefs (CH_ChannelRefList &channels)

CH_API void	CHchannelsToCollections (CH_ChannelList const &channels, CH_CollectionList &collections)

CH_Manager *	CHgetManager ()

CH_ScopedChannels &	CHgetScopedChannels ()

fpreal	CHgetEvalTime ()

fpreal	CHgetEvalTime (int thread)

CH_API fpreal	CHgetTimeFromFrame (fpreal frame)
	Returns the time given a floating point frame. More...

CH_API int	CHgetFrameFromTime (fpreal time)

CH_API int	CHgetIntegerFrameFromTime (fpreal time)

CH_API fpreal	CHgetSampleFromTime (fpreal time)

CH_API void	CHbuildRange (int start, int end, UT_SuperIntervalR &r)
	Builds a UT_SuperIntervalR given integer start and end frames. More...

CH_API void	CHoutputChannelList (UT_WorkBuffer &info, CH_ChannelList &channels)

CH_API void	CHoutputChannelList (UT_WorkBuffer &info, UT_StringArray &channel_paths)

CH_API void	CHdisplayFlags (unsigned flags, std::ostream &s)

Typedef Documentation

typedef UT_Function<void(const UT_StringHolder &)> CH_DefaultContextOptionCallback

Definition at line 75 of file CH_Manager.h.

typedef bool(* CH_FloatVarEvalFunc)(fpreal &val, int varid, int thread)

Definition at line 72 of file CH_Manager.h.

typedef bool(* CH_IntVarEvalFunc)(int &val, int varid, int thread)

Definition at line 73 of file CH_Manager.h.

typedef bool(* CH_StringVarEvalFunc)(UT_String &val, int varid, int thread)

Definition at line 71 of file CH_Manager.h.

Function Documentation

CH_API void CHbuildRange	(	int	start,
		int	end,
		UT_SuperIntervalR &	r
	)

Builds a UT_SuperIntervalR given integer start and end frames.

CH_API void CHchannelsToCollections	(	CH_ChannelList const &	channels,
		CH_CollectionList &	collections
	)

CH_API void CHdisplayFlags	(	unsigned	flags,
		std::ostream &	s
	)

fpreal CHgetEvalTime ( )

inline

Examples:: COP2/COP2_PixelAdd.C, DM/DM_ObjectPathHook.C, and VOP/VOP_CustomContext.C.

Definition at line 2161 of file CH_Manager.h.

fpreal CHgetEvalTime ( int thread )

inline

Definition at line 2166 of file CH_Manager.h.

CH_API int CHgetFrameFromTime ( fpreal time )

Returns an integer frame given a time. Returns 1 if time is 0.0. This was marked deprecated because it wasn't clear it was retrurning a clamped integer frame number. Use CHgetIntegerFrameFromTime() if you want an integer frame number. Use CHgetSampleFromTime() if you want a floating point frame number.

CH_API int CHgetIntegerFrameFromTime ( fpreal time )

Returns an integer frame given a time. Returns 1 if time is 0.0.

CH_Manager* CHgetManager ( )

inline

Examples:: DM/DM_ObjectPathHook.C, expr/globalvar.C, SOP/SOP_BouncyAgent.C, and SOP/SOP_PrimVOP.C.

Definition at line 2143 of file CH_Manager.h.

CH_API fpreal CHgetSampleFromTime ( fpreal time )

Returns a floating point frame given a time. In CH_Manager a Sample is a non-integer frame. In CH_Manager a Frame is an integer frame. Returns 1.0 if time is 0.0.

CH_ScopedChannels& CHgetScopedChannels ( )

inline

Definition at line 2156 of file CH_Manager.h.

CH_API fpreal CHgetTimeFromFrame ( fpreal frame )

Returns the time given a floating point frame.

CH_API void CHoutputChannelList	(	UT_WorkBuffer &	info,
		CH_ChannelList &	channels
	)

The CHoutputChannelList functions output a formatted string representing the given channels. One version of the function takes a list of channels while the other takes a string array of full paths to channels. The given arrays may be modified (they might need sorting).

CH_API void CHoutputChannelList	(	UT_WorkBuffer &	info,
		UT_StringArray &	channel_paths
	)

CH_API void CHsortChannelPaths ( UT_StringArray & channel_paths )

CH_API void CHsortChannelRefs ( CH_ChannelRefList & channels )

CH_API void CHsortChannels ( CH_ChannelList & channels )

CH_API void CHsortLayerRefs ( CH_ChannelRefList & channels )
