#include <GEO_VolumeElementBase.h>

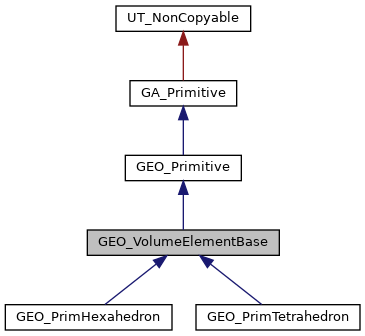

Inheritance diagram for GEO_VolumeElementBase:

Public Member Functions
SYS_FORCE_INLINE	GEO_VolumeElementBase (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

virtual GA_Size	getFaceCount () const =0
	The number of faces that make up this volume. More...

virtual int	getFaceIndices (GA_Size faceno, UT_Array< int > &vtxlist) const =0
	Returns the indices to the vertices, not the vertex offsets! More...

virtual int	getFaceIndexCount (GA_Size faceno) const =0
	Returns the number of indices in specified face. More...

virtual GA_Offset	findSharedFace (GA_Size faceno) const =0

virtual GA_Size	getEdgeCount () const =0
	The number of edges in this volume. More...

virtual void	getEdgeIndices (GA_Size edgeno, int &e0, int &e1) const =0

bool	hasEdge (const GA_Edge &edge) const override
	Method to determine if a primitive has an edge (undirected). More...

void	iterateEdges (GA_IterateEdgesFunc apply_func) const override

void	iterateEdgesByVertex (GA_IterateEdgesByVertexFunc apply_func) const override

bool	getBBox (UT_BoundingBox *bbox) const override

void	addToBSphere (UT_BoundingSphere *bsphere) const override

UT_Vector3	baryCenter () const override

UT_Vector3D	baryCenterD () const override

UT_Vector3	computeNormal () const override
	Return a normal vector for the primitive. More...

UT_Vector3D	computeNormalD () const override

virtual void	addPointRefToGroup (GA_PointGroup &grp) const

virtual bool	vertexApply (bool(apply)(GA_Offset vtx, void ), void *data=0) const

Public Member Functions inherited from GEO_Primitive
GA_PrimCompat::TypeMask	getPrimitiveId () const override

void	copyAttributesAndGroups (const GEO_Primitive &src, bool copy_groups=true)

void	copyAttributesAndGroups (const GEO_Primitive &src, GA_AttributeRefMap &gah, bool copy_groups=true)

void	copyAttributesAndGroups (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler, bool copy_groups=true)
	NOTE: The copying of groups only works if src is in the same detail. More...

void	copyAttributeData (const GEO_Primitive &src)

void	copyAttributeData (const GEO_Primitive &src, GA_AttributeRefMap &gah)

void	copyAttributeData (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void	copyAttributeValues (const GEO_Primitive &src, GA_PrimitiveWrangler &wrangler)

void	copyGroupMembership (const GEO_Primitive &src)

virtual void	copyPrimitive (const GEO_Primitive *src)=0

virtual GEO_Primitive *	copy (int preserve_shared_pts=0) const

virtual void	transform (const UT_Matrix4 &)

virtual void	realToUnitPair (float ureal, float vreal, float &uunit, float &vunit) const

virtual void	unitToRealPair (float uunit, float vunit, float &ureal, float &vreal) const

virtual void	unitLengthToUnitPair (float ulength, float vlength, float &uparm, float &vparm) const

virtual void	unitLengthToUnitPair (float ulength, float vlength, float &uparm, float &vparm, float tolerance) const

virtual void	unitToUnitLengthPair (float uparm, float vparm, float &ulength, float &vlength) const

bool	evaluateBaryCenter (GA_Offset result_vtx, GA_AttributeRefMap &map) const

bool	evaluatePoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v=0, uint du=0, uint dv=0) const

int	evaluatePoint (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const

virtual int	evaluateNormalVector (UT_Vector3 &nml, float u, float v=0, float w=0) const

bool	evaluateInteriorPoint (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v, fpreal w=0) const

int	evaluateInteriorPoint (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w=0) const

virtual void	computeInteriorPointWeights (UT_Array< GA_Offset > &vtxlist, UT_Array< float > &weightlist, fpreal u, fpreal v, fpreal w) const

SYS_FORCE_INLINE GEO_Detail *	getParent () const

virtual bool	getVisibleBBox (UT_BoundingBox *bbox) const

bool	enlargeVisibleBoundingBox (UT_BoundingBox &b, const GA_Attribute *P) const override

void	reverse () override=0
	Reverse the order of vertices. More...

template<typename T >
UT_Vector3T< T >	baryCenterT () const

virtual void	isolate ()
	Method to isolate a pasted surface. More...

virtual int	detachPoints (GA_PointGroup &grp)=0

GEO_Vertex	getVertexElement (GA_Size i) const

virtual GEO_MetaPrim *	castToMetaPrim ()

virtual const GEO_MetaPrim *	castToMetaPrim () const

virtual int	parametricBBox (float u, float v, float u0, float u1, float v0, float v1)

virtual float	uvDist (float u1, float v1, float u2, float v2) const

int	bboxIntersectRay (const UT_Vector3 &rayorig, const UT_Vector3 &raydir, int maxtries=10, float tmax=1E17F, float distance=0, UT_Vector3 nml=0) const

virtual bool	isQuadric () const

virtual void	normal (NormalComp &output) const =0

virtual void	normal (NormalCompD &output) const =0

virtual GEO_Primitive *	convert (GEO_ConvertParms &parms, GA_PointGroup *usedpts=0)=0

virtual GEO_Primitive *	convertNew (GEO_ConvertParms &parms)=0

virtual void	clip (UT_Vector3 normal, float distance=0, GA_PrimitiveGroup *clipgrp=NULL)

virtual int	intersectRay (const UT_Vector3 &o, const UT_Vector3 &d, float tmax=1E17F, float tol=1E-12F, float distance=0, UT_Vector3 pos=0, UT_Vector3 nml=0, int accurate=0, float u=0, float *v=0, int ignoretrim=1) const

bool	enlargeBoundingBox (UT_BoundingRect &b, const GA_Attribute *p) const override

bool	enlargeBoundingBox (UT_BoundingBox &b, const GA_Attribute *p) const override

virtual bool	hasGuideEdge (int edgeid, UT_Vector3 &a, UT_Vector3 &b) const

virtual bool	hasXsectPoint (int pointid, UT_Vector3 &p) const

fpreal	calcVolume (const UT_Vector3 &) const override

fpreal	calcArea () const override

fpreal	calcPerimeter () const override

Public Member Functions inherited from GA_Primitive
virtual	~GA_Primitive ()

virtual const GA_PrimitiveDefinition &	getTypeDef () const =0

const char *	getTypeName () const

SYS_FORCE_INLINE GA_Detail &	getDetail () const

SYS_FORCE_INLINE GA_Offset	getMapOffset () const
	Gets the offset of this primitive in the detail containing it. More...

SYS_FORCE_INLINE GA_Index	getMapIndex () const
	Gets the index of this primitive in the detail containing it. More...

SYS_FORCE_INLINE const GA_IndexMap &	getIndexMap () const
	Gets the index map for primitives in the detail containing this primitive. More...

GA_Index	getNum () const

void	swapOffsetValue (const GA_Defragment &defrag)
	For defragmentation, we need to update the offset. More...

bool	isPrimary () const

SYS_FORCE_INLINE const GA_PrimitiveTypeId &	getTypeId () const

GA_PrimitiveFamilyMask	getFamilyMask () const

bool	isFamily (unsigned family_mask) const

bool	hasLocalTransform () const
	Whether the primitive has a transform associated with it. More...

virtual void	getLocalTransform (UT_Matrix3D &matrix) const

virtual void	getLocalTransform4 (UT_Matrix4D &matrix) const

virtual void	setLocalTransform (const UT_Matrix3D &matrix)
	Set the local transform. The default implementation does nothing. More...

virtual int64	getMemoryUsage () const

virtual int64	getDeviceMemoryUsage () const

virtual void	countMemory (UT_MemoryCounter &counter) const

SYS_FORCE_INLINE GA_Size	getVertexCount () const
	Return the number of vertices used by this primitive. More...

SYS_FORCE_INLINE GA_Offset	getVertexOffset (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Index	getVertexIndex (GA_Size primvertexnum) const

SYS_FORCE_INLINE GA_Offset	getPointOffset (GA_Size i) const

SYS_FORCE_INLINE void	setPointOffset (GA_Size i, GA_Offset ptoff)

SYS_FORCE_INLINE GA_Index	getPointIndex (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3	getPos3 (GA_Size i) const

SYS_FORCE_INLINE UT_Vector3D	getPos3D (GA_Size i) const

template<typename T >
UT_Vector3T< T >	getPos3T (GA_Size i) const

SYS_FORCE_INLINE void	setPos3 (GA_Size i, const UT_Vector3 &pos) const

SYS_FORCE_INLINE void	setPos3 (GA_Size i, const UT_Vector3D &pos) const

SYS_FORCE_INLINE UT_Vector4	getPos4 (GA_Size i) const

SYS_FORCE_INLINE UT_Vector4D	getPos4D (GA_Size i) const

SYS_FORCE_INLINE void	setPos4 (GA_Size i, const UT_Vector4 &pos) const

SYS_FORCE_INLINE void	setPos4 (GA_Size i, const UT_Vector4D &pos) const

GA_Range	getVertexRange (bool harden=false) const
	Get a range of all the vertices accessed by the primitive. More...

GA_Range	getPointRange (bool harden=false) const

bool	isPointUsed (GA_Offset ptoff) const

void	addPointRefToGroup (GA_PointGroup &grp) const

void	edgeApply (GA_EdgeApplyFunc apply, void *data=nullptr) const

void	edgeApplyIndex (GA_EdgeApplyIndexFunc apply, void *data=nullptr) const

bool	findEdgePoints (GA_Offset ptoff0, GA_Offset ptoff1, GA_Size &vtx0, GA_Size &vtx1) const

virtual GA_DereferenceStatus	dereferencePoint (GA_Offset point, bool dry_run=false)=0

virtual GA_DereferenceStatus	dereferencePoints (const GA_RangeMemberQuery &pt_q, bool dry_run=false)=0

virtual bool	enlargeBoundingSphere (UT_BoundingSphere &b, const GA_Attribute *P) const

virtual void	enlargePointBounds (UT_BoundingBox &box) const

virtual bool	isDegenerate () const =0
	Is the primitive degenerate. More...

void	copyUnwiredForMerge (const GA_Primitive *src, const GA_MergeMap &map)

virtual void	copySubclassData (const GA_Primitive *source)

virtual const GA_PrimitiveJSON *	getJSON () const =0

virtual bool	saveSharedLoadData (UT_JSONWriter &w, GA_SaveMap &save, GA_GeometryIndex *geo_index) const

virtual bool	registerSharedLoadData (int load_data_type, GA_SharedDataHandlePtr item)

virtual bool	loadH9 (UT_IStream &is, const UT_Array< GA_AttribLoadDataH9 > &prim_attribs, const UT_Array< GA_AttribLoadDataH9 > &vtx_attribs)

virtual bool	saveH9 (std::ostream &os, bool binary, const UT_Array< GA_AttribSaveDataH9 > &prim_attribs, const UT_Array< GA_AttribSaveDataH9 > &vtx_attribs) const

const GA_IntrinsicManager &	getIntrinsicManager () const

virtual void	clearForDeletion ()

virtual void	getAdjacentBoundaryVertices (GA_Offset vtx, GA_Offset &prev_vtx, GA_Offset &next_vtx) const

virtual bool	supportsHedge () const

virtual GA_Offset	releaseVertex (GA_Offset vtx)

virtual int	isVisible () const

virtual unsigned	getNumSecondaryDetails () const
	A primitive may support any number of secondary details. More...

virtual const GA_Detail *	getSecondaryDetail (GA_Index i) const

virtual GA_Detail *	getSecondaryDetail (GA_Index i)

GA_Index	getNumSecondary (GA_Index detail) const

const GA_Primitive *	getSecondaryByIndex (GA_Index detail, GA_Index i) const

GA_Primitive *	getSecondaryByIndex (GA_Index detail, GA_Index i)

const GA_Primitive *	getSecondaryByOffset (GA_Index detail, GA_Offset o) const

GA_Primitive *	getSecondaryByOffset (GA_Index detail, GA_Offset o)

SYS_FORCE_INLINE bool	isVertexListTrivial () const

bool	isPointListTrivial () const

template<typename FUNCTOR >
SYS_FORCE_INLINE void	forEachVertex (FUNCTOR &&functor) const

template<typename FUNCTOR >
SYS_FORCE_INLINE void	forEachPoint (FUNCTOR &&functor) const

bool	vertexApply (bool(apply)(GA_Offset vtx, void ), void *data=nullptr) const

virtual void	stashed (bool beingstashed, GA_Offset offset=GA_INVALID_OFFSET)

virtual void	flushCEWriteCaches ()
	Copy any modified caches from the GPU back to CPU cache. More...

virtual void	flushCECaches ()

virtual void	stealCEBuffers (const GA_Primitive *src)
	Steal the underlying CE buffer from the source. More...

virtual void	swapVertexOffsets (const GA_Defragment &defrag)

GA_LocalIntrinsic	findIntrinsic (const UT_StringRef &nm) const

GA_LocalIntrinsic	findIntrinsic (GA_GlobalIntrinsic h) const

GA_GlobalIntrinsic	findGlobalIntrinsic (GA_LocalIntrinsic h) const

const char *	getIntrinsicName (GA_LocalIntrinsic h) const

GA_Size	getIntrinsicTupleSize (GA_LocalIntrinsic h) const

bool	getIntrinsicCollapseSingletons (GA_LocalIntrinsic h) const

GA_StorageClass	getIntrinsicStorage (GA_LocalIntrinsic h) const

bool	getIntrinsicReadOnly (GA_LocalIntrinsic h) const

const UT_Options *	getIntrinsicOptions (GA_LocalIntrinsic h) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_String &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_StringArray &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_OptionsHolder &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, UT_Array< UT_OptionsHolder > &val) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, int64 *v, GA_Size size) const

GA_Size	getIntrinsic (GA_LocalIntrinsic h, fpreal64 *v, GA_Size sz) const

bool	getIntrinsic (GA_LocalIntrinsic h, float &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, int &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector2 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector3 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector4 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix2 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix3 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix4 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, double &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, int64 &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector2D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector3D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Vector4D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix2D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix3D &v) const

bool	getIntrinsic (GA_LocalIntrinsic h, UT_Matrix4D &v) const

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const char *value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_StringArray &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const char **val, GA_Size s)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_OptionsHolder &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_Array< UT_OptionsHolder > &value)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const UT_OptionsHolder *value, GA_Size s)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const int64 val)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const fpreal64 val)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const int64 *val, GA_Size sz)

GA_Size	setIntrinsic (GA_LocalIntrinsic h, const fpreal64 *v, GA_Size sz)

Static Public Member Functions
static GA_Offset	buildBlock (GA_Detail detail, const GA_Offset startpt, const GA_Size npoints, const GA_Size nprims, GA_PrimitiveTypeId primtype, int vertexperprim, const int primpointnumbers)

Static Public Member Functions inherited from GEO_Primitive
static GA_PrimCompat::TypeMask	getPrimitiveMaskH9 (const char *maskstr)

Static Public Member Functions inherited from GA_Primitive
static SYS_FORCE_INLINE GA_PrimCompat::TypeMask	primCompatMaskFromTypeId (int type_id)

Protected Member Functions
bool	evaluatePointRefMap (GA_Offset result_vtx, GA_AttributeRefMap &hlist, fpreal u, fpreal v, uint du, uint dv) const override

int	evaluatePointV4 (UT_Vector4 &pos, float u, float v=0, unsigned du=0, unsigned dv=0) const override

bool	evaluateBaryCenterRefMap (GA_Offset result_vertex, GA_AttributeRefMap &hlist) const override

Protected Member Functions inherited from GEO_Primitive
SYS_FORCE_INLINE	GEO_Primitive (GA_Detail *d, GA_Offset offset=GA_INVALID_OFFSET)

	~GEO_Primitive () override

virtual bool	evaluateInteriorPointRefMap (GA_Offset result_vtx, GA_AttributeRefMap &map, fpreal u, fpreal v, fpreal w=0) const

virtual int	evaluateInteriorPointV4 (UT_Vector4 &pos, fpreal u, fpreal v, fpreal w=0) const

Protected Member Functions inherited from GA_Primitive
SYS_FORCE_INLINE	GA_Primitive (GA_Detail &detail, GA_Offset offset=GA_INVALID_OFFSET)

void	setNumVertices (GA_Size nvertices)

GA_Offset	allocateVertex (GA_Offset point=GA_INVALID_OFFSET)
	allocateVertex() will call wireVertex() if the point given is not -1 More...

void	destroyVertex (GA_Offset vertex)

void	wireVertex (GA_Offset vertex, GA_Offset point)

void	registerVertex (GA_Offset vertex)

SYS_FORCE_INLINE int64	getBaseMemoryUsage () const
	Report approximate memory usage for myVertexList for subclasses. More...

void	countBaseMemory (UT_MemoryCounter &counter) const

void	copyVertexListForMerge (const GA_OffsetListRef &src_vertices, const GA_MergeMap &map)

Static Protected Member Functions
static GA_PrimitiveFamilyMask	buildFamilyMask ()

static GA_IntrinsicManager::Registrar	registerIntrinsics (GA_PrimitiveDefinition &defn)

Static Protected Member Functions inherited from GEO_Primitive
static GA_IntrinsicManager::Registrar	registerIntrinsics (GA_PrimitiveDefinition &defn)

Additional Inherited Members
Public Types inherited from GEO_Primitive
using	NormalComp = NormalCompT< float >

using	NormalCompArray = NormalCompArrayT< float >

using	NormalCompAttr = NormalCompAttrT< float >

using	NormalCompBuffered = NormalCompBufferedT< float >

using	NormalCompD = NormalCompT< double >

using	NormalCompArrayD = NormalCompArrayT< double >

using	NormalCompAttrD = NormalCompAttrT< double >

using	NormalCompBufferedD = NormalCompBufferedT< double >

Public Types inherited from GA_Primitive
enum	GA_DereferenceStatus { GA_DEREFERENCE_FAIL, GA_DEREFERENCE_OK, GA_DEREFERENCE_DEGENERATE, GA_DEREFERENCE_DESTROY }

Static Public Attributes inherited from GEO_Primitive
static const UT_Array < GA_AttribSaveDataH9 > &	theEmptySaveAttribs
	Convience objects to pass as arguments to saveH9()/loadH9(). More...

Protected Attributes inherited from GA_Primitive
GA_OffsetList	myVertexList

Detailed Description

Definition at line 25 of file GEO_VolumeElementBase.h.

Constructor & Destructor Documentation

SYS_FORCE_INLINE GEO_VolumeElementBase::GEO_VolumeElementBase	(	GA_Detail *	d,
		GA_Offset	offset = `GA_INVALID_OFFSET`
	)

inline

Definition at line 29 of file GEO_VolumeElementBase.h.

Member Function Documentation

virtual void GEO_VolumeElementBase::addPointRefToGroup ( GA_PointGroup & grp ) const

virtual

void GEO_VolumeElementBase::addToBSphere ( UT_BoundingSphere * bsphere ) const

overridevirtual

Enlarge the bounding sphere with the primitive's bounds. By default, this will enlarge the bounding sphere by the primitive's bounding box (i.e. getBBox()). It may be possible to have a tighter bound (i.e. the vertex hull for many primitives is a much better metric).

Reimplemented from GEO_Primitive.

UT_Vector3 GEO_VolumeElementBase::baryCenter ( ) const

overridevirtual

Return the center of the primitive. This defaults to the center of the bounding box. A better approximation might be the average value of the vertex positions (which could be different).

Reimplemented from GEO_Primitive.

UT_Vector3D GEO_VolumeElementBase::baryCenterD ( ) const

overridevirtual

Reimplemented from GEO_Primitive.

static GA_Offset GEO_VolumeElementBase::buildBlock	(	GA_Detail *	detail,
		const GA_Offset	startpt,
		const GA_Size	npoints,
		const GA_Size	nprims,
		GA_PrimitiveTypeId	primtype,
		int	vertexperprim,
		const int *	primpointnumbers
	)

static

Builds volumeelements using the specified range of point offsets, as dictated by nprims and primpointnumbers, in parallel. primpointnumbers lists the offsets of the points used by each volumeelemnt MINUS startpt, i.e. they are offsets relative to startpt, not indices relative to startpt. The offset of the first hexahedron is returned, and the rest are at consecutive offsets. All hexpointnumbers must be between 0 (inclusive) and npoints (exclusive).

NOTE: Existing primitives are allowed to be using the points in the specified range already, and the elements being created do not do not need to use all of the points in the range. However, these cases may impact performance.

static GA_PrimitiveFamilyMask GEO_VolumeElementBase::buildFamilyMask ( )

inlinestaticprotected

Definition at line 127 of file GEO_VolumeElementBase.h.

UT_Vector3 GEO_VolumeElementBase::computeNormal ( ) const

overridevirtual

Return a normal vector for the primitive.

Implements GEO_Primitive.

UT_Vector3D GEO_VolumeElementBase::computeNormalD ( ) const

overridevirtual

Implements GEO_Primitive.

bool GEO_VolumeElementBase::evaluateBaryCenterRefMap	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	map
	)		const

overrideprotectedvirtual

By default, this will call evaluateInteriorPointRefMap with u=.5 and v=.5. This is likely not the perfect solution. At the current time, this is only used in POPs to birth points at primitive centers.

Reimplemented from GEO_Primitive.

bool GEO_VolumeElementBase::evaluatePointRefMap	(	GA_Offset	result_vtx,
		GA_AttributeRefMap &	hlist,
		fpreal	u,
		fpreal	v,
		uint	du,
		uint	dv
	)		const

overrideprotectedvirtual

Implements GEO_Primitive.

int GEO_VolumeElementBase::evaluatePointV4	(	UT_Vector4 &	pos,
		float	u,
		float	v = `0`,
		unsigned	du = `0`,
		unsigned	dv = `0`
	)		const

inlineoverrideprotectedvirtual

Evaluate the position for the given parametric coordinates (with the given derivatives). Return 0 if successful, or -1 if failure. The default implementation returns {0,0,0,0};

Reimplemented from GEO_Primitive.

Definition at line 141 of file GEO_VolumeElementBase.h.

virtual GA_Offset GEO_VolumeElementBase::findSharedFace ( GA_Size faceno ) const

pure virtual

Returns any primitive sharing the face of the same type, so tet only returns tet and hex only returns hex. See volumelement for a more general version.

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

bool GEO_VolumeElementBase::getBBox ( UT_BoundingBox * bbox ) const

overridevirtual

Compute the bounding box of the primitive. Return 0 if unable to compute bounds (1 on successful computation). This function should always initialize bbox, even if returning false, in which case, the bbox->isValid() may be false, representing an empty bounding box. This function should also not use any initial value of bbox, so it does not need to be initialized beforehand.

Implements GEO_Primitive.

virtual GA_Size GEO_VolumeElementBase::getEdgeCount ( ) const

pure virtual

The number of edges in this volume.

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

virtual void GEO_VolumeElementBase::getEdgeIndices	(	GA_Size	edgeno,
		int &	e0,
		int &	e1
	)		const

pure virtual

Returns the indices of the edge. Note each edge shows up once and due to the nature of volumes, is undirected.

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

virtual GA_Size GEO_VolumeElementBase::getFaceCount ( ) const

pure virtual

The number of faces that make up this volume.

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

virtual int GEO_VolumeElementBase::getFaceIndexCount ( GA_Size faceno ) const

pure virtual

Returns the number of indices in specified face.

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

virtual int GEO_VolumeElementBase::getFaceIndices	(	GA_Size	faceno,
		UT_Array< int > &	vtxlist
	)		const

pure virtual

Returns the indices to the vertices, not the vertex offsets!

Implemented in GEO_PrimHexahedron, and GEO_PrimTetrahedron.

bool GEO_VolumeElementBase::hasEdge ( const GA_Edge & edge ) const

inlineoverridevirtual

Method to determine if a primitive has an edge (undirected).

Reimplemented from GEO_Primitive.

Definition at line 50 of file GEO_VolumeElementBase.h.

void GEO_VolumeElementBase::iterateEdges ( GA_IterateEdgesFunc apply_func ) const

inlineoverridevirtual

Calls apply_func for each directed edge on the primitive. If the apply_func function returns false, then the traversal will be stopped.

Reimplemented from GA_Primitive.

Definition at line 65 of file GEO_VolumeElementBase.h.

void GEO_VolumeElementBase::iterateEdgesByVertex ( GA_IterateEdgesByVertexFunc apply_func ) const

inlineoverridevirtual

Calls apply_func for each directed edge on the primitive, passing in the GA_Size primitive vertex index for each point on the edge. If the apply_func function returns false, then the traversal will be stopped.

Reimplemented from GA_Primitive.

Definition at line 79 of file GEO_VolumeElementBase.h.

static GA_IntrinsicManager::Registrar GEO_VolumeElementBase::registerIntrinsics ( GA_PrimitiveDefinition & defn )

inlinestaticprotected

All subclasses should call this method to register the intrinsics.

See Also: GA_IntrinsicManager

Definition at line 133 of file GEO_VolumeElementBase.h.

virtual bool GEO_VolumeElementBase::vertexApply	(	bool()(GA_Offset vtx, void )	apply,
		void *	data = `0`
	)		const

virtual

Apply the function to each vertex of the primitive. Break when the function returns true. Return the value of the last function applied (false if never called).

Reimplemented from GEO_Primitive.

The documentation for this class was generated from the following file:

GEO/GEO_VolumeElementBase.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
