#include <PI_ScriptOperator.h>

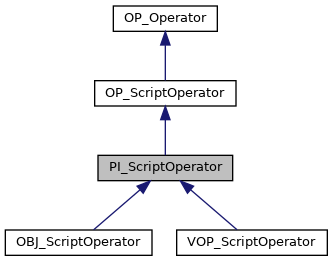

Inheritance diagram for PI_ScriptOperator:

Public Member Functions
	~PI_ScriptOperator () override

void	getRefreshPICommands (OP_Node *node, std::ostream &commands) override

void	setControlsSwitcher (int switcher_index, int page_num, int insert_index=-1)

void	setAllCookParms (bool all_cook)

bool	isAllCookParms () const

void	setAllNoResimParms (bool all_sim)

bool	isAllNoSimParms () const

Public Member Functions inherited from OP_ScriptOperator
	~OP_ScriptOperator () override

bool	hasLoadedParmTemplates () const override

int	updateParmTemplates () override

void	forceUpdateParmTemplates () override

void	getScriptName (UT_String &name, bool forvex, bool for_python=false, const char *section_name=NULL) const

void	getScriptFunctionName (UT_String &name) const

virtual UT_StringArray	getScriptSignatureFunctions () const

void	getScriptSecondaryFunctionsNames (UT_StringMap< UT_StringHolder > &functions) const

bool	hasExplicitScriptSection (VEX_ContextType context_type)

bool	hasCachedCode ()
	Returns true if the operator has cached code. More...

void	resetTemplate (OP_TemplatePair *pair)

int	buildVexCommand (UT_String &result, OP_Node *node, fpreal now)

void	buildIndexEntry (UT_String &result, const UT_String &dsloc)

int	traverseCommand (OP_Node node, OP_ScriptParmFunc traverseFunc, void data, fpreal now)

virtual int	handleUnknownToken (DS_Stream &is, UT_String &token)

UT_String &	getScriptHelp ()

const char *	getOperatorShortHelpString () override

void	getOperatorSpecificInfoText (int verbose, UT_WorkBuffer &text) override

void	fillInfoTreeOperatorSpecific (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms) override

void	editScriptFile (const char pathprefix, const char context="surface", const char extension=".vfl", const char title="VEX Function", const char **obj_extensions=0, int localdir=1)

PY_CompiledCode *	getCachedCompiledPythonCookCode ()

bool	isCompiledPythonCookCodeCached ()

void	clearOTLIndexFile () override

void	dirtyParmTemplates ()

fpreal	getUnitLength () const

fpreal	getUnitMass () const

Public Member Functions inherited from OP_Operator
	OP_Operator (const char name, const char english, OP_Constructor construct, PRM_Template templates, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable variables=0, unsigned flags=0, const char *inputlabels=0, int maxoutputs=1, const char tab_submenu_path=0)
	Note: The 'inputlabels' array is expected to be null-terminated. More...

	OP_Operator (const char name, const char english, OP_Constructor construct, OP_TemplatePair template_pair, unsigned min_sources, unsigned max_sources=9999, OP_VariablePair variable_pair=0, unsigned flags=0, const char *inputlabels=0, int maxoutputs=1, const char tab_submenu_path=0)

	OP_Operator (const char name, const char english, OP_Constructor construct, PRM_Template templates, const char child_table_name, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable variables=0, unsigned flags=0, const char inputlabels=0, int maxoutputs=1, const char tab_submenu_path=0)

	OP_Operator (const char name, const char english, OP_Constructor construct, OP_TemplatePair template_pair, const char child_table_name, unsigned min_sources, unsigned max_sources=9999, OP_VariablePair variable_pair=0, unsigned flags=0, const char inputlabels=0, int maxoutputs=1, const char tab_submenu_path=0)

virtual	~OP_Operator ()

OP_Node *	constructNode (OP_Network net, const char name)

int	getNumActiveNodes () const

OP_Node *	getActiveNode (int i) const

void	nodeDestroyed (OP_Node *node)

virtual OP_SpecificData *	getOpSpecificData ()

virtual const OP_SpecificData *	getOpSpecificData () const

const UT_StringHolder &	getOriginalName () const

void	getOriginalTableAndName (UT_WorkBuffer &name) const

void	getOriginalTableAndName (UT_String &name) const

const UT_StringHolder &	getName () const

void	getTableAndName (UT_WorkBuffer &name) const

void	getTableAndName (UT_String &name) const

const UT_StringHolder &	getEnglish () const

virtual UT_Color	getDefaultColor () const

virtual const UT_StringHolder &	getDefaultShape () const

virtual bool	getHDKHelp (UT_String &) const

virtual bool	getOpHelpURL (UT_String &url)

virtual bool	getOpTabSubMenuPath (UT_String &tab_submenu_path)

void	setOpTabSubMenuPath (const char *tab_submenu_path)

bool	getOTLHelp (UT_String &str)

bool	hasPotentialEditableSubNodes ()

void	getEditableSubNodes (UT_String &pattern)

const UT_StringHolder &	getMessageSubNodes () const

void	getDiveTarget (UT_String &divetarget)

void	getDescriptiveParmName (UT_String &descrparm)

void	getDefaultState (UT_String &statename)

void	getFunctionName (UT_String &function_name)

void	getSecondaryFunctionsNames (UT_StringMap< UT_StringHolder > &functions)

void	getComment (UT_String &comment)

virtual bool	getVersion (UT_String &version)

void	getHelpFileDirAndName (UT_String &script_dir, UT_String &name)

void	getDefinitionSource (UT_String &defsource) const

OP_Node *	getDefiningNetwork () const

const UT_StringHolder &	getIndexPath () const

const UT_StringHolder &	getIndexFile () const

bool	getScriptIsSubnet () const

bool	getScriptIsVex () const

bool	getScriptIsRsl () const

VEX_ContextType	getVexContextType () const

RSL_ContextType	getRslContextType () const

time_t	getModTime () const

bool	getIsDummyDefinition () const

bool	getScriptIsPython () const

void	setScriptIsPython (bool is_python)

const UT_StringHolder &	getExtraInfo () const

const OP_ExtraInfoBuffer &	getExtraInfoBuffer () const

void	setOTLDefinition (const OP_OTLDefinition &definition)

const OP_OTLDefinition &	getOTLDefinition () const

void	setOTLLibrary (OP_OTLLibrary *library)

OP_OTLLibrary *	getOTLLibrary ()

virtual bool	getSectionData (const UT_StringRef &name, UT_StringHolder &value) const

virtual bool	hasSectionData (const UT_StringRef &name) const

bool	hasContentsSection ()

FS_IndexFile *	getOTLIndexFile (bool check_timestamp=true)

FS_IndexFileHandle	getOTLIndexFilePtr (bool check_timestamp=true)

UT_StringHolder	getContentsSection ()

FS_IndexFile *	createDefaultOTLIndexFile () const

FS_IndexFile *	createOTLIndexFile (bool reservedsectionsonly, UT_StringArray *externalfiles)

void	getDefinitionSectionName (UT_String &sectname) const

void	listContainedOperators (UT_StringSet &contents_list)
	List all operators found in the contents section. More...

const char *	getIconName () const

void	setIconName (const char *name)

void	setDefaultIconName ()

UT_StringHolder	getResolvedIconName () const
	Get icon name with opdef:.?section references resolved. More...

bool	resolveRelativeOpDefPath (UT_WorkBuffer &result, const char *path)

unsigned	minInputs () const

unsigned	maxInputs () const

virtual unsigned	maxOutputs ()

OP_SpareParms *	loadSpareParms (UT_IStream &is)

PRM_Template *	getParmTemplates ()

PRM_ScriptImports *	getParmTemplateImports ()

PRM_Template *	getLayoutParmTemplates ()

PRM_ScriptImports *	getLayoutParmTemplateImports ()

virtual const PRM_Template *	getBaseParmTemplates ()

PRM_Template *	getBaseOverrideLayoutParmTemplates ()

virtual PRM_Template *	getObsoleteTemplates ()

void	setObsoleteTemplates (PRM_Template *tmpl)

bool	getOverrideLayoutParmTemplateFile (UT_String &ds_path) const

CH_LocalVariable *	getVariable (int i) const

CH_LocalVariable *	getVariable (const char *name) const

CH_LocalVariable *	getVariables () const

int	getVariableCount () const

void	resetVariables (OP_VariablePair *variable_pair)

bool	isNetwork () const

bool	isGenerator () const

bool	isScriptedOp () const

bool	isCustomDSO () const

bool	unorderedInputs () const

bool	isManagementOp () const

bool	isOutputOp () const

bool	hasEditableInputData () const

bool	getIsPrimarySubnetType () const

bool	isCreatingNode () const

bool	isChangingParmTemplates () const

bool	hasNodeLoadingContentsSection () const

void	beginLoadingContentsSectionForNode ()

void	endLoadingContentsSectionForNode ()

bool	shouldPreserve () const

virtual int	compareOperator (const OP_Operator *other, int method) const

void	changeParmTemplate (PRM_Template *tp)

unsigned	getPermissionMask () const

virtual bool	wantsParametersAnimatable () const

virtual bool	wantsInputEditor () const

virtual bool	wantsParmOrderEditor () const

virtual bool	wantsOutputNameEditor () const

virtual bool	wantsParentInputs () const

const OP_InputDataEditorConfigEx &	getInputDataEditorConfigEx () const

void	setInputDataEditorConfigEx (const OP_InputDataEditorConfigEx &config)

void	setInputDataEditorConfig (const OP_InputDataEditorConfig &config)

void	fillInfoTree (UT_InfoTree &tree, const OP_NodeInfoTreeParms &parms)

const char *	getTableName () const

OP_OperatorTable *	getTable () const

const UT_StringHolder &	getChildTableName () const

OP_OperatorTable *	getChildOperatorTable () const

OP_OTLLicenseType	getLicense ()

void	setDefinition (const char *def)

void	setEnglish (const char *english)

void	informOfTabMenuFlagChange ()

virtual void	setName (const char *name)

void	setMinInputs (int inputs)

void	setMaxInputs (int inputs)

void	setIsGenerator (bool isgen)

void	updatePresetInfo ()

PRM_PresetInfo *	getPresetInfo ()

bool	runEventScript (const char event, OP_Node node_arg=nullptr, bool full_path=false, UT_Options extra_args=nullptr, bool node_deleted_by_script=nullptr)

PY_EvaluationContext *	getPythonModuleDicts ()

bool	hasLoadedPythonModuleSection () const

void	loadPythonModuleSection (bool force=false)

PY_EvaluationContext *	getViewerStateModuleDicts ()

bool	hasLoadedViewerStateModuleSection () const

void	loadViewerStateModuleSection (bool force=false)

PY_EvaluationContext *	getViewerHandleModuleDicts ()

bool	hasLoadedViewerHandleModuleSection () const

void	loadViewerHandleModuleSection (bool force=false)

void	clearEventScriptPathCache ()

void	getCachedEventScriptPaths (UT_StringArray &events, UT_StringArray &paths, bool only_nonempty) const

bool	isThreadSafe () const

void	setIsThreadSafe (bool is_safe)

bool	isCompiled ()

bool	isBlackBoxed ()
	Returns true if this operator is black boxed, and false otherwise. More...

void	constructIndexFileSectionPath (UT_String &path, const char opdef_or_oplib, const char section_name) const

void	constructIndexFileSectionPath (UT_String &path, const char *opdef_or_oplib, const UT_StringArray &section_names) const

void	setNumOrderedInputs (int inputs)

int	numOrderedInputs () const

void	setLegacyInputsMap (const char *map)

void	getLegacyInputsMap (UT_String &map) const

const UT_StringArray *	getLegacyInputsIndexMap () const

const UT_StringHolder &	getInputName (OP_InputIdx idx) const
	Accessing operator inputs name, label, and reference flag. More...

const UT_StringArray &	getInputNames () const
	Accessing operator inputs name, label, and reference flag. More...

const UT_StringHolder &	getInputLabel (OP_InputIdx idx) const
	Accessing operator inputs name, label, and reference flag. More...

const UT_StringArray &	getInputLabels () const
	Accessing operator inputs name, label, and reference flag. More...

bool	getInputIsReference (OP_InputIdx idx) const
	Accessing operator inputs name, label, and reference flag. More...

const UT_Array< bool > &	getInputAreReferences () const
	Accessing operator inputs name, label, and reference flag. More...

virtual bool	allowsInputNameEditing () const
	Accessing operator inputs name, label, and reference flag. More...

const UT_StringHolder &	getOutputLabel (OP_OutputIdx idx) const

const UT_StringArray &	getOutputLabels () const

void	getOpBasedFileName (UT_String &filename)

void	getOpBasedFileName (UT_WorkBuffer &filename)

Static Public Member Functions
static PI_ScriptOperator *	createScriptOp (const OP_OTLDefinition &def, OP_Constructor construct, const char child_table_name, unsigned flags=0, PRM_Template base=0, VEX_ContextType vextype=VEX_INVALID_CONTEXT, CH_LocalVariable *vars=0, bool is_written_in_python=false)

static PRM_ScriptPage *	allocateScriptPage (OP_Operator *op)

static PRM_Callback	getDefaultCallback ()

Static Public Member Functions inherited from OP_ScriptOperator
static OP_ScriptOperator *	createMantraScriptOp (const char name, const char english)

static int	findScriptOperators (const char path, const char filename, OP_OTLDefinitionArray &defs)

static UT_StringSet &	getAllIndexFiles ()

Static Public Member Functions inherited from OP_Operator
static void	clearOperatorHelpCache ()

static int	loadFromOpType (const char fname, const char savedir)

static int	uninstallOpType (const char path, const char tablename, const char opname, const char indexpath, const char *indexfile)

static void	removeHelpCardOverrides (UT_FileUtil fu, const char path, const char tablename, const char opname, int flags)

static void	removeRenameOverrides (UT_FileUtil fu, const char path, const char tablename, const char opname, int flags)

static void	removeIconOverrides (UT_FileUtil fu, const char path, const char tablename, const char opname, int flags)

static void	removeCmdOverrides (UT_FileUtil fu, const char path, const char tablename, const char opname, int flags)

static void	getDefaultIconName (const char tablename, const char opname, UT_String &iconname)

static const char *	getCurrentPythonModuleKey ()

static const OP_Operator *	mapSecurityKeyToOperator (const char *key)

static void	registerPythonModuleKeyClient (void *client)

static bool	verifyPythonModuleKeyClient (const OP_Operator op, void client)

static PRM_Template *	getEmptyTemplateList ()

static int	operatorNameCompare (const OP_Operator a, const OP_Operator b)

Protected Member Functions
	PI_ScriptOperator (const char name, const char english, OP_Constructor construct, PRM_Template templates, const char child_table_name, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable variables=0, unsigned flags=0, const char *inputlabels=0, int maxoutputs=1)

void	removeAllBindings () override

void	refreshAllBindings () override

PRM_Template *	loadParmTemplates (UT_IStream &is, const char filename, UT_String &scriptName, PRM_ScriptImports &imports) override

virtual const char *	getAddedDSIncludePath ()

Protected Member Functions inherited from OP_ScriptOperator
	OP_ScriptOperator (const char name, const char english, OP_Constructor construct, PRM_Template templates, const char child_table_name, unsigned min_sources, unsigned max_sources=9999, CH_LocalVariable variables=0, unsigned flags=0, const char *inputlabels=0, int maxoutputs=1)

void	getDefinitionSourceText (UT_String &defsource)
	Obtains a string that specifies the definition source of this operator. More...

bool	loadParmTemplatesSubclass () override

Protected Member Functions inherited from OP_Operator
void	notifyUpdateTemplatesSinksOfUpdate ()

void	notifyUpdateTemplatesSinksOfDelete ()

void	notifyActiveNodesOfTemplatesUpdate ()

void	setDescriptiveParmName (const UT_StringHolder &parm)

void	dirtyParmTemplatesLoaded ()

bool	loadAndCreateLayoutParmTemplates (PRM_ScriptPage page, DS_Stream &ds_is, PRM_Template &base_tplates, PRM_Template &layout_tplates, PRM_ScriptImports &imports, PRM_Template &tplates, int base_controls_switcher_index, int base_controls_insert_index, int base_controls_switcher_page_num, PRM_Default &base_controls_switcher_defaults, bool hide_default_parms)
	Load parameter templates from the specified file stream. More...

Additional Inherited Members
Public Types inherited from OP_ScriptOperator
enum	{ OP_SYNTAX_VEX, OP_SYNTAX_SHELL, OP_SYNTAX_RMAN }

Public Types inherited from OP_Operator
enum	OP_OperatorCompare { OP_COMPARE_GEN_ENGLISH = 0, OP_COMPARE_GEN_NAME = 1, OP_COMPARE_ENGLISH = 2, OP_COMPARE_NAME = 3 }

Static Protected Member Functions inherited from OP_ScriptOperator
static void	freeParmTemplates (PRM_Template *templates)

static void	freeSwitcherDefaults (PRM_Default *defs)

Static Protected Member Functions inherited from OP_Operator
static PRM_Template *	addTemplates (OP_TemplatePair *)

static CH_LocalVariable *	addVariables (OP_VariablePair *, int &)

Protected Attributes inherited from OP_ScriptOperator
UT_String	myScriptName

UT_String	myHelp

fpreal	myUnitLength

fpreal	myUnitMass

PRM_ScriptPage *	myPage

time_t	myDialogTimeStamp

int	myStartParm

int	myEndParm

int	myBaseControlsSwitcherIndex

int	myBaseControlsSwitcherPageNum

int	myBaseControlsInsertIndex

PRM_Default *	myBaseSwitcherDefaults

unsigned	mySyntax

UT_String	myInfoText

PY_CompiledCode *	myCachedCompiledPythonCookCode

UT_Lock	myCachedCompiledPythonCookLock

int	myHasCachedCode
	State var indicating if cached code is saved with HDA definition. More...

Protected Attributes inherited from OP_Operator
PRM_Template *	myParmTemplates

PRM_ScriptImports *	myImports

PRM_Template *	myLayoutParmTemplates

PRM_ScriptImports *	myLayoutParmImports

PRM_Template *	myBaseOverrideLayout

PRM_Template *	myBase

bool	myParmTemplatesLoaded

PRM_Template *	myObsoleteTemplates

UT_StringArray	myInputNames

UT_StringArray	myInputLabels

UT_StringArray	myOutputLabels

UT_DeepString	myTabSubmenuPath

UT_Array< bool >	myInputReferences

CH_LocalVariable *	myVariables

int	myNvariables

UT_StringHolder	myChildTableName

OP_OTLDefinition	myOTLDefinition

OP_InputDataEditorConfigEx	myInputDataEditorConfig

VEX_ContextType	myVexContextType

RSL_ContextType	myRslContextType

unsigned	myFlags

bool	myHasContentsSection

UT_StringHolder	myOverriddenOperatorName

UT_SharedPtr< PRM_ScriptPage >	myOverrideLayoutParmScriptPage

Static Protected Attributes inherited from OP_ScriptOperator
static UT_StringSet	theAllIndexFiles

Detailed Description

Definition at line 21 of file PI_ScriptOperator.h.

Constructor & Destructor Documentation

PI_ScriptOperator::~PI_ScriptOperator ( )

override

PI_ScriptOperator::PI_ScriptOperator	(	const char *	name,
		const char *	english,
		OP_Constructor	construct,
		PRM_Template *	templates,
		const char *	child_table_name,
		unsigned	min_sources,
		unsigned	max_sources = `9999`,
		CH_LocalVariable *	variables = `0`,
		unsigned	flags = `0`,
		const char **	inputlabels = `0`,
		int	maxoutputs = `1`
	)

protected

Member Function Documentation

static PRM_ScriptPage* PI_ScriptOperator::allocateScriptPage ( OP_Operator * op )

static

static PI_ScriptOperator* PI_ScriptOperator::createScriptOp	(	const OP_OTLDefinition &	def,
		OP_Constructor	construct,
		const char *	child_table_name,
		unsigned	flags = `0`,
		PRM_Template *	base = `0`,
		VEX_ContextType	vextype = `VEX_INVALID_CONTEXT`,
		CH_LocalVariable *	vars = `0`,
		bool	is_written_in_python = `false`
	)

static

virtual const char* PI_ScriptOperator::getAddedDSIncludePath ( )

protectedvirtual

Reimplemented in VOP_ScriptOperator.

static PRM_Callback PI_ScriptOperator::getDefaultCallback ( )

static

Returns a callback that will run the script defined by the "script_callback" spare data tag string of a node parameter.

void PI_ScriptOperator::getRefreshPICommands	(	OP_Node *	node,
		std::ostream &	commands
	)

overridevirtual

Reimplemented from OP_Operator.

bool PI_ScriptOperator::isAllCookParms ( ) const

inline

Definition at line 57 of file PI_ScriptOperator.h.

bool PI_ScriptOperator::isAllNoSimParms ( ) const

inline

Definition at line 62 of file PI_ScriptOperator.h.

PRM_Template* PI_ScriptOperator::loadParmTemplates	(	UT_IStream &	is,
		const char *	filename,
		UT_String &	scriptName,
		PRM_ScriptImports *&	imports
	)

overrideprotectedvirtual

Reimplemented from OP_ScriptOperator.

Reimplemented in VOP_ScriptOperator.

void PI_ScriptOperator::refreshAllBindings ( )

overrideprotectedvirtual

Reimplemented from OP_ScriptOperator.

void PI_ScriptOperator::removeAllBindings ( )

overrideprotectedvirtual

Reimplemented from OP_ScriptOperator.

void PI_ScriptOperator::setAllCookParms ( bool all_cook )

inline

Definition at line 55 of file PI_ScriptOperator.h.

void PI_ScriptOperator::setAllNoResimParms ( bool all_sim )

inline

Definition at line 60 of file PI_ScriptOperator.h.

void PI_ScriptOperator::setControlsSwitcher	(	int	switcher_index,
		int	page_num,
		int	insert_index = `-1`
	)

The documentation for this class was generated from the following file:

PI/PI_ScriptOperator.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
