Hi!

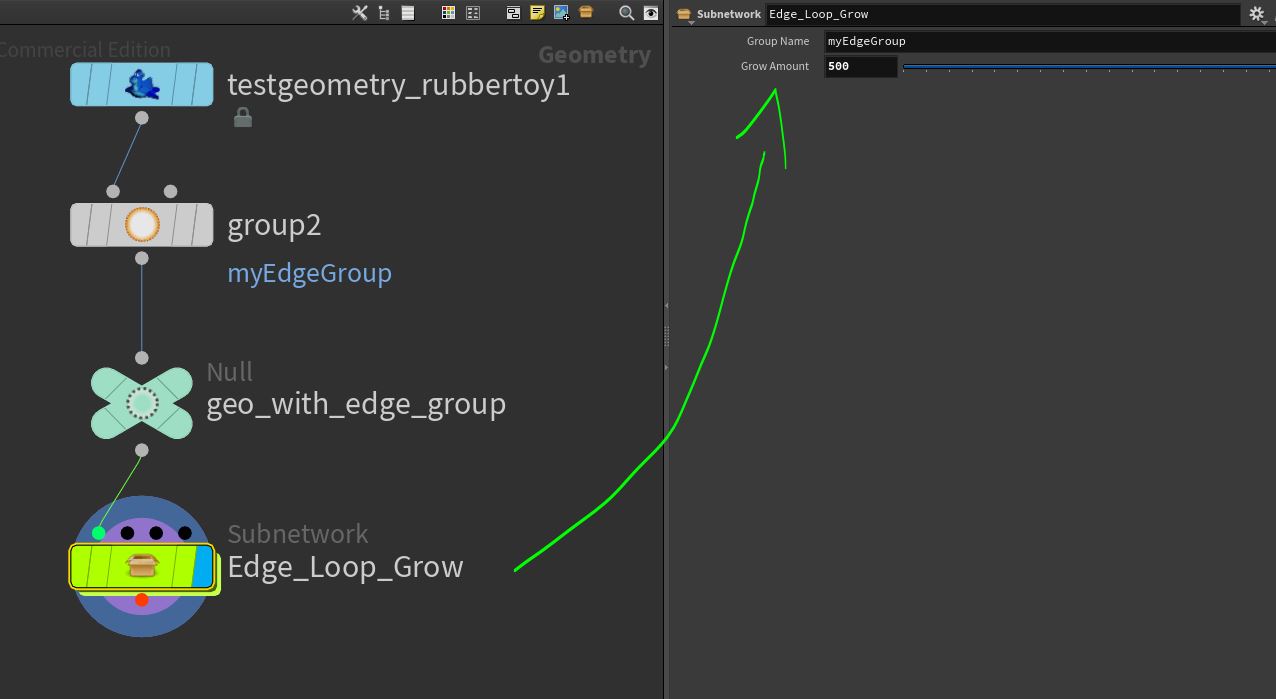

I could not find a tool to grow edge loops so I build one myself. If anybody needs this, take it! (link below images)

My method was to:
1. Promote edge group to points
2. find the ends of each current edge loop
3. With half edge functions, add each next points to array
4. create a string from the array to use in the group sop (e.g. "p0-1-25-64-8 p35-4-3-78")

Edited by olivierth - 2025年5月17日 16:00:38

Attachments:
EdgeLoopGrow_01.hipnc (283.2 KB)


ScottKeating: スタッフ; 137 posts; Joined: 1月 2012; Offline

2025年5月17日 17:41

Hello, GroupFindPath has options for extending edge groups into loops and rings. Have a look!

Cheers,
Scott

Senior Product Designer
Side Effects Software


olivierth: Member; 1131 posts; Joined: 4月 2017; Offline

2025年5月17日 18:43

Hi Scott!

I just tested the GroupFindPath and it works but with a lot of setting changes. For anybody looking to complete full loops that only continues on 4-edge-points, here are the settings:

Edited by olivierth - 2025年5月17日 18:45:37
