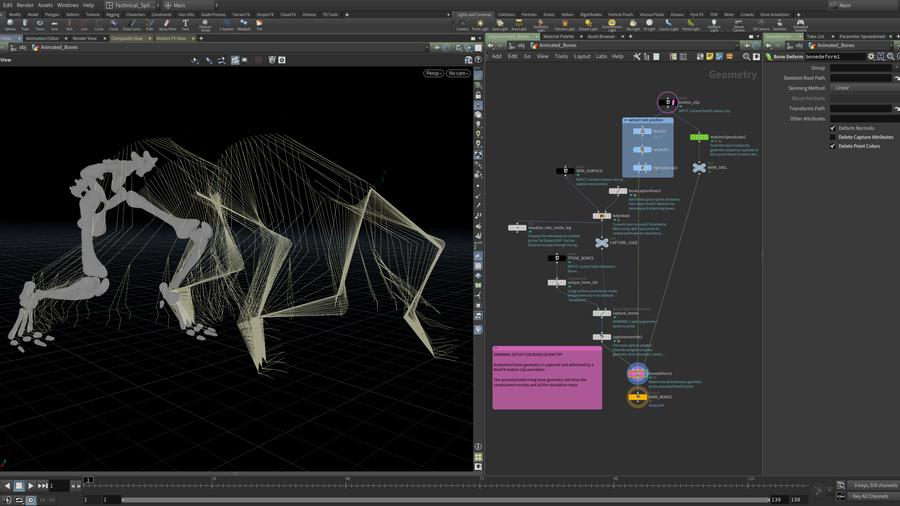

Animated Bones KineFX rig using static Bones being driven by KineFX using Motion Clip into Bone Deform. These cached animated bones are used to drive all the simulation in the Muscle/Tissue/Skin template.

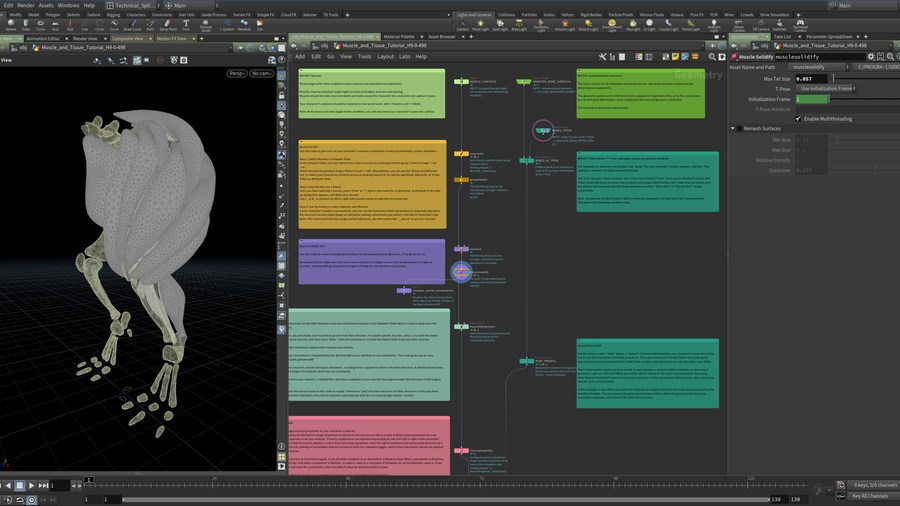

Import Muscles and both animated and t-pose bones to prep for Muscle Simulation Step. Add Muscle ID's then Muscle solidify to turn muscles into tets along with muscle fibre grooming and Muscle Properties.
First Simulation step using Muscle Flex after adding Muscle constraint properties, mirring on character axis L to R and tweak/ovrride Muscle properties with muscle paint.
Muscle Solver Pass using Vellum and cache results to disk.
Tissue Skin Pass setup including tissue solidify, tissue properties, and tissue solve with cached simulated muscles.

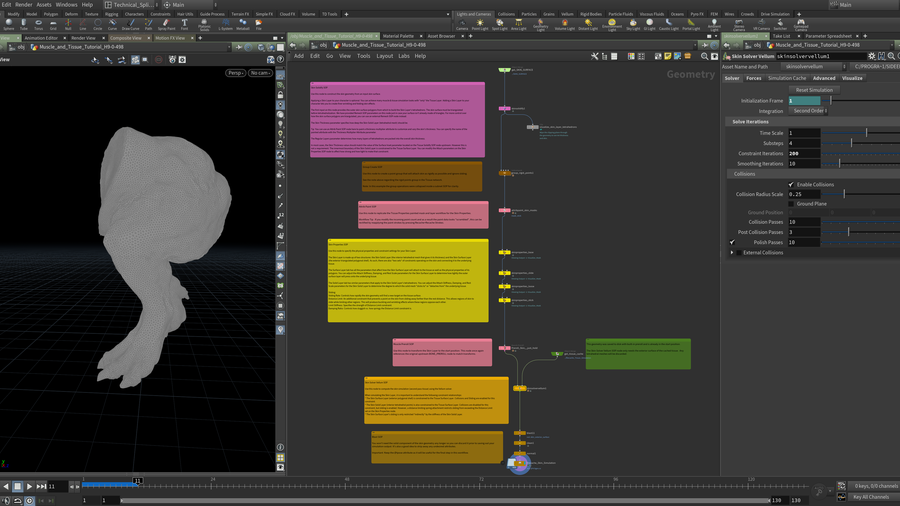

Skin Solver pass setup including skin properties, rigid binding of skin and skin sliding properties.
Final Step High Res Skin Deform pass.
Tレックス筋肉と皮下組織 (T-Rex Muscle and Tissue)
Film/TV
T-Rex の脚の筋肉と皮下組織のセットアップについて解説します。KineFX アニメーションリグからスタートし、次にそれを使って、筋肉 / 組織 / 皮膚テンプレート内の全てのシミュレーションを駆動させていきます。このセットアップは、流用しやすくお使いのキャラクタにも簡単に組み込めるだけでなく、この新しいツールセットの仕組みを理解するのに最適な出発点にもなるでしょう。このファイルには、複数の異なる要素がどのように連携するかを理解する上で役立つ解説も多く含まれています。
このセットアップは、John Mariella が制作したものを、 Jeff Wagner がパッケージ化したものです。
CREATED BY
コメント
CYTE 3年, 8ヶ月 前 |
Oh thats great! Thank you!
Cheers
Philipp
FaitelTech 3年, 8ヶ月 前 |
Every step is very well commented on. Thank you, John, Jeff.
Harold1007 3年, 8ヶ月 前 |
This is amazing!
Looking forward to learning from this demo file.
aguito_takahashi 3年, 8ヶ月 前 |
Thank you!
What I didn't know is going to be clearer.
chovasie 3年, 8ヶ月 前 |
Thank you!
Finally CFX got some love from you guys. Houdini getting more and more user friendly in muscle simulations, but tutorials like this that give us idea what would be best way to approach it, was something that i really needed. This will make transition from Ziva and other FEM solutions a LOT easier! Keep them coming!
C
Harold1007 3年, 8ヶ月 前 |
Hi, I tried to run this file, but somehow the muscle simulation seems to be different than the video that showcased here. I leave all the setting as it was from the file, and it just looks not the same. I am working with 19.0.455. If anyone has any idea please let me know.
Thanks in advance.
Yoshihisa2 3年, 8ヶ月 前 |
Hi, Harold1007
Do you have strange leg mesh or sagging hips?
This happens to me too. It seems to be a version issue, but even the latest version still breaks.
I have already reported this to SideFX.
chris3dfx 3年, 8ヶ月 前 |
Thank you !
if you disable the tissue prop (saggy) then the problem goes away.
Didn´t dig deeper to find out which value is causing the tissue to get that loose that the stuff is touching ground ...
behram_patel 3年, 8ヶ月 前 |
Thanks a ton for uploading this resource Jeff
I hope you can release the bruiser asset as well.
Cheers,
b
AhmedHindy 3年, 6ヶ月 前 |
I copied the setup to different muscles setup and the muscles are are having a mini localized seizure. Help?
melon_pan 3年, 6ヶ月 前 |
Thank you for sharing the template! Would a commercial version required for successfully running it?
old_school 3年, 5ヶ月 前 |
The file should run fine inside Apprentice. The File Cache SOP supports saving of sequences to cache out the simulations.
omid5778 3年, 4ヶ月 前 |
That awesome , thank you Jeff
ccyzkk 3年, 3ヶ月 前 |
very very awesome,thank you Jeff!
ManiAnim 2年, 9ヶ月 前 |
Muscle geo not visible in your musclesolvervellum sop? They are there in muscle flex sop but then just blue bones in solver.
It cooks each frame as if they're there but I cant see them.
Jorge Ivanovich2 2年, 7ヶ月 前 |
Jesus Christ the number of steps to do this effect.
legw 2年, 1ヶ月 前 |
is there a video where jeff comments and going over T-Rex Muscle and Tissue hip file?
hmihalis1 1年, 10ヶ月 前 |
yeah what we really need is a full video series documenting how to model the muscles from scratch for entire human character, going through all the simulation setup in detail for each step, and then how to package the whole thing up into a PDG setup to train the ML deformer for unreal. I would be prepared to donate a kidney for this information.
wnschnapp 1年, 9ヶ月 前 |
Hello, Does anyone have the links for the TREX model/muscles? They dont appear to be with the download file of 11.0 MB. Thanks!
LeonWang2 1年 前 |
Hi great Jeff Wagner . there is a node in the hip， name is edit_skin ，but I don't know how is the node working . could you tell me how is the node edit_skin working ?
lightrain405 4ヶ月, 3週間 前 |
Have you found out why? I'm confused too
