This node takes a texture and a mask (or you can use the image’s alpha channel as the mask), and expands the pixels around the edges of the masked islands. This node wraps the “Diffuse Fill” feature from the Bake Texture node.
Tips and notes
The main use for this node is UV texture padding, to avoid issues where “empty” pixels affect the colors along the edges of the “real” image during mip-map downsizing.
However, it may also be useful as a general procedural “flood fill” tool.
If you don’t wire in a mask, and the input image does not have an alpha channel or Use Alpha as Mask is off, the node treats black pixels as “empty”.
This operation may be restricted to certain planes, or components of planes. In addition, the operation may be applied to a subset of frames within the sequence. An image must have both its frame and plane scoped to be modified.
Images that are not modified are passed through, which does not take any memory or processing time.
This operation may be masked, which restricts the operation to an area of the image. The mask may be inverted, brightened or dimmed.
The mask input is on the side of the node. The label on the connector indicates the plane being used as a mask.
The mask input can also be scaled to fit the output image’s resolution, if they differ. If this node is changing constantly, and the mask is not, it is somewhat faster to put a Scale COP down to do the resize for the mask image. Otherwise, the scale will occur every time this node cooks.

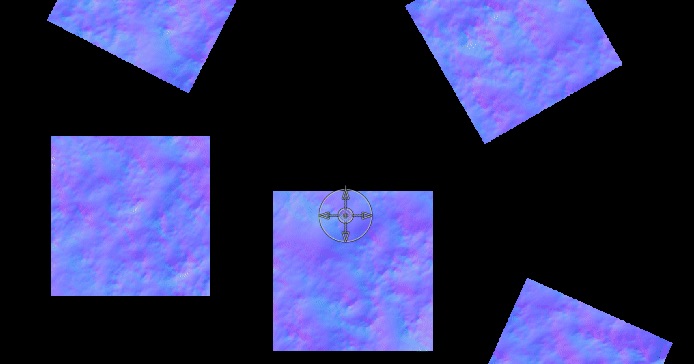

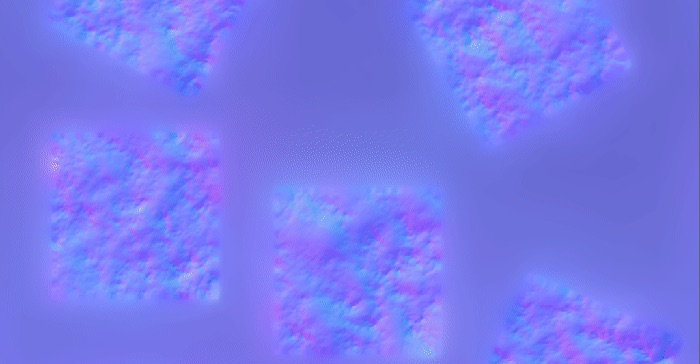

How to expand the edges of the masked areas.

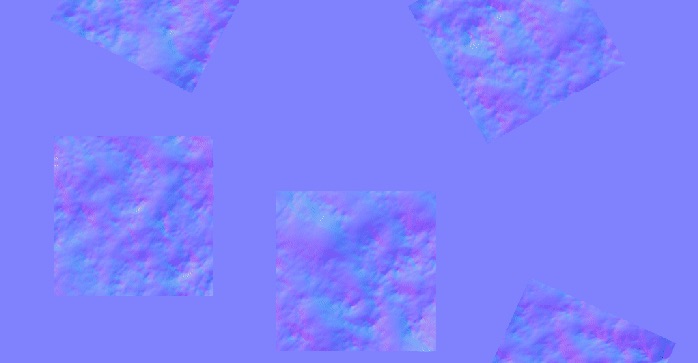

Fill the boundaries with the average color of the image.
Fill the boundaries with black. Only perform border expansion.
Smooth out the transition between the boundaries.
The number of pixels to pad the boundaries with.
Use Alpha as Mask
Use the input image’s alpha channel as the boundary mask if the second input has not been provided.
Unpremultiply the input image with the provided mask or alpha channel before processing.
When using non-binary masks, this value sets the minimum pixel intensity that will be considered as part of the boundary.
Invert the mask.
Visualize Fill Region
Overlay the input image with the fill region.
The color of the overlaid fill region.
The opacity of the overlaid fill region.
A mask can be chosen to limit the effect of the operator to areas defined by the mask. The mask can be taken from the mask input (side input) or from the first input itself.
If no mask is present, this blends the output with the input by a constant amount (0 = all input, 1 = all output).
If a mask is present, this amount multiplies the mask.
Selects the mask plane to use as a mask from the mask input. The mask can be selected from:
A mask can be a component of a plane or an entire plane. If a vector plane is supplied as a mask, its components are multiplied by the images' components.
Scalar Mask ('A', 'C.r')
C.r = I.r * M C.g = I.g * M C.b = I.b * M
Vector Mask ('C')
C.r = I.r * M.r C.g = I.g * M.g C.b = I.b * M.b
Useful for masking the operation to the image’s own alpha plane.
Selects the mask from the side mask input.
Turns off masking, without requiring disconnection of the mask input (useful for temporarily disabling the mask).
Resize Mask to Fit Image
If the mask image is a different resolution than the output image, turning on this parameter will scale the mask to the output image’s resolution.
If this node is changing constantly, and the mask is not, it is somewhat faster to put a Scale COP down to do the resize for the mask image. Otherwise, the scale will occur every time this node cooks.
Inverts the mask so that all fully 'masked' portions become unmasked. This saves you from inserting an Invert COP after the node with the mask.
Specifies the scope for both the RGB components of Color, Alpha, and other planes. The (C)RGBA mask only affects Color components and Alpha. 'C' will toggle all the RGB components.
For planes other than Color and Alpha, the plane name (plus component, if applicable) should be specified in the string field. The pulldown menu can be used to select planes or components present in this node.
A plane is specified by its name. A component is specified by both its plane and component name. The '*' wildcard may be used to scope all extra planes. Any number of planes or components can be specified, separated by spaces.
P N.x N.y P N Pz
Allows scoping of specific frames in the frame range. This is in addition to the plane scope (so a plane at a certain frame must be both plane scoped and frame scoped to be modified).
All frames are scoped.
All frames inside a subrange are scoped.
All frames outside a subrange are scoped.
Even numbered frames are scoped.
Odd numbered frames are scoped.
A user-defined list of frames are scoped.
For Inside/Outside range, this parameter specifies the subrange of the sequence to scope (or unscope). This can be edited in Timeline viewer mode (⌃ Ctrl + 2 in viewer).
For Inside/Outside Range, this parameter specifies certain number of frames before and after to slowly ramp up to scoped. The operation will be blended with its input to 'ease in' or 'ease out' the scoping effect over a number of frames. This can be edited in Timeline viewer mode (⌃ Ctrl + 2 in viewer).
For unscoped frames, this sets the blend factor between the input and modified images. Normally this is zero (use the input image). By setting this to a non-zero value, you can make unscoped frames be 'slightly' unscoped. The value can vary between 0 (unscoped) and 1 (scoped).
The frame list for 'Specific Frames'. Frame numbers should be separated by spaces.
Automatically Adjust for Length Changes
If the sequence range changes, enabling this parameter will adjust the subrange and frame dropoff lengths to fit the new range.
