Houdini 21.0 Nodes Compositing nodes

Labs Normal From Grayscale compositing node

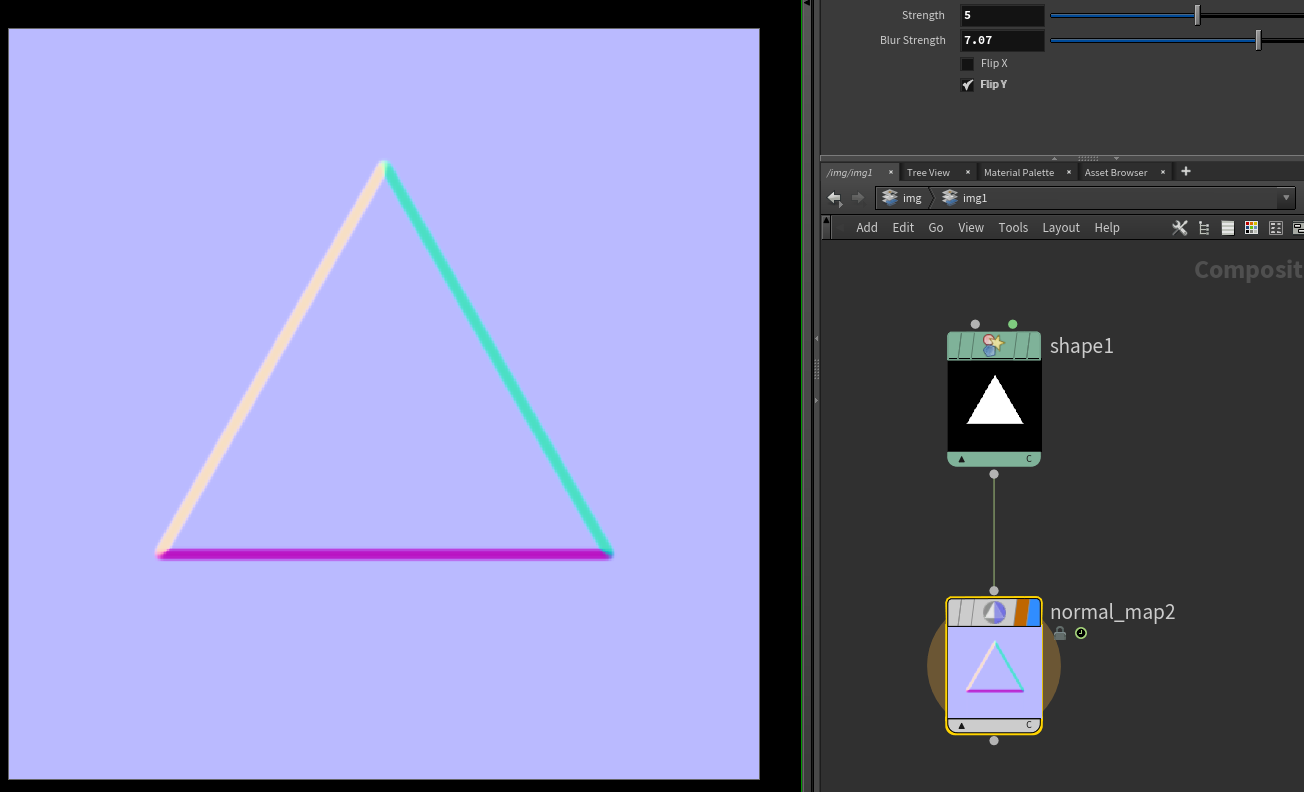

Convert a Grayscale Image Into a Normal Map

Converting a grayscale image into a normal map is a common task in Game Development.

Note

Similar functionality exists in the Gradient COP, but we found that the discoverability wasn’t high enough and it justified a standalone node.

This node aids in that tasks with a few different options.

Parameters

Strength

Modulates the intensity of the normal resulting normal map.

Blur Strength

Additional blurring that can be used to fake beveling in the normal map

Flip X

Invert the Red Channel

Flip Y

Invert the Green Channel, useful in case your renderer is expecting a different type of normal map.
