Houdini 17.0 Nodes Geometry nodes

UV Flatten 2.0 geometry node

Creates flattened pieces in texture space from 3D geometry.

On this page

Overview

To apply a texture image to a 3D model, you must first create flattened version of the 3D geometry in texture space, so the computer knows how to map pixels in the flat image onto points on the 3D surface. This flattened representation of the model is stored as UV coordinates in an attribute (usually uv) on each vertex of the geometry.

This node works in two steps. It takes individual texture pieces (defined by seams that cut the model’s geometry up into smaller pieces that are easier to work with) and flattens them into 2D texture space, trying to equalize polygon size.

Note

This node packs the UV pieces using an algorithm optimized for interactivity. To get more options and the most efficient packing, follow this node with a UV Layout node.

This node lets you add constraints for the flattening algorithm. Constraints force the layout algorithm to satisfy certain conditions, giving you extra control over the final UV layout.

You can use this node interactively, using the tools in the node’s state to specify constraints, or you can turn off Manual layout and use the node procedurally.

Workflow

To...Do this

Set up the viewer to show UVs

By default, the Houdini viewer only shows one view, the Perspective view ("Persp"). You can switch to a multi-viewport layout and then switch one of the viewports to show the current network’s geometry in UV space.

  • To set how the viewer is split, click the layout menu icon at the far right end of the viewer tool, then select a layout such as "Four views" or "Two views side-by-side".

  • To switch a viewport to show UV space, click the View menu (the left menu in the top right corner of a viewport) and choose Set view ▸ UV Viewport, or hover the mouse over the viewport and press Space + 5.

Use UV Flatten to lay out a model’s texture space

  1. You should set up the viewer to show a UV view.

  2. Select the geometry you want to flatten in texture space.

  3. On the Texture shelf tab, click the UV Flatten tool.

  4. Use the controls in the operation toolbar (across the top of the viewer) or in the parameter editor to change how the node works.

Note most geometry will flatten into self-overlapping pieces at first. For example, if you apply UV Flatten to a torus, the node will simply project the top and bottom of the torus down on top of each other in the UV plane. You need to cut UV seams to allow the node to "unwrap" separate 3D pieces into non-overlapping flat pieces.

Add constraints

When the node’s state is active in the viewer, you can use the tool icons in the operation toolbar at the top of the viewer to switch between tools allowing you add constraints by clicking the viewer.

(You can also switch tools using the context menu in the viewer.)

See quick selection for how to switch some tools between working immediately when you click, or waiting for you to make a selection and press Enter.

Remove a constraint

  • To remove a seam, use the Sew tool.

  • To remove a /nodes/sop/pin#pins, click the pin to select it, then press ⌦ Del.

  • To remove an alignment or straighten constraint, click one of the aligned edges to select it, then press ⌦ Del.

  • To remove a rectangular constraint, click a rectangular-ized region to select it, then press ⌦ Del.

Show the UV Flatten interface back in the viewer again

If you ever press ⎋ Esc to switch to the View tool, or switch to a different node, the viewer will switch to show the interface for the new tool.

To get the UV Flatten interface back, select the UV Flatten node in the network editor, then click the Handles tool or press Enter in the viewer.

Specify the area to pack into

When the UV Flatten tool is active, it shows a box handle in the UV view around the 0,0 to 1,1 area. The node packs flattened pieces within this are. You can drag the corners or sides of the box to change the size/shape of the packing area. You can also use the Center and Size parameters to set the box’s coordinates exactly.

This is useful if you need to avoid existing UV islands already in the UV attribute, or if you want to pack the pieces into a UV area other than 0,0 to 1,1.

Note

If you've pinned any pieces, they won’t move/resize when you change the packing area.

Quick selection

  • When quick selection is on (the default), certain tools react immediately to clicks:

    • In the Cut tool, clicking an edge makes the edge a seam.

    • In the Sew tool, clicking a seam edge removes the seam.

    • In the Rectify tool, the tool highlights quad grid regions as you move the mouse pointer over them. Clicking in a quad grid region will select the entire region (you still need to press Enter to apply the constraint).

  • When quick selection is off, you must select points/edges/faces, then press Enter in all tools.

To...Do this

Turn Quick Selection on or off

In the viewer, right-click and choose Quick Selection.

Understanding manual layout

There are two ways of using UV Flatten: interactively, and procedurally. You can switch between them, but you should understand the difference in how the node works.

  • When you use the node interactively (the default), the node will apply some constraints (Layout constraints) such as cutting seams before packing, then use the shapes influenced by those constraints to pack the pieces. Then, you can create more constraints interactively (for example, cutting more seams or pinning UVs). These constraints (Flattening constraints) are applied on top of the packed layout.

    This is because re-packing after each small change could radically alter the layout, making it extremely hard to work interactively with the pieces jumping around. By applying interactive changes post-packing, pieces won’t move as you work on them.

    When you want to "commit" your interactive changes and re-pack for the most efficient layout with the new constraints, click the Repack button in the operation toolbar at the top of the viewer. When you click Repack, the node copies the post-packing "flattening" constraints you added interactively into the pre-packing "layout" constraints parameters. The node then repacks the pieces taking those constraints into account.

    You can work in a cycle like this, making interactive changes, repacking to see their effect on the layout, and then making more interactive changes if necessary.

  • You might not care about flattening interactively and want the node to work procedurally. For example, you might calculate the seams somehow using a script. Or you might have existing islands and just want to use this node for layout and/or relaxing the UVs. In this case you want changes to the parameters to be immediately visible in the output, without having to click Repack.

    To set the node to work procedurally, turn on the Enable manual layout parameter (under the Layout constraints).

    When Enable manual layout is on, the "Flattening" constraints are the only constraints, and they are applied before packing. There are no post-packing constraints. Any values in the "Layout" constraints parameters are ignored.

    In this mode, any changes you make to the "Flattening" constraints immediately changes the node’s output.

Seams

Seams specify where the algorithm will cut the geometry into pieces. If a model has no seams at all, this node will fall back to simply projecting the geometry down onto the UV plane. Unless a model is extremely simple, this will produce bad distortion and overlap of UV pieces.

This node will not automatically add seams. You can precede this node with a UV Autoseam node, and/or manually cut seams using the Cut tool. You will usually need to cut geometry into at least a few pieces to prevent them from overlapping when flattened.

To...Do this

Cut seams interactively in the UV Flatten tool

  1. Click the Cut icon in the operation toolbar (across the top of the viewer).

  2. Whether secure selection is on or off changes how the cut tool works. See secure selection below.

Join seams back together

  1. Click the Join icon in the operation toolbar (across the top of the viewer).

  2. Whether secure selection is on or off changes how the join tool works. See secure selection below.

This tool "un-cuts" edges that were seams (edges in the seams group or edges that you cut interactively). You only need to click/select one side of the "split" in the UV view and both sides will join together. You can’t use this tool to join edges that are boundaries in the 3D model.

When you start joining edges, it may get hard to see/click individual edges as the flattened pieces starts to overlap itself. You may find it easier to click/select edges in the 3D Perspective view than the UV view.

Repack the pieces taking into account new seams

Click the Repack button in the operation toolbar (across the top of the viewer).

Tips

  • You can click edges in the UV view or the 3D views.

  • The node has two parameters for holding seams: "Layout" Seams and "Flattening" Seams. This is to accomodate interactive seam cutting. When you interactively cut seams, the new seams are added to the "Flattening" seams parameter. These seams affect flattening (the shape of the piece will change as you cut), but not layout (the node will not re-pack all the pieces in different positions as you cut).

    When you click Repack, the node will copy from "Flattening" Seams to "Layout" Seams (so they will affect the layout), and clear Post-packing.

    See understanding manual layout below for more information.

  • Island boundary edges are bright green in the UV view. "New" seams (in the Post-packing parameter) have a thicker line.

Pinning vertices

A pin keeps a single point on a piece at the same UV coordinates. When the node recomputes flattening and layout, the vertex will stay in place. However, dragging a pin will move the pinned point, and all other unconstrained points will move/rotate to accomodate the new pin position. (You can use this to rotate an island, by pinning the rotation pivot, then adding a second pin and dragging it around the first.)

To...Do this

Pin vertices in place

  1. Click the Pin icon in the operation toolbar (across the top of the viewer).

  2. Select one or more vertices in the UV view to turn into pins, then press Enter.

Move a pin

  1. Click the Pin icon in the operation toolbar (across the top of the viewer).

  2. Click an existing pin.

    A move handle appears on the pin.

  3. Drag the handle to move the pin.

  • You can move an island by putting a pin in the island and dragging the pin around in texture space.

  • You can rotate an island by putting two pins in the island and dragging one pin around the other.

Delete a pin

  1. Click the Pin icon in the operation toolbar (across the top of the viewer).

  2. Click an existing pin.

  3. Press Delete.

Tip

You must have the Pin mode selected to work with pins. For example, if you are in the Cut mode and click a pin, the tool will cut the edge under the pin.

Aligning and straightening

You can tell the node that you want certain groups of edges to be straight, or to be aligned with the UV grid. The node will take these hints into account when it re-flattens the texture pieces.

Tip

Edges may not become completely straight or axis-aligned if those hints conflict with other constraints, such as pins. Removing the other constraint(s) will cause the node to re-flatten with better straightening/alignment.

To...Do this

Straighten edges (ABF only)

  1. Click the Straighten icon in the operation toolbar (across the top of the viewer). This mode is only available when the Flattening method is "Angle-based (ABF)".

  2. Select some contiguous edges, then press Enter.

    The node will remember that you want these edges to be straight when it re-flattens the texture piece.

Align vertices to the U or V axis

  1. Click the Align icon in the operation toolbar (across the top of the viewer).

  2. Select the vertices you want to align with each other, then press Enter.

    The tool uses a heuristic to choose to align to U or V based on which axes the points are closer to. If you want to change the alignment axis, expand the Axis aligned vertex groups heading in the parameter editor, find the alignment constraint you just created (at the end of the list of constraints), and change the Align parallel to parameter for that constraint.

Repack the pieces taking into account new straighten/align constraints

Click the Repack button in the operation toolbar (across the top of the viewer).

Making quads rectangular

For regions containing a regular grid of quadrilateral polygons, you can constrain those polygons to lay out as a rectangular grid aligned along the UV axes. This reduces distortion and can make the layout clearer.

To...Do this

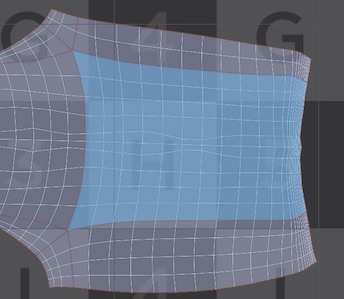

  1. Click the Rectify icon in the operation toolbar (across the top of the viewer).

  2. If Quick Selection is on, this tool highlights quad grid regions as you move the mouse pointer over them, and selects the entire region with one click. If Quick Selection is off, you must select all the primitives you want to align and then press Enter.

Visualization

When the tool’s state is active in the viewer, it overlays a pattern on the model allowing you to visualize the UVs. This can make it obvious where you have distortion or overlap.

To...Do this

Turn the overlay off

In the viewer, right-click and choose Visualize texture ▸ Off.

Turn off display of materials/textures so you can see the overlay better

In the display toolbar on the right side of the menu, turn off the Display Materials on Objects button.

Change the overlay pattern

In the viewer, right-click and choose Visualize texture, then choose a pattern.

Turn on Display orientation glyph in this menu to add an "L" shape to the pattern to help you tell when the texture is right-side-up.

Change the overlay scale

In the viewer, scroll up or down to change the scale of the overlay pattern.

Parameters

Group

The polygonal faces to flatten in texture space. If this is empty, the node works on all incoming polygons. You can enter the name of a group here or specify polygons by number. Click the Reselect button next to this field to select different polygons in the viewer.

UV Attribute

The name of the attribute to store the UV coordinates (uv by default). You can enter a different name if you want to have multiple sets of UVs on the same geometry.

Flattening Method

How to flatten 3D geometry into 2D texture space. The node has two different methods that allow different hints (constraints) and have different efficiencies. Both methods are designed to minimize angular distortion, meaning that angles in the texture image should appear correct when projected onto the textured 3D surface. The methods differ mainly in how to handle area distortion, that is keeping polygons roughly the same size in texture space.

Spectral (SCP)

The default. Faster, more robust, slightly lower quality than Angle Based.

Angle Based (ABF)

Slower, may not always solve, higher quality (less area distortion).

Existing UVs

What to do with existing texture pieces if there are already texture coordinates in the UV attribute.

Preserve Seams

Any existing seams in the incoming geometry are added to contents of the Seams parameter.

Preserve Layout

Preserves the positions of any existing UV islands, and tries to lay out new islands around them.

Preserve Island Boundary Shapes (SCP only)

Preserves the shape of any existing UV islands (allowing them to rotate or scale), and re-flattens their interior UVs. You can turn on this option and Preserve layout if you want to preserve existing islands in-place but relax their UVs.

Flattening constraints

Seams

When Enable manual layout is off, these are the "interactive" post-packing seams. Any edges in this parameter that are not in the "Layout" seams parameter are cut, and any edges in the "Layout" seams parameter that are not in this parameter will be joined. When Enable manual layout is on, these are the only seam constraints, and the "Layout" Seams parameter is ignored.

See understanding manual layout above for more information.

Rectify group

A set of edges defining a rectangular grid of quadrilateral polygon. The tool lists all edges in the selected region, but if you are filling this field in procedurally, it’s sufficient to fill in only the horizontal vertex edges. This is a list of vertex edges.

Vertex pins

Enable pins

A "master switch" to enable or disable all pins.

This section contains a multiparameter where each item corresponds to a pin. You can edit the pins by changing the parameters but it is usually easier to change them interactively. See pinning vertices above.

Primitive/Vertex

The primitive number of the polygon containing the pinned vertex and the sequential index of the pinned vertex in that polygon.

UV

The coordinates to pin the vertex to.

Reference UV

The UV coordinates of the next vertex in the same polygon. It is ignored unless the pin is the only pin in its respective island. Mainly used in interactive state.

Axis-aligned vertex groups

Enable Axis Alignment

A "master switch" to enable or disable all alignment constraints.

This section contains a multiparameter where each item corresponds to an alignment constraint. You can delete individual constraints here. See aligning edges above.

Group

The vertices to line up. Note that it is enough include only one of possibly several vertices in the island wired to the same point.

Align Parallel To

Axis along which to line up.

Straightened Loops (ABF only)

Enable Loop Straightening

A "master switch" to enable or disable all straightening constraints.

This section contains a multiparameter where each item corresponds to a straightening constraint. You can delete individual constraints here. See straightening edges above.

Group

A group of vertices that describe a sequence of edges to be forced into a straight line. This is a list of vertex edges.

Layout constraints

Enable manual layout

Switches the node to work non-interactively. The Flattening constraints will be applied before packing, and the Layout constraints will be ignored. This allows you to use the node procedurally, where changes to the parameters immediately change the node’s output, without having to click Repack.

See understanding manual layout above for more information.

Seams

When Enable manual layout is off, these are the "base" pre-packing seams. When Enable manual layout is on, the "Flattening" seams are the only seam constraints, and this parameter is ignored.

See understanding manual layout above for more information.

Output groups

Seams

Turn the checkbox next to this parameter on to create an edge group in the output containing the seam edges.

Constrained Islands

Turn the checkbox next to this parameter on to create a primitive group in the output containing the polygons in all islands that have a pin, axis-alignment, or straighten constraint.

Packing area

Controls the area of texture space within which the node will try to pack the texture pieces. You can use these parameters to position the area exactly, or drag the corners or sides of the box handle in the UV view when this node is active.

Center

The center of the packing area, as UV coordinates.

Size

The width and height of the packing area, in UV units.

About vertex edge groups

The rectify group and straightened group fields contain list of vertex edges. Each edge is represented by a vertex number. Each vertex number implies a vertex edge from that vertex to the next vertex clockwise.

These fields have to use vertices instead of primitive edges because primitive edges are shared between the polygons on either side. If that particular edge was a seam, it wouldn’t be clear which side was supposed to be aligned.

See also

Geometry nodes

  • Adaptive Prune

    Removes elements while trying to maintain the overall appearance.

  • Add

    Creates Points or Polygons, or adds points/polys to an input.

  • Agent

    Creates agent primitives.

  • Agent Clip

    Adds new clips to agent primitives.

  • Agent Clip

    Adds new clips to agent primitives.

  • Agent Clip Properties

    Defines how agents' animation clips should be played back.

  • Agent Clip Transition Graph

    Creates geometry describing possible transitions between animation clips.

  • Agent Collision Layer

    Creates a new agent layer that is suitable for collision detection.

  • Agent Configure Joints

    Creates point attributes that specify the rotation limits of an agent’s joints.

  • Agent Constraint Network

    Builds a constraint network to hold an agent’s limbs together.

  • Agent Definition Cache

    Writes agent definition files to disk.

  • Agent Edit

    Edits properties of agent primitives.

  • Agent Layer

    Adds a new layer to agent primitives.

  • Agent Look At

    Adjusts the head of an agent to look at a specific object or position.

  • Agent Look At

    Adjusts the head of an agent to look at a specific object or position.

  • Agent Prep

    Adds various common point attributes to agents for use by other crowd nodes.

  • Agent Prep

    Adds various common point attributes to agents for use by other crowd nodes.

  • Agent Proxy

    Provides simple proxy geometry for an agent.

  • Agent Relationship

    Creates parent-child relationships between agents.

  • Agent Terrain Adaptation

    Adapts agents' legs to conform to terrain and prevent the feet from sliding.

  • Agent Transform Group

    Adds new transform groups to agent primitives.

  • Agent Unpack

    Extracts geometry from agent primitives.

  • Agent Vellum Unpack

    Extracts geometry from agent primitives for a Vellum simulation.

  • Alembic

    Loads the geometry from an Alembic scene archive (.abc) file into a geometry network.

  • Alembic Group

    Creates a geometry group for Alembic primitives.

  • Alembic Primitive

    Modifies intrinsic properties of Alembic primitives.

  • Alembic ROP output driver

  • Align

    Aligns a group of primitives to each other or to an auxiliary input.

  • Assemble

    Cleans up a series of break operations and creates the resulting pieces.

  • Attribute Blur

    Blurs out (or "relaxes") points in a mesh or a point cloud.

  • Attribute Cast

    Changes the size/precision Houdini uses to store an attribute.

  • Attribute Composite

    Composites vertex, point, primitive, and/or detail attributes between two or more selections.

  • Attribute Copy

    Copies attributes between groups of vertices, points, or primitives.

  • Attribute Create

    Adds or edits user defined attributes.

  • Attribute Delete

    Deletes point and primitive attributes.

  • Attribute Expression

    Allows simple VEX expressions to modify attributes.

  • Attribute Fade

    Fades a point attribute in and out over time.

  • Attribute Interpolate

    Interpolates attributes within primitives or based on explicit weights.

  • Attribute Mirror

    Copies and flips attributes from one side of a plane to another.

  • Attribute Noise

    Adds noise to attributes of the incoming geometry.

  • Attribute Promote

    Promotes or demotes attributes from one geometry level to another.

  • Attribute Randomize

    Generates random attribute values of various distributions.

  • Attribute Rename

    Renames or deletes point and primitive attributes.

  • Attribute Reorient

    Modifies point attributes based on differences between two models.

  • Attribute String Edit

    Edits string attribute values.

  • Attribute Swap

    Copies, moves, or swaps the contents of attributes.

  • Attribute Transfer

    Transfers vertex, point, primitive, and/or detail attributes between two models.

  • Attribute Transfer By UV

    Transfers attributes between two geometries based on UV proximity.

  • Attribute VOP

    Runs a VOP network to modify geometry attributes.

  • Attribute Wrangle

    Runs a VEX snippet to modify attribute values.

  • Attribute from Map

    Samples texture map information to a point attribute.

  • Attribute from Volume

    Copies information from a volume onto the point attributes of another piece of geometry, with optional remapping.

  • Bake ODE

    Converts primitives for ODE and Bullet solvers.

  • Bake Volume

    Computes lighting values within volume primitives

  • Basis

    Provides operations for moving knots within the parametric space of a NURBS curve or surface.

  • Bend

    Applies deformations such as bend, taper, squash/stretch, and twist.

  • Blast

    Deletes primitives, points, edges or breakpoints.

  • Blend Shapes

    Computes a 3D metamorphosis between shapes with the same topology.

  • Blend Shapes

    Computes a 3D metamorphosis between shapes with the same topology.

  • Block Begin

    The start of a looping block.

  • Block Begin Compile

    The start of a compile block.

  • Block End

    The end/output of a looping block.

  • Block End Compile

    The end/output of a compile block.

  • Bone Capture

    Supports Bone Deform by assigning capture weights to bones.

  • Bone Capture Biharmonic

    Supports Deform by assigning capture weights to points based on biharmonic functions on tetrahedral meshes.

  • Bone Capture Lines

    Supports Bone Capture Biharmonic by creating lines from bones with suitable attributes.

  • Bone Capture Proximity

    Supports Bone Deform by assigning capture weights to points based on distance to bones.

  • Bone Deform

    Uses capture attributes created from bones to deform geometry according to their movement.

  • Bone Link

    Creates default geometry for Bone objects.

  • Boolean

    Combines two polygonal objects with boolean operators, or finds the intersection lines between two polygonal objects.

  • Boolean Fracture

    Fractures the input geometry using cutting surfaces.

  • Bound

    Creates an axis-aligned bounding box or sphere for the input geometry.

  • Box

    Creates a cube or six-sided rectangular box.

  • Break

    Breaks the input geometry using the specified cutting shape.

  • Bulge

    Deforms the points in the first input using one or more magnets from the second input.

  • Cache

    Records and caches its input geometry for faster playback.

  • Cap

    Closes open areas with flat or rounded coverings.

  • Capture Attribute Pack

    Converts array attributes into a single index-pair capture attribute.

  • Capture Attribute Unpack

    Converts a single index-pair capture attribute into per-point and detail array attributes.

  • Capture Correct

    Adjusts capture regions and capture weights.

  • Capture Layer Paint

    Lets you paint capture attributes directly onto geometry.

  • Capture Mirror

    Copies capture attributes from one half of a symmetric model to the other.

  • Capture Override

    Overrides the capture weights on individual points.

  • Capture Region

    Supports Capture and Deform operation by creating a volume within which points are captured to a bone.

  • Carve

    Slices, cuts or extracts points or cross-sections from a primitive.

  • Channel

    Reads sample data from a chop and converts it into point positions and point attributes.

  • Circle

    Creates open or closed arcs, circles and ellipses.

  • Clay

    Lets you deform NURBS faces and NURBS surfaces by pulling points that lie directly on them.

  • Clean

    Helps clean up dirty models.

  • Clip

    Removes or groups geometry on one side of a plane, or creases geometry along a plane.

  • Cloth Capture

    Captures low-res simulated cloth.

  • Cloth Deform

    Deforms geometry captured by the Cloth Capture SOP.

  • Cloud

    Creates a volume representation of source geometry.

  • Cloud Light

    Fills a volume with a diffuse light.

  • Cloud Noise

    Applies a cloud like noise to a Fog volume.

  • Cluster

    Low-level machinery to cluster points based on their positions (or any vector attribute).

  • Cluster Points

    Higher-level node to cluster points based on their positions (or any vector attribute).

  • Collision Source

    Creates geometry and VDB volumes for use with DOPs collisions.

  • Color

    Adds color attributes to geometry.

  • Comb

    Adjust surface point normals by painting.

  • Connect Adjacent Pieces

    Creates lines between nearby pieces.

  • Connectivity

    Creates an attribute with a unique value for each set of connected primitives or points.

  • Control

    Creates simple geometry for use as control shapes.

  • Convert

    Converts geometry from one geometry type to another.

  • Convert HeightField

    Converts a 2D height field to a 3D VDB volume, polygon surface, or polygon soup surface.

  • Convert Line

    Converts the input geometry into line segments.

  • Convert Meta

    Polygonizes metaball geometry.

  • Convert Tets

    Generates the oriented surface of a tetrahedron mesh.

  • Convert VDB

    Converts sparse volumes.

  • Convert VDB Points

    Converts a Point Cloud into a VDB Points Primitive, or vice versa.

  • Convert Volume

    Converts the iso-surface of a volume into a polygonal surface.

  • Convex Decomposition

    Decomposes the input geometry into approximate convex segments.

  • Copy Stamp

    Creates multiple copies of the input geometry, or copies the geometry onto the points of the second input.

  • Copy and Transform

    Copies geometry and applies transformations to the copies.

  • Copy to Points

    Copies the geometry in the first input onto the points of the second input.

  • Crease

    Manually adds or removes a creaseweight attribute to/from polygon edges, for use with the Subdivide SOP.

  • Creep

    Deforms and animates a piece of geometry across a surface.

  • Crowd Source

    Populates a crowd of agent primitives.

  • Crowd Source

    Creates crowd agents to be used with the crowd solver.

  • Curve

    Creates polygonal, NURBS, or Bezier curves.

  • Curveclay

    Deforms a spline surface by reshaping a curve on the surface.

  • Curvesect

    Finds the intersections (or points of minimum distance) between two or more curves or faces.

  • DOP I/O

    Imports fields from DOP simulations, saves them to disk, and loads them back again.

  • DOP Import Fields

    Imports scalar and vector fields from a DOP simulation.

  • DOP Import Records

    Imports option and record data from DOP simulations into points with point attributes.

  • DOP Network

  • Debris Source

    Generates point emission sources for debris from separating fractured rigid body objects.

  • Deformation Wrangle

    Runs a VEX snippet to deform geometry.

  • Delete

    Deletes input geometry by group, entity number, bounding volume, primitive/point/edge normals, and/or degeneracy.

  • DeltaMush

    Smooths out (or "relaxes") point deformations.

  • Detangle

    Attempts to prevent collisions when deforming geometry.

  • Dissolve

    Deletes edges from the input polygonal geometry merging polygons with shared edges.

  • Dissolve

    Deletes points, primitives, and edges from the input geometry and repairs any holes left behind.

  • Divide

    Divides, smooths, and triangulates polygons.

  • Dop Import

    Imports and transforms geometry based on information extracted from a DOP simulation.

  • Draw Curve

    Creates a curve based on user input in the viewport.

  • Draw Guides

  • Each

    Culls the input geometry according to the specifications of the For Each SOP.

  • Edge Collapse

    Collapses edges and faces to their centerpoints.

  • Edge Cusp

    Sharpens edges by uniquing their points and recomputing point normals.

  • Edge Divide

    Inserts points on the edges of polygons and optionally connects them.

  • Edge Flip

    Flips the direction of polygon edges.

  • Edge Fracture

    Cuts geometry along edges using guiding curves.

  • Edge Transport

    Copies and optionally modifies attribute values along edges networks and curves.

  • Edit

    Edits points, edges, or faces interactively.

  • Ends

    Closes, opens, or clamps end points.

  • Enumerate

    Sets an attribute on selected points or primitives to sequential numbers.

  • Error

    Generates a message, warning, or error, which can show up on a parent asset.

  • Exploded View

    Pushes geometry out from the center to create an exploded view.

  • Extract Centroid

    Computes the centroid of each piece of the geometry.

  • Extract Transform

    Computes the best-fit transform between two pieces of geometry.

  • Extrude

    Extrudes geometry along a normal.

  • Extrude Volume

    Extrudes surface geometry into a volume.

  • FEM Visualization

  • FLIP Source

    Creates a surface or density VDB for sourcing FLIP simulations.

  • Facet

    Controls the smoothness of faceting of a surface.

  • Falloff

    Adds smooth distance attributes to geometry.

  • Filament Advect

    Evolves polygonal curves as vortex filaments.

  • File

    Reads, writes, or caches geometry on disk.

  • File Cache

    Writes and reads geometry sequences to disk.

  • File Merge

    Reads and collates data from disk.

  • Fillet

    Creates smooth bridging geometry between two curves or surfaces.

  • Filmbox FBX ROP output driver

  • Find Shortest Path

    Finds the shortest paths from start points to end points, following the edges of a surface.

  • Fit

    Fits a spline curve to points, or a spline surface to a mesh of points.

  • Fluid Compress

    Compresses the output of fluid simulations to decrease size on disk

  • Font

    Creates 3D text from Type 1, TrueType and OpenType fonts.

  • Force

    Uses a metaball to attract or repel points or springs.

  • Fractal

    Creates jagged mountain-like divisions of the input geometry.

  • Fur

    Creates a set of hair-like curves across a surface.

  • Fuse

    Merges or splits (uniques) points.

  • Glue Cluster

    Adds strength to a glue constraint network according to cluster values.

  • Grain Source

    Generates particles to be used as sources in a particle-based grain simulation.

  • Graph Color

    Assigns a unique integer attribute to non-touching components.

  • Grid

    Creates planar geometry.

  • Groom Blend

    Blends the guides and skin of two grooms.

  • Groom Fetch

    Fetches groom data from grooming objects.

  • Groom Pack

    Packs the components of a groom into a set of named Packed Primitives for the purpose of writing it to disk.

  • Groom Switch

    Switches between all components of two groom streams.

  • Groom Unpack

    Unpacks the components of a groom from a packed groom.

  • Group

    Generates groups of points, primitives, edges, or vertices according to various criteria.

  • Group Combine

    Combines point groups, primitive groups, or edge groups according to boolean operations.

  • Group Copy

    Copies groups between two pieces of geometry, based on point/primitive numbers.

  • Group Delete

    Deletes groups of points, primitives, edges, or vertices according to patterns.

  • Group Expression

    Runs VEX expressions to modify group membership.

  • Group Paint

    Sets group membership interactively by painting.

  • Group Promote

    Converts point, primitive, edge, or vertex groups into point, primitive, edge, or vertex groups.

  • Group Range

    Groups points and primitives by ranges.

  • Group Rename

    Renames groups according to patterns.

  • Group Transfer

    Transfers groups between two pieces of geometry, based on proximity.

  • Guide Advect

    Advects guide points through a velocity volume.

  • Guide Collide With VDB

    Resolves collisions of guide curves with VDB signed distance fields.

  • Guide Deform

    Deforms geometry with an animated skin and optionally guide curves.

  • Guide Groom

    Allows intuitive manipulation of guide curves in the viewport.

  • Guide Group

    Creates standard primitive groups used by grooming tools.

  • Guide Initialize

    Quickly give hair guides some initial direction.

  • Guide Mask

    Creates masking attributes for other grooming operations.

  • Guide Partition

    Creates and prepares parting lines for use with hair generation.

  • Guide Skin Attribute Lookup

    Looks up skin geometry attributes under the root point of guide curves.

  • Guide Tangent Space

    Constructs a coherent tangent space along a curve.

  • Guide Transfer

    Transfer hair guides between geometries.

  • Hair Card Generate

    Converts dense hair curves to a polygon card, keeping the style and shape of the groom.

  • Hair Clump

    Clumps guide curves together.

  • Hair Generate

    Generates hair on a surface or from points.

  • Hair Growth Field

    Generates a velocity field based on stroke primitives.

  • HeightField

    Generates an initial heightfield volume for use with terrain tools.

  • HeightField Blur

    Blurs a terrain height field or mask.

  • HeightField Clip

    Limits height values to a certain minimum and/or maximum.

  • HeightField Copy Layer

    Creates a copy of a height field or mask.

  • HeightField Crop

    Extracts a square of a certain width/length from a larger height volume, or resizes/moves the boundaries of the height field.

  • HeightField Distort by Layer

    Displaces a height field by another field.

  • HeightField Distort by Noise

    Advects the input volume through a noise pattern to break up hard edges and add variety.

  • HeightField Draw Mask

    Lets you draw shapes to create a mask for height field tools.

  • HeightField Erode

    Calculates thermal and hydraulic erosion over time (frames) to create more realistic terrain.

  • HeightField Erode

    Calculates thermal and hydraulic erosion over time (frames) to create more realistic terrain.

  • HeightField Erode Hydro

    Simulates the erosion from one heightfield sliding over another for a short time.

  • HeightField Erode Precipitation

    Distributes water along a heightfield. Offers controls for adjusting the intensity, variability, and location of rainfall.

  • HeightField Erode Thermal

    Calculates the effect of thermal erosion on terrain for a short time.

  • HeightField File

    Imports a 2D image map from a file or compositing node into a height field or mask.

  • HeightField Flow Field

    Generates flow and flow direction layers according to the input height layer.

  • HeightField Isolate Layer

    Copies another layer over the mask layer, and optionally flattens the height field.

  • HeightField Layer

    Composites together two height fields.

  • HeightField Layer Clear

    Sets all values in a heightfield layer to a fixed value.

  • HeightField Layer Property

    Sets the border voxel policy on a height field volume.

  • HeightField Mask by Feature

    Creates a mask based on different features of the height layer.

  • HeightField Mask by Object

    Creates a mask based some other geometry.

  • HeightField Mask by Occlusion

    Creates a mask where the input terrain is hollow/depressed, for example riverbeds and valleys.

  • HeightField Noise

    Adds vertical noise to a height field, creating peaks and valleys.

  • HeightField Output

    Exports height and/or mask layers to disk as an image.

  • HeightField Paint

    Lets you paint values into a height or mask field using strokes.

  • HeightField Patch

    Patches features from one heightfield to another.

  • HeightField Pattern

    Adds displacement in the form of a ramps, steps, stripes, Voronoi cells, or other patterns.

  • HeightField Project

    Projects 3D geometry into a height field.

  • HeightField Quick Shade

    Applies a material that lets you plug in textures for different layers.

  • HeightField Remap

    Remaps the values in a height field or mask layer.

  • HeightField Resample

    Changes the resolution of a height field.

  • HeightField Scatter

    Scatters points across the surface of a height field.

  • HeightField Scatter

    Scatters points across the surface of a height field.

  • HeightField Slump

    Simulates loose material sliding down inclines and piling at the bottom.

  • HeightField Terrace

    Creates stepped plains from slopes in the terrain.

  • HeightField Tile Splice

    Stitches height field tiles back together.

  • HeightField Tile Split

    Splits a height field volume into rows and columns.

  • HeightField Transform

    Height field specific scales and offsets.

  • HeightField Visualize

    Visualizes elevations using a custom ramp material, and mask layers using tint colors.

  • Hole

    Makes holes in surfaces.

  • Inflate

    Deforms the points in the first input to make room for the inflation tool.

  • Instance

    Instances Geometry on Points.

  • Intersection Analysis

    Creates points with attributes at intersections between a triangle and/or curve mesh with itself, or with an optional second set of triangles and/or curves.

  • Intersection Stitch

    Composes triangle surfaces and curves together into a single connected mesh.

  • Invoke Compiled Block

    Processes its inputs using the operation of a referenced compiled block.

  • IsoOffset

    Builds an offset surface from geometry.

  • IsoSurface

    Generates an isometric surface from an implicit function.

  • Join

    The Join op connects a sequence of faces or surfaces into a single primitive that inherits their attributes.

  • Knife

    Divides, deletes, or groups geometry based on an interactively drawn line.

  • L-System

    Creates fractal geometry from the recursive application of simple rules.

  • Lattice

    Deforms geometry based on how you reshape control geometry.

  • Lidar Import

    Reads a lidar file and imports a point cloud from its data.

  • Line

    Creates polygon or NURBS lines from a position, direction, and distance.

  • MDD

    Animates points using an MDD file.

  • Magnet

    Deforms geometry by using another piece of geometry to attract or repel points.

  • Match Axis

    Aligns the input geometry to a specific axis.

  • Match Size

    Resizes and recenters the geometry according to reference geometry.

  • Match Topology

    Reorders the primitive and point numbers of the input geometry to match some reference geometry.

  • Material

    Assigns one or more materials to geometry.

  • Measure

    Measures volume, area, and perimeter of polygons and puts the results in attributes.

  • Merge

    Merges geometry from its inputs.

  • MetaGroups

    Defines groupings of metaballs so that separate groupings are treated as separate surfaces when merged.

  • Metaball

    Creates metaballs and meta-superquadric surfaces.

  • Mirror

    Duplicates and mirrors geometry across a mirror plane.

  • Mountain

    Displaces points along their normals based on fractal noise.

  • Mountain

    Displaces points along their normals based on fractal noise.

  • Muscle Capture

    Supports Muscle Deform by assigning capture weights to points based on distance away from given primitives

  • Muscle Deform

    Deforms a surface mesh representing skin to envelop or drape over geometry representing muscles

  • Name

    Creates a "naming" attribute on points or primitives allowing you to refer to them easily, similar to groups.

  • Normal

    Computes surface normal attribute.

  • Null

    Does nothing.

  • Object Merge

    Merges geometry from multiple sources and allows you to define the manner in which they are grouped together and transformed.

  • Object_musclerig@musclerigstrokebuilder

  • Object_riggedmuscle@musclestrokebuilder

    Assists the creation of a Muscle or Muscle Rig by allowing you to draw a stroke on a projection surface.

  • Ocean Evaluate

    Deforms input geometry based on ocean "spectrum" volumes.

  • Ocean Evaluate

    Deforms input geometry based on ocean "spectrum" volumes.

  • Ocean Foam

    Generates particle-based foam

  • Ocean Source

    Generates particles and volumes from ocean "spectrum" volumes for use in simulations

  • Ocean Source

    Generates particles and volumes from ocean "spectrum" volumes for use in simulations

  • Ocean Spectrum

    Generates volumes containing information for simulating ocean waves.

  • Ocean Waves

    Instances individual waveforms onto input points and generated points.

  • OpenCL

    Executes an OpenCL kernel on geometry.

  • Output

    Marks the output of a sub-network.

  • Pack

    Packs geometry into an embedded primitive.

  • Pack Points

    Packs points into a tiled grid of packed primitives.

  • Packed Disk Edit

    Editing Packed Disk Primitives.

  • Packed Edit

    Editing Packed Primitives.

  • Paint

    Lets you paint color or other attributes on geometry.

  • Paint Color Volume

    Creates a color volume based on drawn curve

  • Paint Fog Volume

    Creates a fog volume based on drawn curve

  • Paint SDF Volume

    Creates an SDF volume based on drawn curve

  • Particle

    Creates simple particle simulations without requiring an entire particle network.

  • Particle Fluid Surface

    Generates a surface around the particles from a particle fluid simulation.

  • Particle Fluid Tank

    Creates a set of regular points filling a tank.

  • Partition

    Places points and primitives into groups based on a user-supplied rule.

  • Peak

    Moves primitives, points, edges or breakpoints along their normals.

  • Planar Patch

    Creates a planar polygonal patch.

  • Planar Patch from Curves

    Fills in a 2d curve network with triangles.

  • Planar Pleat

    Deforms flat geometry into a pleat.

  • Platonic Solids

    Creates platonic solids of different types.

  • Point

    Manually adds or edits point attributes.

  • Point Cloud Iso

    Constructs an iso surface from its input points.

  • Point Deform

    Deforms geometry on an arbitrary connected point mesh.

  • Point Generate

    Creates new points, optionally based on point positions in the input geometry.

  • Point Jitter

    Jitters points in random directions.

  • Point Relax

    Moves points with overlapping radii away from each other, optionally on a surface.

  • Point Replicate

    Generates a cloud of points around the input points.

  • Point Velocity

    Computes and manipulates velocities for points of a geometry.

  • Points from Volume

    Creates set of regular points filling a volume.

  • Poly Bridge

    Creates flat or tube-shaped polygon surfaces between source and destination edge loops, with controls for the shape of the bridge.

  • Poly Expand 2D

    Creates offset polygonal geometry for planar polygonal graphs.

  • Poly Extrude

    Extrudes polygonal faces and edges.

  • PolyBevel

    Creates straight, rounded, or custom fillets along edges and corners.

  • PolyBevel

    Bevels points and edges.

  • PolyCut

    Breaks curves where an attribute crosses a threshold.

  • PolyDoctor

    Helps repair invalid polygonal geometry, such as for cloth simulation.

  • PolyExtrude

    Extrudes polygonal faces and edges.

  • PolyFill

    Fills holes with polygonal patches.

  • PolyFrame

    Creates coordinate frame attributes for points and vertices.

  • PolyLoft

    Creates new polygons using existing points.

  • PolyPatch

    Creates a smooth polygonal patch from primitives.

  • PolyPath

    Cleans up topology of polygon curves.

  • PolyReduce

    Reduces the number of polygons in a model while retaining its shape. This node preserves features, attributes, textures, and quads during reduction.

  • PolySoup

    Combines polygons into a single primitive that can be more efficient for many polygons

  • PolySpline

    The PolySpline SOP fits a spline curve to a polygon or hull and outputs a polygonal approximation of that spline.

  • PolySplit

    Divides an existing polygon into multiple new polygons.

  • PolySplit

    Divides an existing polygon into multiple new polygons.

  • PolyStitch

    Stitches polygonal surfaces together, attempting to remove cracks.

  • PolyWire

    Constructs polygonal tubes around polylines, creating renderable geometry with smooth bends and intersections.

  • Pose Scope

    Assigns channel paths and/or pickscripts to geometry.

  • Pose-Space Deform

    Interpolates between a set of pose-shapes based on the value of a set of drivers.

  • Pose-Space Edit

    Packs geometry edits for pose-space deformation.

  • Primitive

    Edits primitive, primitive attributes, and profile curves.

  • Primitive Split

    Takes a primitive attribute and splits any points whose primitives differ by more than a specified tolerance at that attribute.

  • Profile

    Extracts or manipulates profile curves.

  • Project

    Creates profile curves on surfaces.

  • Pyro Source

    Creates points for sourcing pyro and smoke simulations.

  • Python

    Runs a Python snippet to modify the incoming geometry.

  • RBD Cluster

    Combines fractured pieces or constraints into larger clusters.

  • RBD Constraint Properties

    Creates attributes describing rigid body constraints.

  • RBD Interior Detail

    Creates additional detail on the interior surfaces of fractured geometry.

  • RBD Material Fracture

    Fractures the input geometry based on a material type.

  • RBD Pack

    Packs RBD geometry, constraints, and proxy geometry into a single geometry.

  • RBD Paint

    Paints values onto geometry or constraints using strokes.

  • RBD Unpack

    Unpacks an RBD setup into three outputs.

  • RMan Shader

    Attaches RenderMan shaders to groups of faces.

  • ROP Geometry Output

  • Rails

    Generates surfaces by stretching cross-sections between two guide rails.

  • Ray

    Projects one surface onto another.

  • Refine

    Increases the number of points/CVs in a curve or surface without changing its shape.

  • Reguide

    Scatters new guides, interpolating the properties of existing guides.

  • Remesh

    Recreates the shape of the input surface using "high-quality" (nearly equilateral) triangles.

  • Repack

    Repacks geometry as an embedded primitive.

  • Resample

    Resamples one or more curves or surfaces into even length segments.

  • Rest Position

    Sets the alignment of solid textures to the geometry so the texture stays put on the surface as it deforms.

  • Retime

    Retimes the time-dependent input geometry.

  • Reverse

    Reverses or cycles the vertex order of faces.

  • Revolve

    Revolves a curve around a center axis to sweep out a surface.

  • Rewire Vertices

    Rewires vertices to different points specified by an attribute.

  • Ripple

    Generates ripples by displacing points along the up direction specified.

  • Scatter

    Scatters new points randomly across a surface or through a volume.

  • Script

    Runs scripts when cooked.

  • Sculpt

    Lets you interactively reshape a surface by brushing.

  • Sequence Blend

    Morphs though a sequence of 3D shapes, interpolating geometry and attributes.

  • Sequence Blend

    Sequence Blend lets you do 3D Metamorphosis between shapes and Interpolate point position, colors…

  • Shape Diff

    Computes the post-deform or pre-deform difference of two geometries with similar topologies.

  • Shrinkwrap

    Computes the convex hull of the input geometry and moves its polygons inwards along their normals.

  • Shrinkwrap

    Takes the convex hull of input geometry and moves its polygons inwards along their normals.

  • Skin

    Builds a skin surface between any number of shape curves.

  • Sky

    Creates a sky filled with volumentric clouds

  • Smooth

    Smooths out (or "relaxes") polygons, meshes and curves without increasing the number of points.

  • Smooth

    Smooths out (or "relaxes") polygons, meshes and curves without increasing the number of points.

  • Soft Peak

    Moves the selected point along its normal, with smooth rolloff to surrounding points.

  • Soft Transform

    Moves the selected point, with smooth rolloff to surrounding points.

  • Solid Conform

    Creates a tetrahedral mesh that conforms to a connected mesh as much as possible.

  • Solid Embed

    Creates a simple tetrahedral mesh that covers a connected mesh.

  • Solid Fracture

    Creates a partition of a tetrahedral mesh that can be used for finite-element fracturing.

  • Solver

    Allows running a SOP network iteratively over some input geometry, with the output of the network from the previous frame serving as the input for the network at the current frame.

  • Sort

    Reorders points and primitives in different ways.

  • Sphere

    Creates a sphere or ovoid surface.

  • Split

    Splits primitives or points into two streams.

  • Spray Paint

    Spray paints random points onto a surface.

  • Spring

    Simulates the behavior of points as if the edges connecting them were springs.

  • Sprite

    A SOP node that sets the sprite display for points.

  • Starburst

    Insets points on polygonal faces.

  • Stash

    Caches the input geometry in the node on command, and then uses it as the node’s output.

  • Stitch

    Stretches two curves or surfaces to cover a smooth area.

  • Stroke

    Low level tool for building interactive assets.

  • Stroke Cache

    Simplifies the building of tools that incrementally modify geometry based on strokes.

  • Subdivide

    Subdivides polygons into smoother, higher-resolution polygons.

  • Subnetwork

    The Subnet op is essentially a way of creating a macro to represent a collection of ops as a single op in the Network Editor.

  • Super Quad

    Generates an isoquadric surface.

  • Surfsect

    Trims or creates profile curves along the intersection lines between NURBS or bezier surfaces.

  • Sweep

    Creates a surface by sweeping cross-sections along a backbone curve.

  • Switch

    Switches between network branches based on an expression or keyframe animation.

  • Table Import

    Reads a CSV file creating point per row.

  • Test Geometry: Crag

    Creates a rock creature, which can be used as test geometry.

  • Test Geometry: Pig Head

    Creates a pig head, which can be used as test geometry..

  • Test Geometry: Rubber Toy

    Creates a rubber toy, which can be used as test geometry.

  • Test Geometry: Shader Ball

    Creates a shader ball, which can be used to test shaders.

  • Test Geometry: Squab

    Creates a squab, which can be used as test geometry.

  • Test Geometry: Tommy

    Creates a soldier, which can be used as test geometry.

  • Test Simulation: Crowd Transition

    Provides a simple crowd simulation for testing transitions between animation clips.

  • Test Simulation: Ragdoll

    Provides a simple Bullet simulation for testing the behavior of a ragdoll.

  • Tet Partition

    Partitions a given tetrahedron mesh into groups of tets isolated by a given polygon mesh

  • Tetrahedralize

    Performs variations of a Delaunay Tetrahedralization.

  • TimeShift

    Cooks the input at a different time.

  • Toon Shader Attributes

    Sets attributes used by the Toon Color Shader and Toon Outline Shader.

  • TopoBuild

    Lets you interactively draw a reduced quad mesh automatically snapped to existing geometry.

  • Torus

    Creates a torus (doughnut) shaped surface.

  • Trace

    Traces curves from an image file.

  • Trail

    Creates trails behind points.

  • Transform

    The Transform operation transforms the source geometry in "object space" using a transformation matrix.

  • Transform Axis

    Transforms the input geometry relative to a specific axis.

  • Transform By Attribute

    Transforms the input geometry by a point attribute.

  • Transform Pieces

    Transforms input geometry according to transformation attributes on template geometry.

  • Tri Bezier

    Creates a triangular Bezier surface.

  • TriDivide

    Refines triangular meshes using various metrics.

  • Triangulate 2D

    Connects points to form well-shaped triangles.

  • Trim

    Trims away parts of a spline surface defined by a profile curve or untrims previous trims.

  • Tube

    Creates open or closed tubes, cones, or pyramids.

  • UV Autoseam

    Generates an edge group representing suggested seams for flattening a polygon model in UV space.

  • UV Brush

    Adjusts texture coordinates in the UV viewport by painting.

  • UV Edit

    Lets you interactively move UVs in the texture view.

  • UV Flatten

    Creates flattened pieces in texture space from 3D geometry.

  • UV Flatten

    Creates flattened pieces in texture space from 3D geometry.

  • UV Fuse

    Merges UVs.

  • UV Layout

    Packs UV islands efficiently into a limited area.

  • UV Pelt

    Relaxes UVs by pulling them out toward the edges of the texture area.

  • UV Project

    Assigns UVs by projecting them onto the surface from a set direction.

  • UV Quick Shade

    Applies an image file as a textured shader to a surface.

  • UV Texture

    Assigns texture UV coordinates to geometry for use in texture and bump mapping.

  • UV Transform

    Transforms UV texture coordinates on the source geometry.

  • UV Transform

    Transforms UV texture coordinates on the source geometry.

  • UV Unwrap

    Separates UVs into reasonably flat, non-overlapping groups.

  • Unix

    Processes geometry using an external program.

  • Unpack

    Unpacks packed primitives.

  • Unpack Points

    Unpacks points from packed primitives.

  • VDB

    Creates one or more empty/uniform VDB volume primitives.

  • VDB Activate

    Activates voxel regions of a VDB for further processing.

  • VDB Activate SDF

    Expand or contract signed distance fields stored on VDB volume primitives.

  • VDB Advect

    Moves VDBs in the input geometry along a VDB velocity field.

  • VDB Advect Points

    Moves points in the input geometry along a VDB velocity field.

  • VDB Analysis

    Computes an analytic property of a VDB volumes, such as gradient or curvature.

  • VDB Clip

    Clips VDB volume primitives using a bounding box or another VDB as a mask.

  • VDB Combine

    Combines the values of two aligned VDB volumes in various ways.

  • VDB Diagnostics

    Tests VDBs for Bad Values and Repairs.

  • VDB Fracture

    Cuts level set VDB volume primitives into multiple pieces.

  • VDB LOD

    Build an LOD Pyramid from a VDB.

  • VDB Morph SDF

    Blends between source and target SDF VDBs.

  • VDB Occlusion Mask

    Create a mask of the voxels in shadow from a camera for VDB primitives.

  • VDB Points Group

    Manipulates the Internal Groups of a VDB Points Primitive.

  • VDB Project Non-Divergent

    Removes divergence from a Vector VDB.

  • VDB Renormalize SDF

    Fixes signed distance fields stored in VDB volume primitives.

  • VDB Resample

    Re-samples a VDB volume primitive into a new orientation and/or voxel size.

  • VDB Reshape SDF

    Reshapes signed distance fields in VDB volume primitives.

  • VDB Segment by Connectivity

    Splits SDF VDBs into connected components.

  • VDB Smooth

    Smooths out the values in a VDB volume primitive.

  • VDB Smooth SDF

    Smooths out SDF values in a VDB volume primitive.

  • VDB Topology to SDF

    Creates an SDF VDB based on the active set of another VDB.

  • VDB Vector Merge

    Merges three scalar VDB into one vector VDB.

  • VDB Vector Split

    Splits a vector VDB primitive into three scalar VDB primitives.

  • VDB Visualize Tree

    Replaces a VDB volume with geometry that visualizes its structure.

  • VDB from Particle Fluid

    Generates a signed distance field (SDF) VDB volume representing the surface of a set of particles from a particle fluid simulation.

  • VDB from Particles

    Converts point clouds and/or point attributes into VDB volume primitives.

  • VDB from Polygons

    Converts polygonal surfaces and/or surface attributes into VDB volume primitives.

  • VDB to Spheres

    Fills a VDB volume with adaptively-sized spheres.

  • Vellum Configure Grain

    Configures geometry for Vellum Grain constraints.

  • Vellum Constraints

    Configure constraints on geometry for the Vellum solvers.

  • Vellum Drape

    Vellum solver setup to pre-roll fabric to drape over characters.

  • Vellum I/O

    Packs Vellum simulations, saves them to disk, and loads them back again.

  • Vellum Pack

    Packs Vellum geometry and constraints into a single geometry.

  • Vellum Post-Process

    Applies common post-processing effects to the result of Vellum solves.

  • Vellum Rest Blend

    Blends the current rest values of constraints with a rest state calculated from external geometry.

  • Vellum Solver

    Runs a dynamic Vellum simulation.

  • Vellum Unpack

    Unpacks a Vellum simulation into two outputs.

  • Verify BSDF

    Verify that a bsdf conforms to the required interface.

  • Vertex

    Manually adds or edits attributes on vertices (rather than on points).

  • Vertex Split

    Takes a vertex attribute and splits any point whose vertices differ by more than a specified tolerance at that attribute.

  • Visibility

    Shows/hides primitives in the 3D viewer and UV editor.

  • Visualize

    Lets you attach visualizations to different nodes in a geometry network.

  • Volume

    Creates a volume primitive.

  • Volume Analysis

    Computes analytic properties of volumes.

  • Volume Arrival Time

    Computes a speed-defined travel time from source points to voxels.

  • Volume Blur

    Blurs the voxels of a volume.

  • Volume Bound

    Bounds voxel data.

  • Volume Break

    Cuts polygonal objects using a signed distance field volume.

  • Volume Compress

    Re-compresses Volume Primitives.

  • Volume Convolve 3×3×3

    Convolves a volume by a 3×3×3 kernel.

  • Volume FFT

    Compute the Fast Fourier Transform of volumes.

  • Volume Feather

    Feathers the edges of volumes.

  • Volume Merge

    Flattens many volumes into one volume.

  • Volume Mix

    Combines the scalar fields of volume primitives.

  • Volume Optical Flow

    Translates the motion between two "image" volumes into displacement vectors.

  • Volume Patch

    Fill in a region of a volume with features from another volume.

  • Volume Ramp

    Remaps a volume according to a ramp.

  • Volume Rasterize

    Rasterizes into a volume.

  • Volume Rasterize Attributes

    Samples point attributes into VDBs.

  • Volume Rasterize Curve

    Converts a curve into a volume.

  • Volume Rasterize Hair

    Converts fur or hair to a volume for rendering.

  • Volume Rasterize Particles

    Converts a point cloud into a volume.

  • Volume Rasterize Points

    Converts a point cloud into a volume.

  • Volume Reduce

    Reduces the values of a volume into a single number.

  • Volume Resample

    Resamples the voxels of a volume to a new resolution.

  • Volume Resize

    Resizes the bounds of a volume without changing voxels.

  • Volume SDF

    Builds a Signed Distance Field from an isocontour of a volume.

  • Volume Slice

    Extracts 2d slices from volumes.

  • Volume Splice

    Splices overlapping volume primitives together.

  • Volume Stamp

    Stamps volumes instanced on points into a single target volume.

  • Volume Surface

    Adaptively surfaces a volume hierarchy with a regular triangle mesh.

  • Volume Trail

    Computes a trail of points through a velocity volume.

  • Volume VOP

    Runs CVEX on a set of volume primitives.

  • Volume Velocity

    Computes a velocity volume.

  • Volume Velocity from Curves

    Generates a volume velocity field using curve tangents.

  • Volume Velocity from Surface

    Generates a velocity field within a surface geometry.

  • Volume Visualization

    Adjusts attributes for multi-volume visualization.

  • Volume Wrangle

    Runs a VEX snippet to modify voxel values in a volume.

  • Volume from Attribute

    Sets the voxels of a volume from point attributes.

  • Voronoi Fracture

    Fractures the input geometry by performing a Voronoi decomposition of space around the input cell points

  • Voronoi Fracture

    Fractures the input geometry by performing a Voronoi decomposition of space around the input cell points

  • Voronoi Fracture Points

    Given an object and points of impact on the object, this SOP generates a set of points that can be used as input to the Voronoi Fracture SOP to simulate fracturing the object from those impacts.

  • Voronoi Split

    Cuts the geometry into small pieces according to a set of cuts defined by polylines.

  • Vortex Force Attributes

    Creates the point attributes needed to create a Vortex Force DOP.

  • Whitewater Source

    Generates volumes to be used as sources in a whitewater simulation.

  • Whitewater Source

    Generates emission particles and volumes to be used as sources in a Whitewater simulation.

  • Winding Number

    Computes generalized winding number of surface at query points.

  • Wire Blend

    Morphs between curve shapes while maintaining curve length.

  • Wire Capture

    Captures surfaces to a wire, allowing you to edit the wire to deform the surface.

  • Wire Deform

    Deforms geometry captured to a curve via the Wire Capture node.

  • Wire Transfer

    Transfers the shape of one curve to another.

  • Wireframe

    Constructs polygonal tubes around polylines, creating renderable geometry.

  • glTF ROP output driver
