COPs SciFi Panel
Gamedev

Zipped file includes: HDAs, *.hip, and unreal project

A procedural sci-fi panel built in Houdini Copernicus, drawn as texture layers instead of real geometry. Python sketches the panel structure, Copernicus develops the height and details, and Houdini Engine carries the material into Unreal for tessellation and displacement.

Sub-COPhda → Main-COPhda → SOPhda Wrapper:

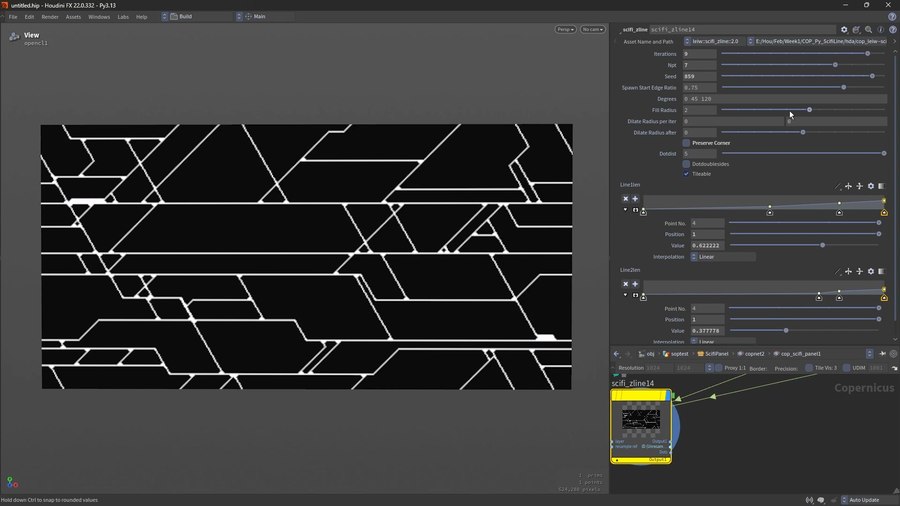

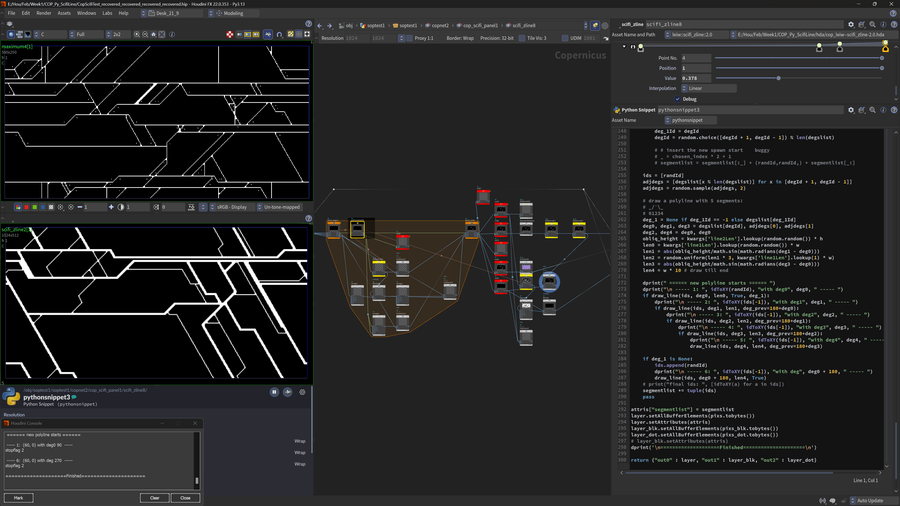

· Sub-COPhda (Python): Generates the procedural panel lines directly on the 2D buffer.

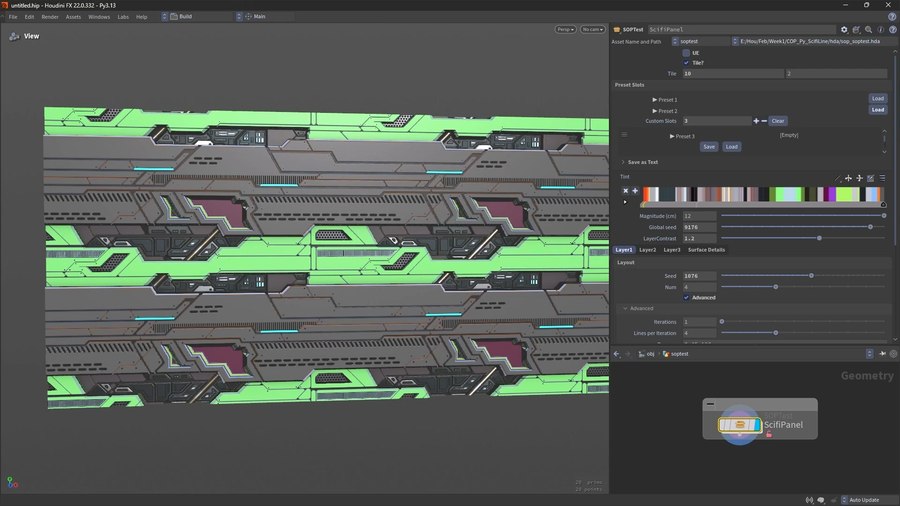

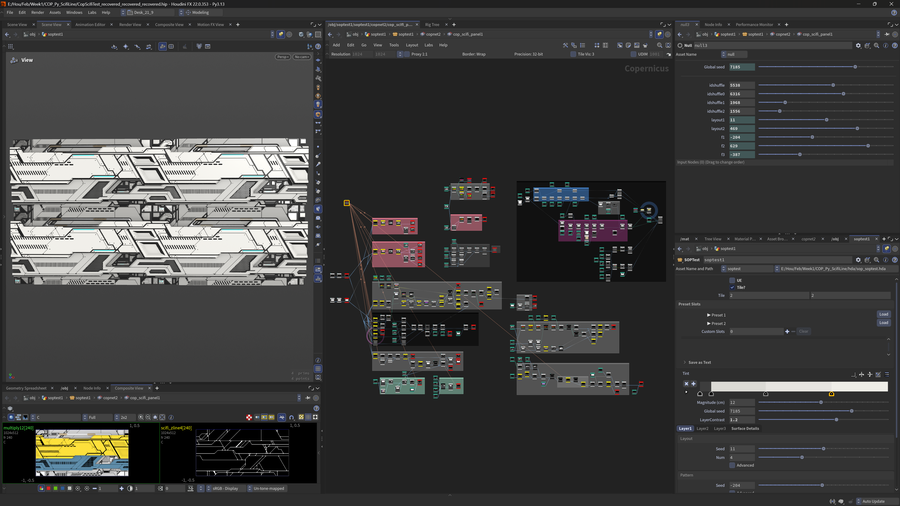

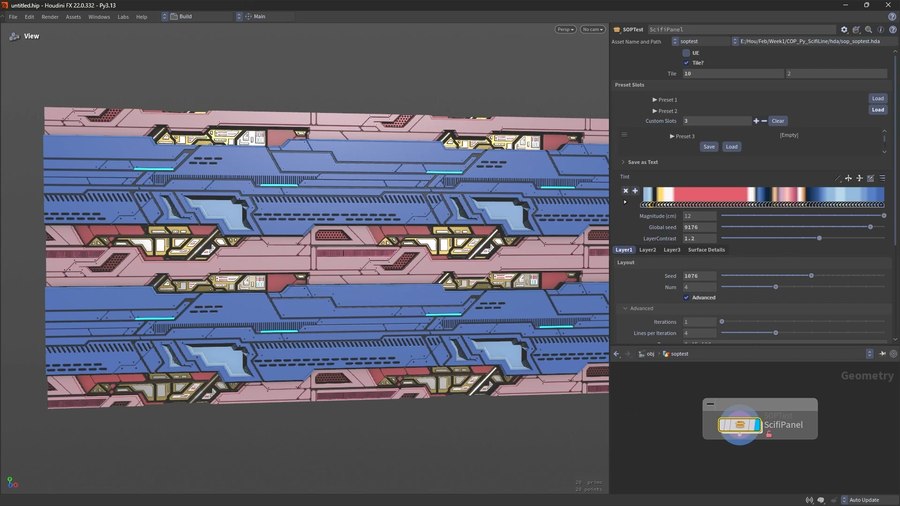

· Main-COPhda: Handles detailing, height layering, and coloring based on the lines.

· SOPhda Wrapper (Geometry & Houdini Engine): A simple sop-level wrapper applying the textures to a geometry so they can be sent to Unreal Engine via HE.

(3 responses)

Asset Type
Unreal Project File | UNREAL
Published
July 14, 2026
Terms of Use
Standard License
Created in
Houdini 22
Verified in
Houdini 22
Categories
Copernicus , Gamedev , Unreal
CopScifi_Panel.zip [419.8 MB]

CREATED BY

leiww
LEI WU

I do realtime graphics, tech art and pipeline development for games.. leiwu.co/

More from Lei Wu

COMMENTS

  • ZedGraphicArt 3 weeks, 6 days ago  |

    Really smart ! Good job.

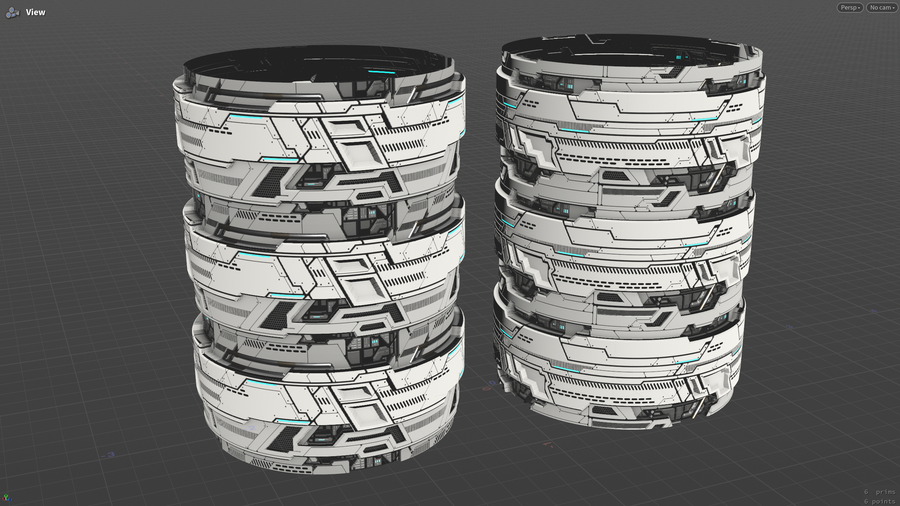

    Does it perform well on curved surfaces?
