Ground Explosion

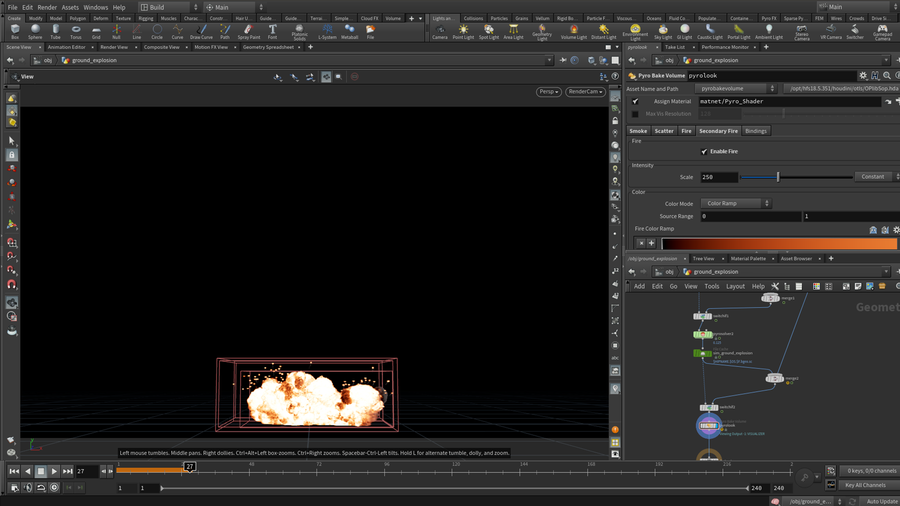

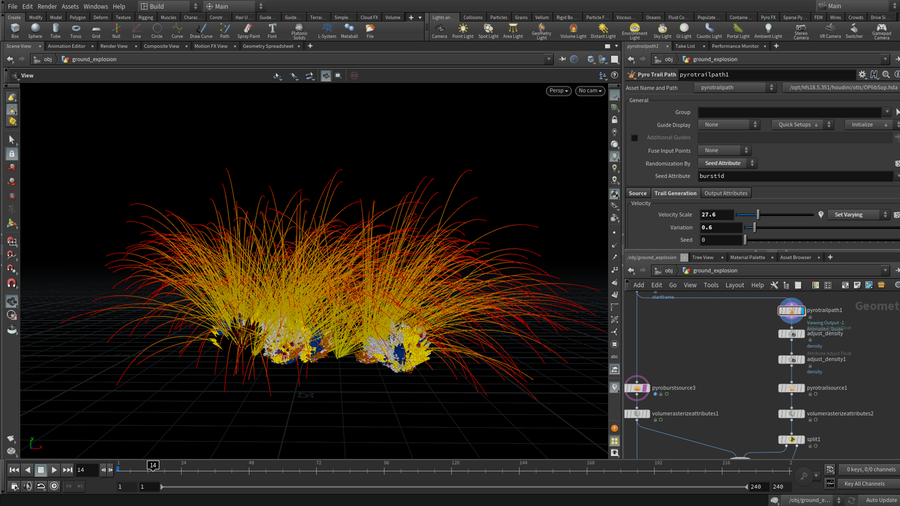

This HIP file showcases how to achieve a basic ground explosion simulation using the latest Pyro Burst and Pyro Trails Tools in Houdini 18.5. This file also includes a basic shading and rendering setup, using the new Pyro Bake Volume SOP.

Note: You can decrease voxel size for higher resolution results. Please GO HERE to learn how to set up the ACES workflow used in this example.

(1 response)



For over thirty five years, SideFX has been providing artists with procedural 3D animation and visual effects tools designed to create the highest-quality cinematic results. We are passionate about what our customers do because our roots are in production, both as artists and as pioneering technical innovators.

More from SideFX


  • pbowmar 3 years, 7 months ago  |

    Works well, very cool. one warning, the /obj/TOPNET/sim_ground_explosion TOP needs to have "ROP Fetch->All Frames in One Batch" turned on, otherwise, you'll get 63 (or however many CPUs you have) Pyro sims running simultaneously which unless you have a massive amount of RAM will take your machine down :)

    • Ronit1996 3 years, 7 months ago  |

      I guess if you turn off the RAM caching from the dopnet it won't fill up your RAM and it will work fine, haven't tried it though.

    • Ranadeep Mandal 3 years, 7 months ago  |

      Hi Peter. Actually all the files have that issue. That was the first thing I changed.

  • ati 3 years, 7 months ago  |

    Who would not like 63 sexy explosions all at once? :)
    Thanks for noticing it! The files will be updated.
