Tips: how to setup Houdini's docs for comfortable reading.

   3276   2   3
User Avatar
Member
94 posts
Joined: 7月 2019
Offline
Sometimes reading official docs is the fastest way to get all the necessary and right information. But I've found that for me, the current documentation format isn't comfortable to read, even on 4k 27" IPS display. So, if somebody feels the same, I consider there are four simple steps to change the situation.
  1. Move docs to an external browser(chromium-based in this article).
  2. Change default page font in the browser to something more weight.
  3. Increase the font size to amplify the effect.
  4. Slightly adjust contrast to reduce the brightness of white background.

1) Set HOUDINI_EXTERNAL_HELP_BROWSER to 1.
Create a new text file in \houdini18.0\packages and call it ExtBrowser.json
And paste JSON code inside:
{
"env" :
[
{
"HOUDINI_EXTERNAL_HELP_BROWSER" :
{
"value": "1",
"method": "replace"
}
}
]
}
Restart Houdini.

There is also an old-fashion way to do the same thing. See https://houdinitricks.com/default-web-browser-houdini-docs/ [houdinitricks.com]
2) Install chromium extension: Font changer (found it in a web)
https://chrome.google.com/webstore/detail/font-changer-with-google/jgjhhoglgjdklldfgoffdiaceffijeke [chrome.google.com]
2.1) Change font to Montserrat, weight: Bold.
Montserrat is a font that is very popular for article titles. But when you read a paragraph text, it makes your brain read everything smoothly, not just skip half of the page.

3) To amplify the effect, use CTRL + Scroll and increase the page size (200% in my case)
4) Install chromium extension: Dark reader.
https://chrome.google.com/webstore/detail/dark-reader/eimadpbcbfnmbkopoojfekhnkhdbieeh [chrome.google.com]
4.1) In Dark reader's options change Filter mode to light
4.2) Reduce in contrast to -10;
4.3) Change theme generation mode to Filter+ in More tab.


(There is also an option for font changing, but I think Font changer extension is more configurable).
Edited by Faitel - 2020年2月13日 09:09:35

Attachments:
ExtBrowser.json (190 バイト)

User Avatar
Member
16 posts
Joined: 10月 2018
Offline

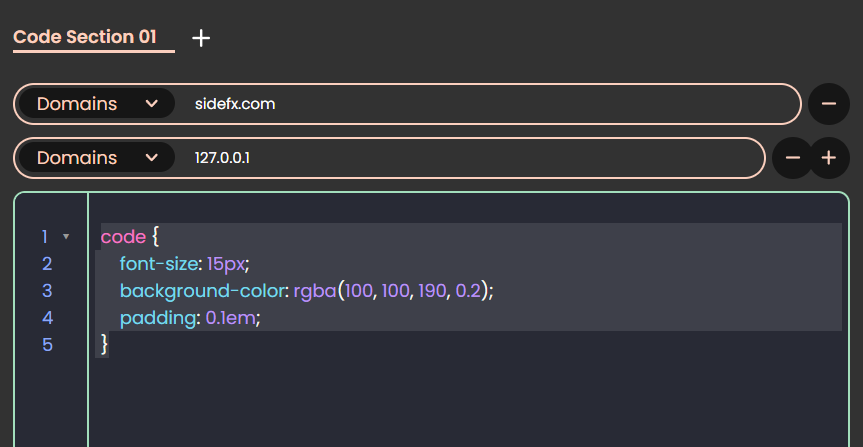

or edit some lines in css ))
font-size
background-color
color

+ maybe some paddings

$HFS/houdini/python2.7libs/houdinihelp/static/scss/hpage.css
C:\Program Files\Side Effects Software\Houdini XX.X.XXX\houdini\python2.7libs\houdinihelp\static\scss\hpage.css

Edited by DmitriiP - 2020年2月14日 17:04:07

Attachments:

User Avatar
Member
1 posts
Joined: 12月 2014
Offline
Both of those options require altering the program dir, so will need to be re-applied on every update.

You can instead, add:
HOUDINI_EXTERNAL_HELP_BROWSER = 1
to:
%USERPROFILE%\Documents\houdiniXX.X\houdini.env
