graph::PromoteInput

Link a port to an APEX graph input.

On this page	Inputs Outputs
Since	20.0

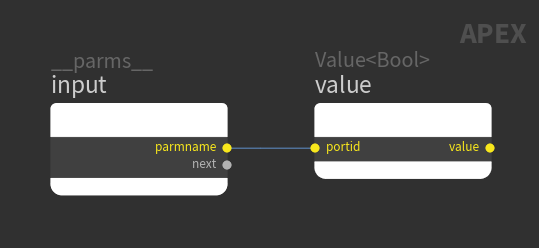

Given an APEX graph, an input port on a node in the graph, and an input node in the graph, create a new input named parmname on the input node in the graph and connect it to the provided port.

Inputs ¶


                *graph:
                    ApexGraphHandle

Required

The graph to modify.


                portid:
                    ApexPortID

The port to connect to the input.


                subportname:
                    String

An optional subport name if the portid refers to a variadic port.


                parmnodeid:
                    ApexNodeID

The input node in the graph.


                parmname:
                    String

The input name to set for this input connected to portid.

Outputs ¶


                *graph:
                    ApexGraphHandle

The modified graph.


                graphinput:
                    ApexPortID

The created input port id.
