Constrain straighten to view plane, How ?

   2605   11   1
User Avatar
Member
219 posts
Joined: Oct. 2015
Online
Hello,

I try to align edges but only on Y axis, I try the “Constrain straighten to view plane” but without success.
Can you tell me what I miss please ?

Thank you
Edited by julca - Feb. 12, 2020 03:31:08

Attachments:
constraint_straighten.hiplc (130.0 KB)

User Avatar
Member
1267 posts
Joined: March 2014
Offline
You can try to use scale.

1. Select the points and press e to scale
2. Switch on point snapping
3. disconnect the pivot by using the ‘ hotkey.
4. Snap the scale handle to any of the point positions to scale from.
5. hit ’ again to accept the pivot position
6. Scale on y

Attachments:
scale_snap.mp4 (2.7 MB)

Werner Ziemerink
Head of 3D
www.luma.co.za
User Avatar
Member
219 posts
Joined: Oct. 2015
Online
@Werner Thank you for your response.
In my case (you can look at hip file in first post), there a Y slope between first and last edge so I can't just scaling to 0 in y.

I would like to know how to well use the “Constrain straighten to view plane” option to quick acheive what I want (if it's possible).

Attachments:

User Avatar
Member
555 posts
Joined: Feb. 2017
Offline
is this what you want ? Note you still have an odd point on the far right, I'll leave that to your mods.

Attachments:
vu_constraint_straighten.hiplc (129.1 KB)

User Avatar
Member
219 posts
Joined: Oct. 2015
Online
@vusta, thank you for your response.
No, I want the slope but I want to keep my “road” curvature.
That's why I ask for the "“Constrain straighten to view plane” to only straighten Y value without move in X,Y.
But I don't know how to use it.
User Avatar
Member
16 posts
Joined: Oct. 2018
Offline

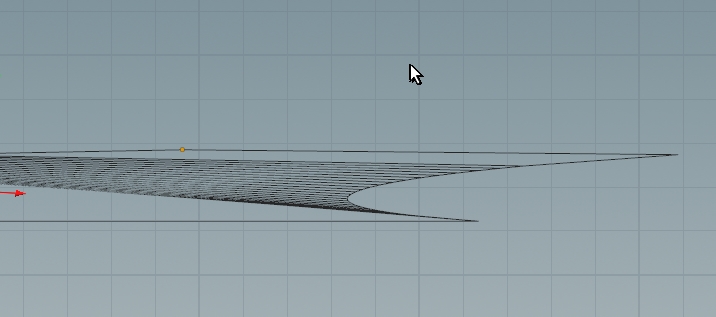

Something like This?


If yes: change View to “Right viewport” before “Constrain straighten to view plane”

Image Not Found
Edited by DmitriiP - Feb. 12, 2020 18:48:26

Attachments:
constraint_straighten1.hiplc (128.9 KB)

User Avatar
Member
555 posts
Joined: Feb. 2017
Offline
julca
@vusta, thank you for your response.
No, I want the slope but I want to keep my “road” curvature.
That's why I ask for the "“Constrain straighten to view plane” to only straighten Y value without move in X,Y.
But I don't know how to use it.
then isn't it just scale Y to 0 in the edit ?
User Avatar
Member
219 posts
Joined: Oct. 2015
Online
@vusta it's not a simple scale to 0 because I want a progressive slope in Y between first and last edge points.

@DmitriiP, Yes !! I have not test on this side, (only on front).
It give a good result, thank you !
There still a offset on x and z when it's done (which I want not) but I think we can't do better with this method.
User Avatar
Member
1267 posts
Joined: March 2014
Offline
Oh, I thought you wanted to flatten all on y.

How about this. Same process as before, but align the handle with ; hotkey to the last point.

Attachments:
scale_align.mp4 (3.5 MB)

Werner Ziemerink
Head of 3D
www.luma.co.za
User Avatar
Member
219 posts
Joined: Oct. 2015
Online
Hello @Werner,

Thanks very much for this tip (and video record), I never use alignement tool with this pointing target function !
It's the better I can do (still a bit of offset on x and z when it's done :/ )
Edited by julca - Feb. 13, 2020 07:30:37
User Avatar
Member
16 posts
Joined: Oct. 2018
Offline

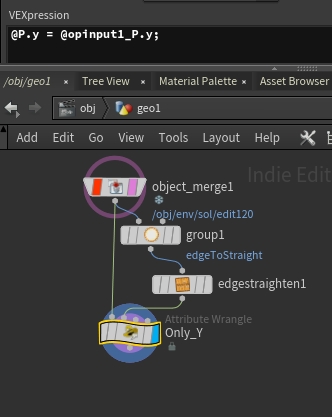

Edge Straighten + small filter
Edited by DmitriiP - Feb. 13, 2020 14:43:00

Attachments:
straighten_edge.hiplc (136.3 KB)

User Avatar
Member
219 posts
Joined: Oct. 2015
Online
@DmitriiP, simply PERFECT !
Thank you !
