Question about bend deformer

Forums Houdini Learning Materials Question about bend deformer

4718 10 0


Alexander Lezhnin: Member; 5 posts; Joined: May 2015; Offline

Sept. 1, 2016 6:06 a.m.

Hello. I have small question about defromer. For exampe I have a box and tube on top of it. How to use bend deformer to bend box but not deffform tube, only affect its position and rotation?


Enivob: Member; 2539 posts; Joined: June 2008; Offline

Sept. 1, 2016 9:59 a.m.

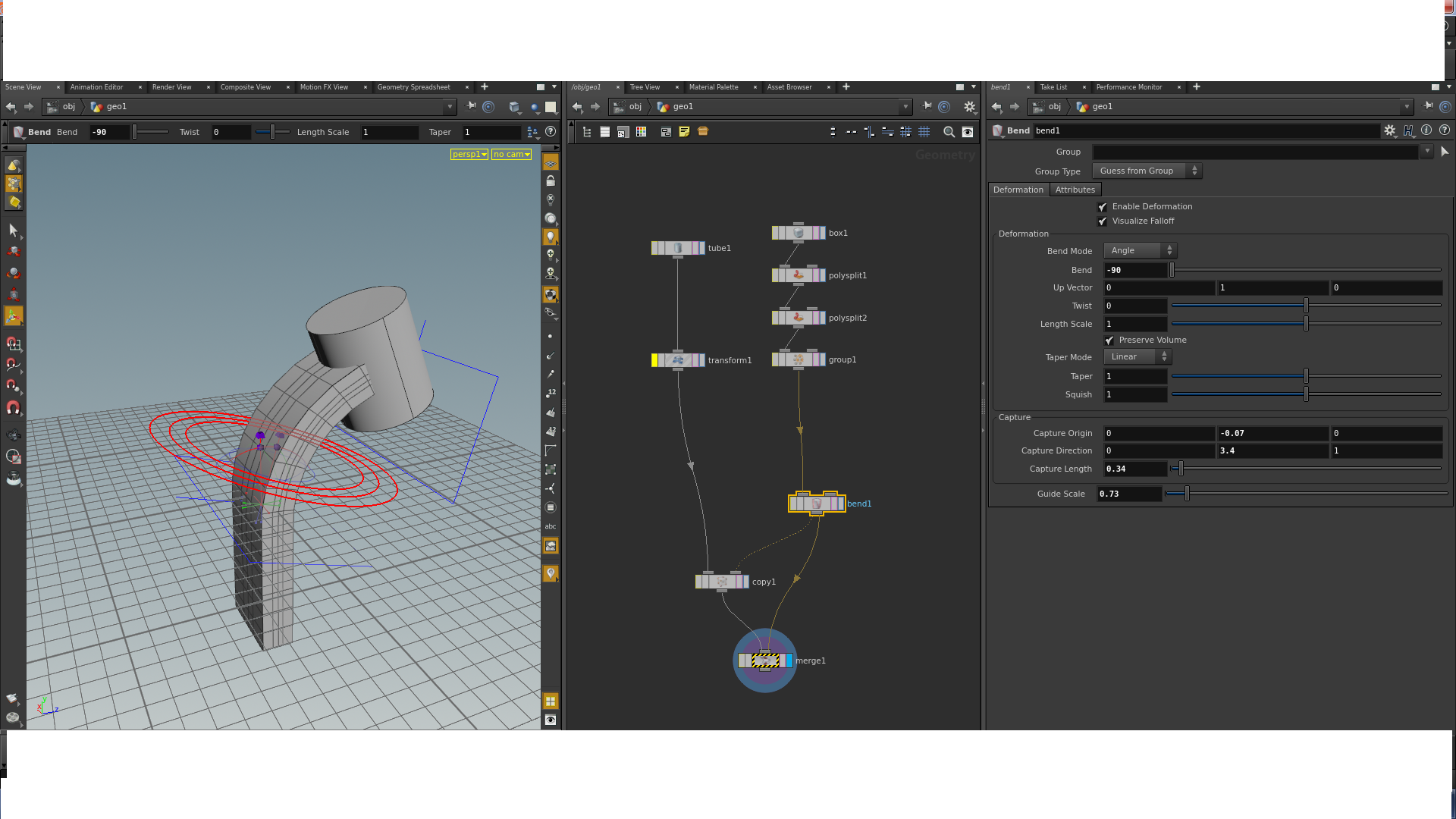

Here is one way. Just use the bend deformer on the tube side before a merge.

Attachments:
ap_bend_tube.hiplc (89.8 KB)

Using Houdini Indie 20.0
Windows 11 64GB Ryzen 16 core.
nVidia 3050RTX 8BG RAM.


Enivob: Member; 2539 posts; Joined: June 2008; Offline

Sept. 1, 2016 10:03 a.m.

Oops, I guess I did the opposite of your request.
In that case make sure the box has plenty of subdivision for a nice bend. And make the capture length of the bend equal to the height of the box.

Edited by Enivob - Sept. 1, 2016 10:04:22

Attachments:
ap_bend_tube.hiplc (89.8 KB)

Using Houdini Indie 20.0
Windows 11 64GB Ryzen 16 core.
nVidia 3050RTX 8BG RAM.


Alexander Lezhnin: Member; 5 posts; Joined: May 2015; Offline

Sept. 2, 2016 12:55 a.m.

Thank you for answer. I told about different thing ) To bend box and tube on top inherit pos and rotation but doesn't deform. I find a way to make a point on box top and copy tube on it. It's good for simple thing but what if I need a chain? When some part of it deform and some doesn't. In Foundry Modo it's call Spline deformer, and you can just make an influence.

Edited by Alexander Lezhnin - Sept. 2, 2016 00:58:18

Attachments:


patar: Member; 280 posts; Joined:; Offline

Sept. 4, 2016 11:57 a.m.

i dont quite get what u meant… is it possible if u give me a snapshot of what u r trying to accomplished in what ever software you choose (maybe in your case its modo) ill recreate the houdini version of it…
Best regards
Patar


Alexander Lezhnin: Member; 5 posts; Joined: May 2015; Offline

Sept. 5, 2016 6:17 a.m.

Thank you for answer. I try to achieve this kind of effect. When boxes deforming, but disks doesn't. They only changes their position and rotation, according to box deform. Sorry for my english ))) I hope you understand what I mean )

Attachments:


patar: Member; 280 posts; Joined:; Offline

Sept. 5, 2016 10:38 a.m.

is this it? cant really see what the deformer does ….

Attachments:
something.hip (143.1 KB)


Alexander Lezhnin: Member; 5 posts; Joined: May 2015; Offline

Sept. 5, 2016 1:04 p.m.

Exact!!! Thank you! I shoked how simple solution was )) But if I need bend not a nurbs curve, but geometry (something from rubber for example ))) like in attachment, it's need just a little bend

Edited by Alexander Lezhnin - Sept. 5, 2016 13:24:20

Attachments:
Untitled.obj (23.1 KB)


patar: Member; 280 posts; Joined:; Offline

Sept. 5, 2016 9:42 p.m.

you can use lattice or in this example i use creep

Edited by patar - Sept. 5, 2016 22:25:28

Attachments:
something2.hip (248.1 KB)


Alexander Lezhnin: Member; 5 posts; Joined: May 2015; Offline

Sept. 6, 2016 1:03 a.m.

Thank you! You help me a lot!


patar: Member; 280 posts; Joined:; Offline

Sept. 6, 2016 2:31 a.m.

no problem im also enjoying this stuffs its like a puzzle to me…
