I'm having trouble with a basic rigid body sim (with only gravity force applied).
The “stone” pieces fall inside an invisible tank, so that they stay put and don't fall apart.

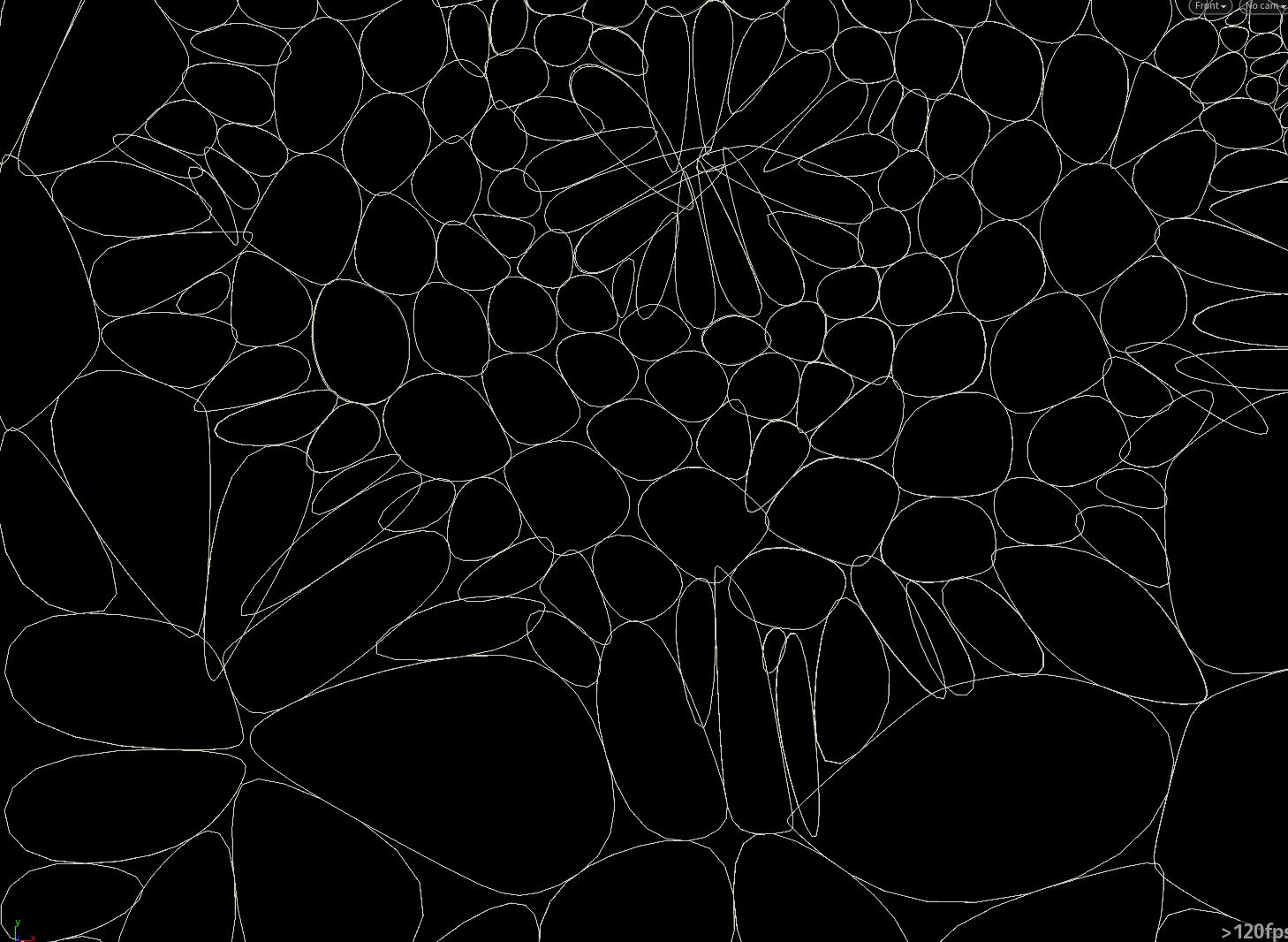

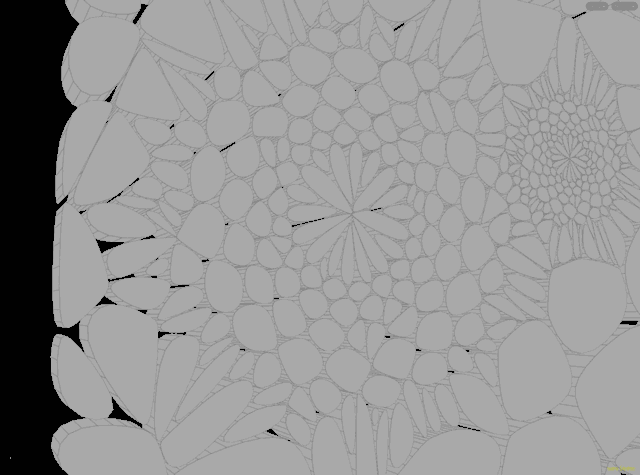

Some small narrow pieces, as shown in the images, tend to intersect.
How to avoid this?
I've tried to add more substeps in the ‘rigid body solver’ and to add some more collision padding in the ‘RBD packed Object’, but it didn't work out…
Intersecting geo in a rigid body sim. How to fix it?
6390 6 1- Andr1
- Member
- 118 posts
- Joined: Feb. 2016
- Offline
- Nima
- Member
- 471 posts
- Joined: Nov. 2013
- Offline
- Andr1
- Member
- 118 posts
- Joined: Feb. 2016
- Offline
- Andr1
- Member
- 118 posts
- Joined: Feb. 2016
- Offline
- reelinspirations
- Member
- 177 posts
- Joined: Nov. 2015
- Offline
What method are you using for your geometry representation?
That alone will clean up a lot of your intersecting geometry.
Uncheck the ‘show geometry’ and check ‘show guide geometry’ to view what your geometry looks like to Bullet.
You technically have concave hulls there as they are not square.
If you select Concave for the geometry representation, that can end up causing you to have intersecting geo.
Plus, it's going to slow things down too.
If you perform a for-each-loop through each piece of your geo and voronoi fracture it, then pack it you can select “Create Convex Hulls per Set of Connected Primitives” and that should help a lot.
This Lynda tutorial shows you how to do just that: https://www.lynda.com/Houdini-tutorials/Welcome/503880/573421-4.htm [www.lynda.com]
Jim
That alone will clean up a lot of your intersecting geometry.
Uncheck the ‘show geometry’ and check ‘show guide geometry’ to view what your geometry looks like to Bullet.
You technically have concave hulls there as they are not square.
If you select Concave for the geometry representation, that can end up causing you to have intersecting geo.
Plus, it's going to slow things down too.
If you perform a for-each-loop through each piece of your geo and voronoi fracture it, then pack it you can select “Create Convex Hulls per Set of Connected Primitives” and that should help a lot.
This Lynda tutorial shows you how to do just that: https://www.lynda.com/Houdini-tutorials/Welcome/503880/573421-4.htm [www.lynda.com]
Jim
- Nima
- Member
- 471 posts
- Joined: Nov. 2013
- Offline
Penetration in regular simulation with bullet is normal because it designs to be as fast as possible however for your simulation you can increase substeps until you get desirable result (increasing too much causes unstable and long time calculation).
Also many pieces may penetrate because they really close to each other and bullet hasn't really chance to detect them at the beginning of the simulation.
Also many pieces may penetrate because they really close to each other and bullet hasn't really chance to detect them at the beginning of the simulation.
