Vertex Animation Textures ROP 2.1 Released

   16657   80   17
User Avatar
Staff
18 posts
Joined: Feb. 2021
Offline
johnLIC
I'm using the VAT method to create RBD simulations for Unreal. Is there a way to create collision geometry? I created prim groups per piece that are named with this code:

string pieceName = prim(0, "name", @primnum);
string groupName = "rendered_collision_geo_ucx_multi" + pieceName;
setprimgroup(0, groupName, @primnum, 1);

It seems like the VAT ROP does not export the group membership. Is it possible to collide with VAT geometry? Is there an demoscene that illustrates how to do it?

Vertex animation in general does not support collision. The animating of the vertices happen later in the rendering pipeline on GPU after the collision has already be calculated. In other words, the physics engine will not be aware that the vertices have moved to different positions. You can use Labs RBD to FBX tool to export your destruction as skeletal mesh to get collision.
User Avatar
Member
66 posts
Joined: April 2009
Offline
johnLIC
Is there a way to create collision geometry?

I would really, really warn you not to force animate collisions in your engine. Very likely you'll get a problems with the force "shooting" by your characters/environmental stuff.

I only can advise to create collisions and to export into your engine without animation. Just for in-engine simulation only.
User Avatar
Member
5 posts
Joined: March 2020
Online
BagMan64
Once you have your VAT set up in UE4, is there a way to add the instanced material/control it in the sequencer, so it doesn't keep looping?

If you create a Material Parameter Collection with a scalar called time (or whatever... but call it time) then reference that in the master material plugged into the time input of the VAT function, you'll be able to access it in sequencer and then animate the time as you see fit to start\stop etc.
User Avatar
Staff
18 posts
Joined: Feb. 2021
Offline
kypo
Hey MaiAo

Sorry, I mistakenly forgot to add the FBX. I've attached it to this post.

I did try and remake the FBX in Houdini but had some extreme results in unity



I've also attached
LevelGen_Test.hip

Thanks

Hey, sorry I just got around to look at your question.

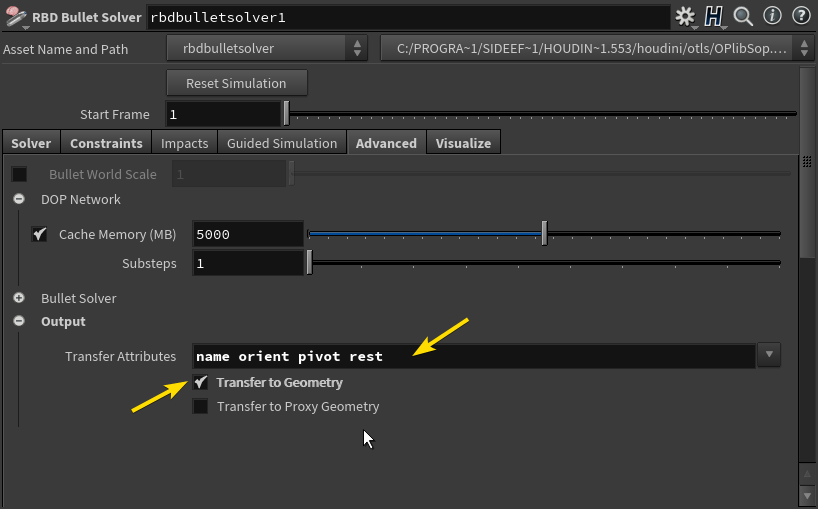

What you need to do is exporting the following attributes from the RBD Solver. Those attributes are expected by VAT ROP. Please see if that fixes your problem.

Attachments:

User Avatar
Member
35 posts
Joined: Nov. 2018
Offline
Hi, I'm having problem with the fisrt frame discrepancy that is mentioned in the Vertex Animation Textures v2.1 Unreal Quickstart https://vimeo.com/427443116/9bf1abac5f [vimeo.com]



This is the .hip file and the export
Image Not Found



How can I go around it:S?

Attachments:
vat_rbd_testscene.hip (3.4 MB)
export_glass10_geo.zip (7.6 MB)

User Avatar
Member
31 posts
Joined: May 2013
Offline
I know y'all warned me against creating collision geometry. I did it anyway. I am creating collision geometry only for the pieces that are inactive in the RBD simulations. The idea is that we want to leave parts of these destroyed things, like railings, in place and have them continue to be colliders. I am exporting a single fbx that has both the render mesh and the collision mesh in it, with the UCX_blah geo name for the collider.

It seems like the POS and ROT texture maps are getting confused by the additional prims of the collision geo. Is there a way to segregate the render prims from the collision prims? Am I confused about the problem I have? Basically I get a ball of voronoi chunks that are not where they are supposed to be. I suspect the added collision geo is causing the VAT animation to get screwed up.


It works. I was probably pulling in the wrong fbx files before.
Edited by johnLIC - April 28, 2021 18:25:30
User Avatar
Member
1 posts
Joined: Feb. 2017
Offline
I'm running into the same issues others have posted here with animations looking off when imported into Unity. I've added the attribute transfer on the RBD Bullet Solver like has been suggested, but I'm still having no luck.





Any chance the HIP file used for https://vimeo.com/427443045/6b6f9f63f4 [vimeo.com] could be shared as an example of what a proper configuration looks like?

Update - Solved

For anyone else working in Unity 2019.4, the problem was that the default color space is not set to linear (Project Settings > Player > Other Settings > Color Space). Setting it to linear fixed the issues I was having.
Edited by miuliano - May 11, 2021 11:39:02

Attachments:

User Avatar
Member
5 posts
Joined: July 2017
Offline
lab UE content plugin-->SideFX_Utilities_BP broken, "by class" node error, UE 4.26.2 -- LAB 18.5.563 -- VAT ROP 2.1
User Avatar
Member
10 posts
Joined: Nov. 2019
Offline
MaiAo
kypo
Hey MaiAo

Sorry, I mistakenly forgot to add the FBX. I've attached it to this post.

I did try and remake the FBX in Houdini but had some extreme results in unity



I've also attached
LevelGen_Test.hip

Thanks

Hey, sorry I just got around to look at your question.

What you need to do is exporting the following attributes from the RBD Solver. Those attributes are expected by VAT ROP. Please see if that fixes your problem.

Hi MaiAo.

Thanks for looking at the previous scene. Sorry it's taken a while to reply, I've had licensing issues. I altered the bullet solver with the changes you mentioned but the results still look incorrect.

Image Not Found


I've attached an updated version of the scene.

Thanks.
Edited by kypo - May 11, 2021 04:15:57

Attachments:
2021-05-11 09_08_51-HoudiniRBTextureAnim - RBTextureAnimTest - Android - Unity 2020.3.0f1_ _DX11_.png (196.7 KB)
LevelGen_Test_02.hip (3.6 MB)

User Avatar
Member
31 posts
Joined: May 2013
Offline
I'm doing RBD VAT simulations for Unreal. Occasionally, in Unreal, a few vertices will lose track of their Pos or Rot and get stuck, resulting in pieces smearing across space. It seems to start happening near the end of the simulation.

Has anybody got a fix for that?
User Avatar
Member
31 posts
Joined: May 2013
Offline
Meh - the problem was coming from the Detail panel of the Material Fracture node. I'll see myself out.
User Avatar
Member
48 posts
Joined: Sept. 2013
Offline
MaiAo
Mary537
Hi,
I need to import a RigidBody simulation in Unreal exported by VAT, but after I'm defining the material values and textures the asset has holes. How can I solve?
Another question: How can I create LODs for my simulation with vertex animation?
I used Houdini 18.5.499, VAT 2.1 and Unreal 4.25 and 4.26

Hi, what you captured in the screenshot is a known bug with VAT-Rigid export mode. The fix is very very soon (April 27th Edit: the release data was pushed back; expected to come early May 2021). Stay tuned!

To your second question, you will unfortunately have to export separate meshes and textures for LOD purposes and control LOD using BP or code. Because the textures and exported vertices of the mesh are intrinsically mapped one-to-one, you cannot LOD the mesh in the traditional way and still be able to use the same vertex animation textures.

Heya, any update on that offset fix? Eagerly awaiting it here. Thank you
User Avatar
Member
315 posts
Joined: June 2016
Offline
So targeting an Unreal crowds sim from Houdini. This thread is already a year old.

Is Vertex Animation Textures ROP 2.1 the latest version I should be looking at?

And is this setup still relevant?
https://vimeo.com/427443116/9bf1abac5f [vimeo.com]
User Avatar
Staff
18 posts
Joined: Feb. 2021
Offline
art3mis
So targeting an Unreal crowds sim from Houdini. This thread is already a year old.

Is Vertex Animation Textures ROP 2.1 the latest version I should be looking at?

And is this setup still relevant?
https://vimeo.com/427443116/9bf1abac5f [vimeo.com]

2.1 will still work, but 3.0 is about to be released. Have been spending a lot of time on that. When the update comes, you can simply upgrade your tool and shaders. The workflow won't dramatically change, but it will be simplified.

Pumpkinking4
Heya, any update on that offset fix? Eagerly awaiting it here. Thank you

Almost done.
Edited by MaiAo - June 3, 2021 07:17:55
User Avatar
Member
100 posts
Joined: Jan. 2014
Offline
Hi, I'm trying to do a test with a simple box but unreal freaks out.
I'm using H18.5.598 Indie + Unreal 4.25.4
The scene and the cache inside the archive.
It only breaks with the "soft (constant topology) method. The "rigid" is fine.

Also, only "Set VAT Textures" script works for me.

Houdini view vs Unreal view

Attachments:
export.rar (972.8 KB)

https://linktr.ee/Deviner_vfx [linktr.ee]
User Avatar
Member
9 posts
Joined: April 2018
Offline
Enjoying the tool so far, thanks for all the hard work that has made it possible.

Quick question - I have a basic geo in Houdini with a VOP moving a few points around, it has normals and UV. I've exported it as a Soft VAT with 2.1 and imported it into a URP scene in Unity, all good. Normals look ok on my mesh in unity until I add the VAT material and then all my normals have gone funky? Why would this be? Thanks for the advice (I'm a total Unity newb).
Edited by JosefHeks - June 8, 2021 03:59:20

Attachments:

User Avatar
Staff
18 posts
Joined: Feb. 2021
Offline
JosefHeks
Enjoying the tool so far, thanks for all the hard work that has made it possible.

Quick question - I have a basic geo in Houdini with a VOP moving a few points around, it has normals and UV. I've exported it as a Soft VAT with 2.1 and imported it into a URP scene in Unity, all good. Normals look ok on my mesh in unity until I add the VAT material and then all my normals have gone funky? Why would this be? Thanks for the advice (I'm a total Unity newb).

You can select the brim edge loop and use a Facet SOP. Set group to your edge loop point group and turn on Unique Points. That will split the brim to get better normals. What you were seeing was due to the fact that VAT records data on per point basis,not per vertex basis, so hard edges will be not reflected unless you split the edge.
User Avatar
Staff
18 posts
Joined: Feb. 2021
Offline
deviner
Hi, I'm trying to do a test with a simple box but unreal freaks out.
I'm using H18.5.598 Indie + Unreal 4.25.4
The scene and the cache inside the archive.
It only breaks with the "soft (constant topology) method. The "rigid" is fine.

Also, only "Set VAT Textures" script works for me.

Houdini view vs Unreal view

Unfortunately I can't reproduce the issue. But unlike what's in the screenshot, the pos min/max I am getting from your file is -54.59509 and 43.37052. Also have you tried using the MF_VAT_Soft from our content plugin (accessible on the VAT ROP interface via a button).
User Avatar
Member
9 posts
Joined: April 2018
Offline
MaiAo
JosefHeks
Enjoying the tool so far, thanks for all the hard work that has made it possible.

Quick question - I have a basic geo in Houdini with a VOP moving a few points around, it has normals and UV. I've exported it as a Soft VAT with 2.1 and imported it into a URP scene in Unity, all good. Normals look ok on my mesh in unity until I add the VAT material and then all my normals have gone funky? Why would this be? Thanks for the advice (I'm a total Unity newb).

You can select the brim edge loop and use a Facet SOP. Set group to your edge loop point group and turn on Unique Points. That will split the brim to get better normals. What you were seeing was due to the fact that VAT records data on per point basis,not per vertex basis, so hard edges will be not reflected unless you split the edge.


Brilliant. Would have never worked that one out on my own!
Many thanks.
User Avatar
Member
1 posts
Joined: March 2017
Offline
Can anyone tell me if you can make the material of the liquid transparent?
If I switch the material settings, the normals disappear and the liquid becomes flat.
Image Not Found
