### How to use distance for effect fall off ?

1857   19   2
Member
13 posts
Joined: 9月 2023
Offline
Hello guys, how can i do something like fall off for distance, for example i want to use distance from target node, or any other node to drive terrain noise intensity (i want for effect to be stronger in the middle and fall off towards the edges of the plane)
How can i do that?
Member
442 posts
Joined: 11月 2016
Offline
I do it this way with vex.

Attachments:
Screenshot from 2024-04-24 14-01-00.png (1.6 MB)

Member
13 posts
Joined: 9月 2023
Offline
Tanto
I do it this way with vex.
Thank you this was very helpfull, had a bit of problem but that was due to initial scaling of grid being different

Attachments:

Member
7954 posts
Joined: 9月 2011
Offline
Another option without using any code would be to use the distancefrom nodes (geometry, target, etc) to get the distance, and use the mask section to remap the values or the attribremap node after the fact to shape the falloff. I don't think there's a non-code way to do a power function, but it would be a lot less code The remap attribute ramp set to b-spline could give parabola-ish falloff. Then use attribcombine to add the noise masked by the falloff attribute to P.
Edited by jsmack - 2024年4月24日 20:30:04
Member
4602 posts
Joined: 2月 2012
Offline
Hi,

You can also compute the geodesic distance (surface distance) to measure the shortest path between points which follows the natural curve of the surface rather than Euclidean distance which measures the straight line between two points:

Falloff:

```vector origin = point ( 1, "P", 0 );
vector p = minpos ( 0, origin );

int pts [ ] = pcfind ( 0, "P", p, 1000, 1 );
int ptclosest = pts [ 0 ];

float sdist = surfacedist ( 0, itoa ( ptclosest ), "P", @ptnum, -1, "surface" );
@sdist = sdist;
```

Blend:

```vector p = point ( 1, "P", @ptnum );
float sdist = fit ( @sdist, ch("dist_min"), ch("dist_max"), 0, 1 );
sdist = chramp("dist", sdist);
@sdist = sdist;
@P = lerp ( @P, p, sdist );
```
Senior FX TD @ Industrial Light & Magic
Get to the NEXT level in Houdini & VEX with Pragmatic VEX! [www.pragmatic-vfx.com]

Member
13 posts
Joined: 9月 2023
Offline
jsmack
Another option without using any code would be to use the distancefrom nodes (geometry, target, etc) to get the distance, and use the mask section to remap the values or the attribremap node after the fact to shape the falloff. I don't think there's a non-code way to do a power function, but it would be a lot less code The remap attribute ramp set to b-spline could give parabola-ish falloff. Then use attribcombine to add the noise masked by the falloff attribute to P.
Could you provide an example, i'm new to houdini stuff i don't know how to remap values, or how would it achieve what i need. I'm definelty intersted though how to do that with nodes. Thank you!
Member
13 posts
Joined: 9月 2023
Offline
animatrix_
Hi,

You can also compute the geodesic distance (surface distance) to measure the shortest path between points which follows the natural curve of the surface rather than Euclidean distance which measures the straight line between two points:

Falloff:

```vector origin = point ( 1, "P", 0 );
vector p = minpos ( 0, origin );

int pts [ ] = pcfind ( 0, "P", p, 1000, 1 );
int ptclosest = pts [ 0 ];

float sdist = surfacedist ( 0, itoa ( ptclosest ), "P", @ptnum, -1, "surface" );
@sdist = sdist;
```

Blend:

```vector p = point ( 1, "P", @ptnum );
float sdist = fit ( @sdist, ch("dist_min"), ch("dist_max"), 0, 1 );
sdist = chramp("dist", sdist);
@sdist = sdist;
@P = lerp ( @P, p, sdist );
```

Very cool, even though i'm a noob with vex, it amazes me how many choices and options it provides.
Member
13 posts
Joined: 9月 2023
Offline
General question to you guys, so i have a very bad geometry and math learning experience, is there a good resource for specifically 3D math stuff with visual examples maybe not only in Houdini, i'm noticing same functions are used also in Unreal sometimes, so can someone share a good 3D math learning resource in general this would be very helpfull.

Could someone share their thoughts on motion graphics approach with Houdini:
I started to toy around with Houdini with hopes of making simple motion Graphics, not very complicated simulations or hyper real renders, stylized and abstract for some kind of music video.
When i was searching for information as to what approach to take there was 2 camps of Houdini and C4D, in general i decided that Houdini is vast tool and would allow me to achieve more even beyond motion graphics if one day i decide to try something new, (i'm also trying to create some simple Unreal engine scenes from time to time)
What i'm asking is Houdini good tool for Motion Graphics, or am i trying to use wrong tool, and should look towards C4D instead, have any of you tried both and can share some experience as to what tool to use when, perhaps even there is a way to combine bot strengths in one pipeline, what approache would you suggest for Muisic video themed motiion Graphics?
Member
7954 posts
Joined: 9月 2011
Offline
woltiel
jsmack
Another option without using any code would be to use the distancefrom nodes (geometry, target, etc) to get the distance, and use the mask section to remap the values or the attribremap node after the fact to shape the falloff. I don't think there's a non-code way to do a power function, but it would be a lot less code The remap attribute ramp set to b-spline could give parabola-ish falloff. Then use attribcombine to add the noise masked by the falloff attribute to P.
Could you provide an example, i'm new to houdini stuff i don't know how to remap values, or how would it achieve what i need. I'm definelty intersted though how to do that with nodes. Thank you!

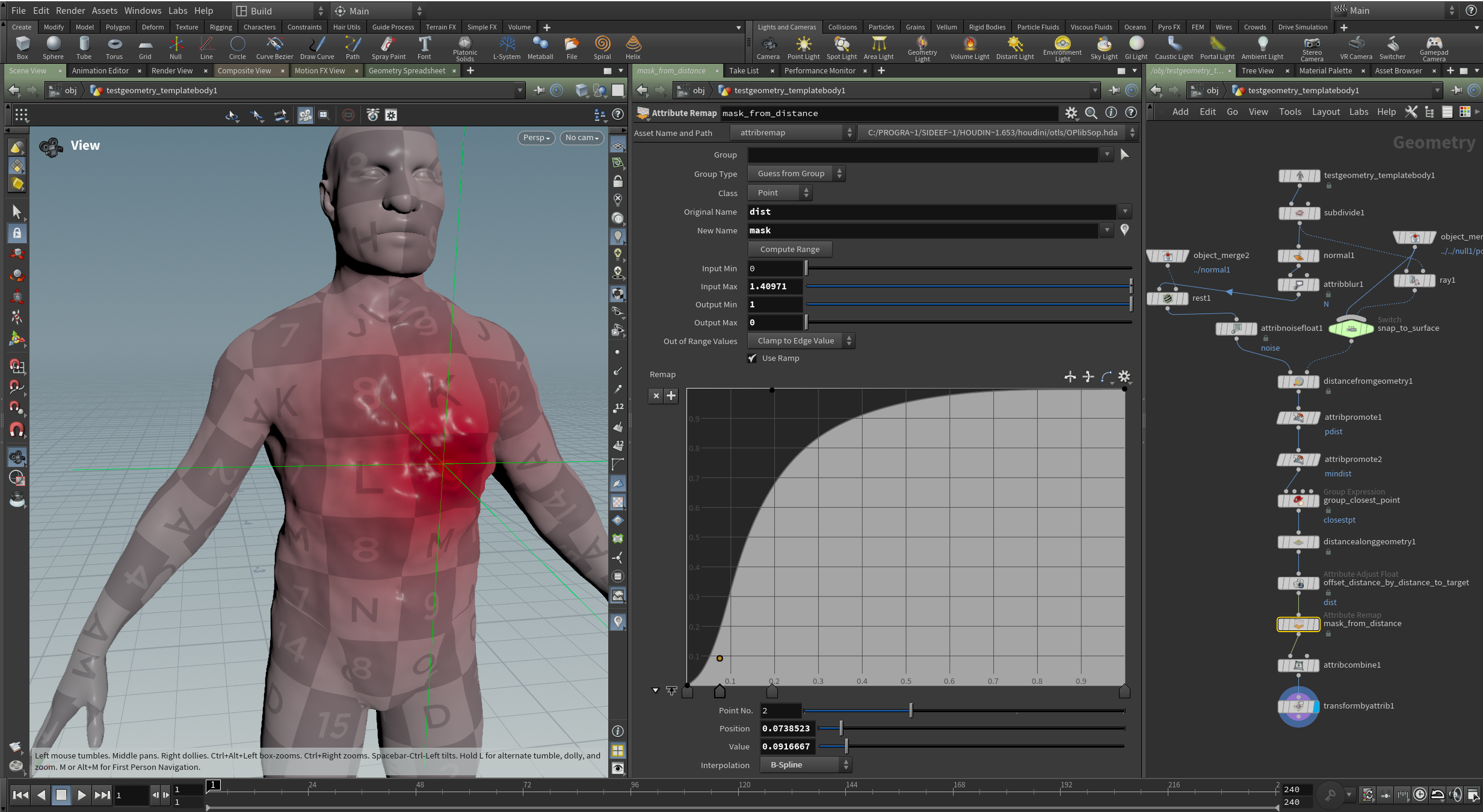

the nodes to use to replace VEX code for remapping and combining are Attribute Remap, Attribute Combine, and Attribute Adjust. To apply the displacement to position, use another attribute combine or a transform by attribute. I like to use nodes that imply what they do. In my example I've only used one bit of vex, and that was to generate a group of the closest point for uses with the surface distance node since it requires a point group to compute distance along the surface towards.

Attachments:
falloff_example_no_wrangles.hip (330.0 KB)

Member
4602 posts
Joined: 2月 2012
Offline
woltiel
General question to you guys, so i have a very bad geometry and math learning experience, is there a good resource for specifically 3D math stuff with visual examples maybe not only in Houdini, i'm noticing same functions are used also in Unreal sometimes, so can someone share a good 3D math learning resource in general this would be very helpfull.

I created a VEX course for this exact reason:

You can watch the free chapters here:

https://www.sidefx.com/learn/vex [www.sidefx.com]
Senior FX TD @ Industrial Light & Magic
Get to the NEXT level in Houdini & VEX with Pragmatic VEX! [www.pragmatic-vfx.com]

Member
13 posts
Joined: 9月 2023
Offline
jsmack
woltiel
jsmack
Another option without using any code would be to use the distancefrom nodes (geometry, target, etc) to get the distance, and use the mask section to remap the values or the attribremap node after the fact to shape the falloff. I don't think there's a non-code way to do a power function, but it would be a lot less code The remap attribute ramp set to b-spline could give parabola-ish falloff. Then use attribcombine to add the noise masked by the falloff attribute to P.
Could you provide an example, i'm new to houdini stuff i don't know how to remap values, or how would it achieve what i need. I'm definelty intersted though how to do that with nodes. Thank you!

the nodes to use to replace VEX code for remapping and combining are Attribute Remap, Attribute Combine, and Attribute Adjust. To apply the displacement to position, use another attribute combine or a transform by attribute. I like to use nodes that imply what they do. In my example I've only used one bit of vex, and that was to generate a group of the closest point for uses with the surface distance node since it requires a point group to compute distance along the surface towards.
THank you for the example project, it's really nice example how to do it with nodes
Member
13 posts
Joined: 9月 2023
Offline
animatrix_
woltiel
General question to you guys, so i have a very bad geometry and math learning experience, is there a good resource for specifically 3D math stuff with visual examples maybe not only in Houdini, i'm noticing same functions are used also in Unreal sometimes, so can someone share a good 3D math learning resource in general this would be very helpfull.

I created a VEX course for this exact reason:

You can watch the free chapters here:

https://www.sidefx.com/learn/vex [www.sidefx.com]
Oh, turns out there's whole VEX learning path, that's usefull to know, i simply never even noticed it, or rather was avoiding this magic VEX things.
I will try out free parts of your course, seems like exactly what i needed, thank you.
