Cloud Noise 3D Copernicus node

Generates a billowy cloud noise.

On this page	Parameters Cloud Noise Fractal Warping Post Processing Inputs Outputs
Since	21.0

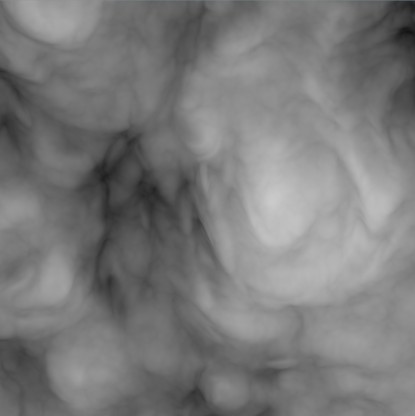

This node generates a billowy cloud noise pattern. Use the parameters on this node to control the noise’s shape and amount of swelling. This node is similar to the Bubble Noise COP, but is non-periodic and applies in 3D.

For example, use this node to create puffy, cumulus cloud patterns.

Parameters ¶

Signature

The layer type that the source accepts.

See Signatures for more information.

Cloud Noise ¶

Amplitude

The amount by which to multiply the noise, which the node applies before the Center adjustment.

For example, a value of 0.5 makes a pixel value of 0.5 become 0.25.

Note

Layers can store negative numbers and values above 1, so this may result in out-of-bounds values. Use the Post Processing options to clamp the output.

Center

The center of the output noise range, which offsets the pixel values.

For example, a value of 0.5 makes a pixel value of 0.5 become 1.

Element Size

The size (in world coordinates) of the basic element of the noise. You can turn on the Per-Component Controls button to adjust this further using the Element Scale parameter.

Element Scale

When the Per-Component Controls button is on, this is the per-axis scaling of the element size for anistropic noise.

Offset

The amount to offset the entire noise function in world coordinates.

Fractal ¶

Max Octaves

The amount of times to scale add together the noise.

Lacunarity

The amount to scale the noise for each iteration.

Roughness

The amount to scale the amplitude of each successive noise.

Warping ¶

Distortion

The amount to distort the noise in the direction of decreasing noise values (when greater than 1) or increasing noise values (when less than 1).

Stretch

The amount to stretch the noise in each direction in world coordinates.

Note

Use this parameter instead of Element Size to preserve some details unstretched, which makes the stretched noise pattern look more natural.

Droop

The amount to warp the generated noise pattern so it bends or hangs towards the Droop Direction.

Droop Direction

When Droop is on, this is the direction in world coordinates in which to warp the noise.

Fold

Remaps the values between -1 and 1 and flips values below 0 to the positive range. For example, a pixel value of -2 becomes 2. This makes all valleys become peaks.

Note

The node remaps the values during the noise evaluation. This is different from applying an absolute function afterwards like some other noise nodes (Fractal Noise for example).

Post Processing ¶

Note

The node applies the post-processing operations in the order they're listed.

Complement

Sets the pixel value x to 1 - x.

Note

This method works for values in the 0 to 1 range. For images outside of this range, using Complement results in negative or out of range values.

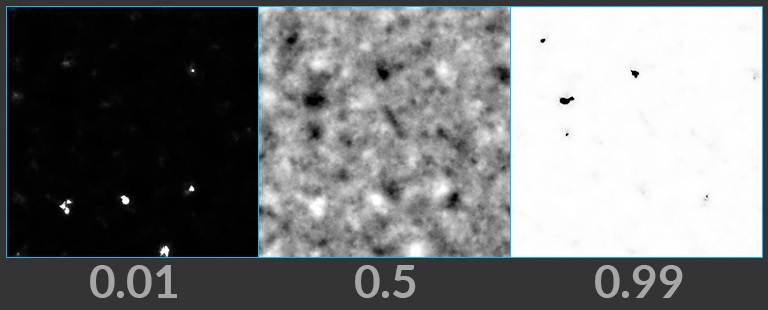

Bias

The amount to pull the medium grey values (around 0.5) towards zero (if Bias is less than 1) or one (if Bias is greater than 1). A bias value of 0.5 doesn’t affect the values.

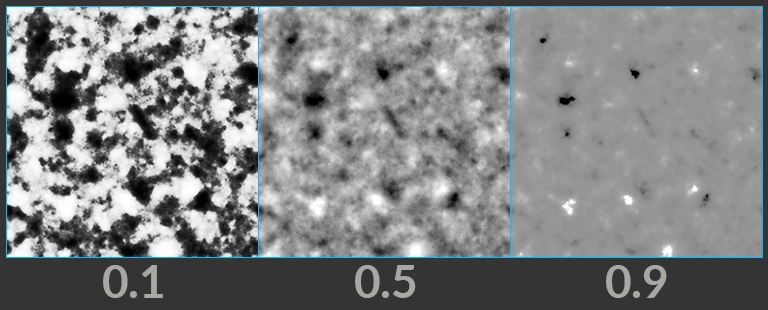

Gain

The amount to pull the medium grey values (around 0.5) together, while values around 0 and 1 are pulled apart. A gain value of 0.5 doesn’t affect the noise values.

Gamma

The overall gamma of the generated noise. Values greater than 1 increase the range of values in originally bright areas, which darkens the noise. Values less than 1 stretch out the range of values for originally dark areas, which increases the overall brightness of the noise.

Contrast

The amount to expand or shrink the overall range of tonal values. Each noise value is pushed towards (if Contrast is less than 1) or away from (if Contrast is greater than 1) medium grey values (around 0.5).

Note

This is not the same as Noise Contrast, which appears in some noise nodes and applies contrast during the noise function.

Clamp Minimum

Clamps values below the specified threshold.

Clamp Maximum

Clamps values exceeding the specified threshold.

Inputs ¶

size_ref

A representative layer that determines the size of the output image and controls the metadata.

pos

An optional layer or VDB to use for the position of each pixel at which to evaluate the noise.

Outputs ¶

noise

The computed noise layer or VDB.
